Synergy Audio

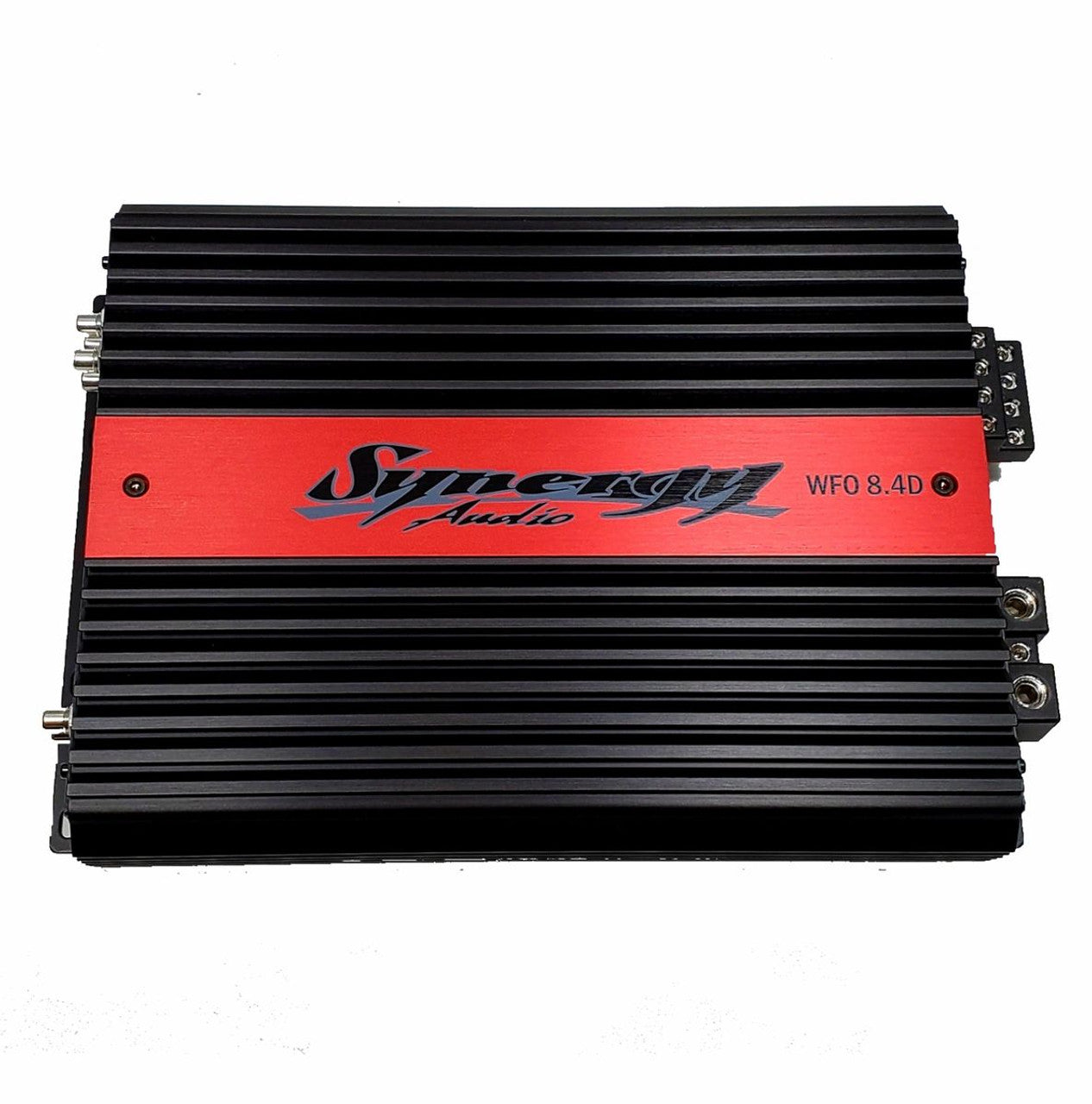

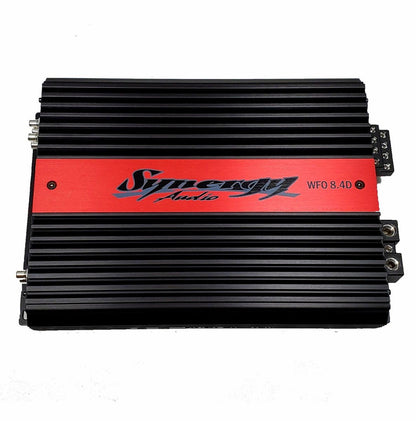

Synergy Audio WFO8.4D 4-Channel Amplifier
Synergy Audio WFO8.4D 4-Channel Amplifier
Regular price
$459.99
Regular price
$499.99
Sale price
$459.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Synergy Mobile Audio WFO 8.4D, 4 Channel Amplifier
WFO 8.4D Specs:
- Power @ 4 Ohm: 200w x 4 @ 14.4v
- Power @ 2 Ohm: 320w x 4 @ 14.4v
- Power @ 4 Ohm Bridged: 630w x 2 @ 14.4v
- Frequency Response: 10hz – 35khz
- Signal to Noise Ratio: >100db
- Subsonic Filter: 10Hz - 500Hz
- Channels 1/2 – 10hz – 500hz
- Channels 3/4 – 10hz – 500hz
- Low Pass Filter: (x1, x10)
- Channels 1/2 – 50(500)Hz – 800(8K)Hz
- Channels 3/4 – 50(500)Hz – 800(8K)Hz
- High Pass Filter: (x1, x10)
- Channels 1/2 – 20(200)Hz – 800(8K)Hz
- Channels 3/4 – 20(200k)hz – 800(8k)hz
- Bandpass Capable
- Operating Voltage: DC 8V-16V
- Input sensitivity 8V – 0.2V
- THD @ 4ohm: < 0.1%
- Fuse Rating: 250A

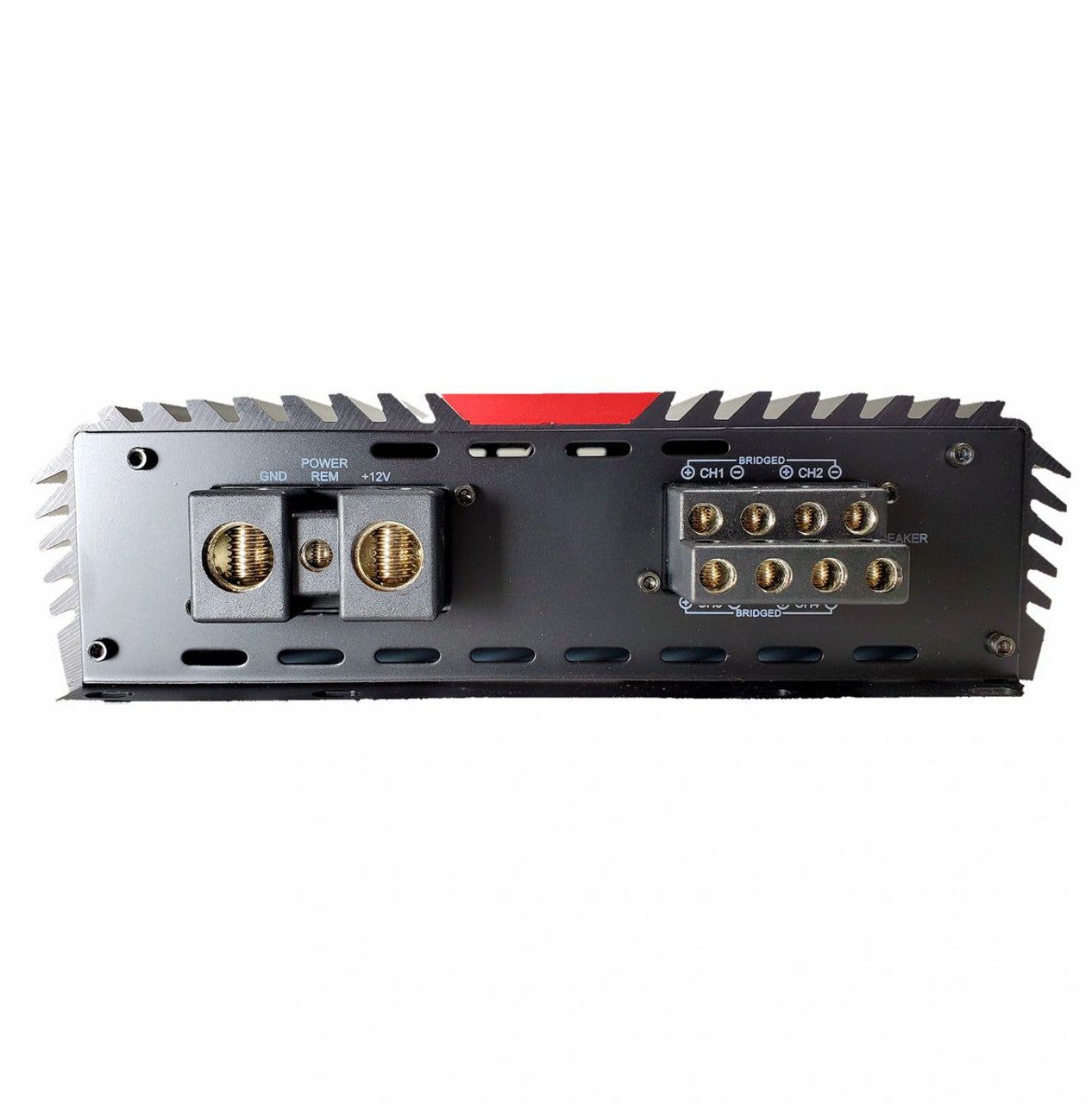

- 0 gauge power and ground inputs
- 8 gauge speaker inputs
- Dimensions: 300mm x 239mm x 68.5mm
All WFO series amplifier feature:
- Custom high mass, thermally optimized aluminum heat sink casing with removable center insert for installation integration.
- Overbuilt power supplies and output sections utilizing high grade components

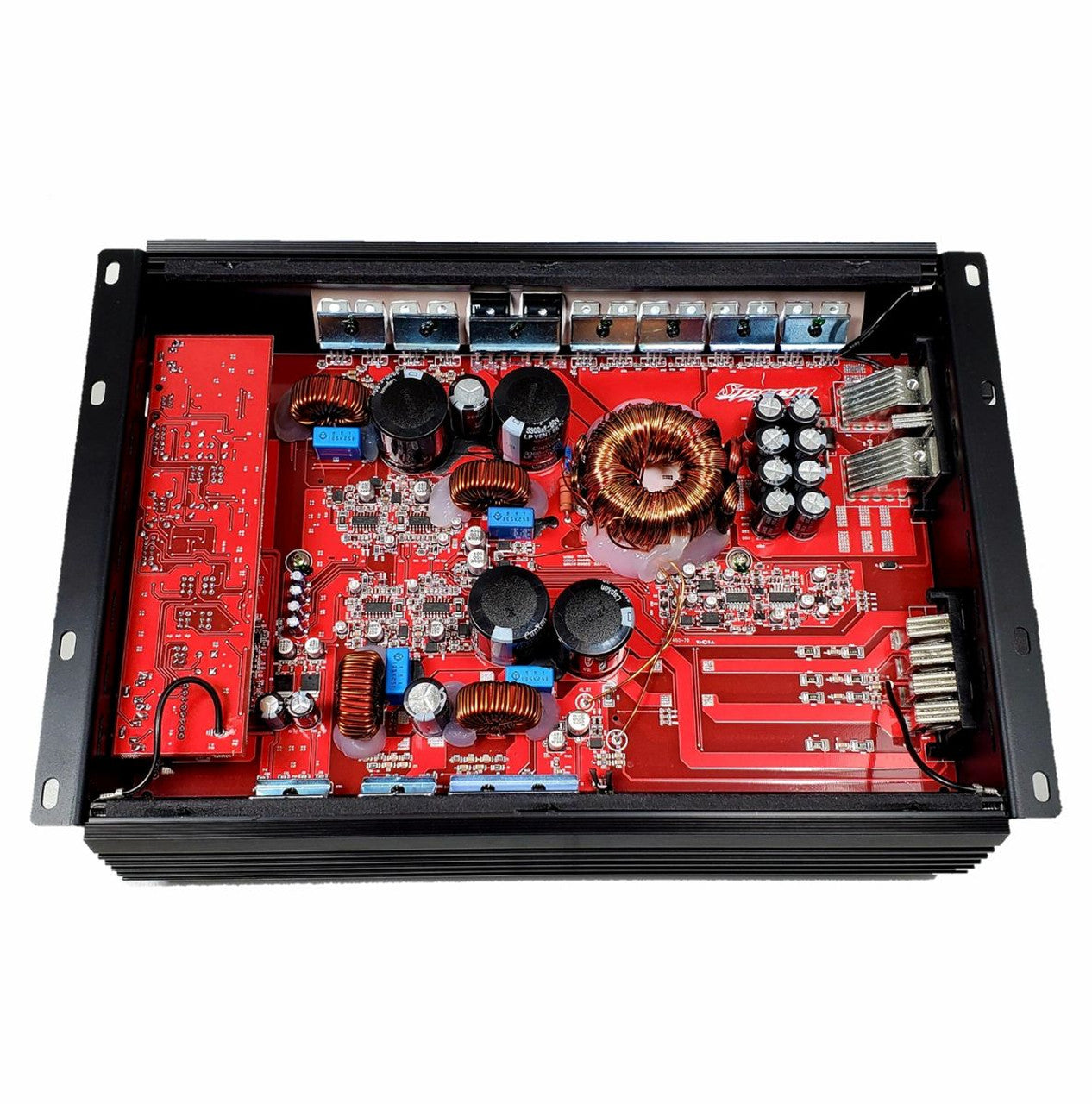

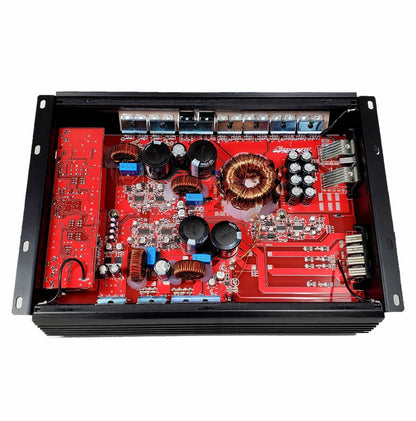

- Heavy duty double sided through hole PCB’s with thick solid copper heavy duty traces
- Panel locking Tiffany RCA inputs/outputs
- Single, Double and Triple 1/0 gauge nickel plated power and ground inputs
- Nickel plated 8 gauge speaker outputs
- Fully linkable/strappable (Mono-block)
- Input sensitivity 8V – 0.2V
- +18db Remote Gain control
- Multi-way fully intelligent circuitry for maximum protection
