Synergy Audio WFO8.1D 8,000 Watt Monoblock Amplifier

WFO 8.1D Specs:

• Power @ 1 Ohm: 8000w @ 12.6v
• Power @ 2 Ohm: 4875w @ 12.6v
• Power @ 4 Ohm: 2800w @ 12.6v
• Power @ 1 Ohm: 9500 @ 16v
• Frequency Response: 12hz – 250hz
• Signal to Noise Ratio: >100db
• Damping Factor: 300 >
• Input Sensitivity: 8V - 0.2V
• Variable Subsonic Filter: 10Hz - 50Hz
• Variable Low Pass Filter: 35Hz – 250Hz
• THD @ 4ohm: < 0.1%
• Fuse Rating: 700A
• Strapped Fuse Rating: 1400A
• Dimensions: 780mm L x 239mm W x 68.5mm H

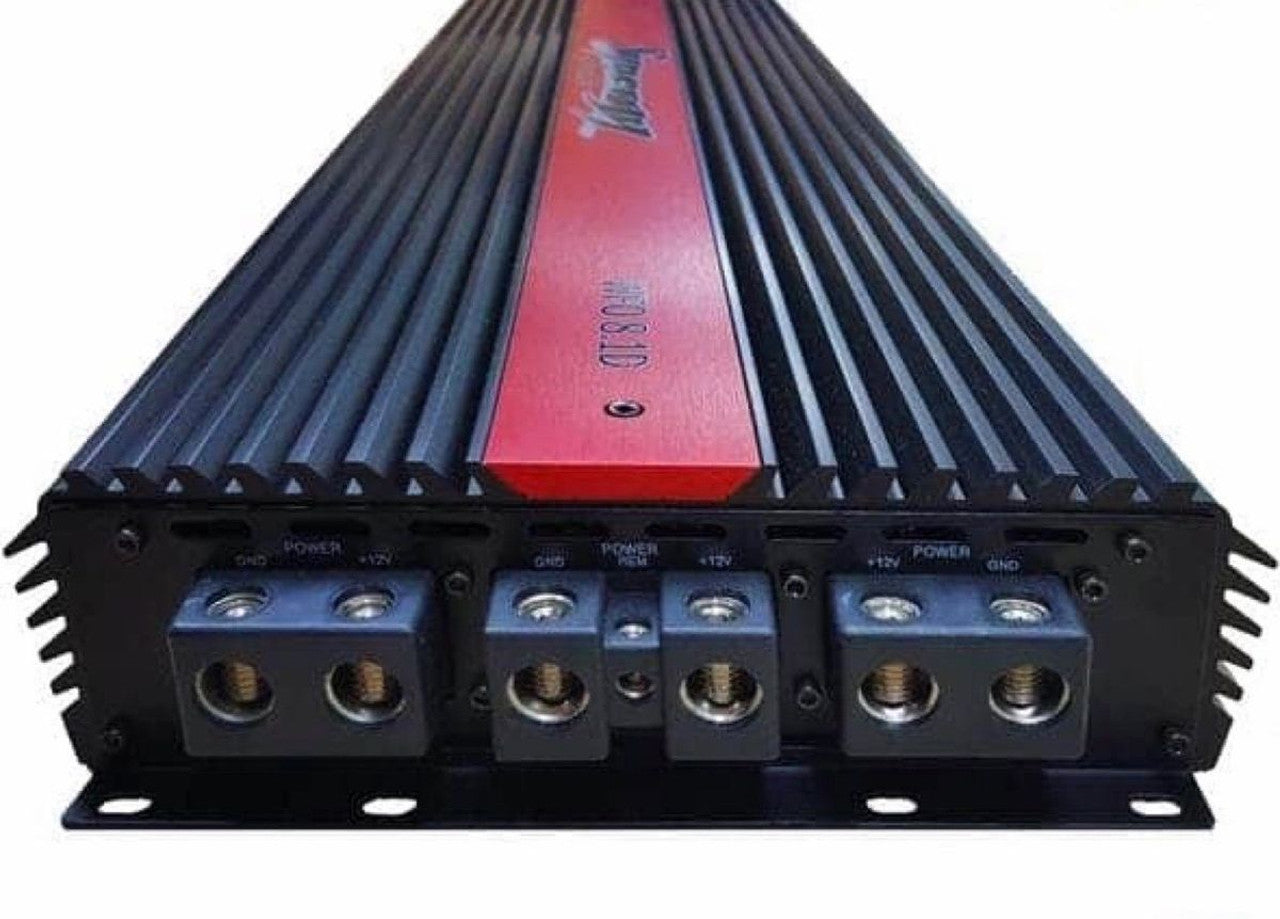

• (3) 0 GA Power & Ground Terminals
• (4) 8 gauge speaker inputs
• Panel locking Tiffany RCA inputs/outputs
• 16v Working Voltage
• 6 Power Transformers
• Heavy Duty 3oz printed circuit board

All WFO series amplifier feature:

• Custom high mass, thermally optimized aluminum heat sink casing with removable center insert for installation integration.
• Overbuilt power supplies and output sections utilizing high grade components
• Heavy duty double sided through hole PCB’s with thick solid copper heavy duty traces
• Panel locking Tiffany RCA inputs/outputs
• Single, Double and Triple 1/0 gauge nickel plated power and ground inputs
• Nickel plated 8 gauge speaker outputs
• Fully linkable/strappable (Mono-block)
• Input sensitivity 8V – 0.2V
• +18db Remote Gain control
• Multi-way fully intelligent circuitry for maximum protection
