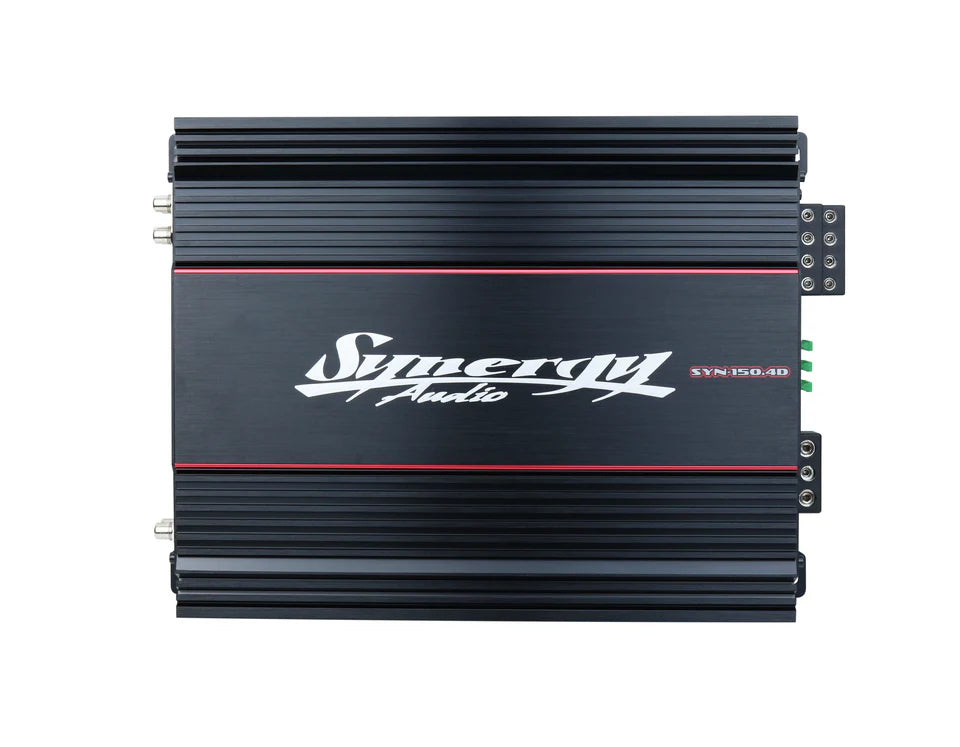

Synergy Audio SYN150.4 4-Channel Amplifier

Congratulations and thank you for exploring the SYN series Audio amplifiers, the logical choice in mobile audio amplification. Your amplifiers have been designed and engineered with the highest quality components and top of the line workmanship to help you reach the superior sound you are after.

Amplifier secs:

• RMS power @ 4 ohm 150 W X 4
• RMS power @ 2 ohm 230 W X 4
• RMS power @ 1 ohm
• RMS power @ 4 ohm mono - 450 W X 2
• Amplifier Type Class D
• Minimum load impedance 2 ohm stable
• Input Sensitivity 0.2 V - 6 V
• High Pass Filter x1:20Hz-800Hz; x10:200 Hz - 8K Hz
• Low Pass Filter x1:50Hz-800Hz; x10:500 Hz - 8K Hz
• Subsonic Filter 10 Hz - 50 Hz
• Bass Boost
• Frequency Response
• 10 Hz - 250 Hz
• Signal to Noise Ratio 85 dB
• THD@4ohm <0.1%
• Damping Factor >200
• Working voltage 9 V - 16 V
• Fuse Rating 80A
• Dimensions ( inches ) 11.65 L x 9.45 W x 2.44 H inches
