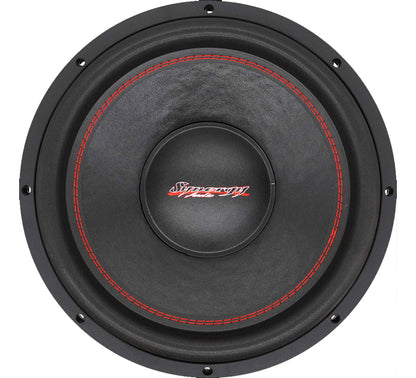

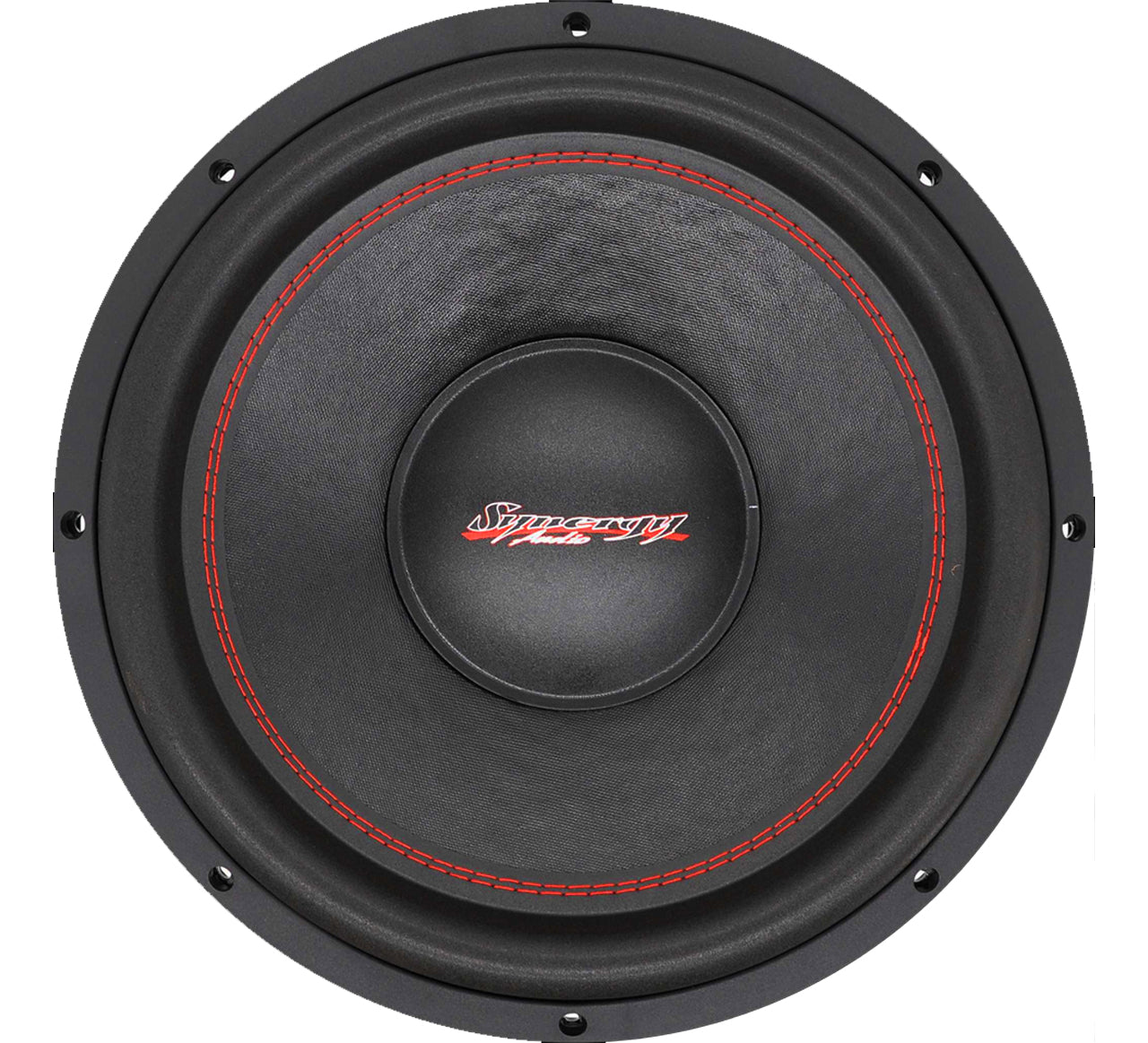

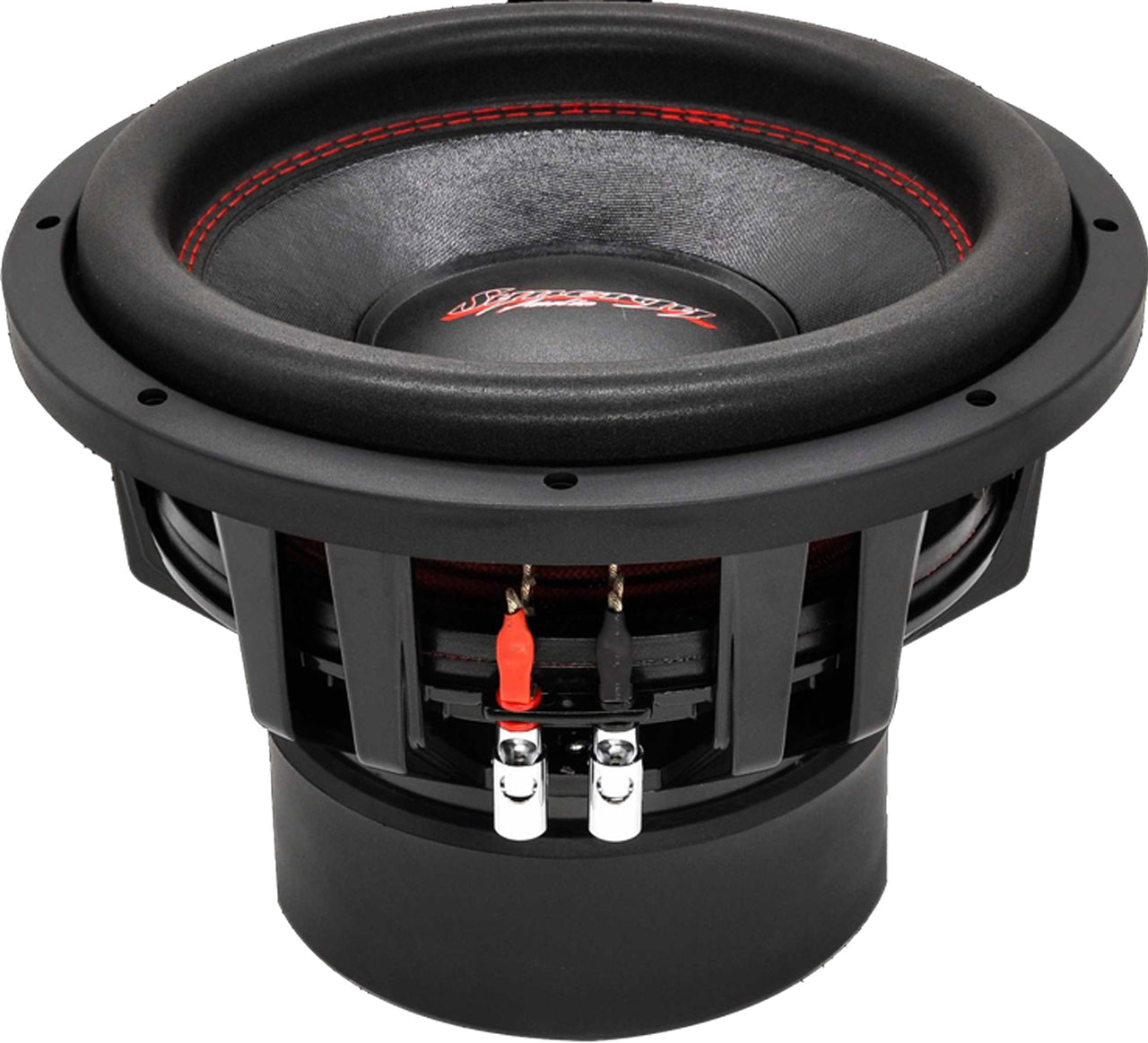

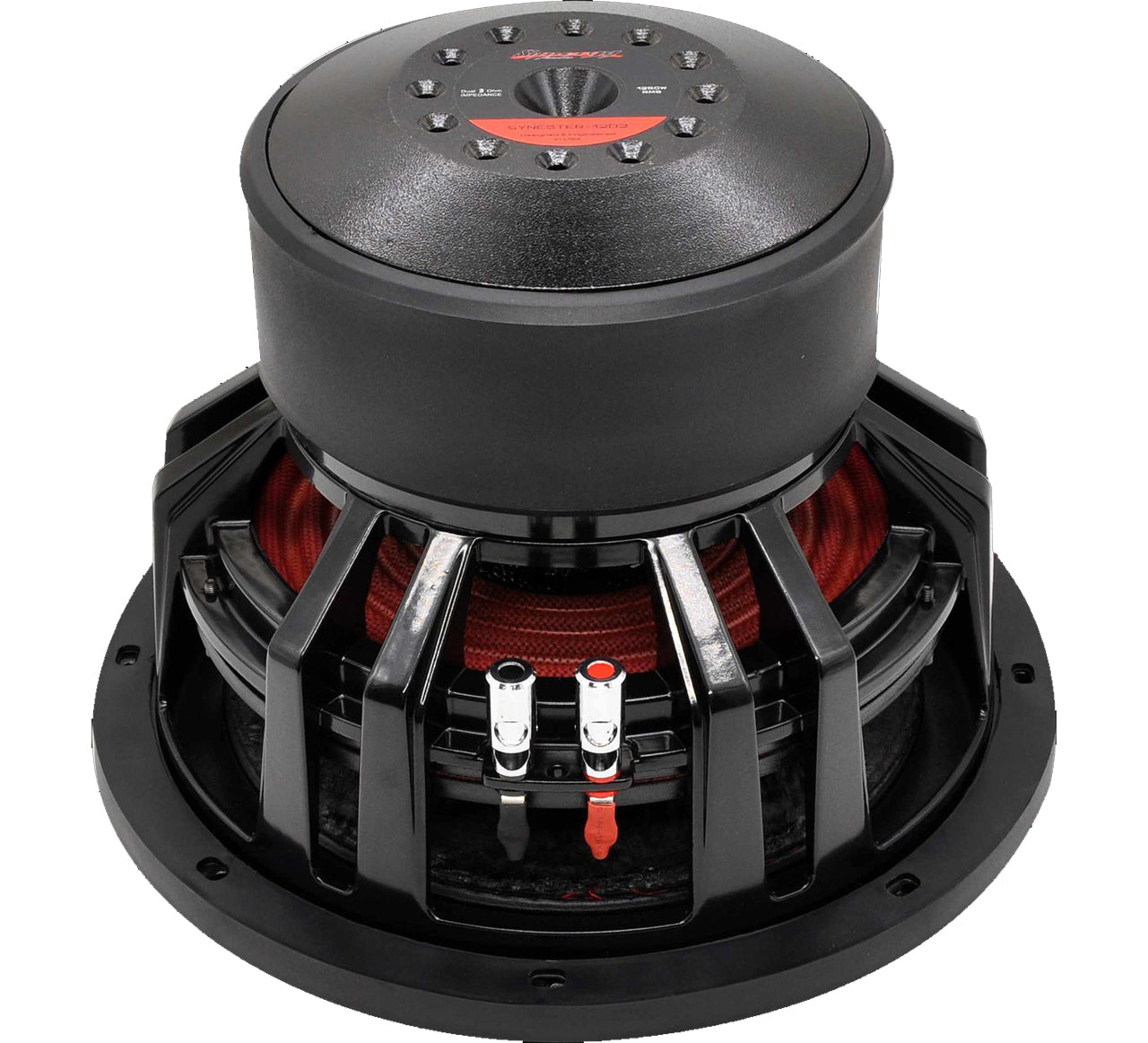

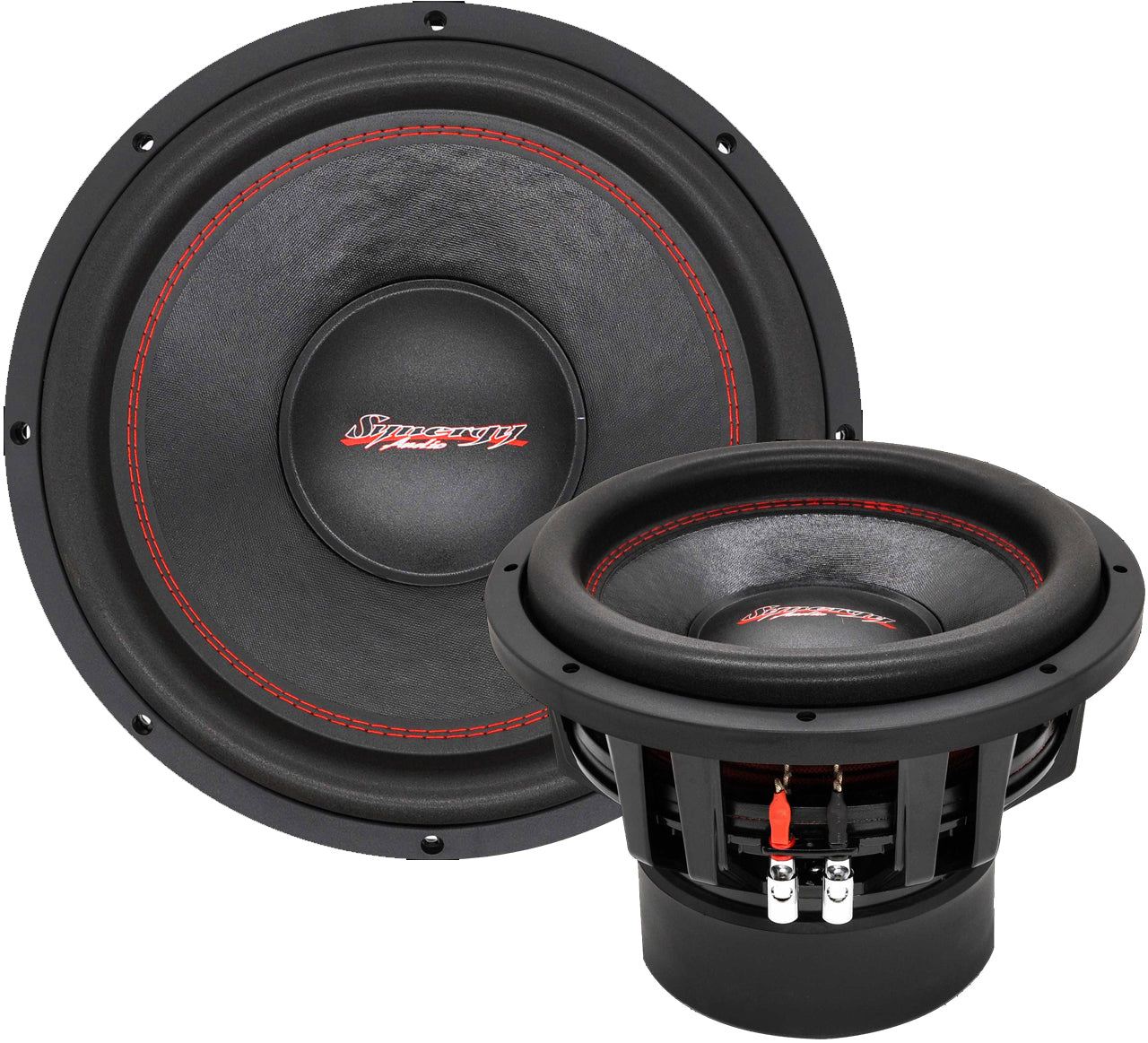

Synergy Audio SYN Series 12" Subwoofer

Synergy Audio is proud to bring you our new Synester Series 1250 rms subwoofer. Starting with a triple 190mm diameter Y35 strontium ferrite magnet slugs, bolted between a 20mm thick low carbon steel top plate washer and a one piece bumped bottom plate T-Yoke with an extended pole. A pole chamfer at the top and a flared vent along with 12 magnetic gap vents on the bottom plate create maximum cooling. We utilized a high temperature 4 layer 3″ voice coil, black aluminum former wound with high temp aluminum wire for high power handling. We utilized a non pressed pulp paper cone with red double stitching, a high roll foam surround and dual red 10″ nomex spiders with stitched tinsel leads to assure a strong, accurate loud daily subwoofer. We tooled a 6 spoke heavy duty cast aluminum frame finished in gloss black finish to assure an accurate, reliable and mechanically stable musical platform all the while looking great and sounding SYNESTER.

Specifications: 12D2

• Re = 4.00 ohm
• Fs = 38.571Hz
• Sd = 530.930 cm
• Bl = 24.337Tm
• Qms = 6.645
• Qes = 0.605
• Qts = 0.554
• SPL = 88.3dB
• Vas = 29.224L
• Cms = 73.010m mm/N
• Mms = 268.430g
• Voice Coil = 3.00″
• RMS Power = 1250 watts
• Suggested Ported = 2.0 – 3.0ft^3
• Cutout Diameter: 11.5625"
• Mounting Diameter: 12.875"

Specifications: 12D4:

• Re = 6.40 ohm
• Fs = 39.571Hz
• Sd = 530.930 cm
• Bl = 24.496Tm
• Qms = 7.805
• Qes = 0.756
• Qts = 0.689
• SPL = 88.3dB
• Vas = 22.714L
• Cms = 56.744m mm/N
• Mms = 285.119g
• Voice Coil = 3.00″
• RMS Power = 1250 watts
• Suggested Ported = 2.0 – 3.0ft^3
• Cutout Diameter: 11.5625"
• Mounting Diameter: 12.875"
