Sundown

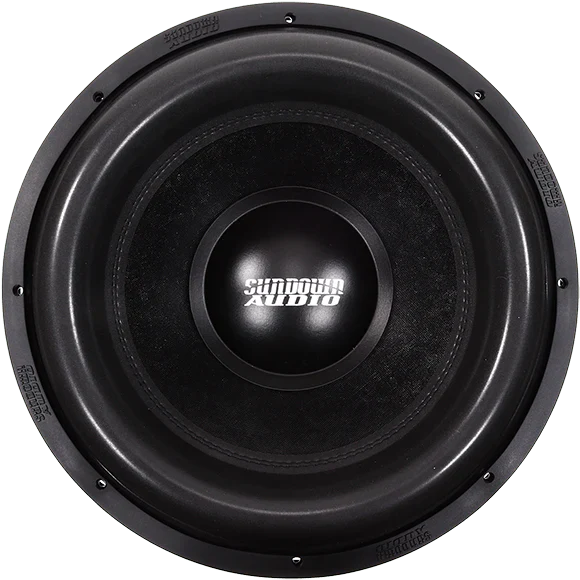

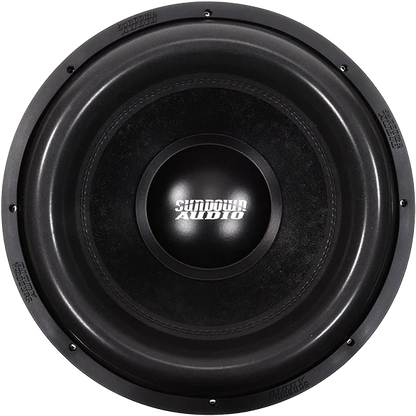

Sundown Xv3 15" Subwoofer

Sundown Xv3 15" Subwoofer

Regular price $699.99
Regular price $729.99 Sale price $699.99
Sale Sold out
Shipping calculated at checkout.
Coil Configuration

The X v.3 series is the entry into the Sundown Audio “ultra-high excursion” suspension and frame designs. They all feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841).

We mate these new platforms to a triple stacked 225mm (8.86”) diameter motor structure featuring a hyper-extended pole and extreme clearances (allowing up to 4″ p-p travel before mechanical bottom). This motor drives a 3″ diameter 4-layer flat aluminum coil wound on a thick aluminum former to incredible levels of excursion. This is the same coil design utilized in the NS v.3 and Z v.5 series in the past. It is a proven coil with monstrous power handling potential. The combination of coil and updated motor for the X v.3 series brings its performance in terms of motor force to about 85% of the level of the previous generation Z v.5 series! So this makes the X v.3 an incredible value.

The X v.3 series was designed from the ground-up to become the new standard in the low-frequency / small ported box subwoofer category in this price range. They will work in the same small enclosures that you are used to using for Sundown Audio subwoofers, although, the will tolerate enclosures up to about 50% larger than those if you desire even more low-end extension.

The X v.3 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion.

SPECIFICATIONS

T/S SPECS X V.3 15″ D1 X V.3 15″ D2
RE (Ohms) 1.4 3.2
FS (Hz) 31.418 31.423
VAS (L) 45.907 45.924
Qes 0.486 0.561
Qms 2.562 2.801
Qts 0.409 0.468
Le (mH)
BL (NA) 15.518 21.831
Mms (Grams) 423.721 423.436
Cms (uM/N) 60.563 60.585
Sens (dB @ 1w/1m) 86.5dB

85.9dB

ENCLOSURE SPECIFICATIONS

X v.3 15
Sealed Enclosure N/A
Ported Enclosure 4.25 cu ft
Recommended Tuning 32hz
Recommended Port Area 68 sq in
Displacement 0.22 cu ft
Depth 11.6"
Outside Diam. 15.51"
Cutout 13.83"
Physical Dimensions Download
