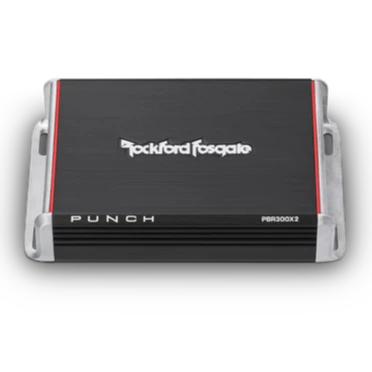

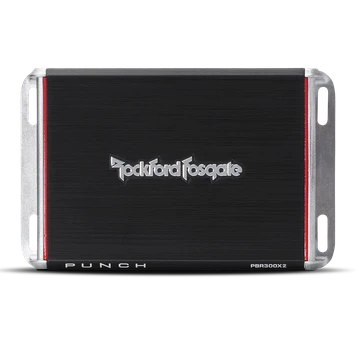

Rockford Fosgate Punch PBR300X2 2-Channel Amplifier
Rockford Fosgate Punch PBR300X2 2-Channel Amplifier
Regular price
$249.99
Regular price
$289.99
Sale price
$249.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Punch PBR300X2 uses our patented BRT (Boosted Rail Technology) for an ultra efficient design that does not use a switching power supply to generate its rated power. This allows the chassis design to be much smaller than traditional sized amplifiers. The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system.
See our Element Ready™ amplifiers designed specifically for Motorsports and Motorcycle applications.
FEATURES AT A GLANCE
- Ultra compact chassis
- Variable 4-6 volt hi level DC offset voltage input turn-on control
- High level inputs
- MOSFET output stage
- 12dB/octave Butterworth crossover
- 1 Year Warranty
Cta-2006 Compliant
Number of Channels
2
Total Power
(Sum of Rated Power)
(Sum of Rated Power)
300 Watts
Rated Power
(RMS Continuous Power)
(RMS Continuous Power)
100 Watts x 2 @ 4-Ohm
150 Watts x 2 @ 2-Ohm
300 Watts x 1 @ 4-Ohm Bridged
150 Watts x 2 @ 2-Ohm
300 Watts x 1 @ 4-Ohm Bridged
Dynamic Power
(PVC/PowerCube®)
(PVC/PowerCube®)
114 Watts x 2 @ 4-Ohm
160 Watts x 2 @ 2-Ohm
387 Watts x 1 @ 4-Ohm Bridged
160 Watts x 2 @ 2-Ohm
387 Watts x 1 @ 4-Ohm Bridged
Bridgeable
Yes
Frequency Response
20Hz - 20kHz +/-3dB
Input Sensitivity
150 mV - 11 V
Circuit Topology Class
Class BR
Efficiency (average)
68% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
2-Ohm: <1.0%
Signal Input
High/Low Level Input: 4-Pin harness
Hi-Level Sensitivity: Variable DC offset sensitivity
Hi-Level Sensitivity: Variable DC offset sensitivity
Signal Output
-
Tone Controls
Optional Remote Punch EQ
Crossover Controls
High-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth
Low-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Low-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth
All-Pass: Yes
Remote Controls
Optional PEQ provides 0dB to +18dB @ 45Hz
Visual Indicators
Power/Protect, BRT (Boost)
Power Wire Gauge
10 AWG
Power Input Connector
Detachable Compression Terminal
Speaker Wire Gauge
16 AWG
Speaker Output Connector
4-Pin Harness
Cooling
Convection
Heatsink
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
(not included)
50 A
Average Current Draw (13.8V Music)
23 A
Max. Current Draw (13.8V Sinewave)
45 A
Suggested Alternator
75 A
Included In The Box
Dimensions (H x W x D)
1.53 x 4.25 x 6.75 (in.)
3.90 x 10.8 x 17.2 (cm)
3.90 x 10.8 x 17.2 (cm)
Shipping Weight
2.8 Lbs. (1.27 Kg.)
