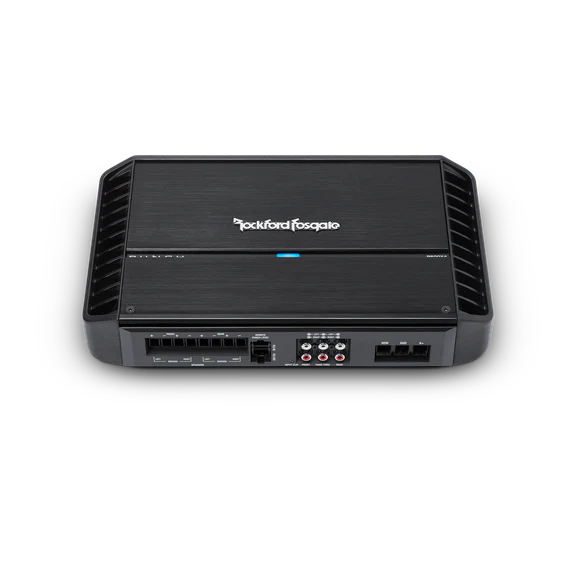

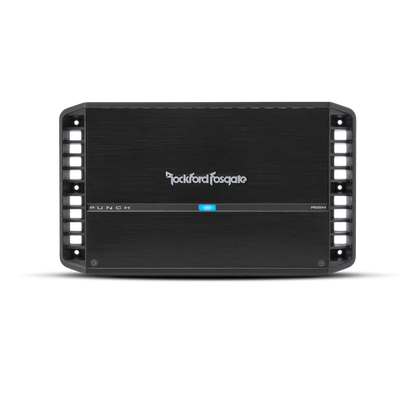

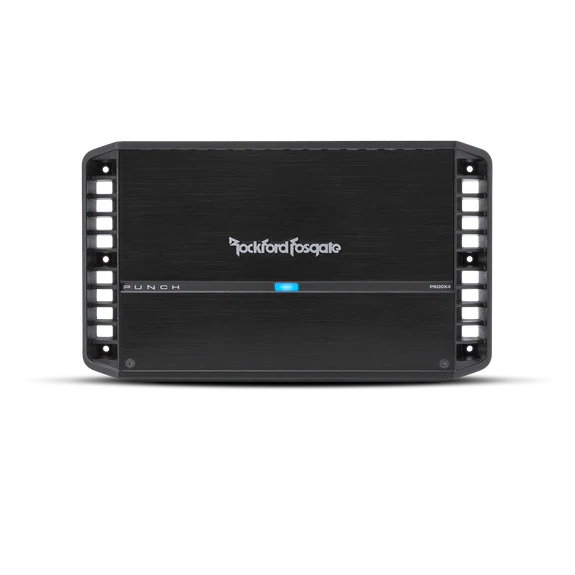

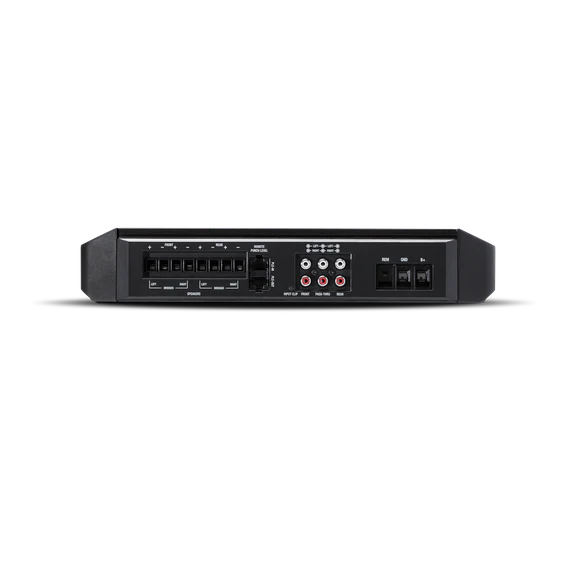

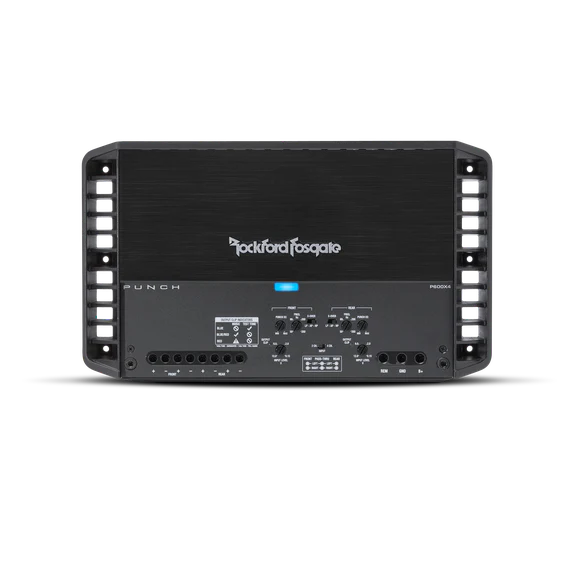

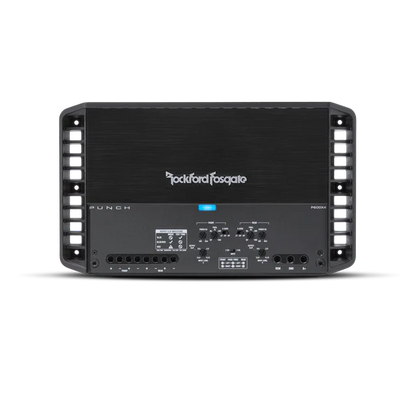

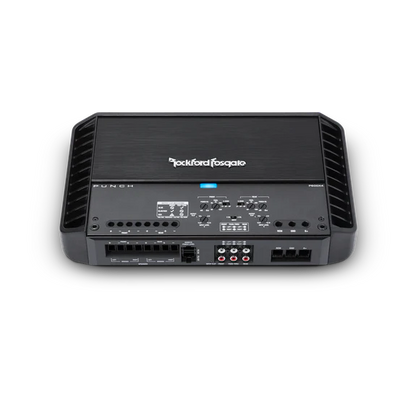

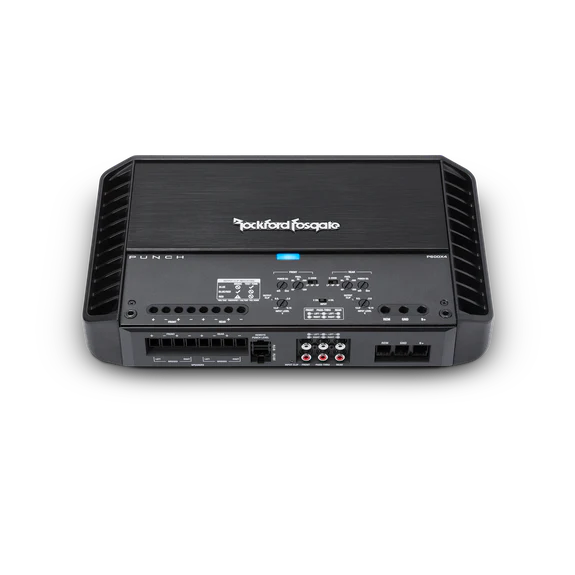

Rockford Fosgate Punch P600X4 4-Channel Amplifier

Rockford Fosgate Punch P600X4 4-Channel Amplifier

$459.99
$499.99 $459.99
Sale Sold out
Shipping calculated at checkout.

The Punch P600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.



FEATURES AT A GLANCE

  • 12dB/octave Butterworth crossover
  • Features C.L.E.A.N. Set-up
  • High level input capable with Auto Turn-On circuit
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • RCA pass-thru outputs
  • Short circuit protection
  • Over current protection
  • Cast aluminum heatsink
  • Muted turn on
  • Stealth top mounted control panel
  • 1 Year Warranty
Cta-2006 Compliant

Number of Channels
4
Total Power
(Sum of Rated Power)
600 Watts
Rated Power
(RMS Continuous Power)
75 Watts x 4 @ 4-Ohm
150 Watts x 4 @ 2-Ohm
300 Watts x 2 @ 4-Ohm Bridged
Dynamic Power
(PVC/PowerCube®)
129 Watts x 4 @ 4-Ohms 0° Res
211 Watts x 4 @ 2-Ohms 0° Res
Bridgeable
Yes
Frequency Response
20Hz to 20kHz +/- 1.0dB
Input Sensitivity
150 mV - 12 V
Circuit Topology Class
Class A/B
Efficiency (average)
68% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
Signal Input
Hi/Low level: 2 RCA pair
Signal Output
Low level: 1 RCA pair
Tone Controls
Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Function depends upon LP/AP/HP switch position
Crossover Controls
Front/Rear High-Pass (HP): 50Hz-250Hz @ 12dB/octave Butterworth
Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth
All-Pass: Yes
Remote Controls
Optional Punch Level Control (PLC2) Ready
Visual Indicators
Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge
4 AWG
Power Input Connector
Captive C-Clamp
Speaker Wire Gauge
8 AWG to 18 AWG
Speaker Output Connector
Captive C-Clamp
Cooling
Convection
Heatsink

Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
100 A
Average Current Draw (13.8V Music)
45 A
Max. Current Draw (13.8V Sinewave)
90 A
Suggested Alternator
75 A
Included In The Box

Dimensions (H x W x D)
2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)
Shipping Weight
12.8 Lbs. (5.80 Kg.)
