Rockford Fosgate

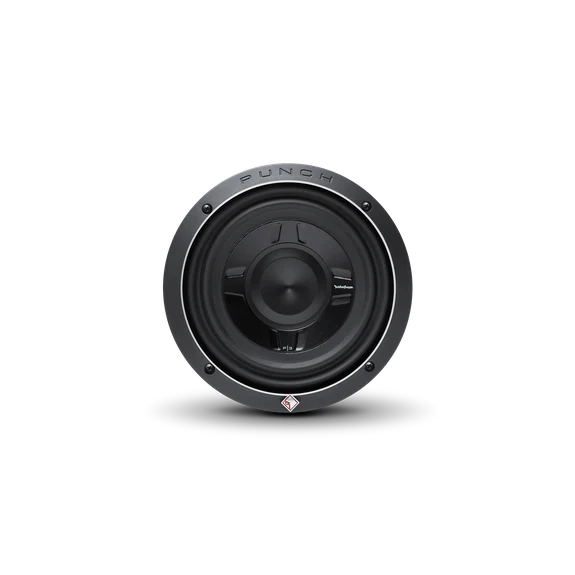

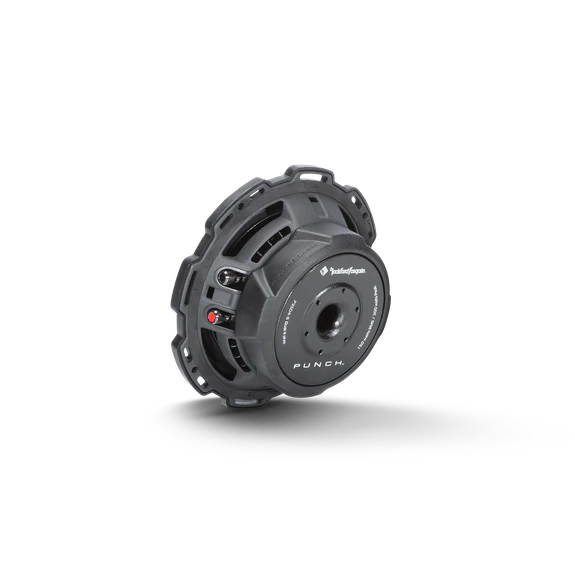

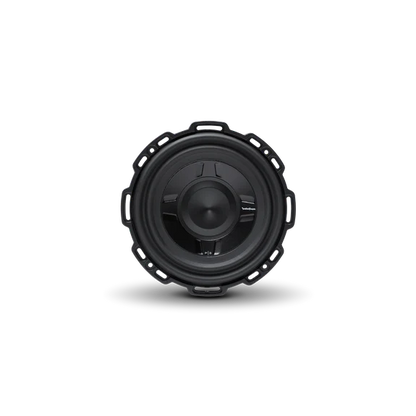

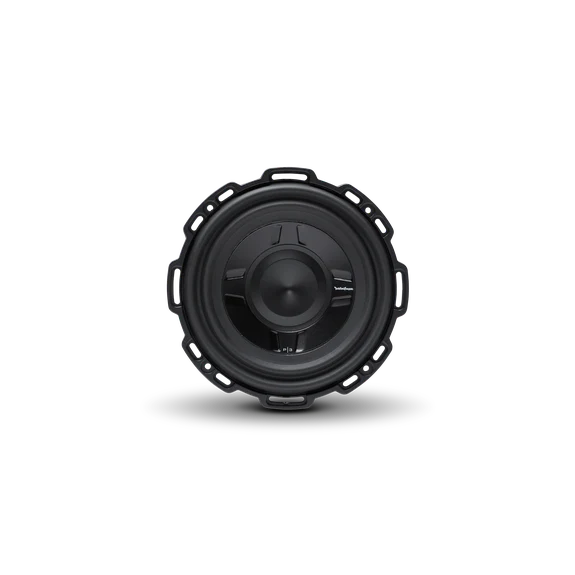

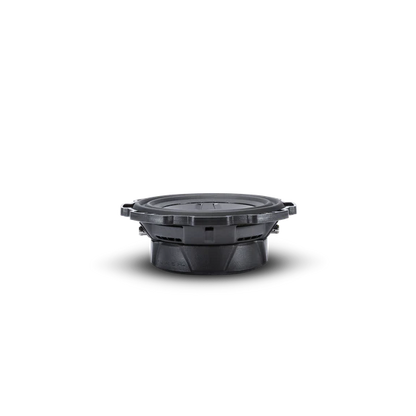

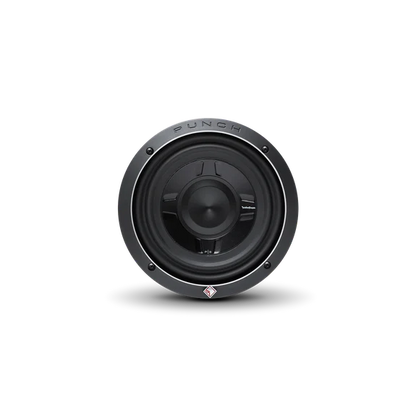

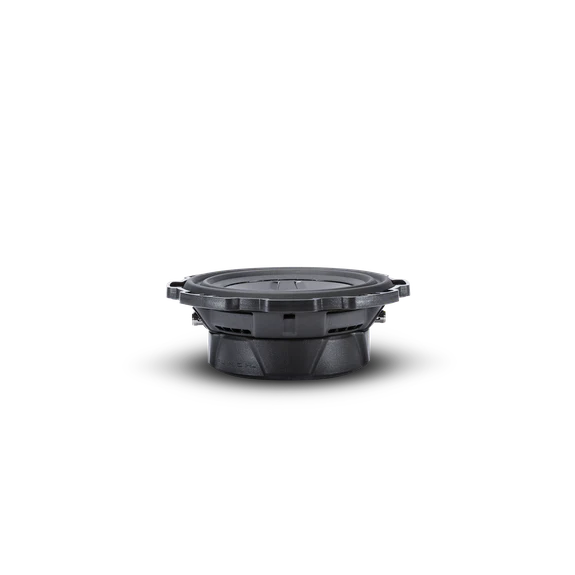

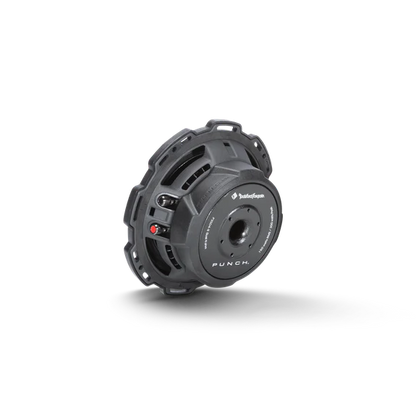

Rockford Fosgate Punch P3S Series 8" Shallow Mount Subwoofer

$169.99

~~$179.99~~ $169.99

Sale Sold out

Shipping calculated at checkout.

Coil Configuration Dual 2 Ohm Dual 4 Ohm

Quantity

The Rockford Fosgate P3S 8" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

FEATURES AT A GLANCE

Diamond cut cast aluminum trim ring with optional grille
Dual linear spider with embedded 16 AWG tinsel leads
M-Roll Santoprene™ surround
Shallow Motor Assembly
StampCast basket with integrated spider venting
Anodized aluminum cone and dust cap
Optimized for both sealed and vented enclosures
1 Year Warranty

Power Handling (Watts RMS)

150 Watts RMS
300 Watts Max

Size

Nominal Impedance

Dual 4-Ohm

Magnet Weight (oz)

37.5 oz. (1.06 Kg)

Voice Coil Diameter

2" (51.6 mm)

SPL (dB @ 1w/1m)

CEA-2031 Compliant

Cutout Diameter

7.13 in. (181.0 mm)

Qes

1.05

Vas (Liters)

15.8

Mounting Depth

2.66 in. (67.5 mm)

Speaker Connector

Dual 10 AWG Compression

Shipping Weight

8.8 Lbs. (3.99 Kg.)

Fs (Hz)

Qts

0.87

Qms

Xmax (mm)

8.5

Woofer Displacement

0.040 cu. ft. (1.13 Liters)

Re (Ohms)

6.0

Le (mH)

1.46

Sd (cm²)

220

Subwoofer Type

Shallow

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

0.25 cu. ft. (7.0 Liters)

Vented Box Volume (Vb)

0.75 cu. ft. (21.2 Liters)

Magnet Weight (kg) NOT USED

1.06 oz. (37.5 kg.)
