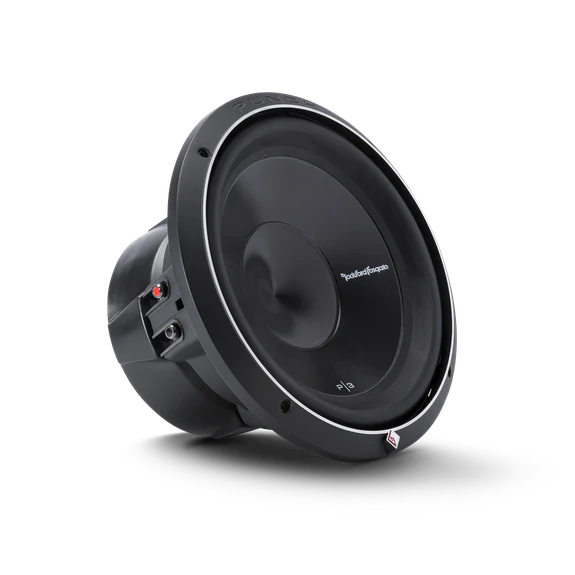

Rockford Fosgate Punch P3 Series 12" Subwoofer

Rockford Fosgate Punch P3 Series 12" Subwoofer

$219.99
$249.99 $219.99
Sale Sold out
Shipping calculated at checkout.
Coil Configuration

The P3-12 is Rockford Fosgate's best performing Punch series subwoofer for cars and trucks. The P3 12 inch subwoofers now feature anodized aluminum cones and dust caps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme car and truck installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

Looking for more options? Check out all of our subwoofers.



FEATURES AT A GLANCE

  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Custom 10-AWG nickel plated push terminals
  • Anodized aluminum cone and dustcap
  • Extended pole piece and bumped vented backplate
  • StampCast basket with integrated spider venting
  • Diamond cut cast aluminum trim ring with optional grille
  • Protective PVC textured magnet cover
  • 1 Year Warranty
Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max
Shipping Weight
20.9 Lbs. (9.48 kg)
Speaker Connector
Dual 10 AWG compression
Magnet Weight (oz)
96 oz. (2.73 kg.)
Size
12"
Nominal Impedance
Dual 2-Ohm
Mounting Depth
6.66 in. (169.3 mm)
Voice Coil Diameter
2.5" (65.5 mm)
Woofer Displacement
0.106 cu. ft. (3.0 Liters)
Re (Ohms)
3.20
SPL (dB @ 1w/1m)
85
Fs (Hz)
26.5
Qts
0.49
Qes
0.53
Qms
6.70
Cutout Diameter
11.25 in. (285 mm)
CEA-2031 Compliant
CEA-2031 Guidelines
Le (mH)
4.25
Vas (Liters)
57.7
Xmax (mm)
15.2
Sd (cm2)
570
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb)
1.79 cu. ft. (50.6 Liters)

Speaker Connector
Dual 10 AWG compression
Nominal Impedance
Dual 4-Ohm
Size
12"
Shipping Weight
20.9 Lbs. (9.48 kg)
SPL (dB @ 1w/1m)
85
CEA-2031 Compliant
CEA-2031 Guidelines
Fs (Hz)
27.7
Cutout Diameter
11.25 in. (285 mm)
Le (mH)
6.94
Qes
0.57
Qms
5.60
Xmax (mm)
15.9
Xmax (mm)
15.9
Magnet Weight (oz)
96 oz. (2.73 kg.)
Voice Coil Diameter
2.5" (65.5 mm)
Qts
0.52
Vas (Liters)
57.7
Mounting Depth
6.66 in. (169.3 mm)
Re (Ohms)
6.40
Woofer Displacement
0.106 cu. ft. (3.0 Liters)
Sd (cm2)
570
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb)
1.79 cu. ft. (50.6 Liters)
