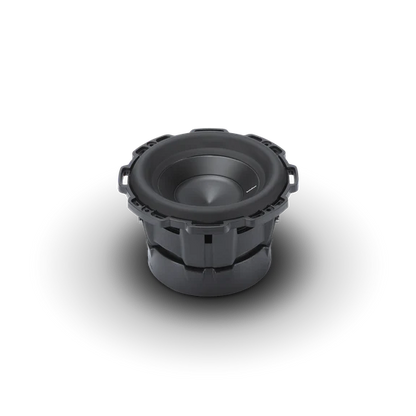

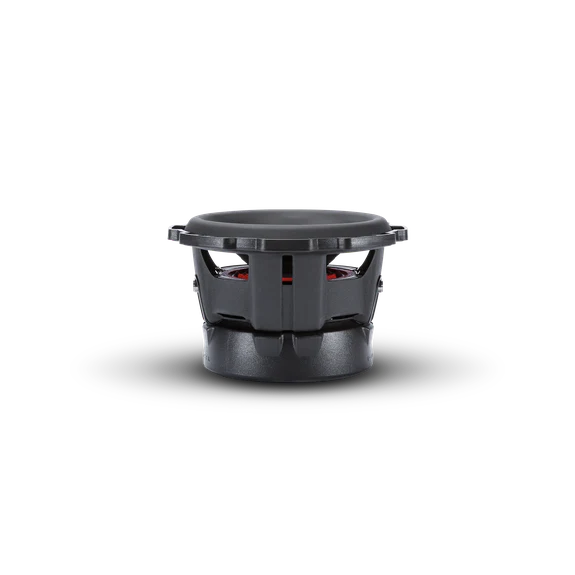

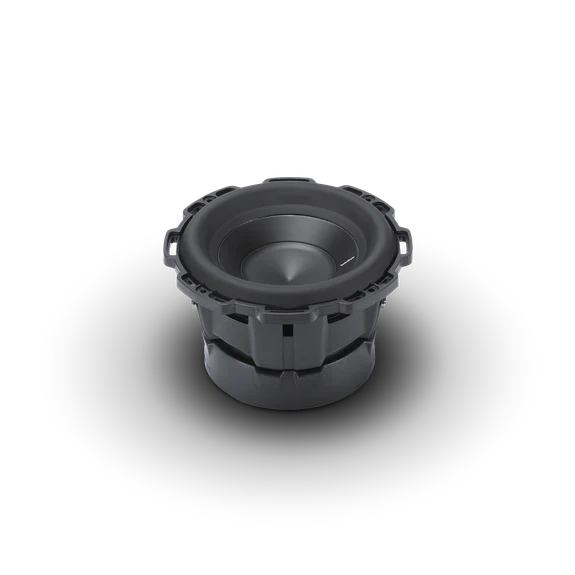

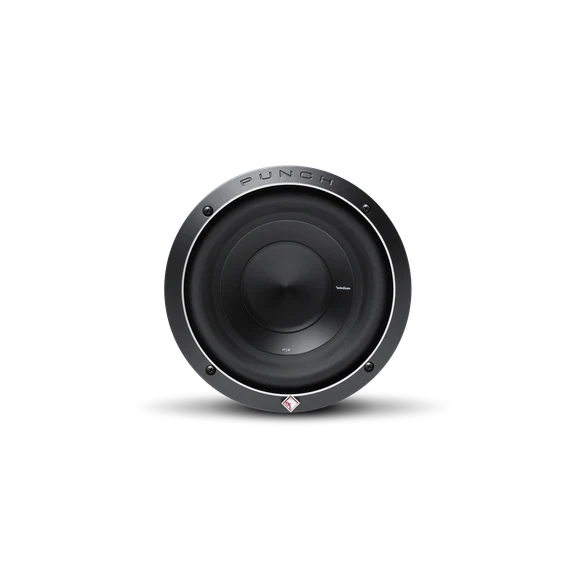

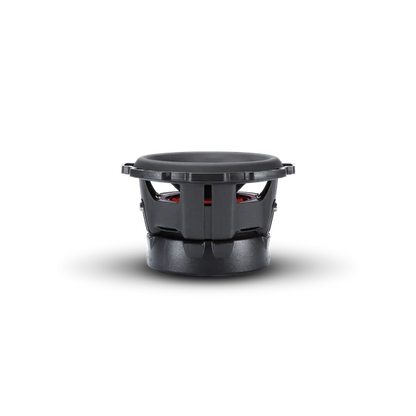

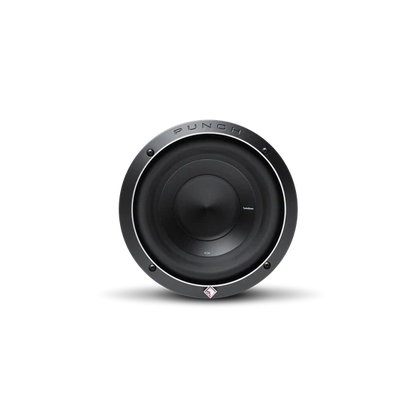

Rockford Fosgate Punch P2 Series 8" Subwoofer

Rockford Fosgate has always been known as "The PUNCH" and the P2 8" subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.

FEATURES AT A GLANCE

• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Protective PVC textured magnet cover

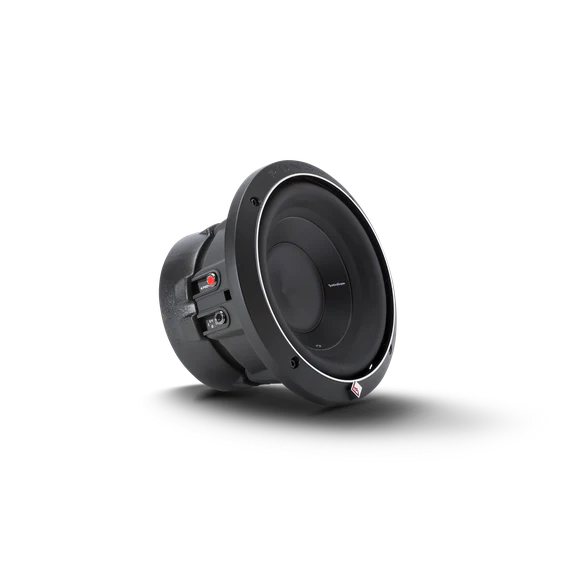

• Diamond cut cast aluminum trim ring with optional grille

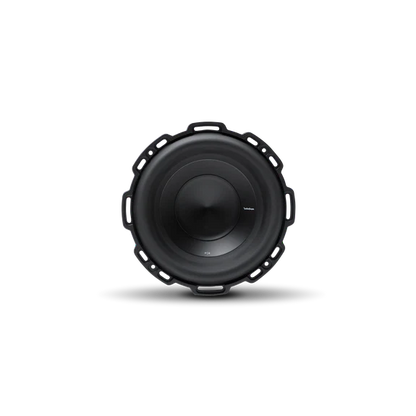

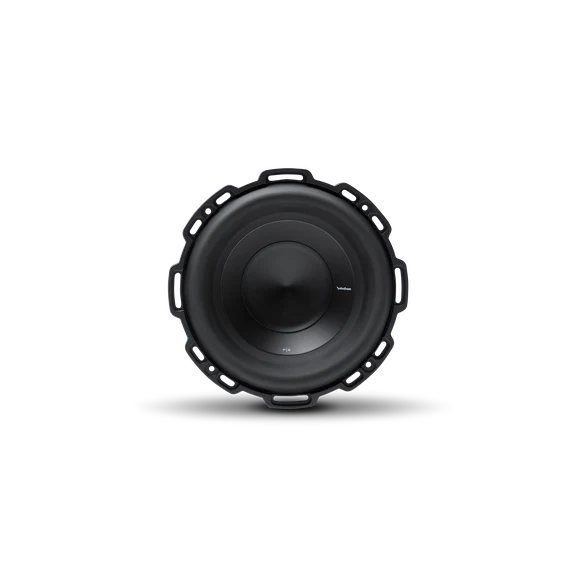

• Kevlar fiber reinforced paper cone
• Custom 10-AWG nickel plated push terminals
• StampCast basket with integrated spider venting

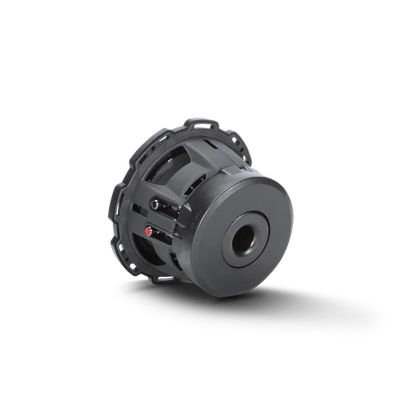

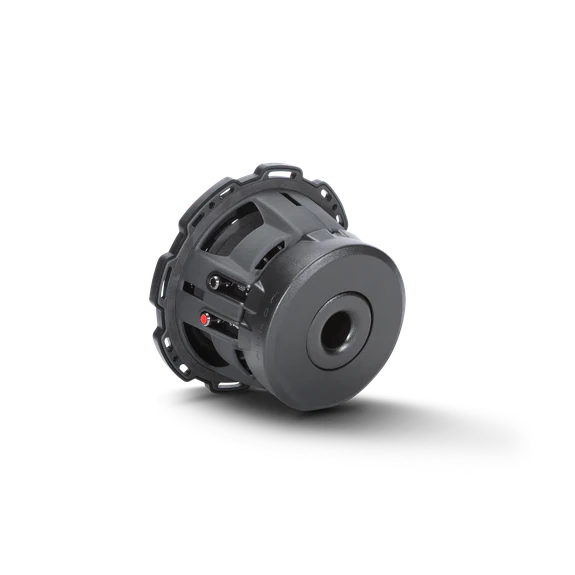

• Extended pole piece and bumped vented backplate
• Dual linear spider with embedded 16 AWG tinsel leads
• 1 Year Warranty

Qes

0.51

Vas (Liters)

9.9

Re (Ohms)

3.40

Cutout Diameter

7.13 in. (181 mm)

Power Handling (Watts RMS)

250 Watts RMS
500 Watts Max

Le (mH)

2.9

Magnet Weight (oz)

49 oz. (1.38 kg.)

CEA-2031 Compliant

Sd (cm²)

221

Subwoofer Type

Standard

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

0.23 cu. ft. (6.5 Liters)

Vented Box Volume (Vb)

0.65 cu. ft. (18.4 Liters)

Magnet Weight (oz)

49 oz. (1.38 kg.)

Mounting Depth

4.76 in. (120.8 mm)

Power Handling (Watts RMS)

250 Watts RMS
500 Watts Max

Size

8"

Nominal Impedance

Dual 4-Ohm

Speaker Connector

Dual 10 AWG compression

Shipping Weight

10.763 Lbs. (4.88 kg.)

Voice Coil Diameter

2.25" (57.7 mm)

SPL (dB @ 1w/1m)

83

Fs (Hz)

43

Cutout Diameter

7.13 in. (181 mm)

Re (Ohms)

6.90

Re (Ohms)

6.90

Qts

0.52

Qes

0.58

Qms

5.40

Vas (Liters)

9.9

Le (mH)

4.3

Xmax (mm)

7.7

Woofer Displacement

0.042 cu. ft. (1.2 Liters)

CEA-2031 Compliant

Subwoofer Type

Standard

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

0.23 cu. ft. (6.5 Liters)

Vented Box Volume (Vb)

0.65 cu. ft. (18.4 Liters)
