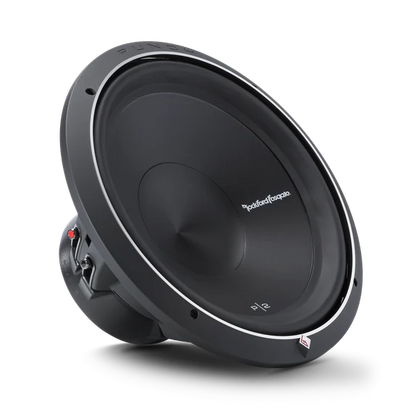

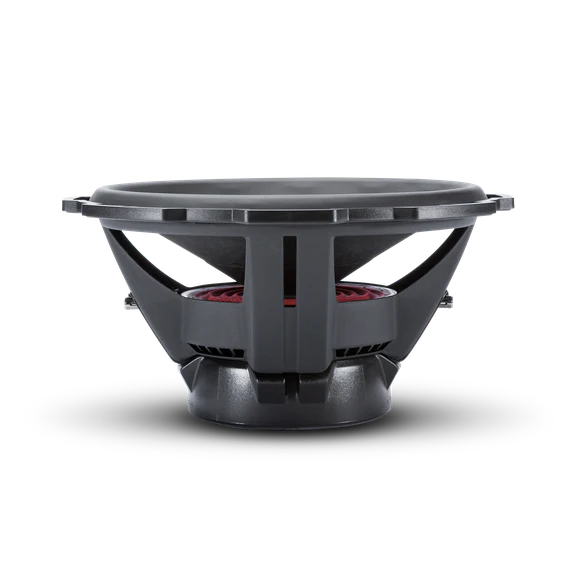

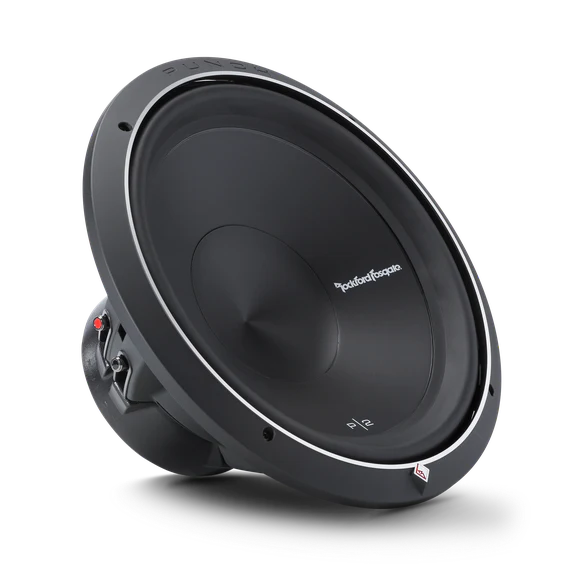

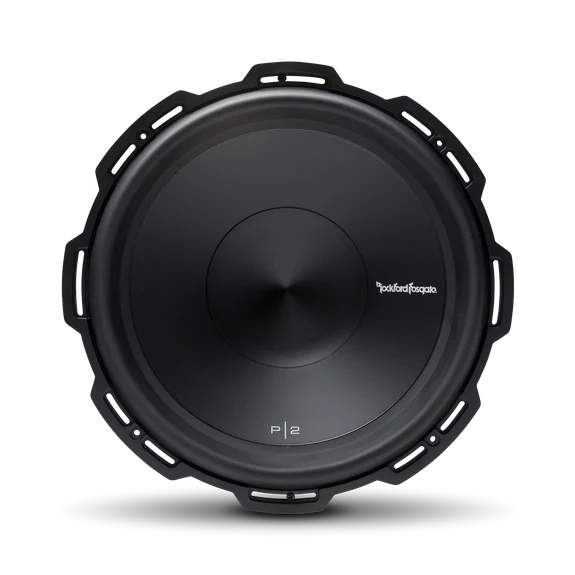

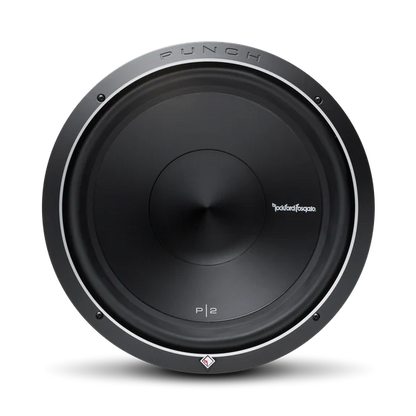

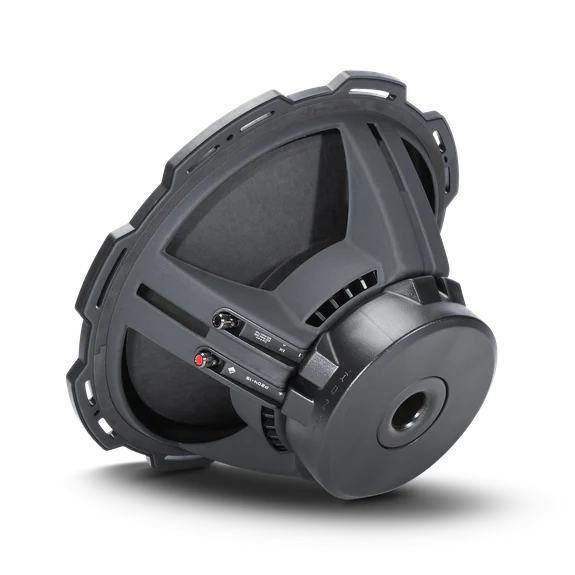

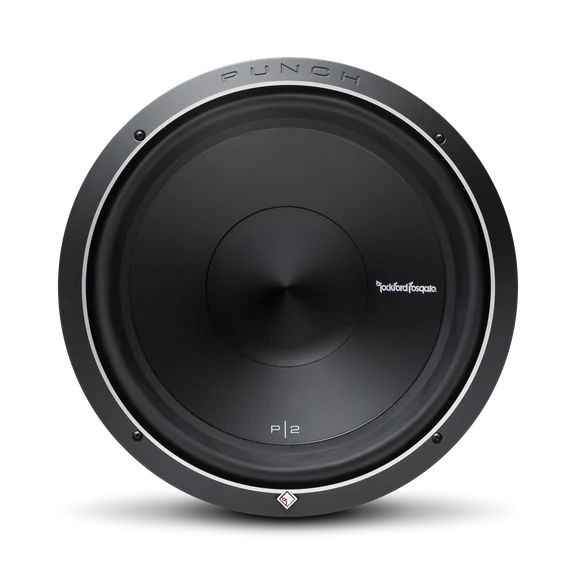

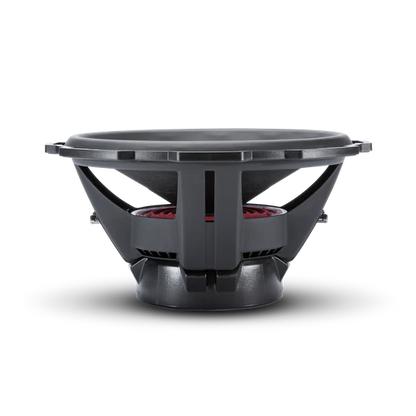

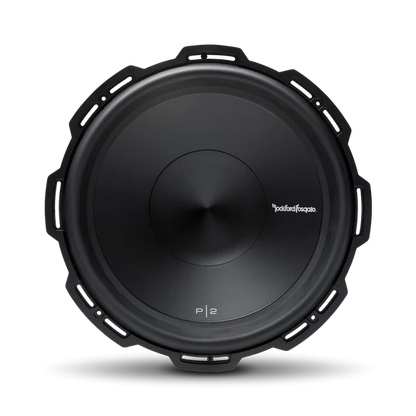

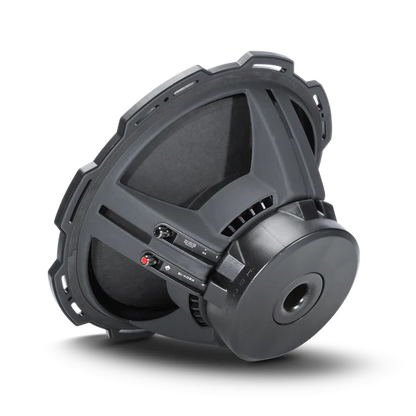

Rockford Fosgate Punch P2 Series 15" Subwoofer

Rockford Fosgate has always been known as "The PUNCH" and the P2 15" subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.

FEATURES AT A GLANCE

• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Dual linear spider with embedded 16 AWG tinsel leads
• Extended pole piece and bumped vented backplate
• Protective PVC textured magnet cover
• Custom 10-AWG nickel plated push terminals
• StampCast basket with integrated spider venting
• Diamond cut cast aluminum trim ring with optional grille
• Kevlar fiber reinforced paper cone
• 1 Year Warranty

Qes

0.69

Qms

6.40

Re (Ohms)

3.30

Cutout Diameter

13.9 in. (353 mm)

SPL (dB @ 1w/1m)

86

Le (mH)

3.4

CEA-2031 Compliant

Xmax (mm)

13.3

Sd (cm²)

894

Subwoofer Type

Standard

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

1.58 cu. ft. (44.7 Liters)

Vented Box Volume (Vb)

2.66 cu. ft. (75.3 Liters)

Power Handling (Watts RMS)

400 Watts RMS
800 Watts Max

Voice Coil Diameter

2.25" (57.15 mm)

Magnet Weight (oz)

81 oz. (2.30 kg.)

Nominal Impedance

Dual 4-Ohm

Size

15"

Speaker Connector

Dual 10 AWG compression

Shipping Weight

17.9 Lbs. (8.11 kg)

SPL (dB @ 1w/1m)

86

Cutout Diameter

13.9 in. (353 mm)

Re (Ohms)

6.40

Le (mH)

5.4

Fs (Hz)

20.9

Fs (Hz)

20.9

Qts

0.66

Qes

0.74

Qms

5.70

Vas (Liters)

219.6

Woofer Displacement

0.134 cu. ft. (3.8 Liters)

CEA-2031 Compliant

Xmax (mm)

12.2

Sd (cm²)

894

Subwoofer Type

Standard

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

1.58 cu. ft. (44.7 Liters)

Vented Box Volume (Vb)

2.66 cu. ft. (75.3 Liters)
