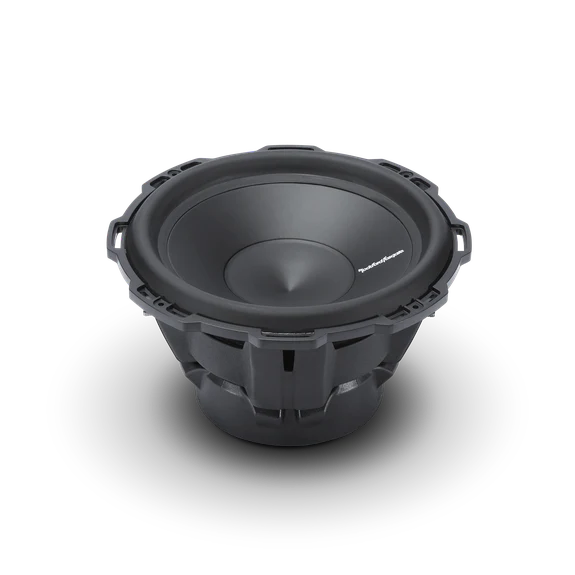

Rockford Fosgate Punch P2 Series 12" Subwoofer

Rockford Fosgate has always been known as "The PUNCH" and the P2 12 inch car subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area of your sub up to 25%. The P2 Punch subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available. Looking for more options?

Check out all of our car subwoofers.

FEATURES AT A GLANCE

• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Dual linear spider with embedded 16 AWG tinsel leads
• Protective PVC textured magnet cover
• Extended pole piece and bumped vented backplate
• StampCast basket with integrated spider venting
• Custom 10-AWG nickel plated push terminals
• Diamond cut cast aluminum trim ring with optional grille
• Kevlar fiber reinforced paper cone
• 1 Year Warranty

Shipping Weight

15.6 Lbs. (7.07 kg)

Qts

0.52

Qes

0.56

Qms

6.50

Cutout Diameter

11.22 in. (285 mm)

Re (Ohms)

3.30

CEA-2031 Compliant

Vas (Liters)

81.5

Sd (cm²)

570

Subwoofer Type

Standard

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

1.02 cu. ft. (28.8 Liters)

Vented Box Volume (Vb)

1.79 cu. ft. (50.6 Liters)

Power Handling (Watts RMS)

400 Watts RMS
800 Watts Max

Nominal Impedance

Dual 4-Ohm

Size

12"

Speaker Connector

Dual 10 AWG compression

Shipping Weight

15.6 Lbs. (7.07 kg)

CEA-2031 Compliant

Cutout Diameter

11.22 in. (285 mm)

Re (Ohms)

6.40

Qes

0.59

Qms

6.30

Mounting Depth

6.40 in. (162 mm)

Voice Coil Diameter

2.25" (57.15 mm)

SPL (dB @ 1w/1m)

86

Fs (Hz)

27.2

Qts

0.54

Vas (Liters)

81.5

Xmax (mm)

13.3

Le (mH)

5.5

Woofer Displacement

0.085 cu. ft. (2.4 Liters)

Magnet Weight (oz)

72.8 oz. (2.06 kg.)

Sd (cm²)

570

Subwoofer Type

Standard

Voice Coil Type

Dual Voice Coil

Sealed Box Volume (Vb)

1.02 cu. ft. (28.8 Liters)

Vented Box Volume (Vb)

1.79 cu. ft. (50.6 Liters)
