Rockford Fosgate

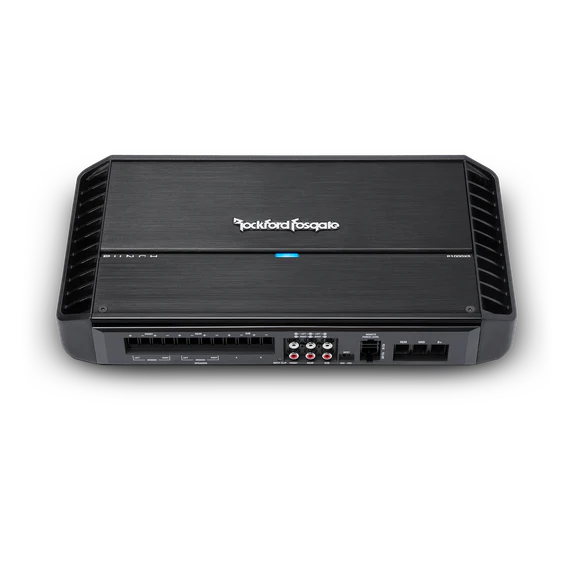

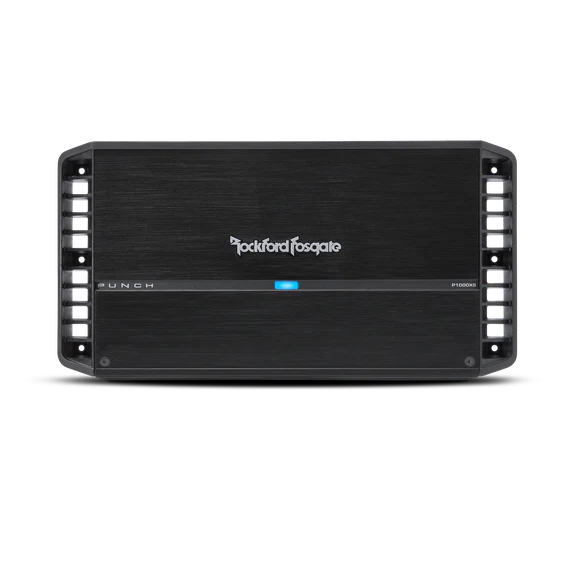

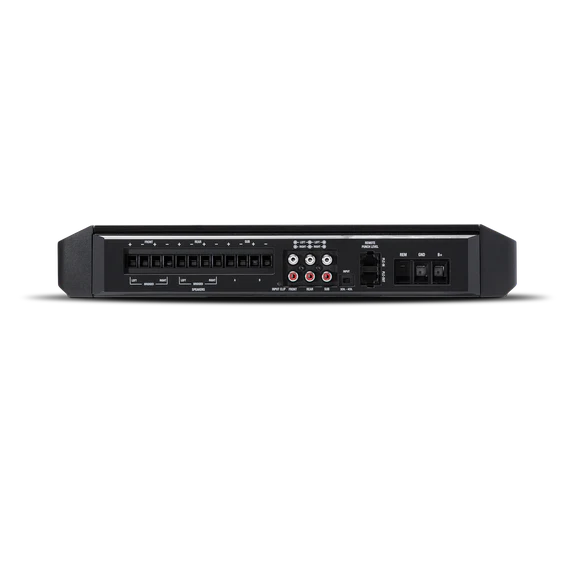

Rockford Fosgate Punch P1000X5 5-Channel Amplifier
Rockford Fosgate Punch P1000X5 5-Channel Amplifier
Regular price
$629.99
Regular price
$949.99
Sale price
$629.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The P1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.
FEATURES AT A GLANCE
- On-board Punch EQ with +18dB boost @ 45Hz
- 12dB/octave Butterworth crossover
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- High level input capable with Auto Turn-On circuit
- Short circuit protection
- Muted turn on

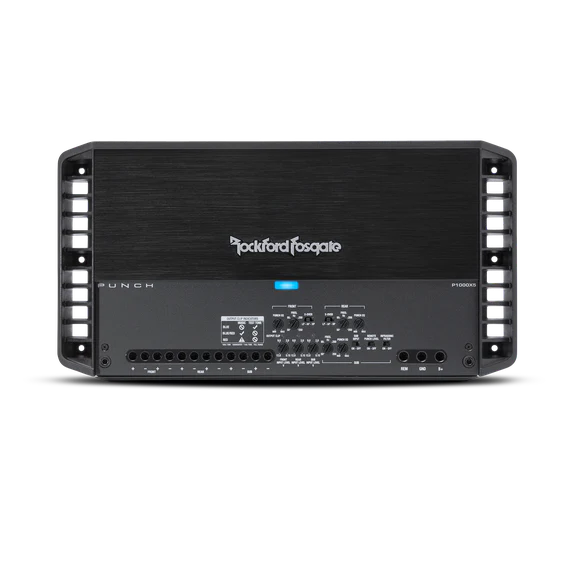

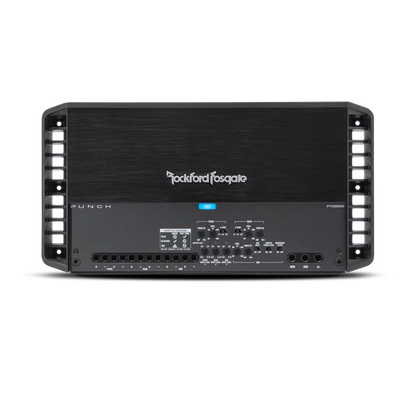

- Stealth top mounted control panel
- 2/4 channel input switch
- Over current protection
- Features C.L.E.A.N. Set-up
- Cast aluminum heatsink
- 1 Year Warranty
- Infrasonic filter
Cta-2006 Compliant
Number of Channels
5
Total Power
(Sum of Rated Power)
(Sum of Rated Power)
1000 Watts
Rated Power
(RMS Continuous Power)
(RMS Continuous Power)
75 Watts x 4 + 150 Watts x 1 @ 4Ω
125 Watts x 4 + 300 Watts x 1 @ 2Ω
N/A Watts x 4 + 500 Watts x 1 @ 1Ω
250 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged
125 Watts x 4 + 300 Watts x 1 @ 2Ω
N/A Watts x 4 + 500 Watts x 1 @ 1Ω
250 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged
Dynamic Power
(PVC/PowerCube®)
(PVC/PowerCube®)
115 Watts x 4 + 299 Watts x 1 @ 4Ω 0° Res
190 Watts x 4 + 540 Watts x 1 @ 2Ω 0° Res
N/A Watts x 4 + 863 Watts x 1 @ 1Ω 0° Res
380 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged 0° Res
190 Watts x 4 + 540 Watts x 1 @ 2Ω 0° Res
N/A Watts x 4 + 863 Watts x 1 @ 1Ω 0° Res
380 Watts x 2 + N/A Watts x 1 @ 4Ω Bridged 0° Res
Bridgeable
Yes (front/rear channels)
Frequency Response
Front/Rear: 20Hz - 20kHz +/-3dB
Sub: 20Hz - 500Hz +/-3dB
Sub: 20Hz - 500Hz +/-3dB
Input Sensitivity
150 mV - 12 V
Circuit Topology Class
Class A/B + Class BD (Sub)
Efficiency (average)
Front/Rear: 66% @ 4-Ohm
Sub Channel: 80% @ 4-Ohm
Sub Channel: 80% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)
<1.0%
Signal Input
Input Switch: Hi/Low level input
Input Switch: 2/4 channel input
Hi/Low Level: 3 RCA Pair
Sub: front/sub input switch
Input Switch: 2/4 channel input
Hi/Low Level: 3 RCA Pair
Sub: front/sub input switch
Signal Output
-
Tone Controls
Sub:
0dB to +18dB @ 45Hz
0dB to +18dB @ 45Hz
Crossover Controls
Front: 50Hz - 250Hz High-Pass @ 12dB/Octave
Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave
Sub: 50Hz - 250Hz Low-Pass
Sub: 28Hz infrasonic filter @ 12dB/Octave
Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave
Sub: 50Hz - 250Hz Low-Pass
Sub: 28Hz infrasonic filter @ 12dB/Octave
Remote Controls
Optional Punch Level Control (PLC2) Ready
Visual Indicators
Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge
4 AWG
Power Input Connector
Block
Speaker Wire Gauge
12 AWG
Speaker Output Connector
Block
Cooling
Convection
Heatsink
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
(not included)
150 A
Average Current Draw (13.8V Music)
75 A
Max. Current Draw (13.8V Sinewave)
150 A
Suggested Alternator
100 A
Included In The Box
Dimensions (H x W x D)
2.38 x 7.76 x 15.03 (in)
6.05 x 19.71 x 38.18 (cm)
6.05 x 19.71 x 38.18 (cm)
Shipping Weight
15.3 Lbs. (6.93 Kg.)
