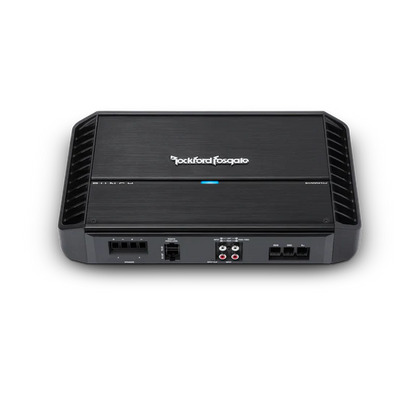

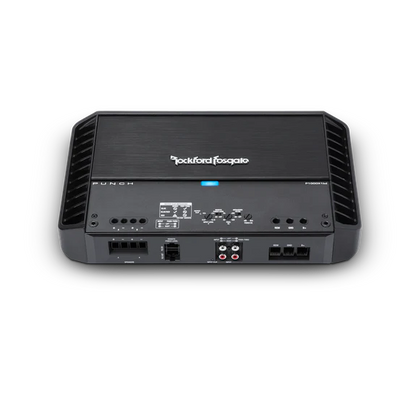

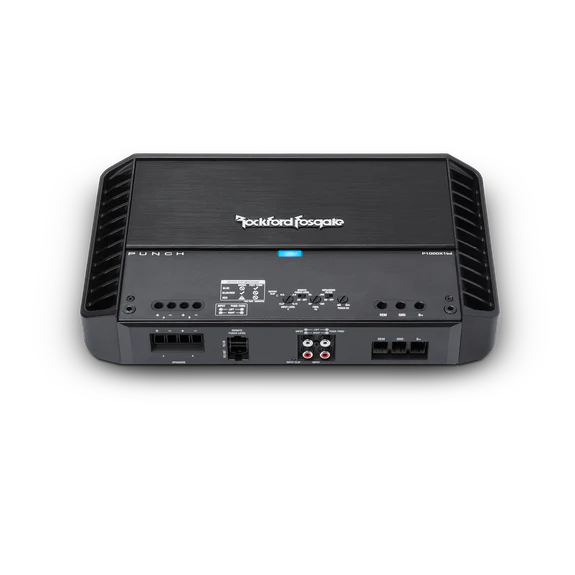

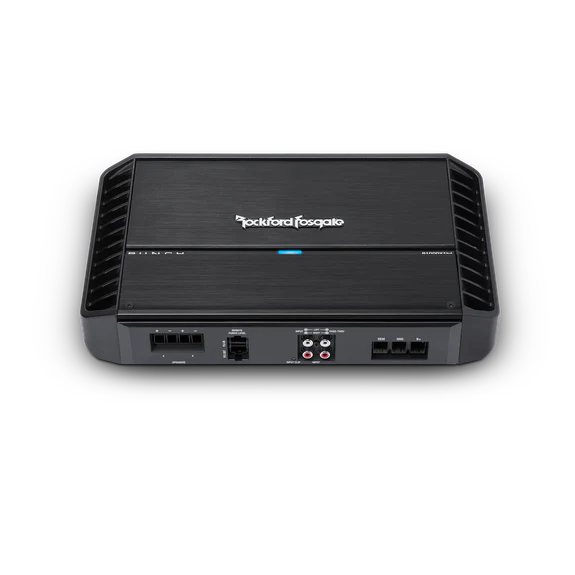

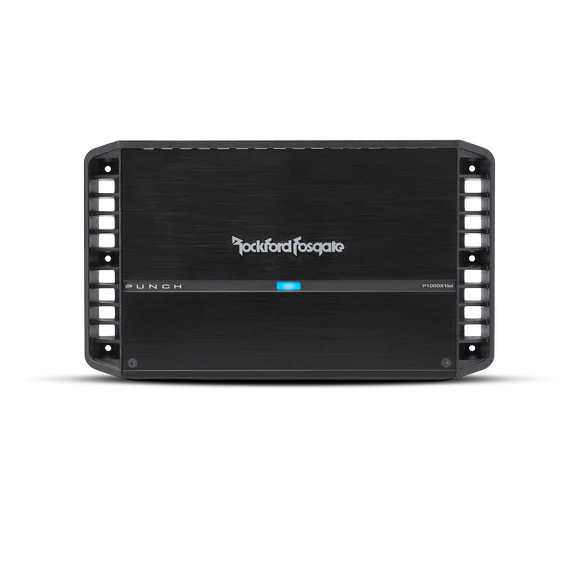

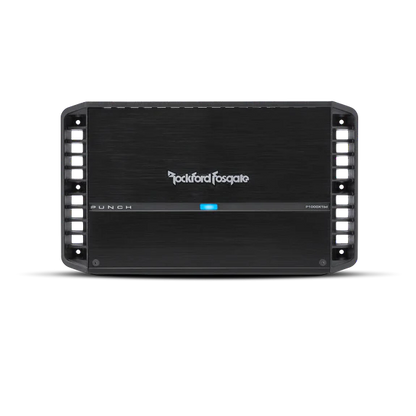

Rockford Fosgate Punch P1000X1bd 1,000 Watt Monoblock Amplifier

Rockford Fosgate Punch P1000X1bd 1,000 Watt Monoblock Amplifier

$499.99
$549.99 $499.99
Sale Sold out
Shipping calculated at checkout.

With its super efficient Class-BD circuit topology, the P1000X1bd assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.



FEATURES AT A GLANCE

  • 12dB/octave Butterworth crossover
  • High level input capable with Auto Turn-On circuit
  • On-board Punch EQ with +18dB boost @ 45Hz
  • RCA pass-thru outputs
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • Over current protection
  • Cast aluminum heatsink
  • Muted turn on
  • Short circuit protection

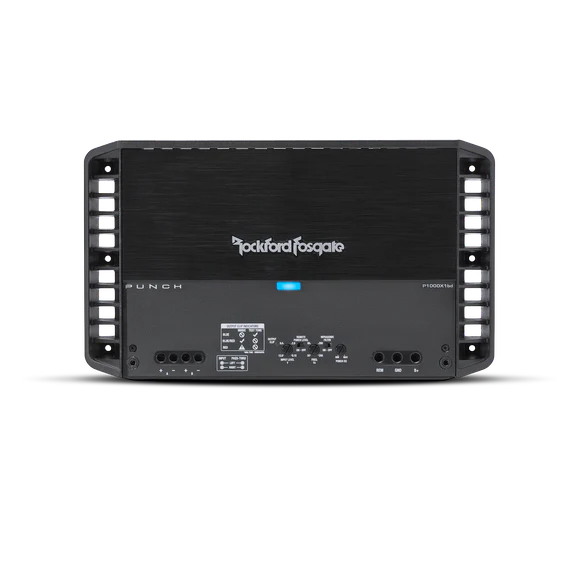

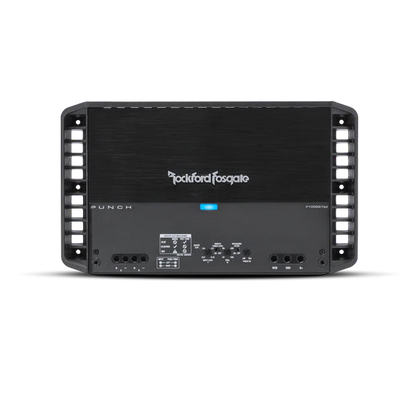

  • Stealth top mounted control panel
  • Infrasonic filter
  • 1 Year Warranty
Cta-2006 Compliant

Number of Channels
1
Total Power
(Sum of Rated Power)
1000 Watts
Rated Power
(RMS Continuous Power)
300 Watts x 1 @ 4-Ohm
500 Watts x 1 @ 2-Ohm
1000 Watts x 1 @ 1-Ohm
Dynamic Power
(PVC/PowerCube®)
491 Watts x 1 @ 4-Ohms
874 Watts x 1 @ 2-Ohms
1,430 Watts x 1 @ 1-Ohm
Bridgeable
No
Frequency Response
20Hz to 250Hz +/- 1.0dB
Input Sensitivity
150 mV - 12 V
Circuit Topology Class
Class BD
Efficiency (average)
86% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%

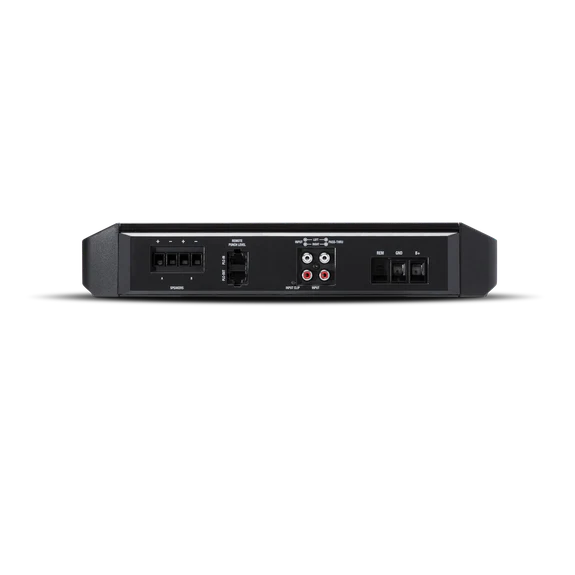

Signal Input
Hi/Low level: 1 RCA pair
Signal Output
Hi/Low level: 1 RCA pair
Tone Controls
Punch EQ2 Bass: 0dB to +18dB @ 45Hz
Crossover Controls
Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth
All-Pass: No
Remote Controls
Optional Punch Level Control (PLC2) Ready
Visual Indicators
Power/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge
4 AWG
Power Input Connector
Captive C-Clamp
Speaker Wire Gauge
8 AWG to 18 AWG
Speaker Output Connector
Captive C-Clamp
Cooling
Convection
Heatsink

Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
140 A
Average Current Draw (13.8V Music)
65 A
Max. Current Draw (13.8V Sinewave)
130 A
Suggested Alternator
100 A
Included In The Box

Dimensions (H x W x D)
2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)
Shipping Weight
12.9 Lbs. (5.85 Kg.)
