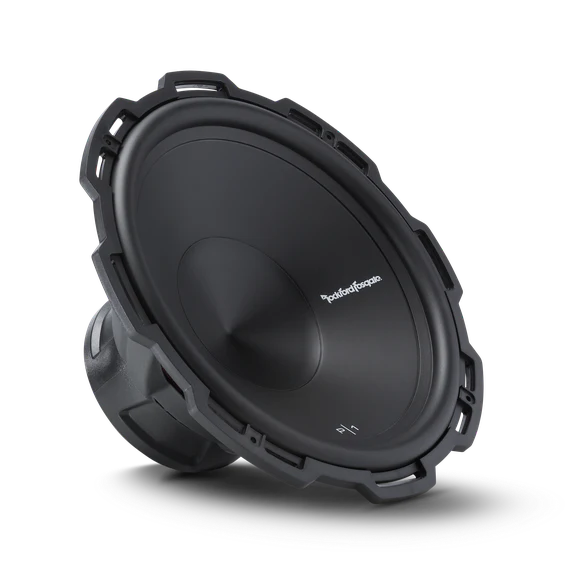

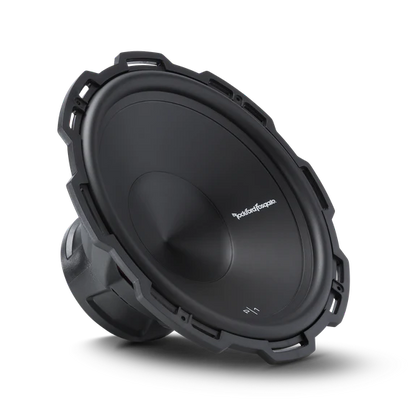

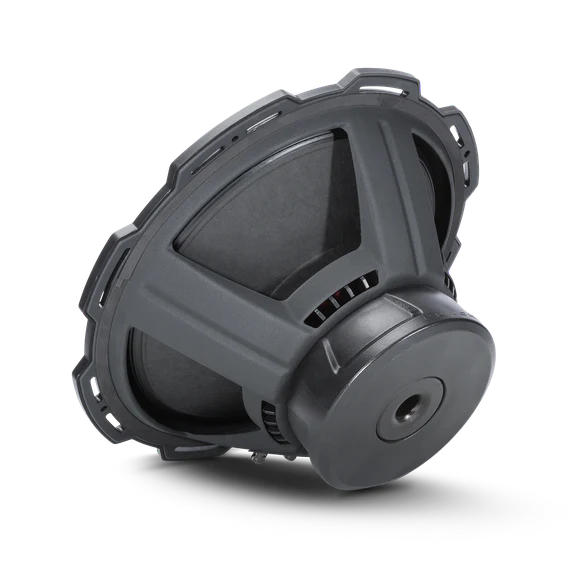

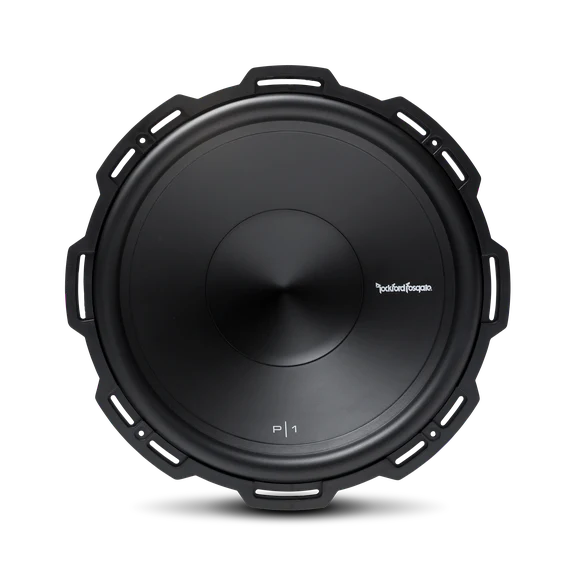

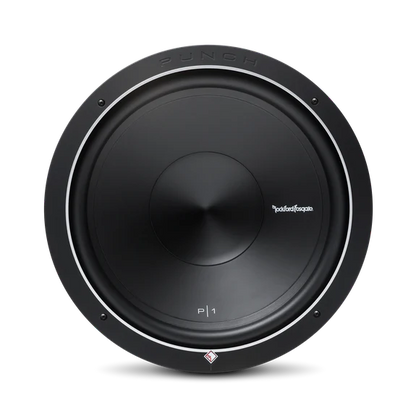

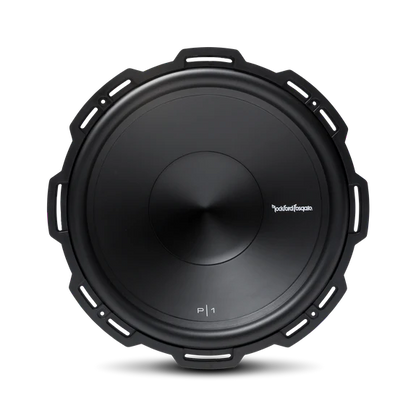

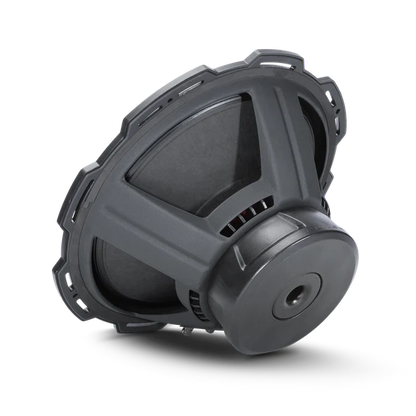

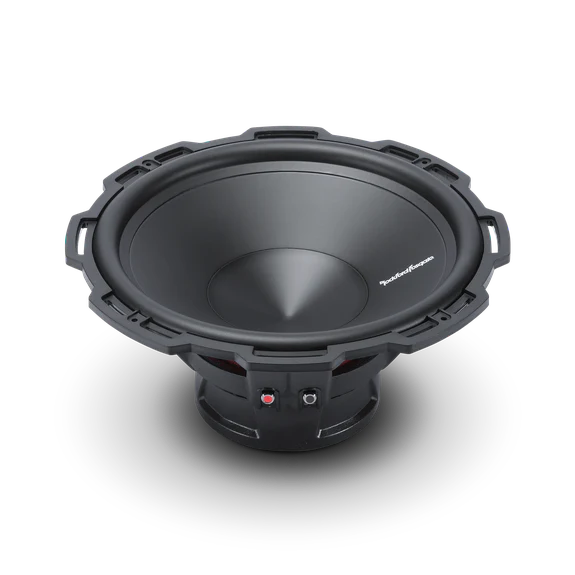

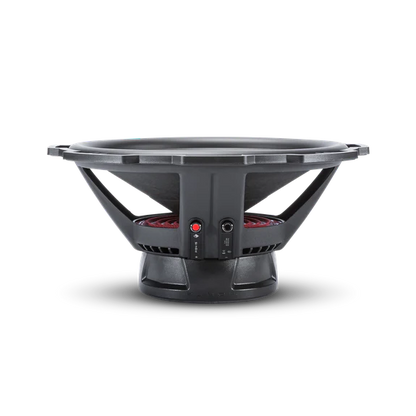

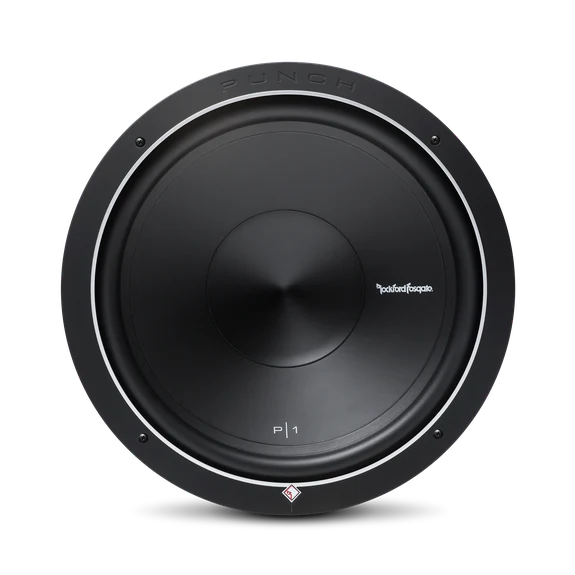

Rockford Fosgate Punch P1 Series 15" Subwoofer

$159.99

~~$169.99~~ $159.99

Sale Sold out

Shipping calculated at checkout.

Coil Configuration Single 2 Ohm Single 4 Ohm

Quantity

Rockford Fosgate P1 15" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

FEATURES AT A GLANCE

Rubberized ABS trim ring with optional grille
StampCast basket with integrated spider venting
Linear spider with embedded 16 AWG tinsel leads
Kevlar fiber reinforced paper cone

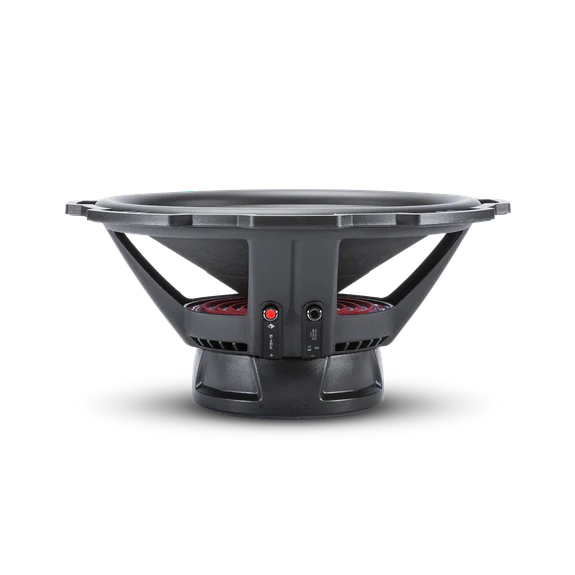

Custom 10-AWG nickel plated push terminals
Extended pole piece and bumped vented backplate
High-temp voice coil with spun-laced Nomex® re-inforcement collar
1 Year Warranty
Protective PVC textured magnet cover

Size

15"

Voice Coil Type

Single Voice Coil

Subwoofer Type

Standard

CEA-2031 Compliant

Power Handling (Watts RMS)

250 Watts RMS
500 Watts Max

Nominal Impedance

2-Ohm

Qms

3.46

Qes

0.80

Fs (Hz)

Speaker Connector

Dual 10 AWG compression

Magnet Weight (oz)

60 oz. (1.70 kg.)

Voice Coil Diameter

2.0" (51.6 mm)

Qts

0.55

Vas (Liters)

191.5

Le (mH)

1.12

Re (Ohms)

1.8

SPL (dB @ 1w/1m)

SPL (dB @ 2.8v/1m)

Xmax (mm)

9.0

Sd (cm²)

876

Mounting Depth

6.98 in. (177.2 mm)

Cutout Diameter

13.85 in. (351.8 mm)

Woofer Displacement

0.148 cu. ft. (4.2 Liters)

Sealed Box Volume (Vb)

1.58 cu. ft. (44.7 Liters)

Vented Box Volume (Vb)

2.66 cu. ft. (75.3 Liters)

Shipping Weight

17.6 Lbs. (7.98 Kg)
