Rockford Fosgate

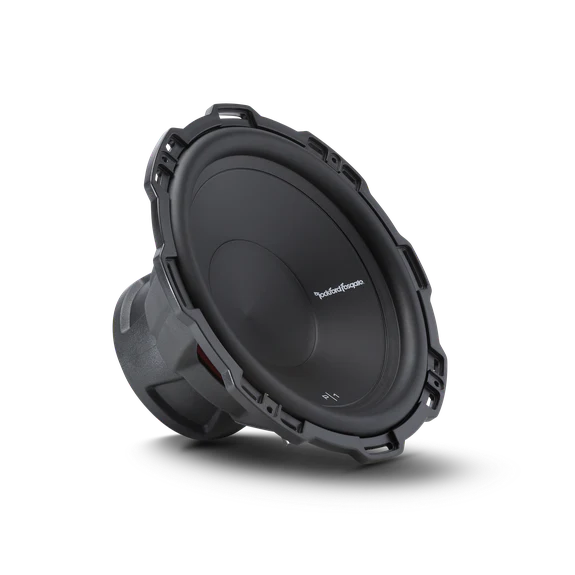

Rockford Fosgate Punch P1 Series 12" Subwoofer

$109.99

~~$119.99~~ $109.99

Sale Sold out

Shipping calculated at checkout.

Coil Configuration Single 2 Ohm Single 4 Ohm

Quantity

Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

FEATURES AT A GLANCE

Kevlar fiber reinforced paper cone
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Linear spider with embedded 16 AWG tinsel leads
Custom 10-AWG nickel plated push terminals
StampCast basket with integrated spider venting
Rubberized ABS trim ring with optional grille
Extended pole piece and bumped vented backplate
1 Year Warranty
Protective PVC textured magnet cover

Magnet Weight (oz)

45 oz. (1.28 kg.)

Voice Coil Type

Single Voice Coil

Subwoofer Type

Standard

Re (Ohms)

1.8

CEA-2031 Compliant

Voice Coil Diameter

2.0" (51.6 mm)

Power Handling (Watts RMS)

250 Watts RMS
500 Watts Max

Nominal Impedance

2-Ohm

Size

12"

Speaker Connector

Dual 10 AWG compression

Sd (cm²)

548

Qts

0.55

Vas (Liters)

88.3

Qms

3.39

Qes

0.84

Le (mH)

1.17

Fs (Hz)

Xmax (mm)

9.0

SPL (dB @ 1w/1m)

SPL (dB @ 2.8v/1m)

Cutout Diameter

11.22 in. (285 mm)

Mounting Depth

6.0 in. (152.4 mm)

Woofer Displacement

0.081 cu. ft. (2.3 Liters)

Sealed Box Volume (Vb)

1.02 cu. ft. (28.8 Liters)

Vented Box Volume (Vb)

1.79 cu. ft. (50.6 Liters)

Shipping Weight

12.5 Lbs. (5.66 Kg)
