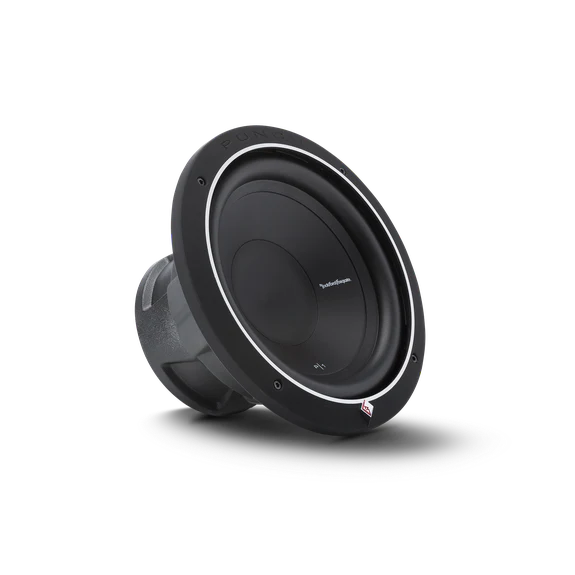

Rockford Fosgate Punch P1 Series 10" Subwoofer

$99.99

~~$109.99~~ $99.99

Sale Sold out

Shipping calculated at checkout.

Coil Configuration Single 2 Ohm Single 4 Ohm

Quantity

Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

FEATURES AT A GLANCE

Rubberized ABS trim ring with optional grille
StampCast basket with integrated spider venting
Linear spider with embedded 16 AWG tinsel leads
Kevlar fiber reinforced paper cone
Custom 10-AWG nickel plated push terminals
Extended pole piece and bumped vented backplate
High-temp voice coil with spun-laced Nomex® re-inforcement collar
1 Year Warranty
Protective PVC textured magnet cover

Power Handling (Watts RMS)

250 Watts RMS
500 Watts Max

Voice Coil Type

Single Voice Coil

Subwoofer Type

Standard

CEA-2031 Compliant

Magnet Weight (oz)

45 oz. (1.28 kg.)

Size

10"

Qts

0.52

Xmax (mm)

9.0

Qms

2.70

Fs (Hz)

Re (Ohms)

1.60

Voice Coil Diameter

2.0" (51.6 mm)

Nominal Impedance

2-Ohm

Speaker Connector

Dual 10 AWG compression

Qes

0.75

Vas (Liters)

35.4

Mounting Depth

5.33 in. (135.4 mm)

Le (mH)

1.16

Sd (cm²)

370

SPL (dB @ 1w/1m)

Cutout Diameter

9.14 in. (232 mm)

SPL (dB @ 2.8v/1m)

Woofer Displacement

0.056 cu. ft. (1.6 Liters)

Sealed Box Volume (Vb)

0.59 cu. ft. (16.7 Liters)

Vented Box Volume (Vb)

1.4 cu. ft. (39.6 Liters)

Shipping Weight

11.1 Lbs. (5.03 kg)
