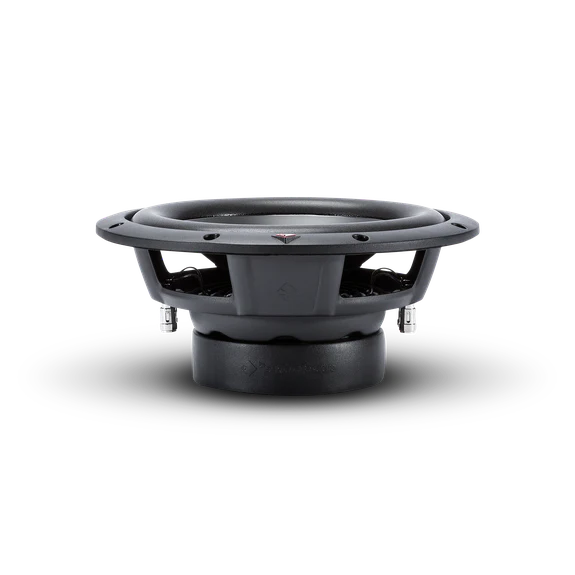

Rockford Fosgate Prime R2 Series 10" Subwoofer

$89.99

~~$99.99~~ $89.99

Sale Sold out

Shipping calculated at checkout.

Coil Configuration Single 2 Ohm Single 4 Ohm

Quantity

Car Audio Fanatics who want Rockford Fosgate quality can rely on the Prime Series 10" subwoofers to get the job done, and the Dual Voice Coil provides awesome installation flexibility. These drivers can pump out the bass due to their mica injected polypropylene cone, and their stamp-cast baskets with spider venting - typically reserved for more expensive models - keep the motor running cool! These R2 subwoofers are optimized for sealed and vented enclosures.

FEATURES AT A GLANCE

Linear spider with embedded 16 AWG tinsel leads
12 AWG compression terminals
Mica injected polypropylene cone
Anodized aluminum voice coil former
Optimized for both sealed and vented enclosures
StampCast basket with integrated spider venting
1 Year Warranty
Integrated PVC trim ring

CEA-2031 Compliant

Size

10"

Subwoofer Type

Standard

Voice Coil Type

Dual Voice Coil

Nominal Impedance

Dual 2-Ohm

Speaker Connector

Dual 12 AWG compression

Voice Coil Diameter

2" (51 mm)

Le (mH)

3.9

Fs (Hz)

34.6

Re (Ohms)

3.84

Sd (cm²)

339.8

Qts

0.47

Qes

0.50

Qms

6.93

Vas (Liters)

Xmax (mm)

6.5

SPL (dB @ 1w/1m)

86.9

Magnet Weight (oz)

43 oz. (1.22 kg.)

Power Handling (Watts RMS)

250 Watts RMS
500 Watts Max

Woofer Displacement

0.039 cu. ft. (1.1 Liters)

Cutout Diameter

9.125 in. (232 mm)

Mounting Depth

4.319 in. (109 mm)

Shipping Weight

8.8 Lbs. (3.99 kg)

Sealed Box Volume (Vb)

0.59 cu. ft. (16.7 Liters)

Vented Box Volume (Vb)

1.4 cu. ft. (39.6 Liters
