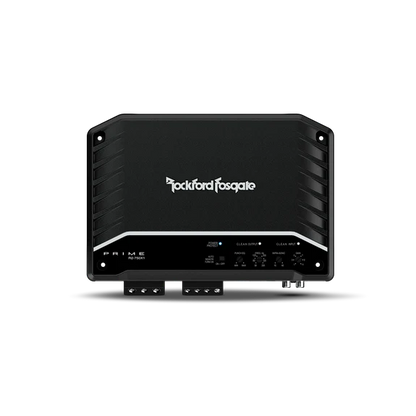

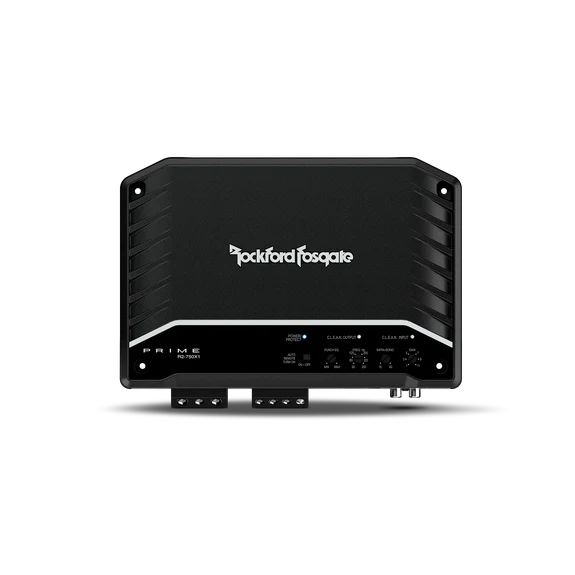

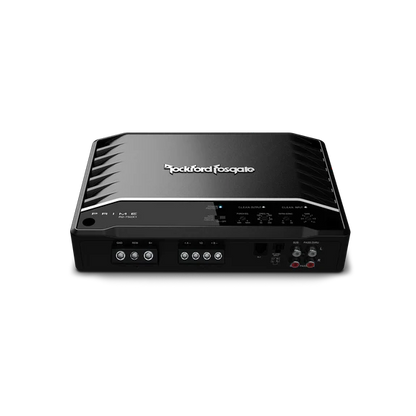

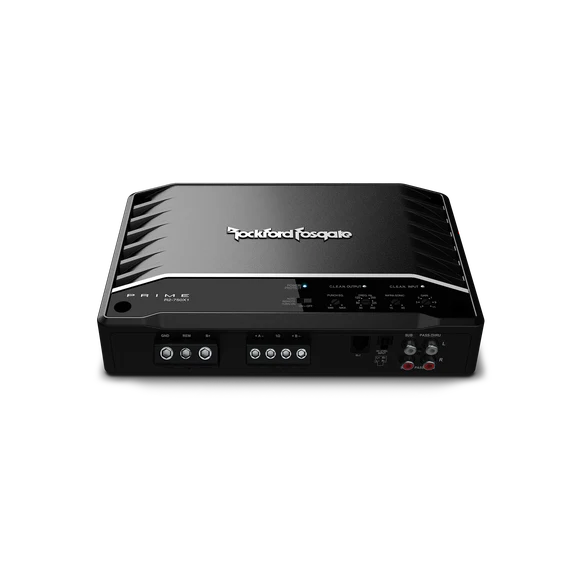

Rockford Fosgate Prime R2-750X1 750 Watt Monoblock Amplifier
Rockford Fosgate Prime R2-750X1 750 Watt Monoblock Amplifier
Regular price
$349.99
Regular price
$359.99
Sale price
$349.99
Unit price
/
per
The Prime Series were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.
FEATURES AT A GLANCE
- Variable Input Gain adjustment level
- High Level Input Capable
- Balanced Differential Inputs with RCA Pass Through Outputs
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)

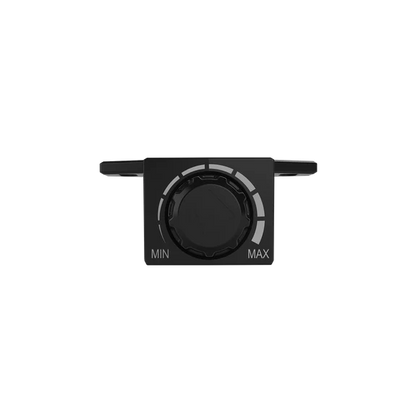

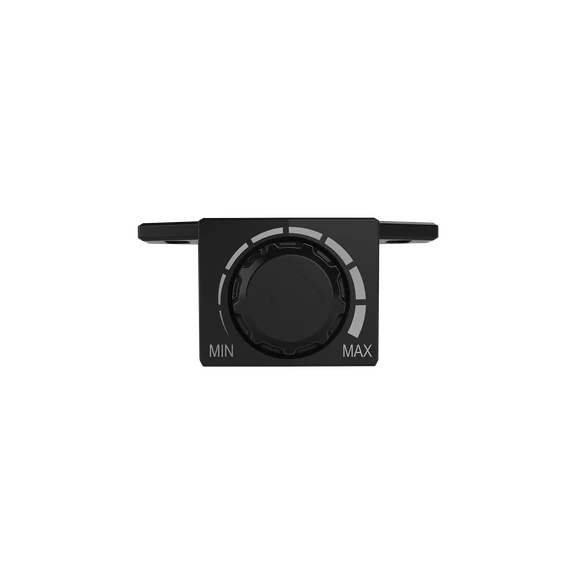

- Includes RLC Remote Level Control
- Cast aluminum heat sink
- Class-D Topology
- CEA-2006 Compliant & CE Compliant
- Top Mounted Control Panel
- Continuously Variable On Board Punch EQ
- Features C.L.E.A.N. Set-up
- Short Circuit & Over Current Protection
- Rollback Protection
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- Variable Infrasonic Filter
- 1 Year Warranty.
Cta-2006 Compliant
Number of Channels
1
Total Power
(Sum of Rated Power)
(Sum of Rated Power)
750 Watts
Rated Power
(RMS Continuous Power)
(RMS Continuous Power)
250 Watts x 1 @ 4Ω
500 Watts x 1 @ 2Ω
750 Watts x 1 @ 1Ω
500 Watts x 1 @ 2Ω
750 Watts x 1 @ 1Ω
Dynamic Power
(PVC/PowerCube®)
(PVC/PowerCube®)
300 Watts x 1 @ 4Ω
545 Watts x 1 @ 2Ω
830 Watts x 1 @ 1Ω
545 Watts x 1 @ 2Ω
830 Watts x 1 @ 1Ω
Bridgeable
No
Frequency Response
20 Hz - 250 Hz
Input Sensitivity
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V
High-Level: 450 mV - 12 V
Circuit Topology Class
Class-D
Efficiency (average)
Total Harmonic Distortion (THD+Noise)
4Ω: <1.0%
2Ω: <1.0%
1Ω: <1.0%
2Ω: <1.0%
1Ω: <1.0%

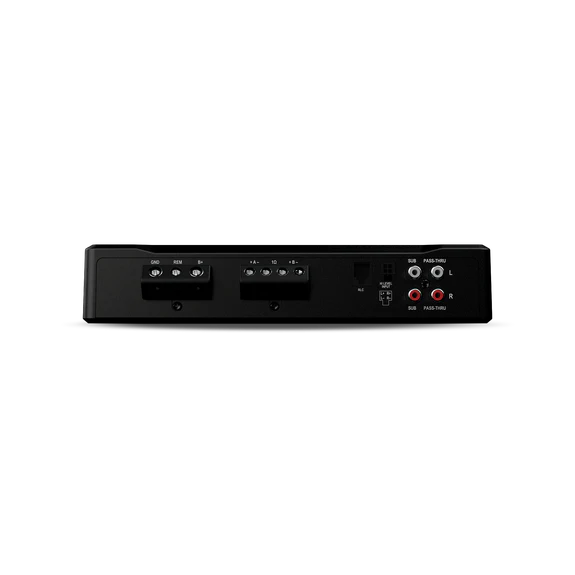

Signal Input
Low-Level: 2 RCA
High-Level: 4-Pin Molex
High-Level: 4-Pin Molex
Signal Output
Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
(Pass-Thru active with RCA or Hi-Level input)
Tone Controls
0 to +18 dB @ 45 Hz
Crossover Controls
Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth
50 Hz - 250 Hz @ 12dB/Octave Butterworth
Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth
Remote Controls
Yes
Visual Indicators
POWER (Blue) / PROTECT (Red)
C.L.E.A.N. IN (Red)
C.L.E.A.N. OUT (Blue/Red)
C.L.E.A.N. IN (Red)
C.L.E.A.N. OUT (Blue/Red)
Power Wire Gauge
4 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
8 AWG
Speaker Output Connector
Compression Terminal Block
Cooling
Convection
Heatsink
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
(not included)
120 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)
71 A
Suggested Alternator

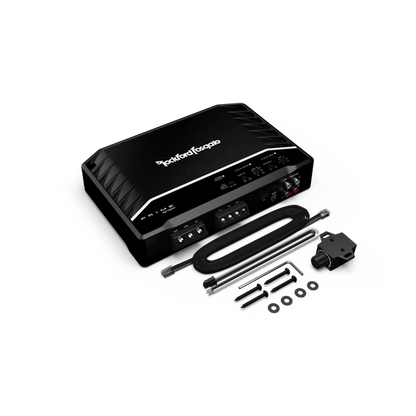

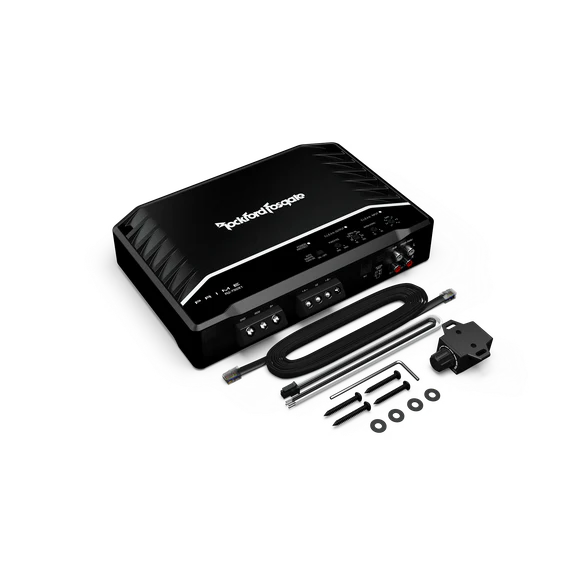

Included In The Box
Dimensions (H x W x D)
1.9" x 6.8" x 10.1"
(4.9 cm x 17.3 cm x 25.5 cm)
(4.9 cm x 17.3 cm x 25.5 cm)
Shipping Weight
