Rockford Fosgate

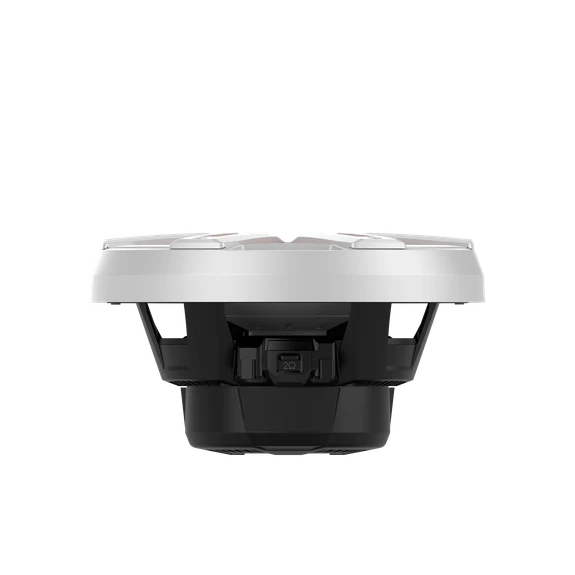

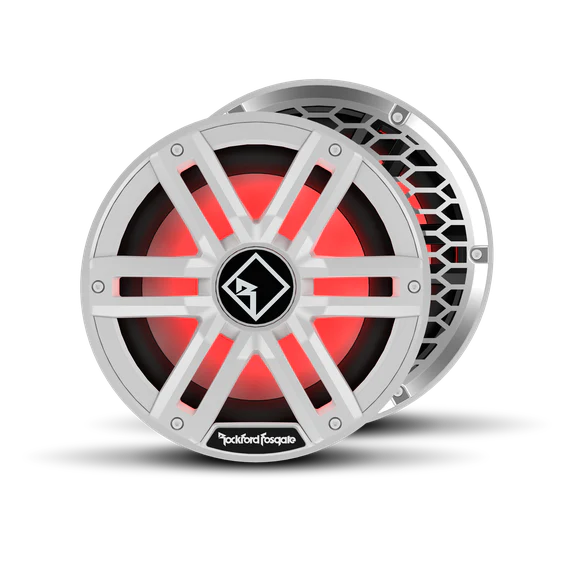

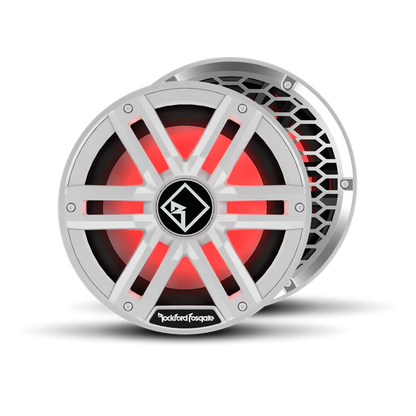

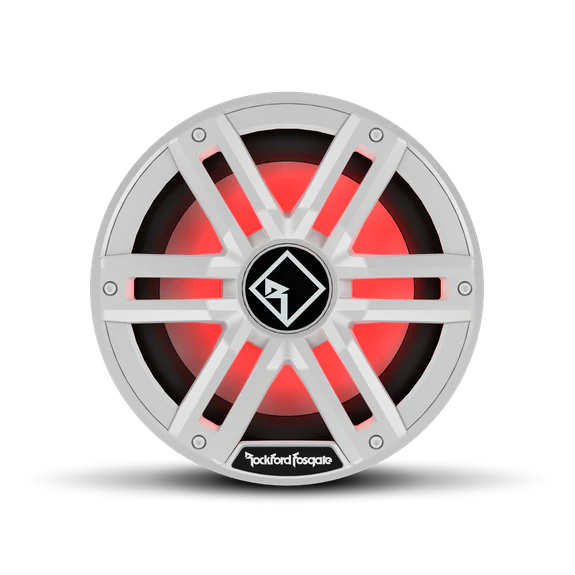

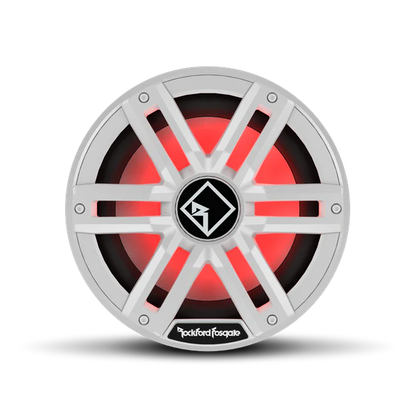

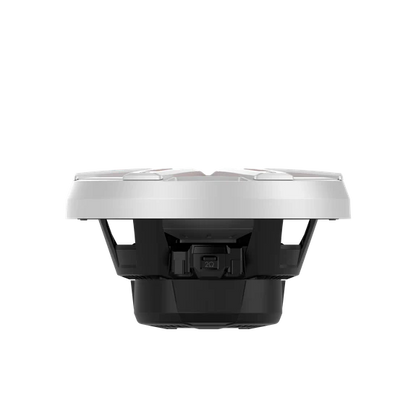

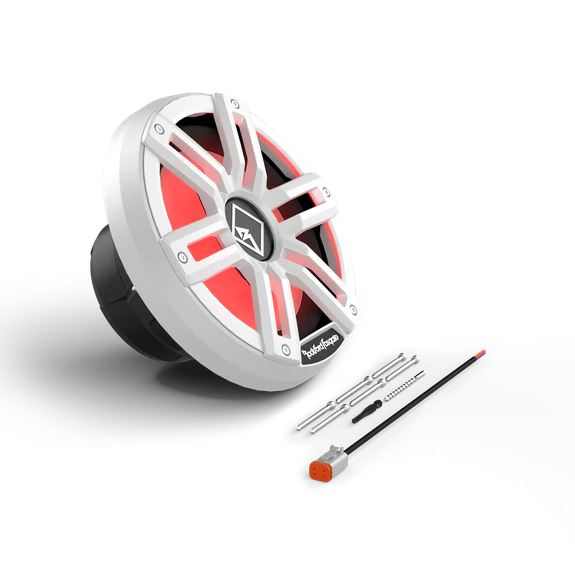

Rockford Fosgate M2D4-10S M2 10" DVC 4Ω Color Optix™ Sealed Enclosure Marine Subwoofer

Rockford Fosgate M2D4-10S M2 10" DVC 4Ω Color Optix™ Sealed Enclosure Marine Subwoofer

Regular price $399.99
Regular price $409.99 Sale price $399.99
Sale Sold out
Shipping calculated at checkout.
Coil Configuration
Grille Color

The M2 series of Element Ready™ subwoofers are IP67 certified, making them truly purpose-built for marine and motorsport applications where protection from damaging UV rays and water spray is essential. They are designed to pair with the Rockford Fosgate Color Optix™ controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a Versa Switch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. Matching the theme of your boat can be further customized by using the included color insert or stainless-steel grille for that sport look.



FEATURES AT A GLANCE

  • Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
  • Optimized for small sealed enclosures when there is very little space for an enclosure
  • Element Ready™ design protects against outdoor exposure
  • Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
  • VERSA impedance switch quickly allows series or parallel configuration without additional wiring
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • Gold plated Marine grade brass terminals provide a corrosion resistant connection
  • Klippel Verified certification program delivers the best possible loudspeakers
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • IPX6 Marine Grade for prevention of water intrusion
  • Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • Deutsch™ connector front/rear silicone seal protects against water ingress
  • 2-piece grille allows for interchangeable stainless-steel or "sport" option
  • 2-Year Warranty
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
Power Handling (Watts RMS)
400 Watts
Nominal Impedance (Ohms)
2-Ohm or 8-Ohm Switchable
Size
10"
Voice Coil Type
Dual Voice Coil
Voice Coil Diameter
1.95" (49.53 mm)
Magnet Weight (oz)
32.9 oz. (0.9 Kg)
Fs (Hz)
28
Re (Ohms)
6.5
Le (mH)
3.43
Sd (cm2)
363
Qms
5.18
Qes
1.07
Sealed Box Volume (Vb)
0.5 cu. ft. (14 Liters)
Qts
0.89
Vas
38.2
SPL (dB @ 1w/1m)
86
Xmax (mm)
12.0
Woofer Displacement
0.07 cu. ft. (2.03 Liters)
Speaker Connector
Deutsch™ and 1/8" Spade
Cutout Diameter
8.87 in. (225.3 mm)
Mounting Depth
4.24 in. (107.7 mm)
Shipping Weight
8.5 Lbs. (3.85 Kg)
