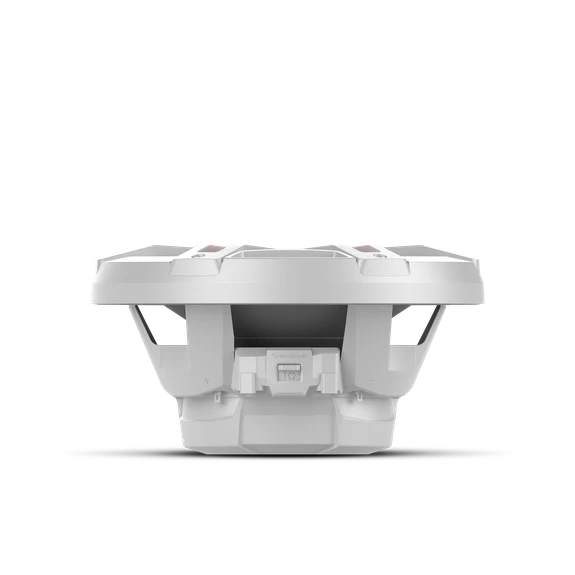

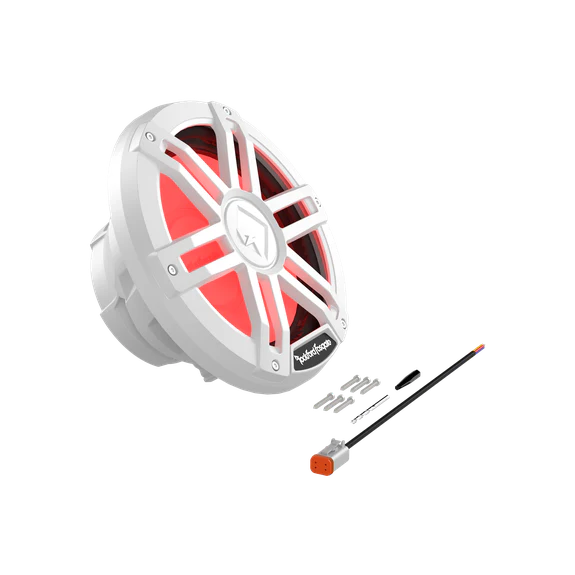

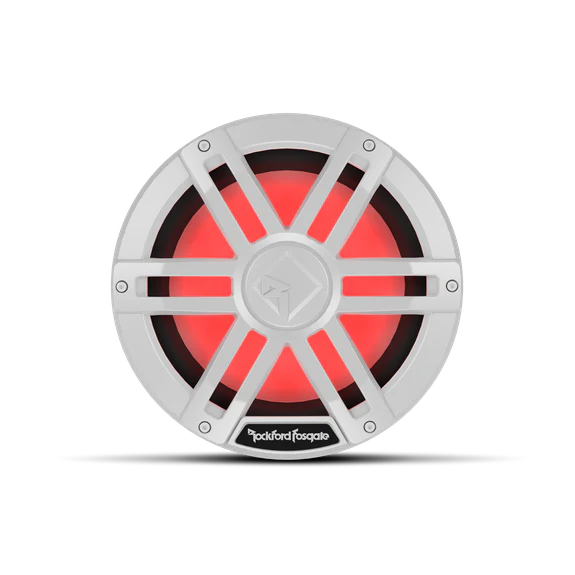

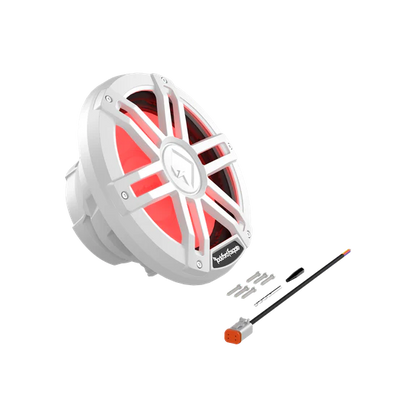

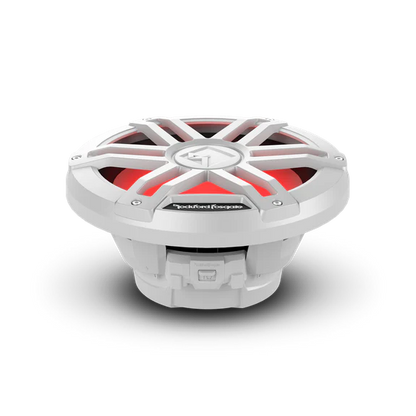

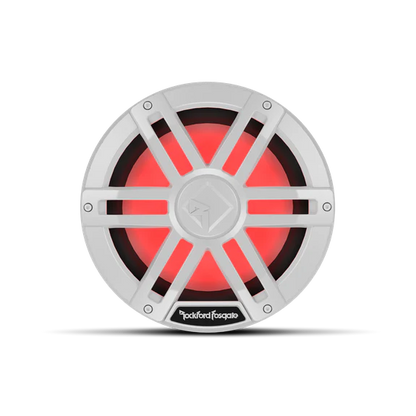

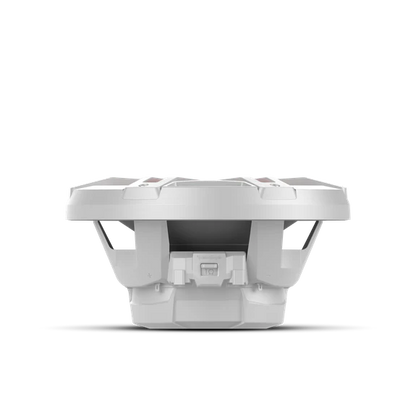

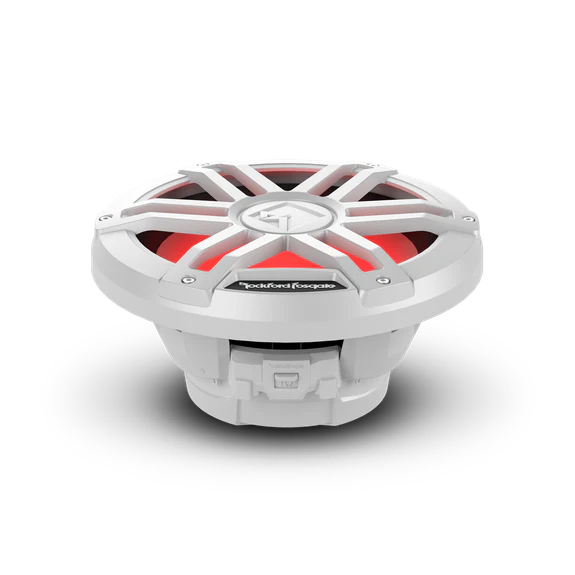

Rockford Fosgate M1D2-10 M1 10" DVC 2Ω Color Optix™ Marine Subwoofer

Rockford Fosgate M1D2-10 M1 10" DVC 2Ω Color Optix™ Marine Subwoofer

Regular price $219.99
Regular price $249.99 Sale price $219.99
Sale Sold out
Shipping calculated at checkout.
Coil Configuration
Grille Color

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.



FEATURES AT A GLANCE

  • Optically clear UV stable RGB Lighting Encapsulation
  • 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • Fully insulated silicone tinsel leads
  • Santoprene VAST Surround
  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Linear Synthetic Fiber Blend Spiders
  • Co-molded surround and mineral filled polypropylene cone body
  • Vented motor design with water-repelling nano coated mesh screen
  • VERSA impedance switch quickly allows series or parallel configuration without additional wiring
  • 2-Year Warranty
Size
10"
Frequency Response
20 Hz - 750 Hz
Voice Coil Type
Dual Voice Coil
Nominal Impedance (Ohms)
1-Ohm or 4-Ohm Switchable
Power Handling (Watts RMS)
300 Watts RMS
1200 Watts PEAK
Voice Coil Diameter
2.0" (50 mm)
Magnet Weight (oz)
47.70 oz. (1.35 Kg)
Fs (Hz)
34
Re (Ohms)
3.7
Le (mH)
2.22
Sd (cm2)
394.1
Qms
7.80
Qes
0.47
Qts
0.44
Vas
44.2
SPL (dB @ 1w/1m)
91.5
Woofer Displacement
0.10 cu. ft. (2.80 Liters)
Xmax (mm)
7.0
Speaker Connector
Deutsch™
Cutout Diameter
8.90 in. (226 mm)
Mounting Depth
4.23 in. (107.4 mm)
Shipping Weight
8.6 Lbs. (3.9 Kg)
