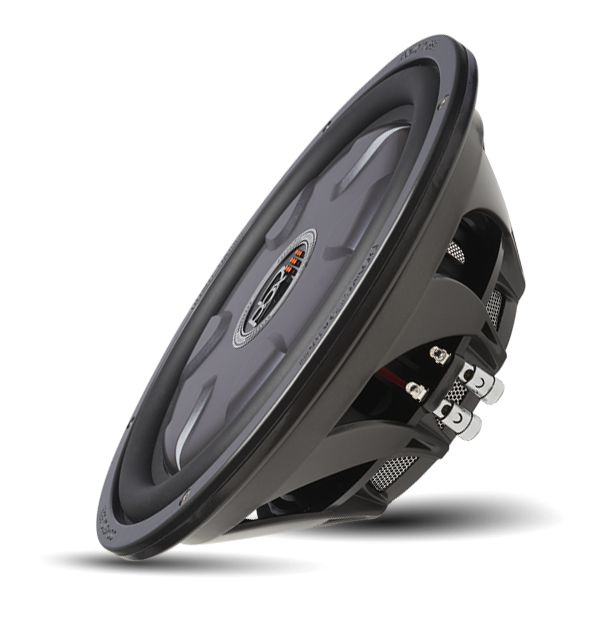

Powerbass XL-1240T 12" Shallow Mount Subwoofer
Powerbass XL-1240T 12" Shallow Mount Subwoofer
XL-1240T SHALLOW MOUNT 12" SUB THAT CAN HANDLE THE POWER
Those seeking a shallow woofer that can handle more power in a tight space will find that our new XL-Shallow subwoofers are just the ticket.
The proprietary one piece cone gives accurate and efficient bass to a system without taking a whole lot of space. Designed to work best in a small sealed enclosure that will fit in most spaces that a standard woofer won't opens up new possibilities for the most discerning music fan.
Using the same turbine style Poly/Glass Fiber basket as our standard XL subwoofers this shallower version offers all the features and reliability from the Xtreme family. Boasting a flat injection molded cone and inverted ferrite magnet these drivers come in nearly 2-inches shorter than their standard XL counterparts.
- New PBX logo dust cap
- 12" Shallow Mount Subwoofer Single 4-Ohm Subwoofer
- 400 Watts RMS/800 Watts Max
- Proprietary Single Piece Injection Molded Flat Cone Design
- Proprietary Composite Poly/Glass Fiber Basket
- 2" Vented KSV Voice Coil Former
- Chrome Push Terminals
- 3.8" Mounting Depth
- 400 Watts RMS/800 Watts Max
Specifications
- Subwoofer Frequency Range: 33Hz - 450Hz
- Inputs: Single Coil
- Fs: 33hz
- Cutout Diameter: 11" (281mm)
- BL: 15.247 tm
- Nominal Impedance: single 4 ohm
- Voice Coil Size: 2 in
- Material: Injection Polypropylene
- Magnet Size: 140 oz
- Sensitivity (1W / 1M): 89 dB
- Mounting Depth: 3.8"
- Xmax: 7.5
- Spl: 89db
- No: 0.214%
- Qts: 0.526
- Qes: 0.597
- Qms: 4.458
- Mms: 202.087 g
- Cms: 98.129 Um/n
- Vas: 42.369 Ltr
- SD: 510.7 sqCM
- Test Impedance: 3.2-ohm
- VC Impedance: 4-ohm
- Size: 12" shallow
- Sensitivity: 89 dB
- Frequency Response: 33Hz - 450Hz
- Voice Coil Size: 2"
- Power Handling (RMS/Peak): 400 / 800 watts
