Powerbass
Powerbass XEQ-4BT 4 Band, 3 Zone, Bluetooth Power Sports Equalizer
Powerbass XEQ-4BT 4 Band, 3 Zone, Bluetooth Power Sports Equalizer

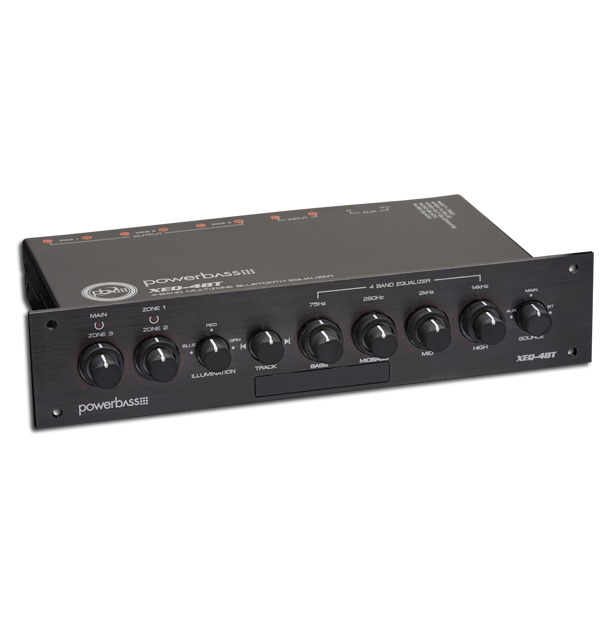

XEQ-4BT 4 Band, 3 Zone, Bluetooth Power Sports Equalizer
The XEQ-4BT 4 Band, 3 Zone, Bluetooth Equalizer is the perfect solution to take your UTV, Boat, or RV sound system from good to excellent by giving you dual 4 Band EQ control as well as a 3 zone output with Master Volume control. With built in Bluetooth connectivity the XEQ-4BT becomes your source unit allowing full front panel control of track up or down as well as a the tri color front panel selector so you can match the eq's illumination to your OEM or aftermarket lighting color. Switching through inputs is as easy as a turn of the knob with our front panel input selector you can quickly cycle through your Bluetooth, Aux, or RCA inputs.
The XEQ-4BT allows for complete control over multi-zone set ups, giving you control of individual zone volume control as well as a master control that only allows the zones to reach the max output level you have set on the eq. With our front panel track selector you can easily change though songs without having to handle your phone or mp3 player in the most extreme conditions and the entire PCB board is conformal coated to withstand the elements making this great for any offroad application!
- 4-Band Dual Zone Active Equalizer Bass, Mid-Bass, Mid, High
- 3 Zone Volume Control and Output
- Variable Master Volume Control
- Front Panel Selectable Inputs - Bluetooth, Aux, RCA
- Front Panel Tri Illumination Selector - Red, Blue, Green
- Front Panel Track Selector - Track Up / Down
- 6V RMS output
- Bi-Polar PWM Power Supply
- Frequency Response: 20Hz-40KHz
- Selectable 120/80Hz Subwoofer Crossover
- Conformal Coated PCB
Specifications
- Subwoofer Frequency Range: 20Hz - 120Hz
- Power Supply: 11-15V DC negative ground
- Maximum Output Voltage: 10Vrms
- Inputs: switchable, 3-source RCA /3.5mm AUX/Bluetooth
- Dimensions (in Inches): 1.3" x 6.8"x 4.2"
- Depth: 4.2"
- Channel Separation: >75dB
- Pre Graphic Frequency: 70Hz, 250Hz, 2kHz, 1.4kHz
- Equalization Boost/Cut: +/- 18dB
- Height: 1.3"
- Width: 6.8"
- S/N Ratio: >100dB
- Total Harmonic Distortion: 0.05%
- Frequency Response: 20 Hz - 40 kHz
