Planet Audio

Planet Audio Pulse PL3000.1D 3,000 Watt Monoblock Amplifier

Planet Audio Pulse PL3000.1D 3,000 Watt Monoblock Amplifier

$240.49
$249.99 $240.49
Sale Sold out
Shipping calculated at checkout.

Pulse MODEL 3000W High Output Monoblock Class D Amplifier Dim:11.93"L 7"W 2.26"H

  • MODEL 3000W High Output MONOBLOCK Amplifier
    Up to 2250 W X 1 RMS @ 1 ohm
    Up to 1125 W X 1 RMS @ 2 ohm
    Up to 563 W X 1 RMS @ 4 ohm
    Up to 4500 W X 1 RMS Strapped Bridged Power @ 2 ohm
  • Monoblock Class D, MOSFET Power Supply
  • Low Level Inputs, RCA Pre-amp Outputs
  • Variable Low Pass Crossover, Variable Bass Boost and Variable Subsonic Filter and Switchable Phase Control
  • Include Remote Subwoofer Control
  • Blue Illuminated Planet Audio Logo and End Panel Strips
  • Dimensions: 11.93" L x 7" W x 2.26" H

General Specs

CHANNEL CONFIGURATION
1 Channel
POWER SUPPLY TYPE
MOSFET Power Supply
AMP TOPOLOGY
Monoblock Class D

Performance Specs

TOTAL POWER OUTPUT
3000 Watts
PEAK POWER @ 1 Ω
3000 Watts x 1
PEAK POWER @ 2 Ω
1500 Watts x 1
RMS POWER @ 4 Ω
563 Watts x 1
STRAPPED POWER BRIDGED @ 2 Ω
6000 Watts
SPEAKER IMPEDANCE
1 to 8 Ω
S/N RATIO (A-WEIGHTED)
100 dB
FREQUENCY RESPONSE
15 Hz to 250 Hz ±1 dB

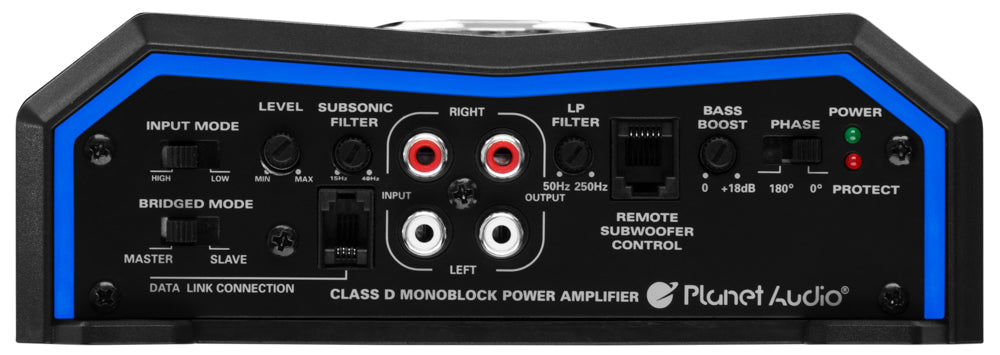

Connections, Controls, and Processing

RCA INPUTS
2 Channel
PRE AMP OUTPUTS
2 Channel
LOW PASS FILTER
50 Hz to 250 Hz
SUBSONIC FILTER
15 Hz to 40 Hz
BASS BOOST
Variable 0 to 18 dB
SUBWOOFER LEVEL CONTROL
✔
INPUT SENSITIVITY SWITCH

STRAPPABLE

THERMAL/OVERLOAD/SHORT PROTECTION


Measurement

WIDTH
7"
HEIGHT
2.2599999999999997868"
LENGTH
11.929999999999999716"
