MB Quart MBQX-STG5-1 800 Watt STAGE 5 Can-Am X3 Tuned System
MB Quart MBQX-STG5-1 800 Watt STAGE 5 Can-Am X3 Tuned System
Couldn't load pickup availability

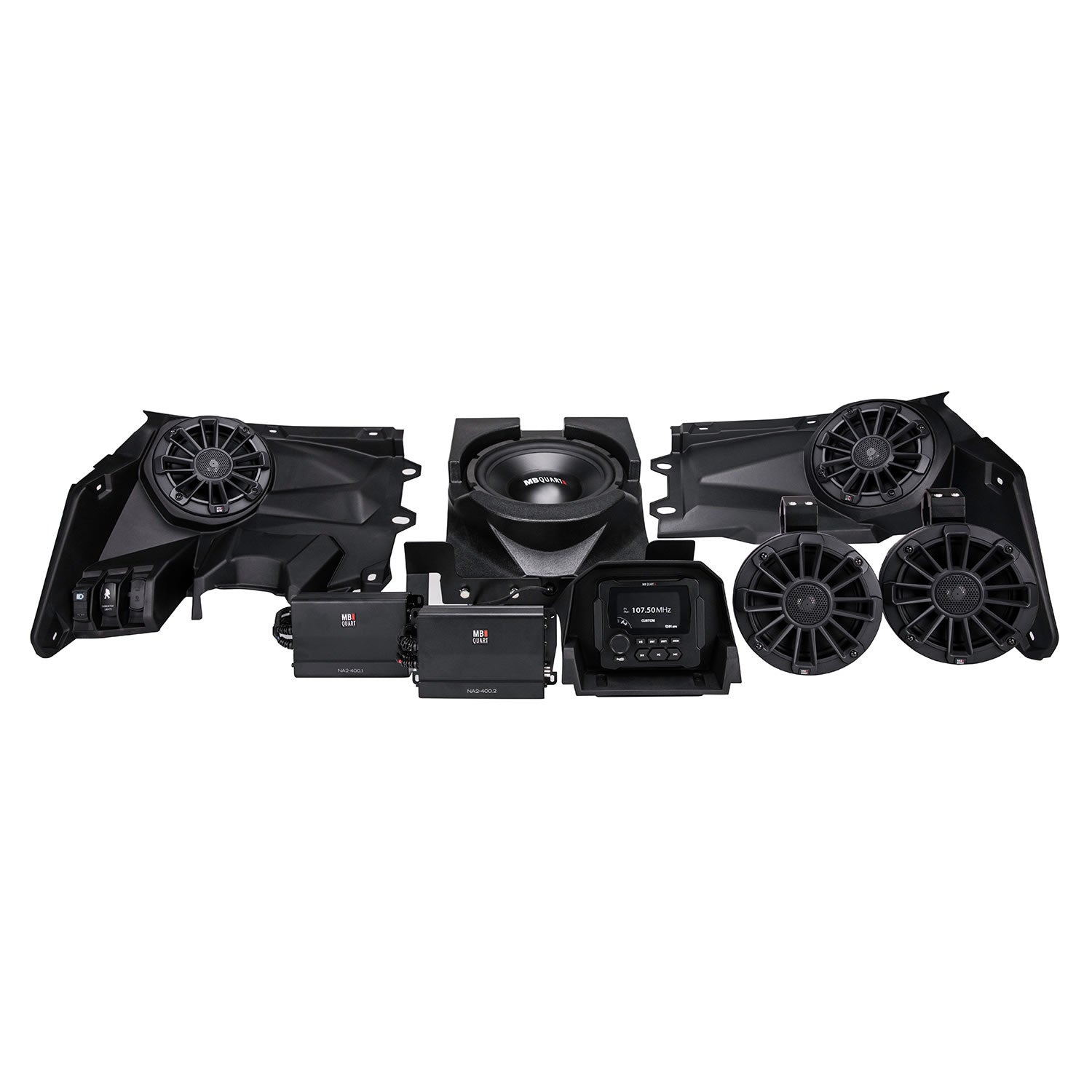

Can-Am Maverick X3 UTV Tuned Audio Package: Five Speaker 800 Watt STAGE 5 Audio System includes AM/FM, BT LED Source Unit, 4 speakers, under seat 10 inch subwoofer, and all necessary mounting panels and harnessing are included.
| Weight | 63.0 lbs |
|---|---|
| Dimensions | 33.0 × 23.0 × 24.0 in |
| Type |
UTV Kit |
| Brand |
MB Quart |
| Series |
Can-Am X3 Tuned |
| Category |
Powersports |
| Condition |
New |
| Color |
Black |
| UTV Source Available |
Yes |
| UTV Source Link |
https://www.utvsource.com/mb-quart-can-am-maverick-x3-audio-system-stage-5/ |
| Warranty |
1 Year |
| IPX Rating |
IPX5, IPX67 |
| Compatible Vehicles |
Can-Am Maverick X3 2017 and newer |
| UTV Kit Total System Power (watts) |
800 |
| Additional Details | See Kit Inclusions and Features & Benefits for product components and details. |
| Proposition 65 Notice | WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Source Unit |

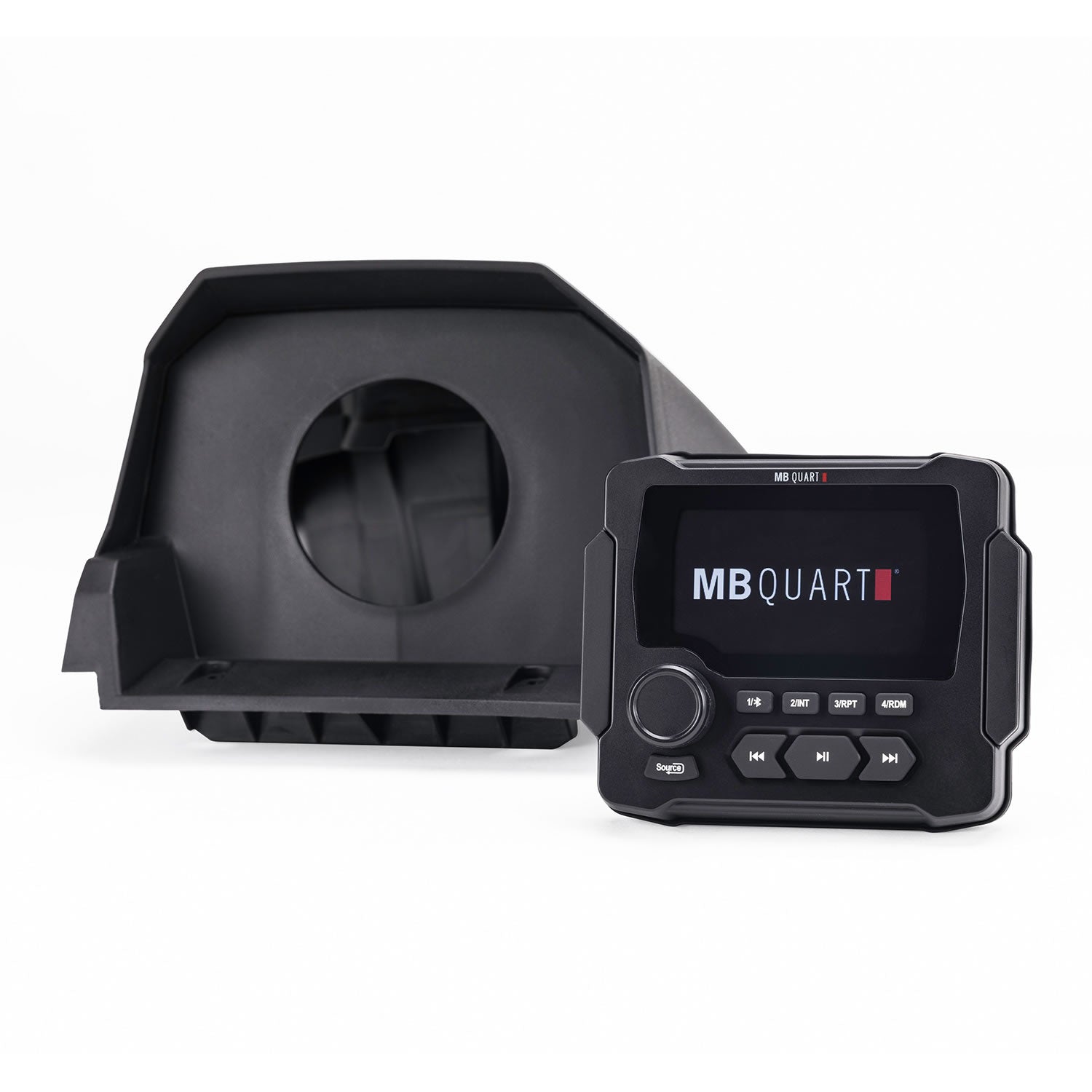

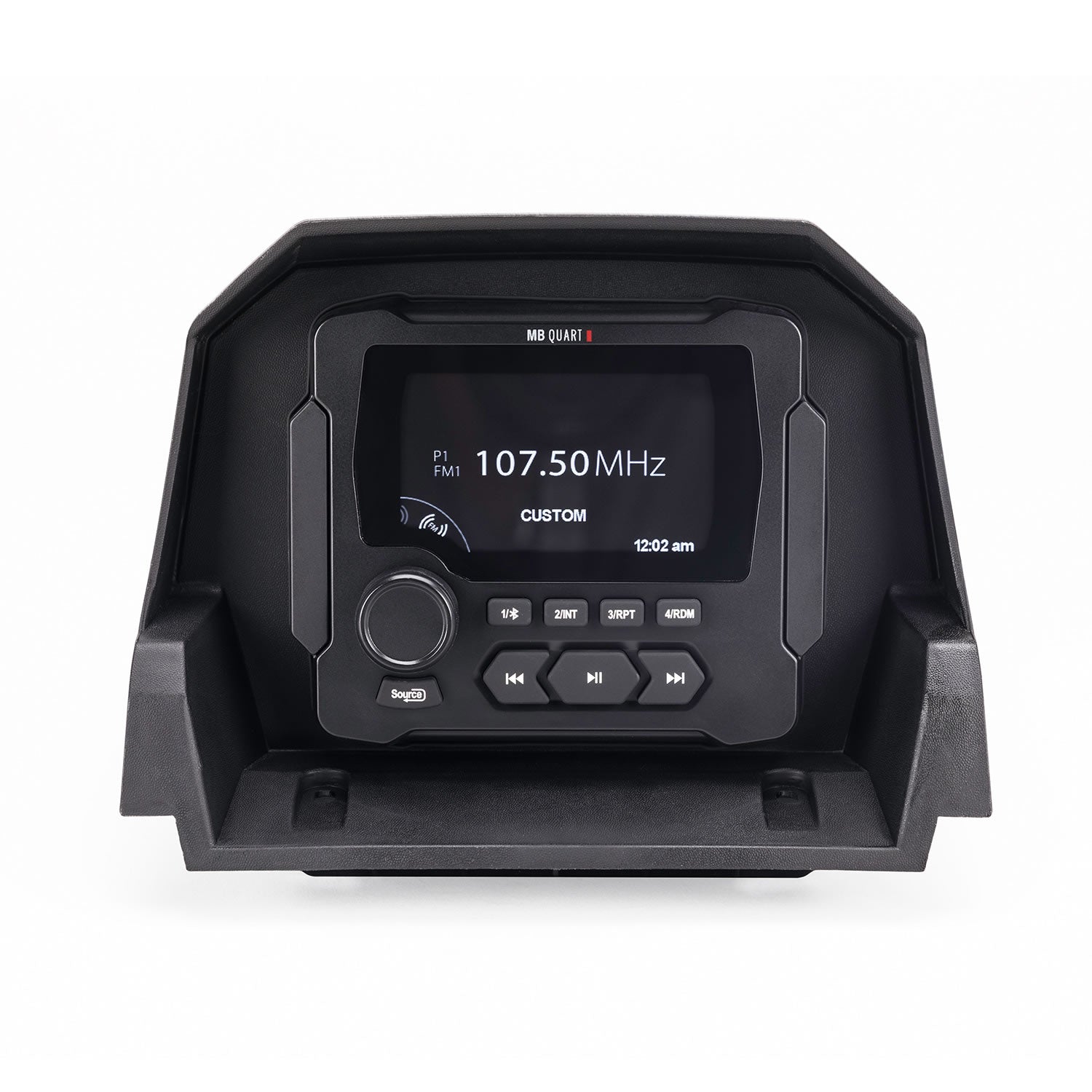

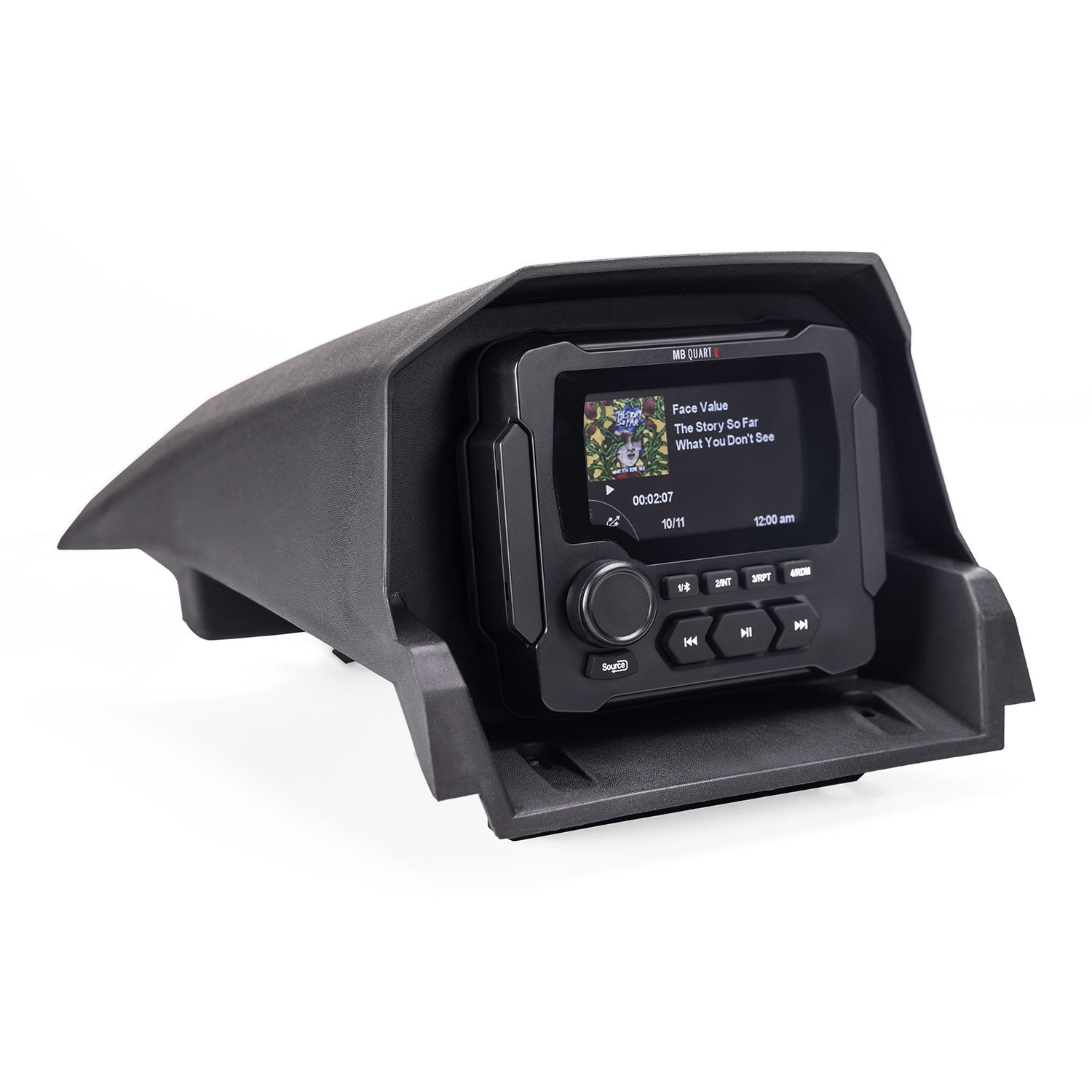

The AM/FM, Bluetooth source unit (GMR-LED) is mounted in a dash accessory that will not require the radio to be removed to access the fuse panel or diagnostic port. MBQX-RAD-1: LED Gauge Mount Radio with AM/FM/BT and Apple Control Maverick X3 Radio Dash Mounting Panel. |
|---|---|
| Front Speakers |

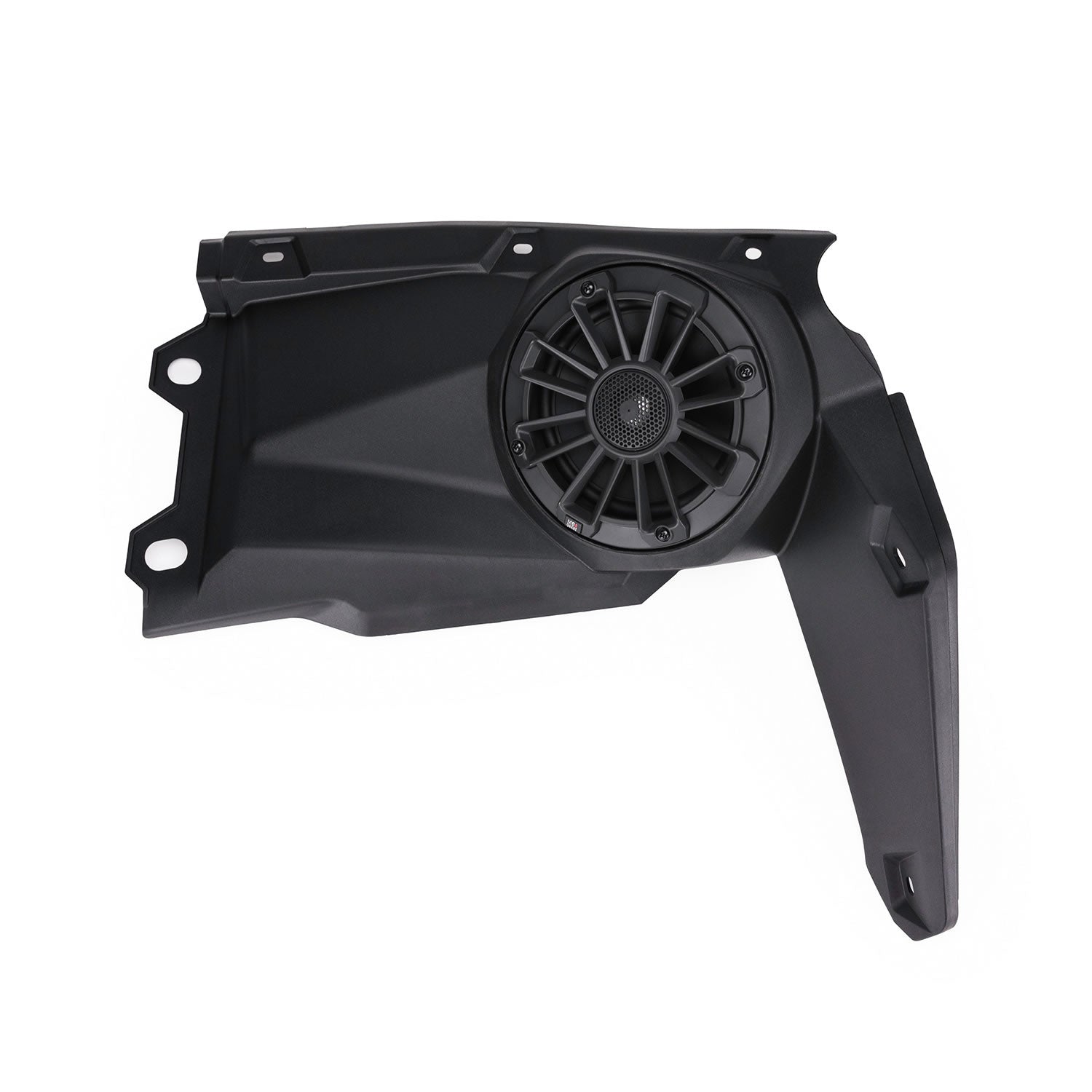

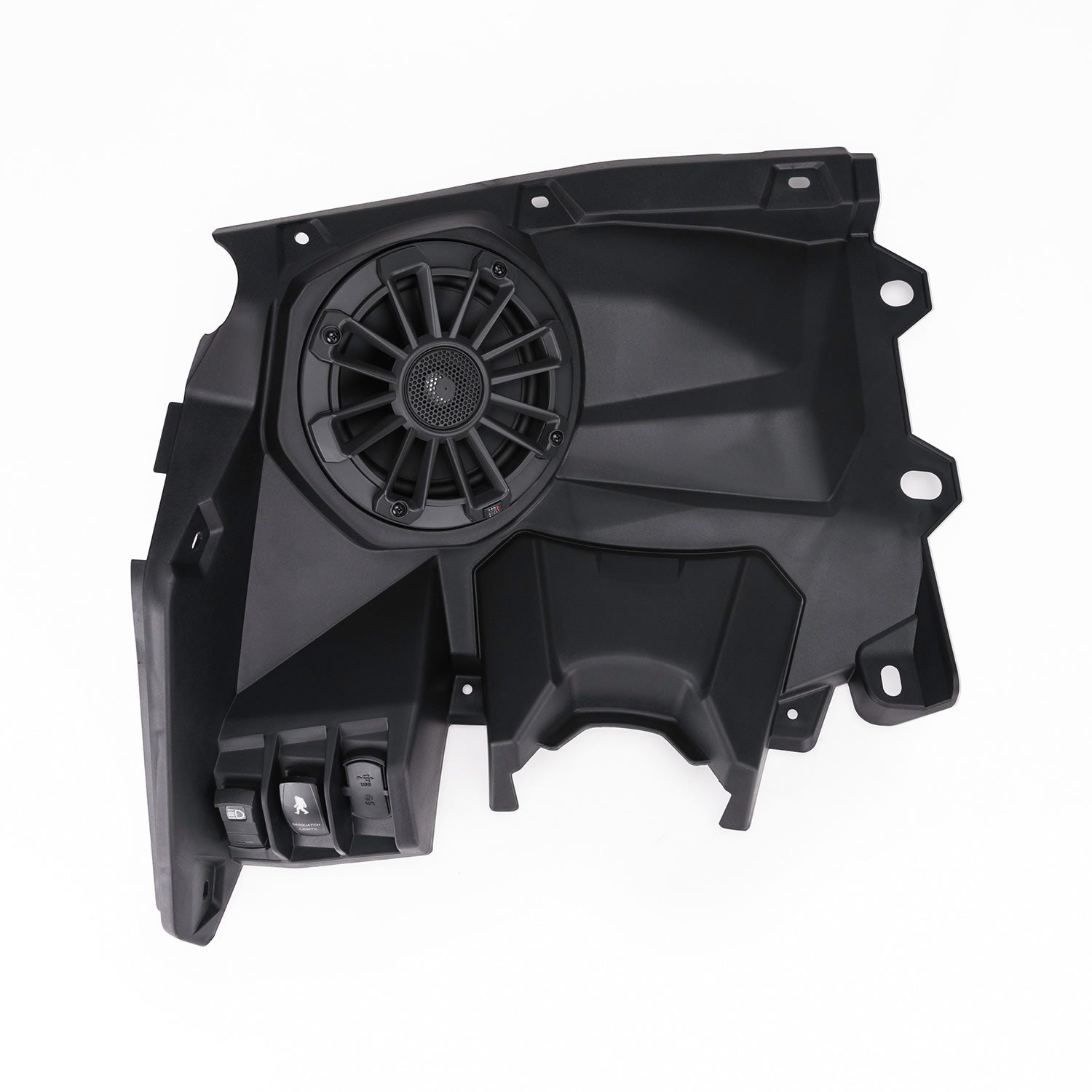

The 6.5 components are the NP1-116 two way speakers. The left speaker panel is Smart-Lok™ Diff Model capable and retains all factory mounts for ECU's. No relocation brackets or customization required. MBQX-POD-1: 6.5 Inch 2 Way Composite Coaxial Speakers, right and left speaker dash panels for 6.5 inch speakers, easy installation, 400 Watt Two Channel Class D, Compact Powersports Amplifier. |
| Rear Speakers |

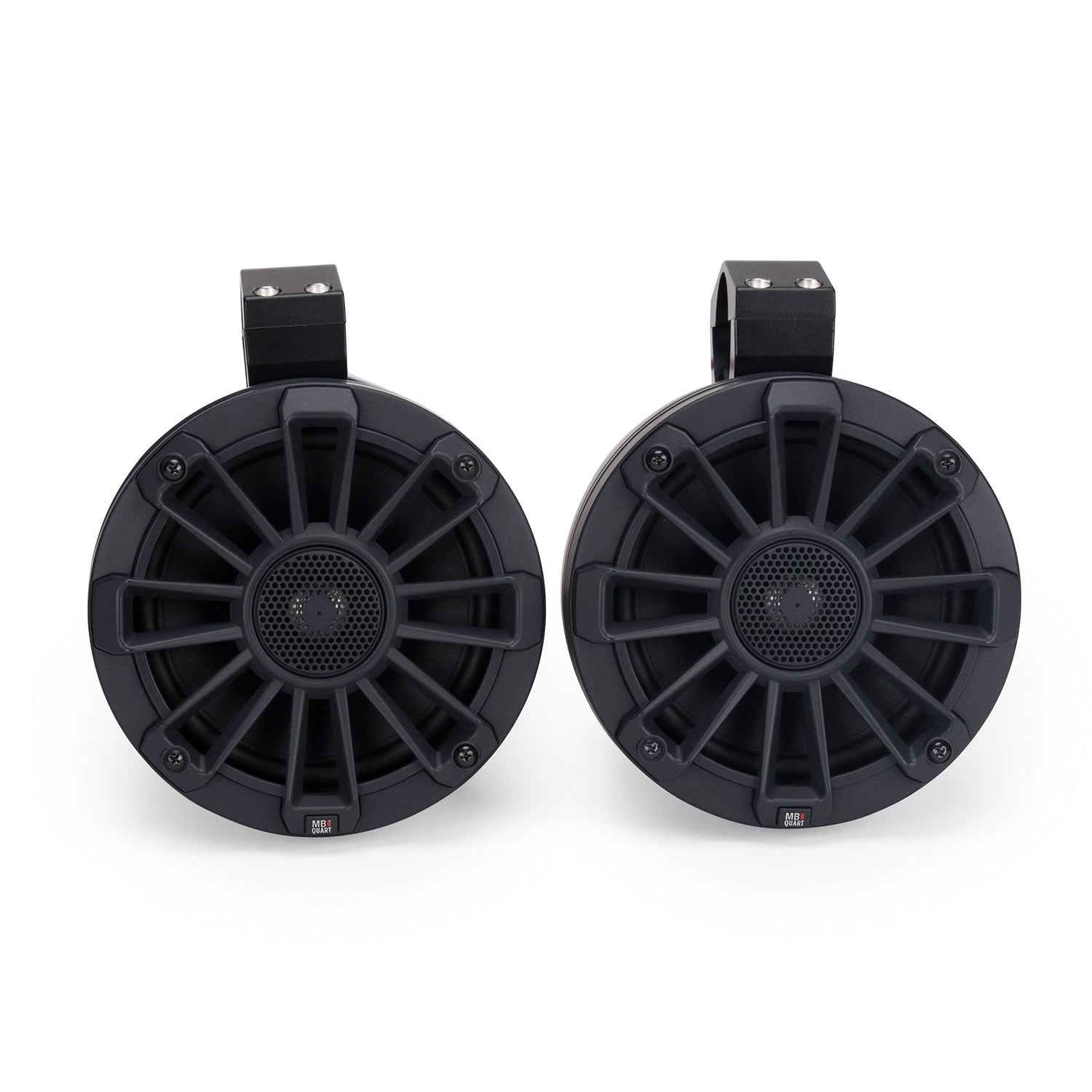

The 6.5 rear pod speakers are the NPT1-116 two way speakers, only available for the Can Am X3. NPT1-116B: (2) 6.5 inch 2 way Composite Coaxial Roll Cage Mount Speakers with Swivel Mount Brackets NPT1-116BB. |
| Subwoofer |

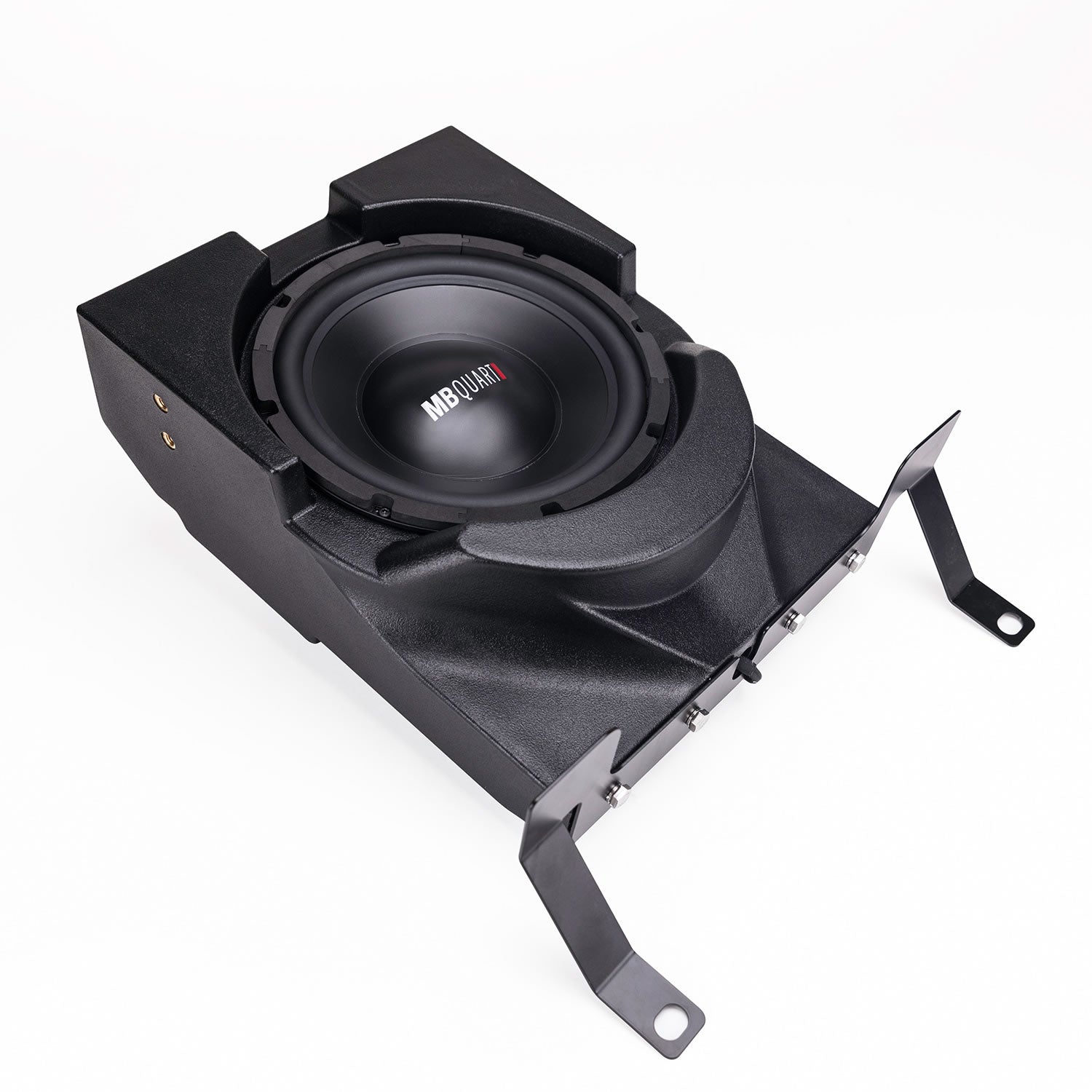

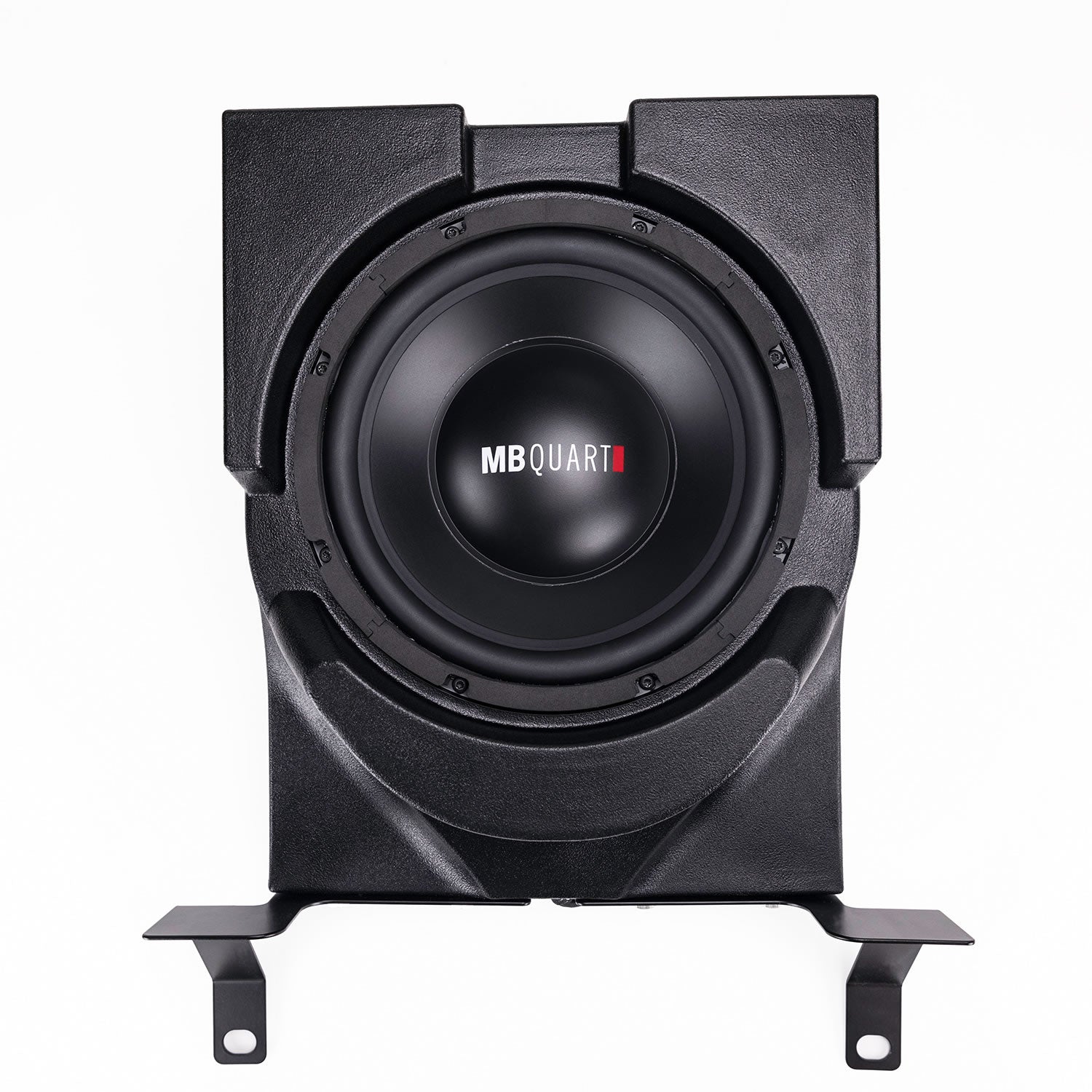

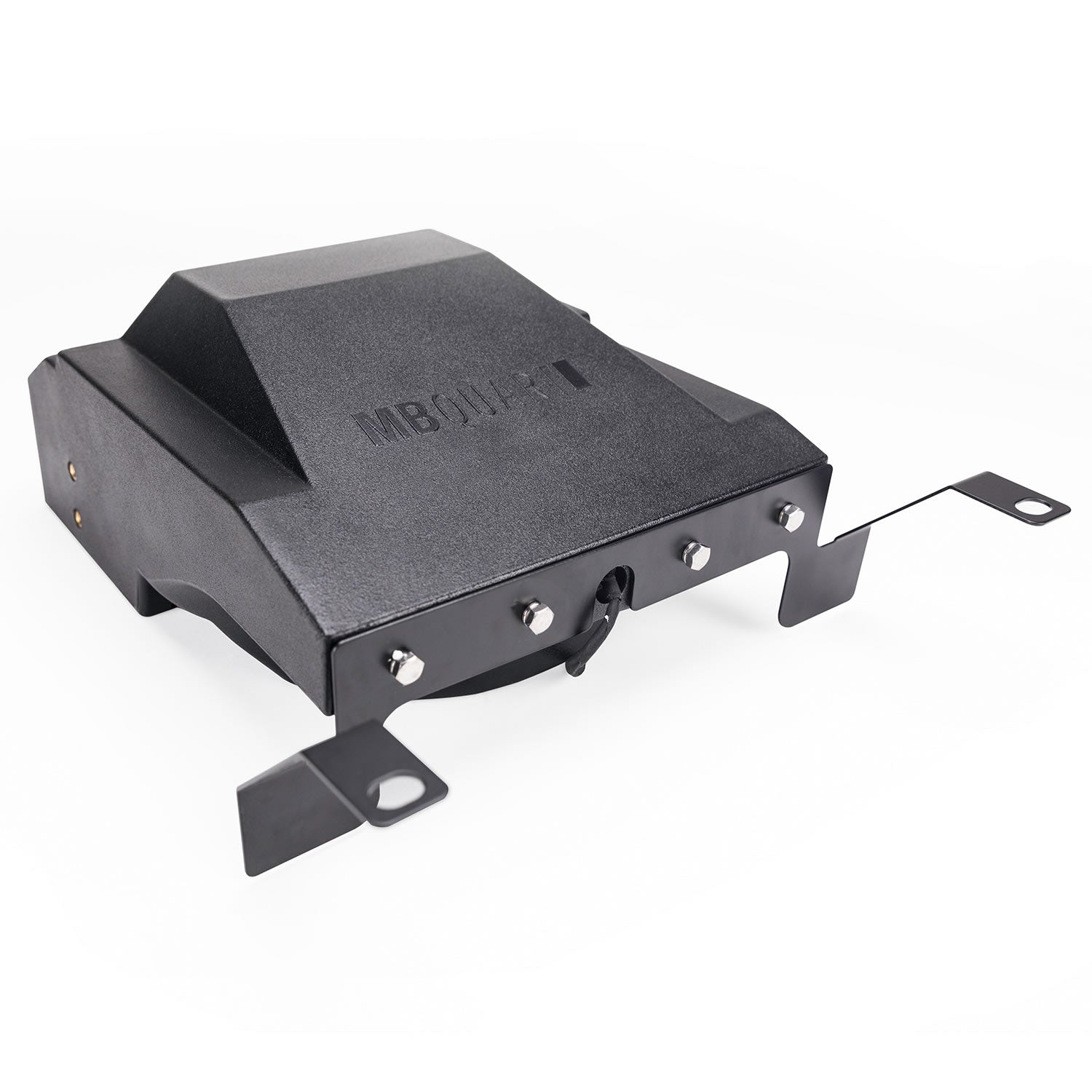

Dual Voice Coil 10 Inch Subwoofer in a High Impact HDPE Composite Under Seat Enclosure. MBQX-SUB-2: 10 inch, Dual 4 ohm Subwoofer, Maverick X3 Specific Under-Seat subwoofer enclosure, 400 watt Class D, Compact Powersports Subwoofer Amplifier. |
| Full Range Amplifier |

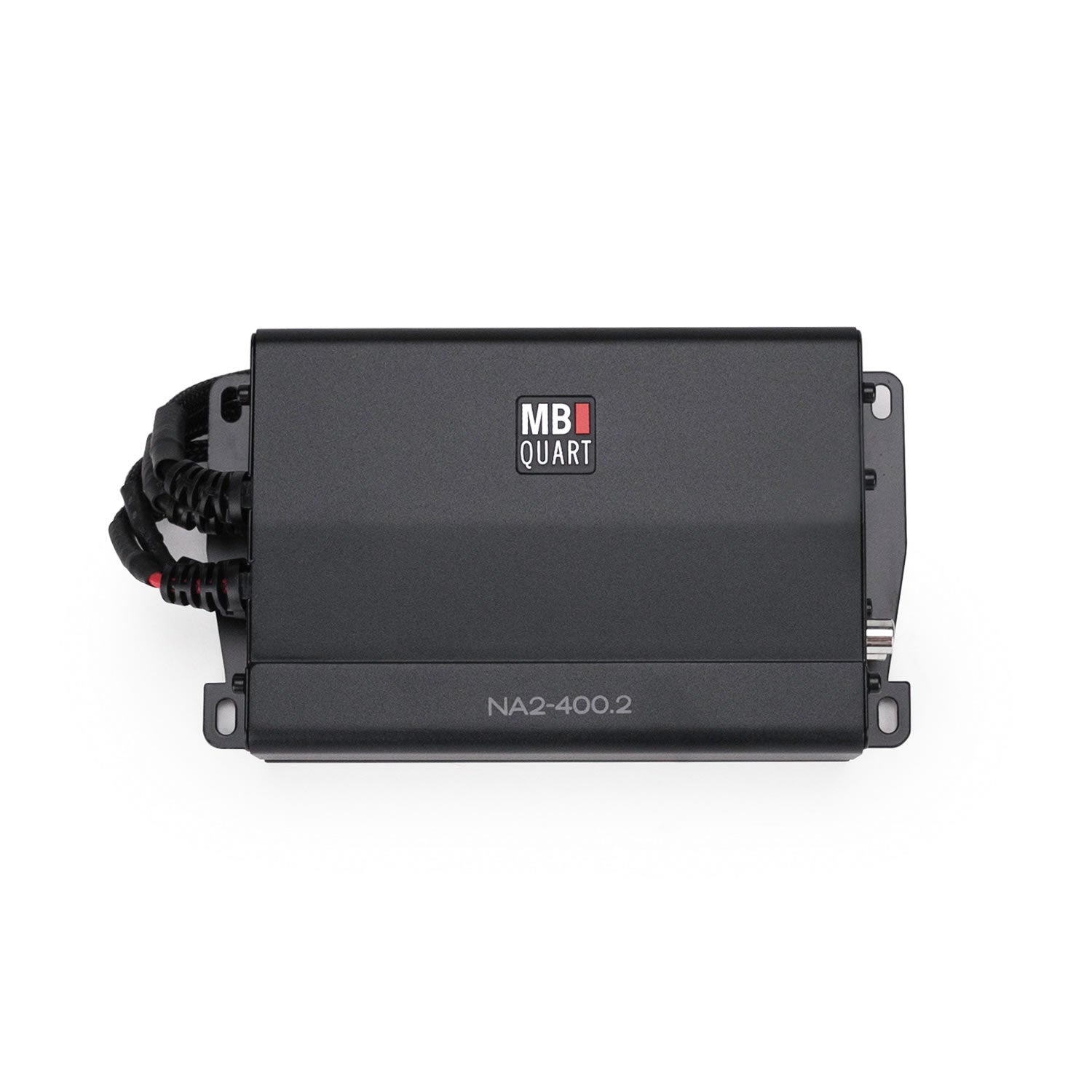

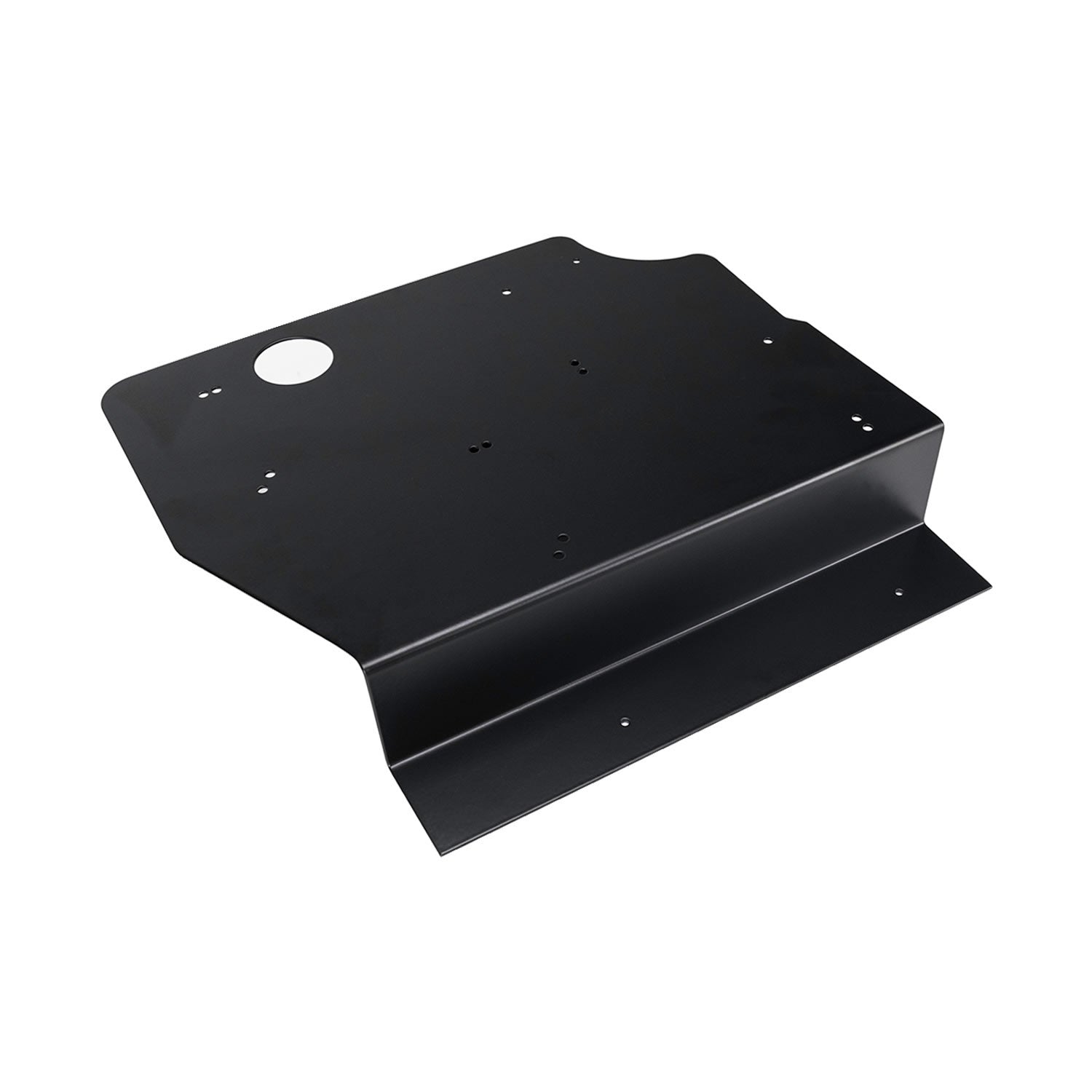

NA2-400.2 High Efficiency, Full Range Class D 400 Watt Amplifier with mounting plate. |
| Subwoofer Amplifier |

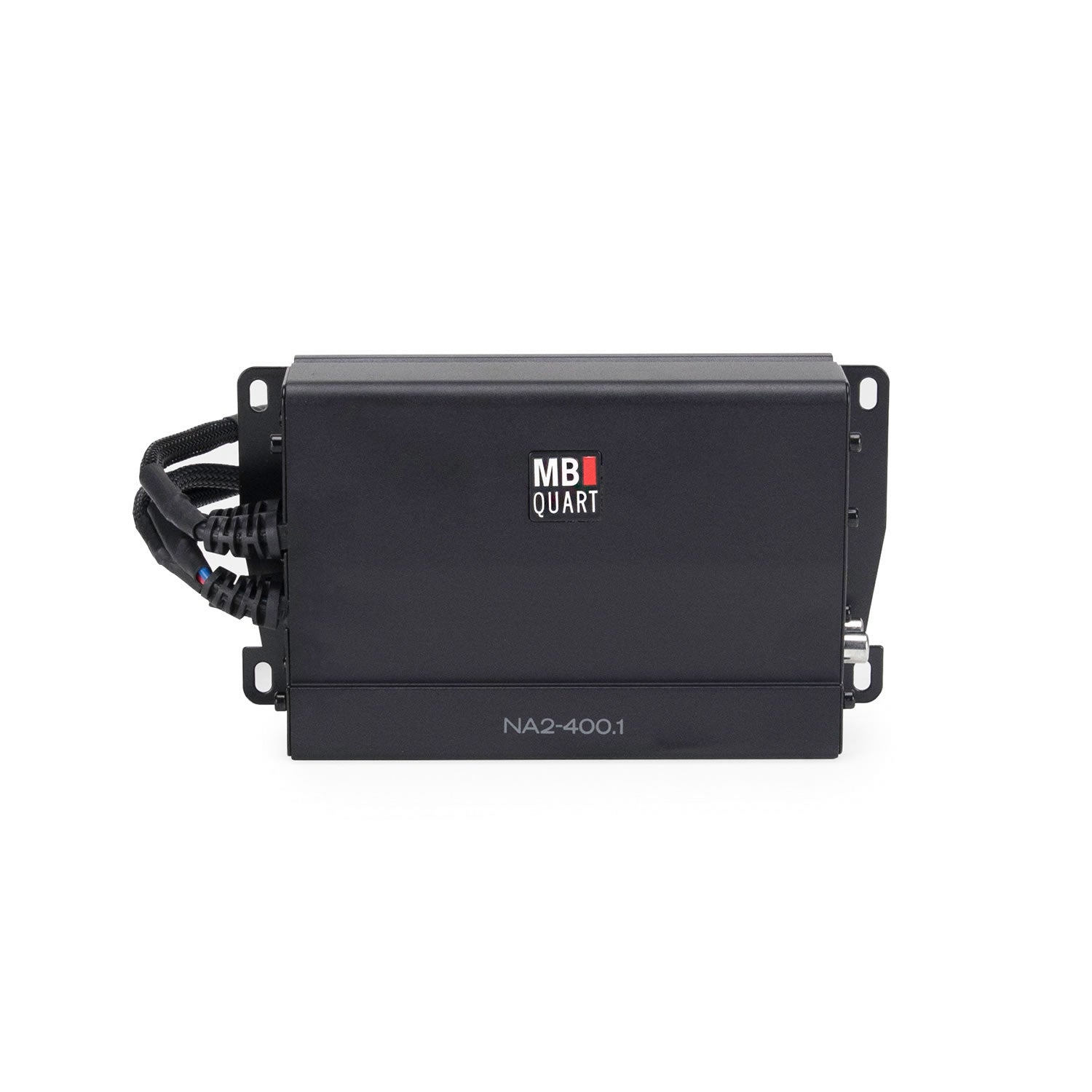

NA2-400.1 High Efficiency, Class D 400 Watt Mono subwoofer Amplifier. |
| Harnessing |

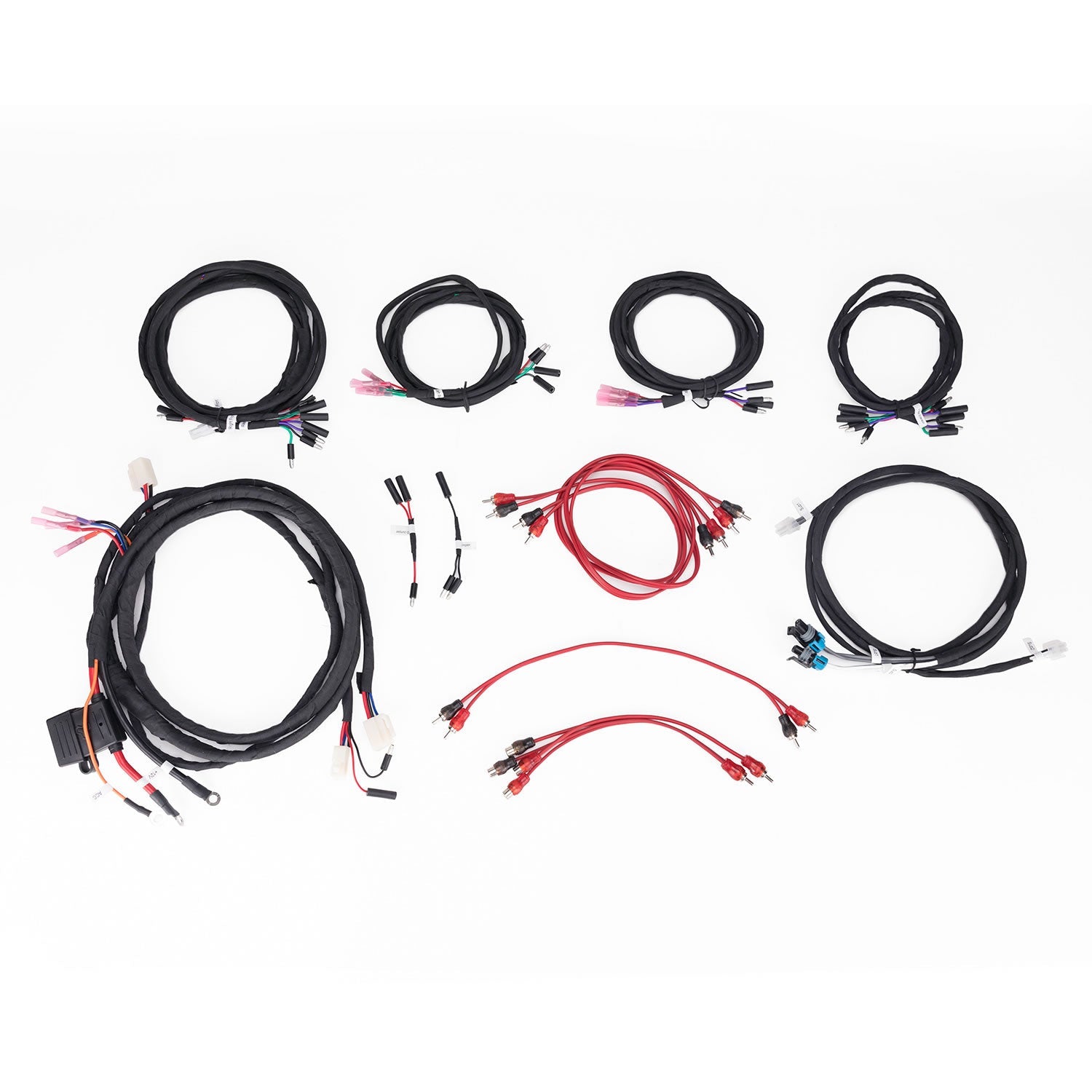

Full system harness capable of accommodating source unit, 3 amplifiers, which power 4 speakers, and 2 subwoofers. |
| Accessories |
MBQX-ACC-1: Maverick X3 Radio and Triple Amplifier Harness, Maverick X3 Amplifier Mounting Brackets.
|

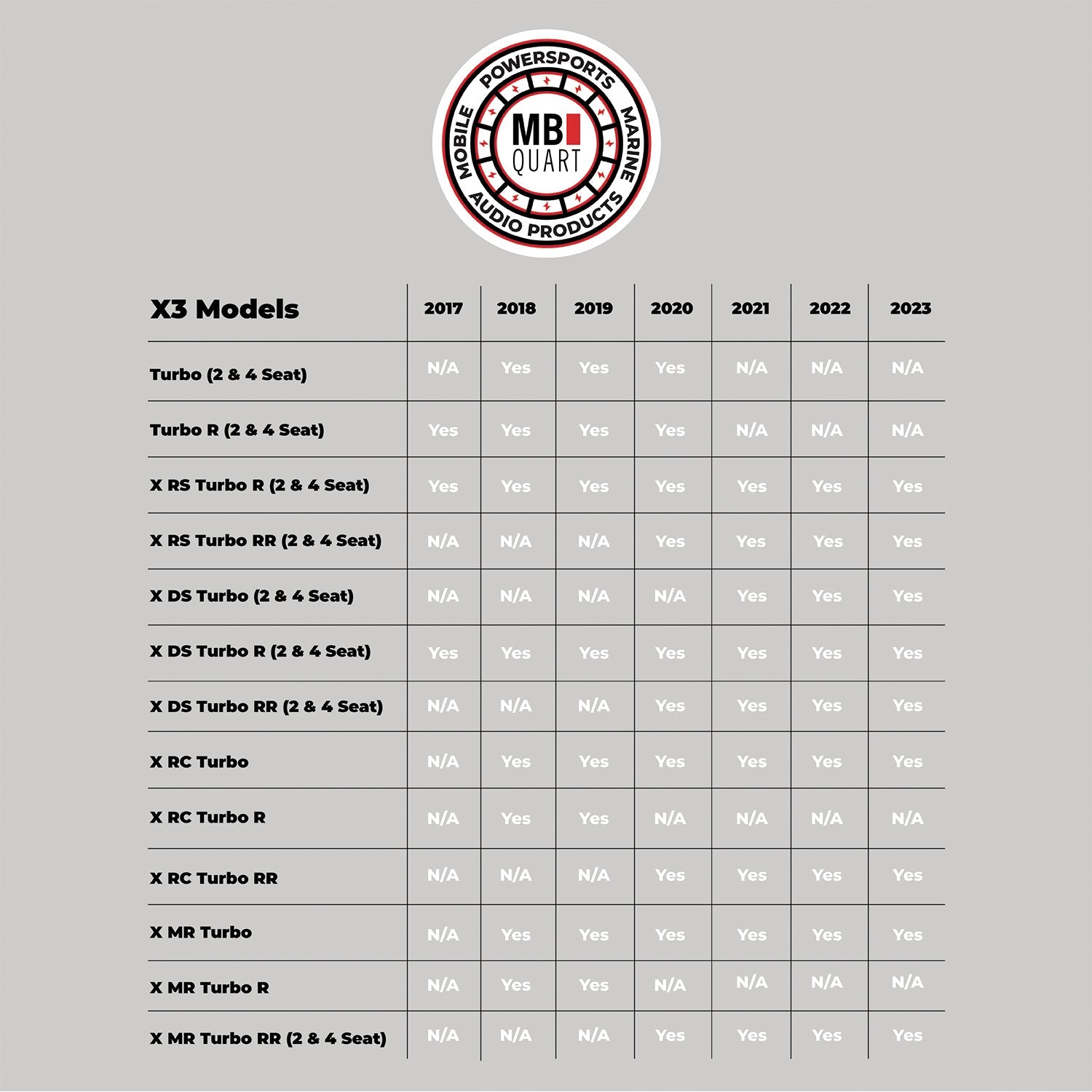

| Compatible Vehicle Fitment |
Can-Am Maverick X3 2017 and newer |
|---|---|
| Marine Grade Protection / IPX Rating |
MB Quart has engineered a select group of UTV-tuned audio systems that are perfectly designed for the CanAm X3. It is essential that every component installed in a X3 be torture tested to be as reliable as it can be in such a harsh environment. This system is made up of multiple components that have different IPX ratings. The speakers and subwoofer are IPX67 rated. The amplifiers are IPX5 rated. |
| Source Unit Features |
QUICK PAIR immediately connects to the last device that was connected and you'll have full Apple Control with Bluetooth capabilities. This unit also displays Album Artwork, if present, in your file. High voltage output guarantees maximum volume when running external amplifiers. |
| Speaker Features |
The front speakers are meticulously engineered to fit in the X3 dash. They include a 1" Titanium Dome Tweeter that will deliver natural sounding high frequency response, while producing high volume. Injection molded composition Polypropylene cone produces impactful bass with minimal cone flex. The Composite (UV Resistant ASA+Fiberglass) frames are incredibly strong and lightweight. The entire assembly earns an IPX68 rating which makes it as indestructible as the X3. The rear (Pod) speakers are the exact speaker as the front but mounted in a pair of versatile shallow mount enclosure with the included swivel mounts for perfect alignment to the listener regardless of the roll cage angle. |
| Amplifier Features |
The Can Am system is powered by the NA2 series of amplifiers. The stereo amplifier is operating in 2 ohm mode for maximum volume for all 4 speakers (front and rear pods). |
| Subwoofer Features |
400 Watt SUB STAGE Specific 10 inch Underseat Subwoofer System includes 10 inch, Dual 4 ohm Subwoofer, Maverick X3 Specific Under-Seat Subwoofer Enclosure, and 400 Watt Class D. |
| Mount / Harness |
Plug and Play Harness. Waterproof Connectors with premeasured wires. No guess work, no installation mistakes. |
| Time and Tools |
Standard hand tools are required. See the manual for time on each of the different components. |
