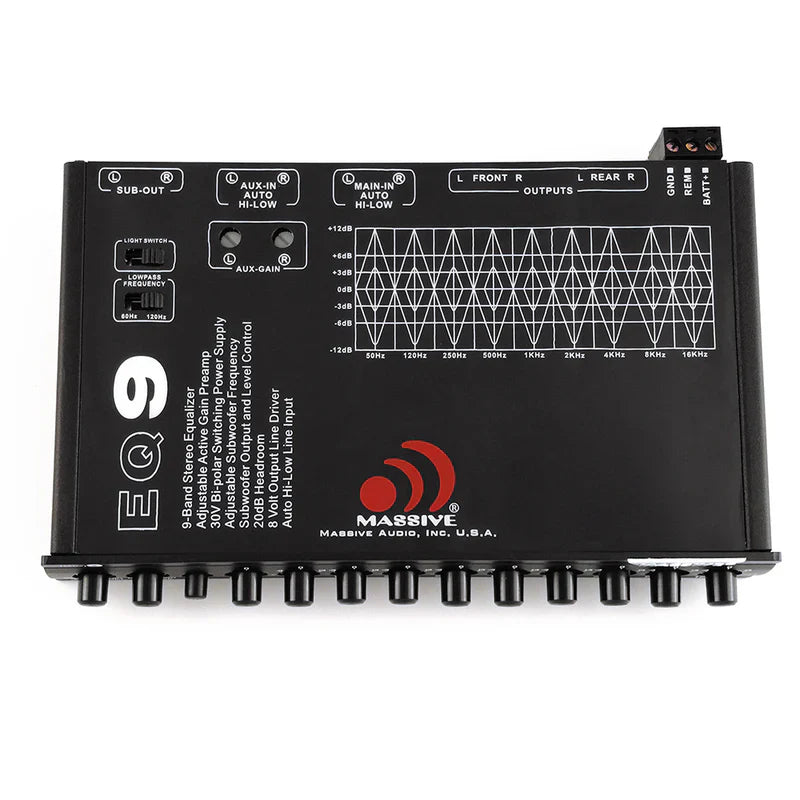

Massive Audio EQ9 9 Band Graphic Equalizer
Massive Audio EQ9 9 Band Graphic Equalizer
Regular price
$79.99
Regular price
$89.99
Sale price
$79.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 1/2 DIN
- 9 Band Graphic Equalizer
- Gold Plated RCA Connectors
- Frequency Response: 10Hz ~ 50Hz =/-1dB
- Center Freq: 50Hz, 120Hz, 250Hz, 500Hz, 1KHz, 4KHz, 8KHz, 16KHz
- Each Frequency Adjustable From -12dB to +12dB
- * -15dB to +15dB for Subwoofer Frequencies
- Subwoofer Output Built-In 18dB per Octave electronic X-Over fixed @ 60Hz or 120Hz
- 8 Volt Output Line Driver

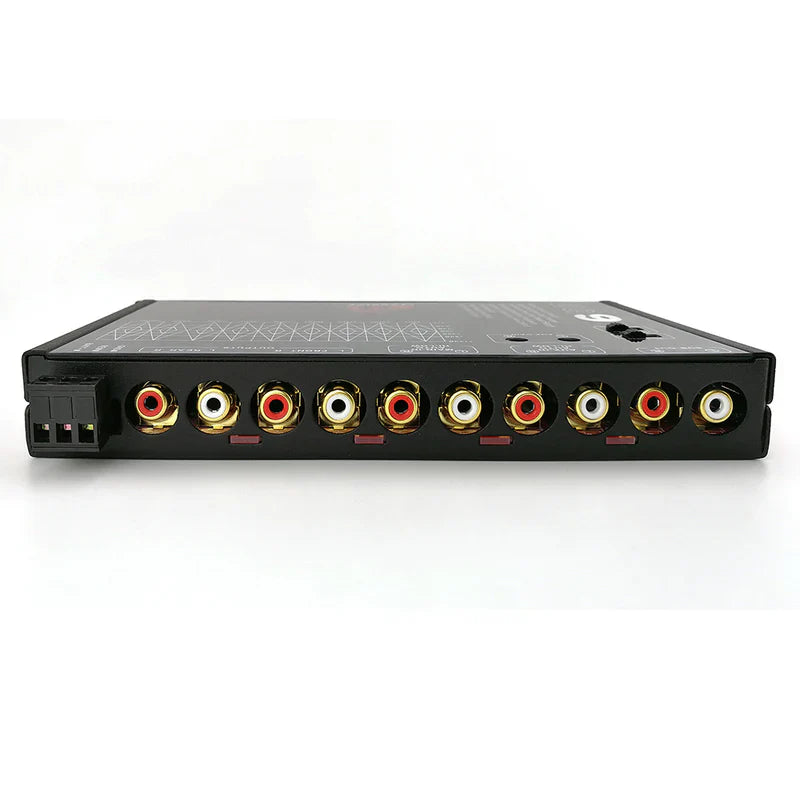

- RCA Auxiliary Input (Rear) inputs for MP3, DVD or Phone
- 6-Channel / 7 Volt RCA Outputs (Front/Rear/Subwoofer)

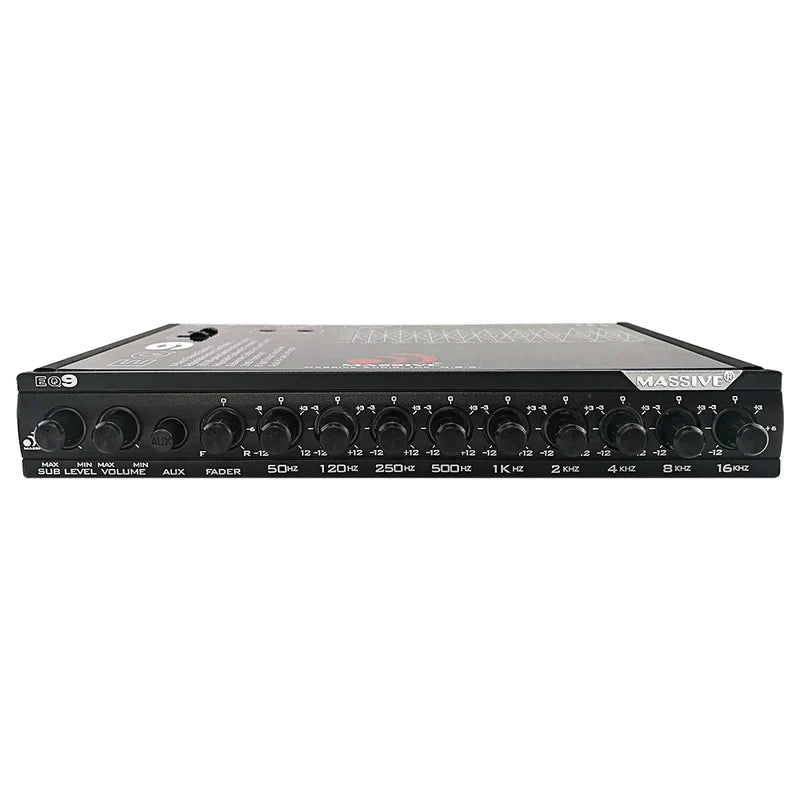

- Separate Controls for Master, Sub, Volume (Sub level) Front / Rear, Fader, Main or AUX Inputs
- Extended Frequency Response from 20HZ ~ 30Hz / 100dB S/N
- Adjustable Master Volume Level Control
- Adjustable Active Gain Preamp
- 30V Bi-Polar Switching Power Supply
- 20dB Headroom
- Adjustable Subwoofer Level Control
- Input Impedance 20K Ohms
- Output Impedance 2K Ohms
- Stereo Separation 82dB / 1KHz
- Operating Voltage 11V - 15V Negative Ground
- ISO Mounting Holes / Removable Trim Ring
- Switchable LED from orange to soft blue to match interior lighting
- 2-Channel RCA Input with Adjustable Gain
- Dimensions: 7"(W) " 1"(H) " 4 1/8"(D)
