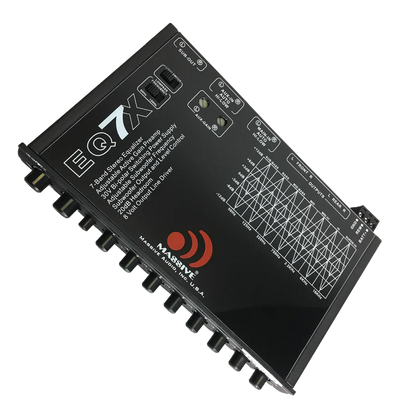

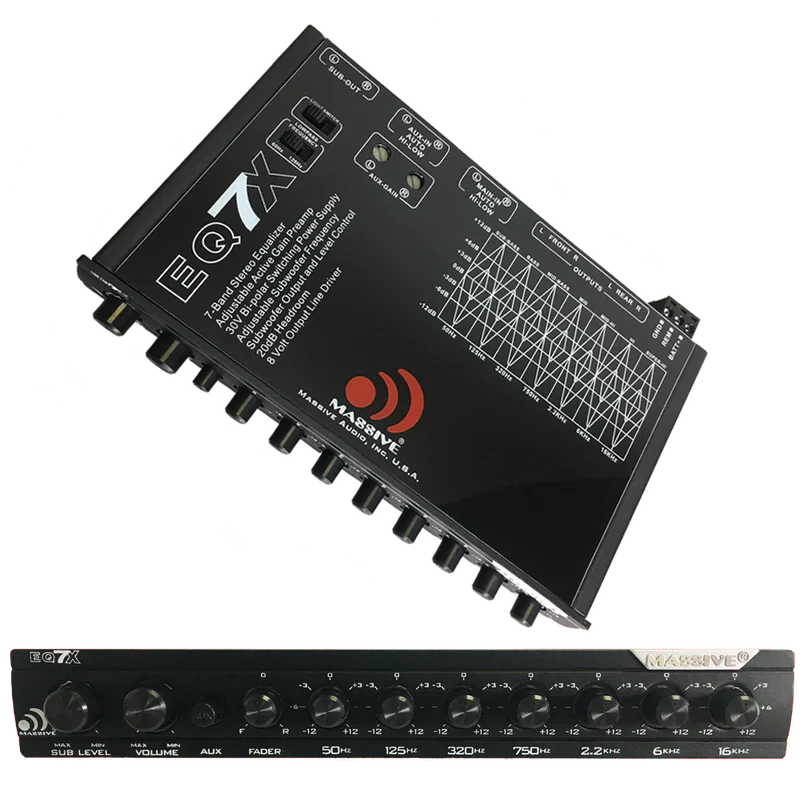

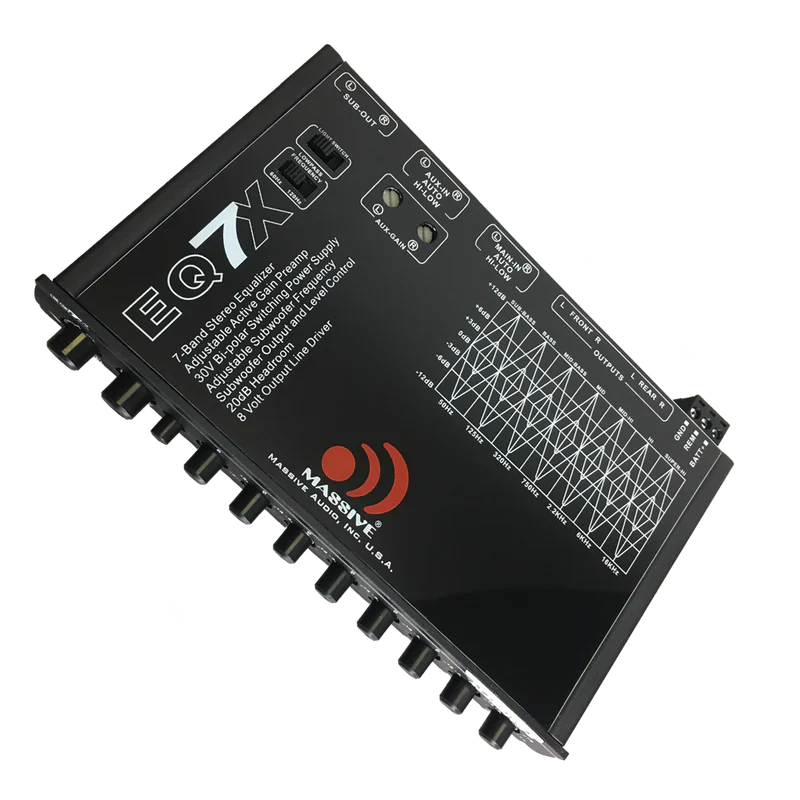

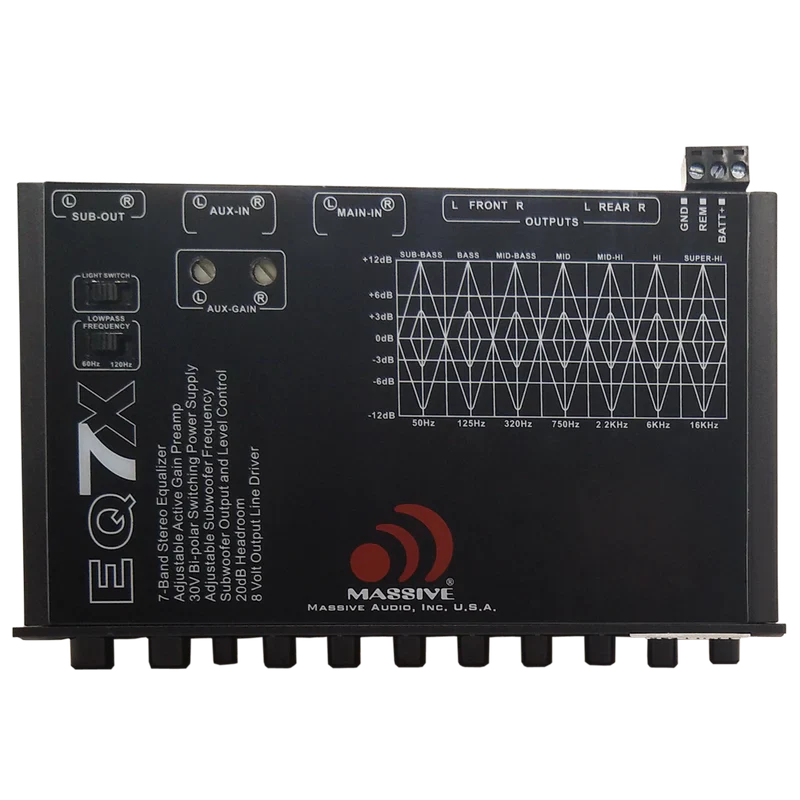

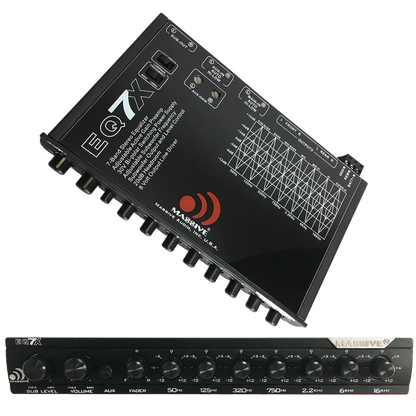

Massive Audio EQ7X 7 Band Graphic Equalizer
Massive Audio EQ7X 7 Band Graphic Equalizer
Regular price
$69.99
Regular price
$79.99
Sale price
$69.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Massive EQ 7X is a half din 7 Band Graphic EQ that will correct peaks and dips in sound characteristics associated with most vehicles' interior that dampens and limits both speaker output and imaging. This EQ provides powerful features in a compact size. A switch lets you change the faceplate backlit color from Orange to Soft Blue to match your cars interior lighting.
- 1/2 DIN
- 7 Band Graphic Equalizer
- Gold Plated RCA Connectors
- 50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, 16KHz
- Each Frequency Adjustable From -12dB to +12dB
- * -15dB to +15dB for Subwoofer Frequencies
- Subwoofer Output Built-In 18dB per Octave electronic X-Over fixed @ 60Hz or 120Hz
- 8 Volt Output Line Driver
- RCA Auxiliary Input (Rear) inputs for MP3, DVD or Phone
- 6-Channel / 7 Volt RCA Outputs (Front/Rear/Subwoofer)
- Separate Controls for Master, Sub, Volume (Sub level) Front / Rear, Fader, Main or AUX Inputs
- Extended Frequency Response from 20HZ ~ 30Hz / 100dB S/N
- Adjustable Master Volume Level Control
- Adjustable Active Gain Preamp
- 30V Bi-Polar Switching Power Supply
- 20dB Headroom
- Adjustable Subwoofer Level Control
- Input Impedance 20K Ohms
- Output Impendence 2K Ohms
- Stereo Separation 82dB / 1KHz
- Operating Voltage 11V - 15V Negative Ground
- ISO Mounting Holes / Removable Trim Ring
- Switchable LED from orange to soft blue to match interior lighting
- 2-Channel RCA Input with Adjustable Gain
- Dimensions: 7"(W) " 1"(H) " 4 1/8"(D)
