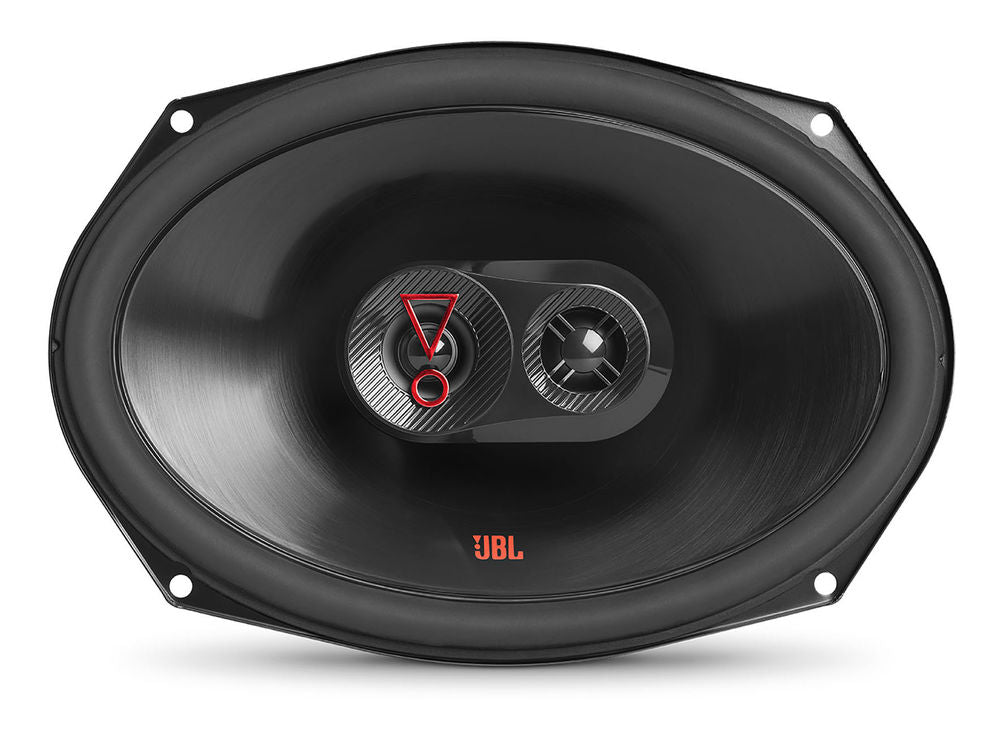

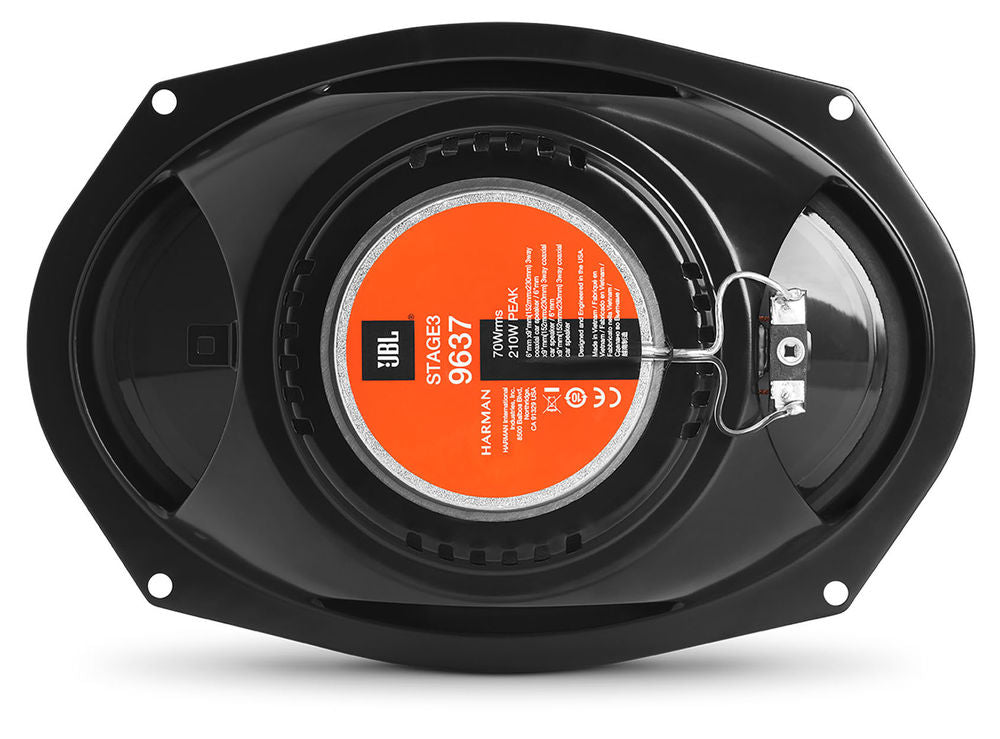

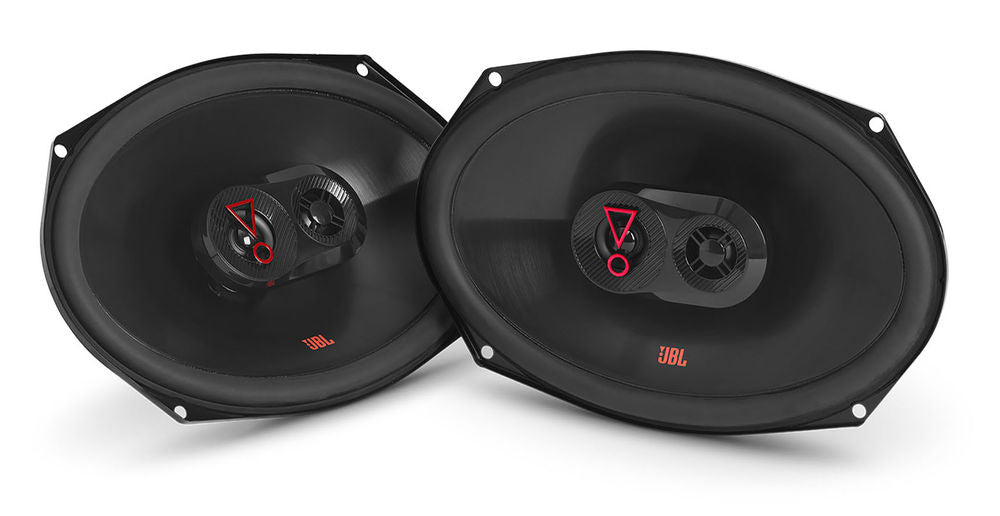

JBL Stage3 9637F 6"x9" 3-Way Coaxial Speakers

JBL Stage3 9637F 6"x9" 3-Way Coaxial Speakers

$129.99
$149.99 $129.99
Sale Sold out
Shipping calculated at checkout.

Product Details:

  • Power Handling:
    • Peak: 420 watts per pair / 210 watts each
    • RMS: 140 watts per pair / 70 watts each
  • Plus One™ polypropylene woofer cones
  • speaker surround
  • Dome Tweeters
  • External Crossover with 0/+2dB Tweeter level control
  • Vented basket frame design

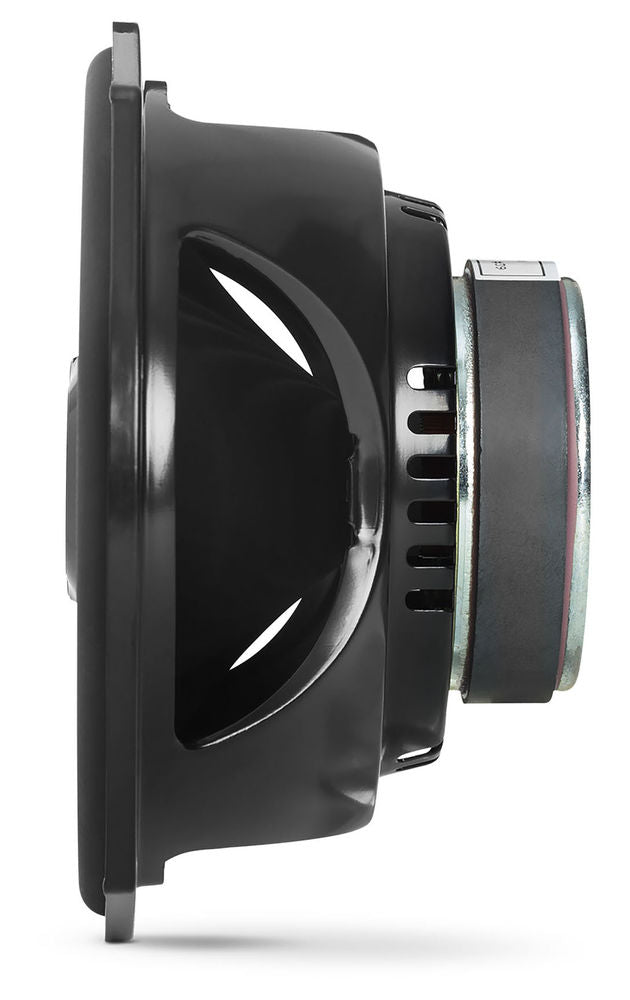

  • Top-mount Depth: 3.06"
  • Cutout Dimensions: 8.45" x 9.31"
  • Impedance: 3 ohms
  • Frequency Response: 50 - 20,000 Hz
  • Sensitivity: 93 dB @2.83V
  • Free-Air Resonance (Fs): 52.2 Hz
  • Equivalent Compliance (Vas): 32.35 liters
  • Total Speaker Q Value (Qts): 1.281
  • Electrical Q Value (Qes): 1.413
  • Mechanical Q Value (Qms): 13.661
  • Crossover Point: 5,000 Hz
  • Grilles not included
peaker Size
6" x 9"
Design
3-way Coaxial
Tweeter Design
Dome
Woofer Composition
Polypropylene
Peak Power Handling
210 watts
RMS Power Handling
70 watts
Total PEAK Per Pair/Set
420 watts
Total RMS Per Pair/Set
140 watts
Sensitivity
93 dB
Frequency Response
50 - 20,000 Hz
Impedance (Per Voice Coil)
3 ohms
Top-Mount Depth (Mounting Depth)
3.06"
Bottom-Mount Depth
3.55"
Cutout Dimensions
8.45" x 9.31"
Number of Speakers
2
CTA-2031 Compliant
No
General specifications
Color
Black
Speaker Grilles
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
Brand sticker/decal
WITB: Speakers
Speakers (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
