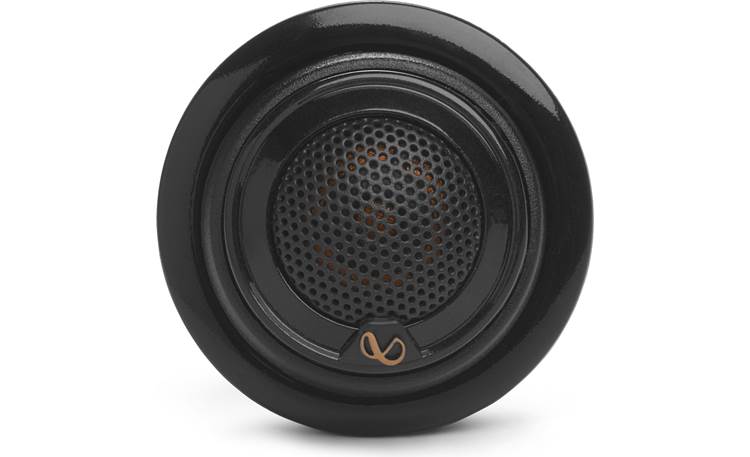

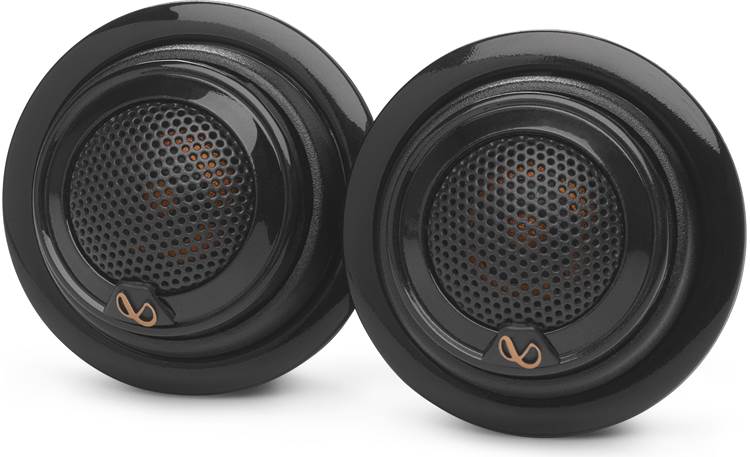

Infinity Reference REF757T 3/4" Textile Dome Tweeters
Infinity Reference REF757T 3/4" Textile Dome Tweeters
Smooth and clear
If you're experiencing a muddy soundstage across your dash, it may be time to change out your vehicle's worn-out factory tweeters. Infinity's REF757T 3/4" dome tweeters will bring refreshingly warm detail to your music and provide an improved stereo image — without being shrill or causing harshness.

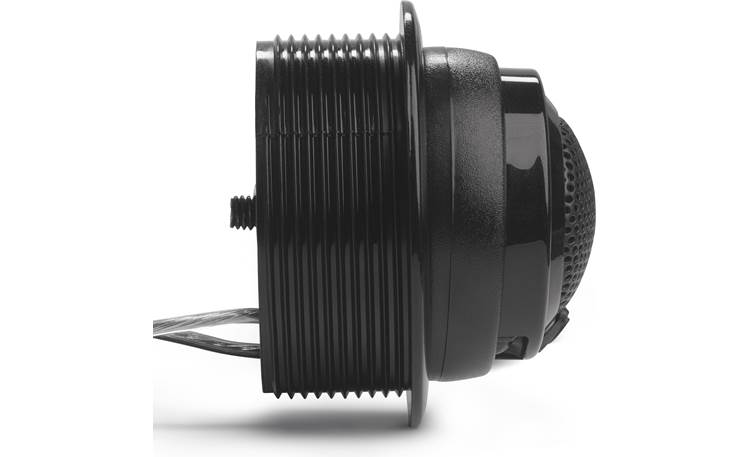

This side view of the tweeter shows one of the installation option that Infinity provides.
Bring on the power
Infinity uses an edge-driven tweeter design and a large voice coil to help this tweeter handle up to 45 watts RMS. The package includes in-line crossovers that protect the tweeters against lower frequencies, along with adapters that allow for surface- or flush-mounting, so that installation's a lot simpler. You can use the included Starfish mounts to place the tweeters in many existing tweeter openings.
Product highlights:
- 3/4" textile, edge-driven dome tweeters (pair)
- flush- and surface-mount hardware included
- Starfish™ bracket for mounting in factory tweeter locations
- passive in-line crossovers included (2,500 Hz)
- handles up to 45 watts RMS (135 watts peak power)
- frequency response: 2,500-21,000 Hz
- sensitivity: 93 dB at 2.83V
- top-mount depth: 0.825"
- warranty: 1 year
What's in the box:
Infinity Reference REF757T owner's manual
- 2 Tweeters (each has attached 6" speaker leads)
- 2 In-line crossovers (each has 24" input leads and 33" output leads)
- 2 Flush-mount housings
- 2 Threaded flush-mount adapters
- 2 Flush-mount locking nuts
- 2 Surface-mount housings
- 2 Starfish mounts
- Six 5/8" Flat head screws
- 2 Washers
- 2 Nuts
- 2 Infinity logo badges
- Instruction manual
- Template on box
