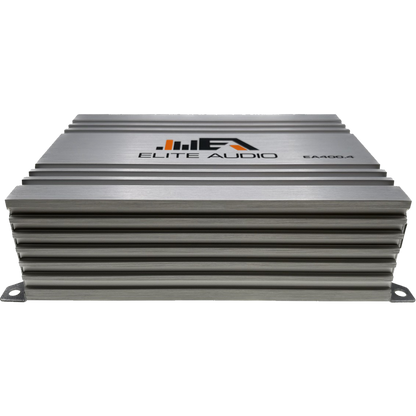

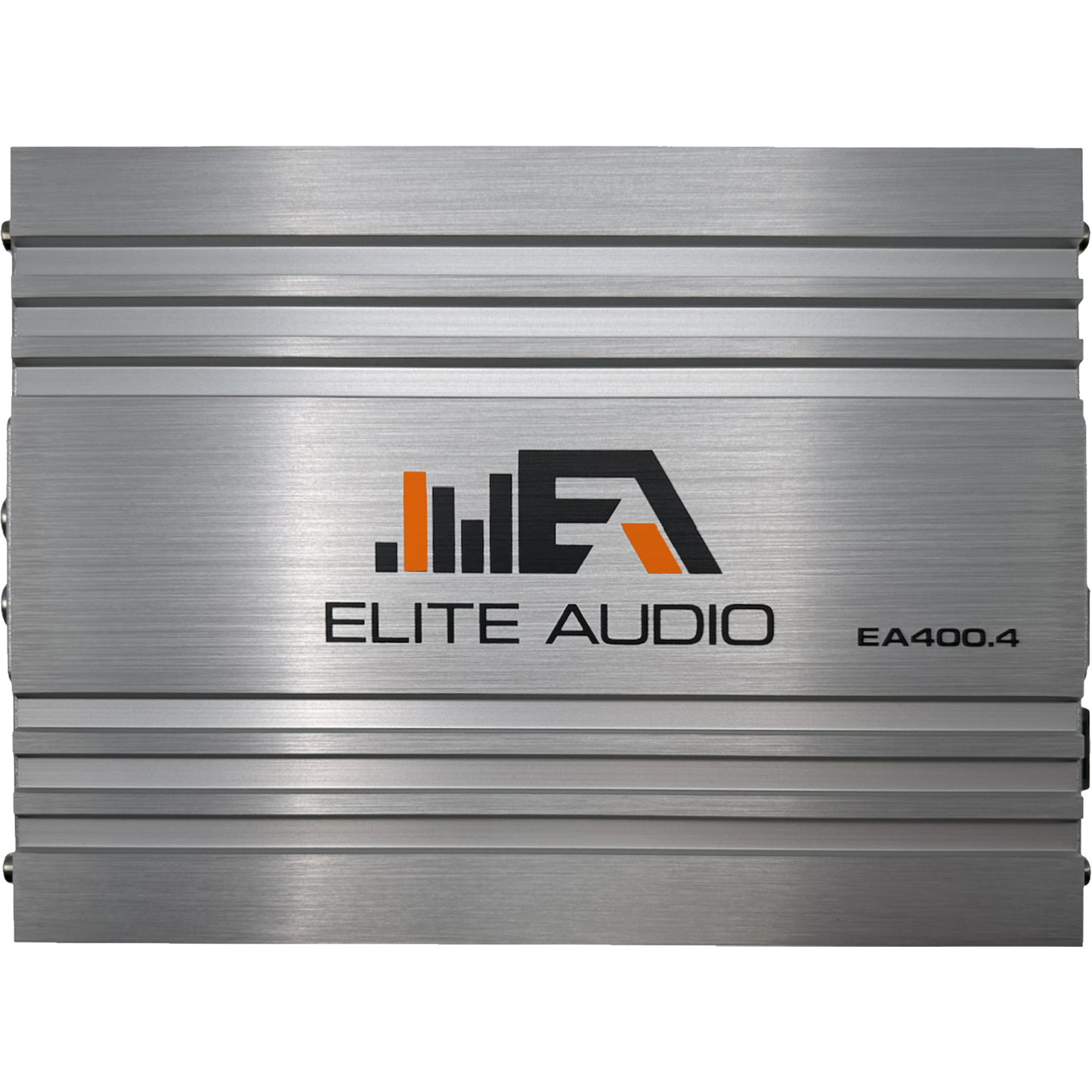

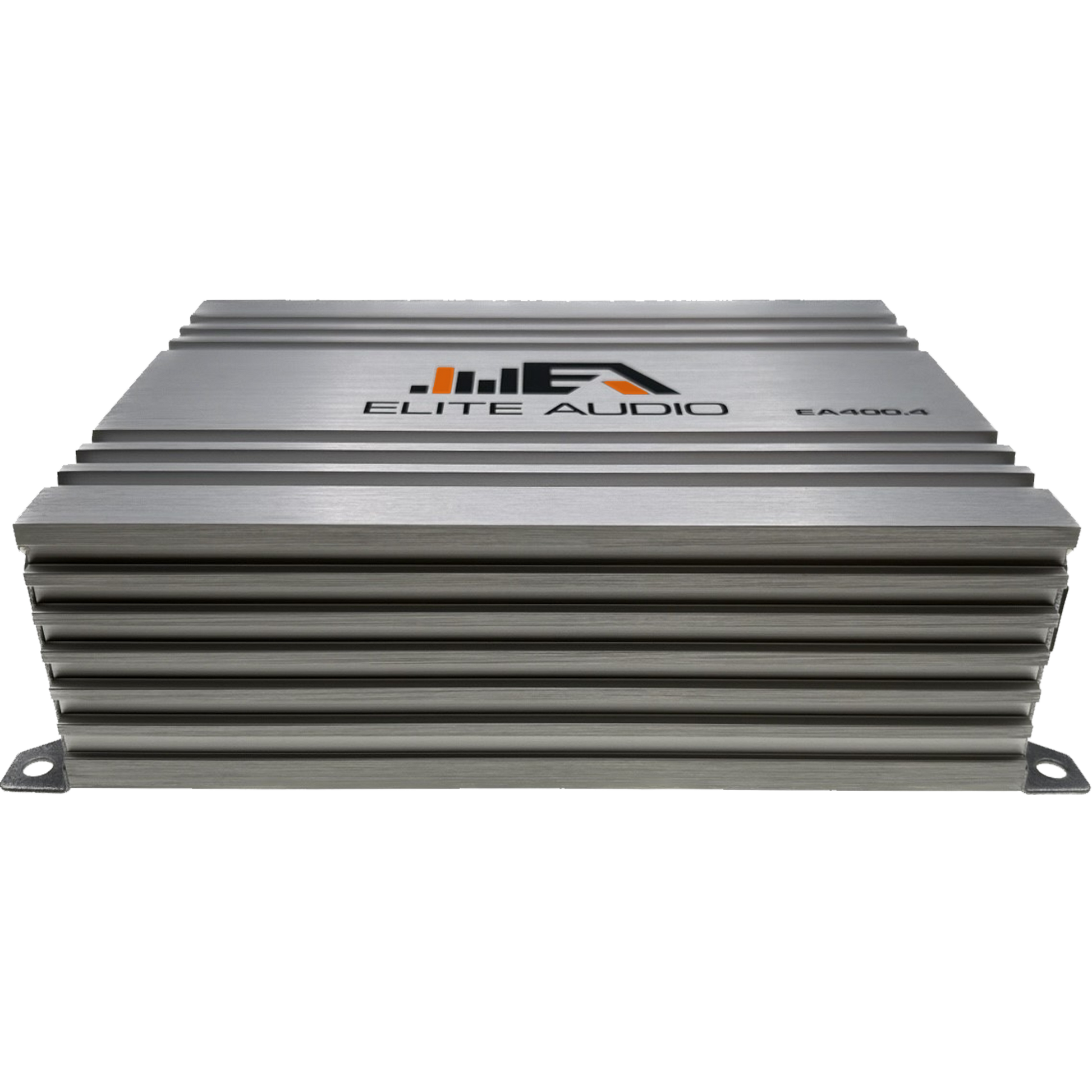

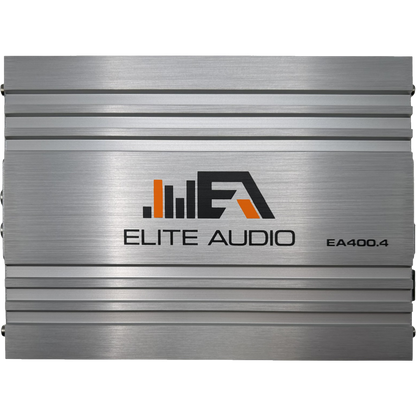

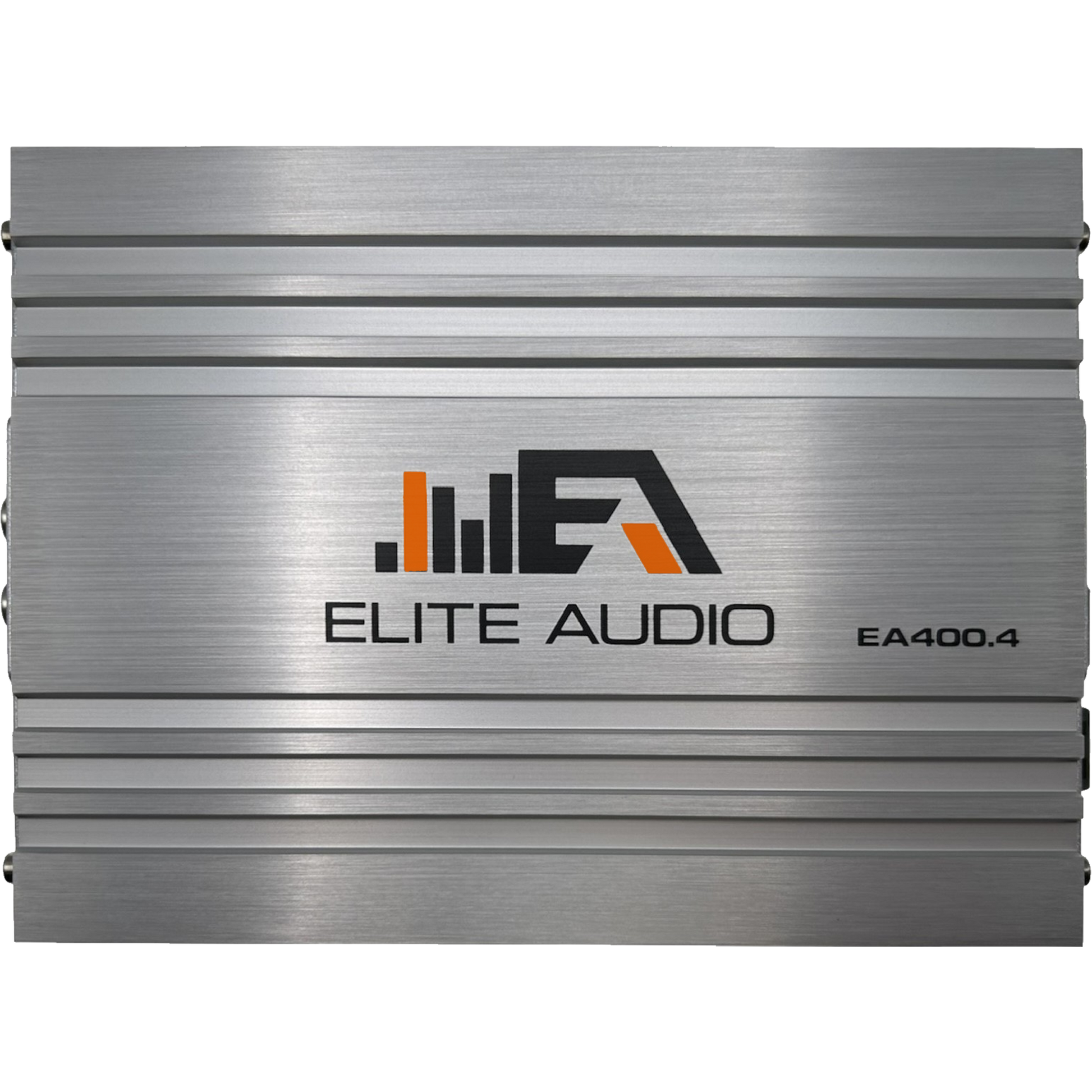

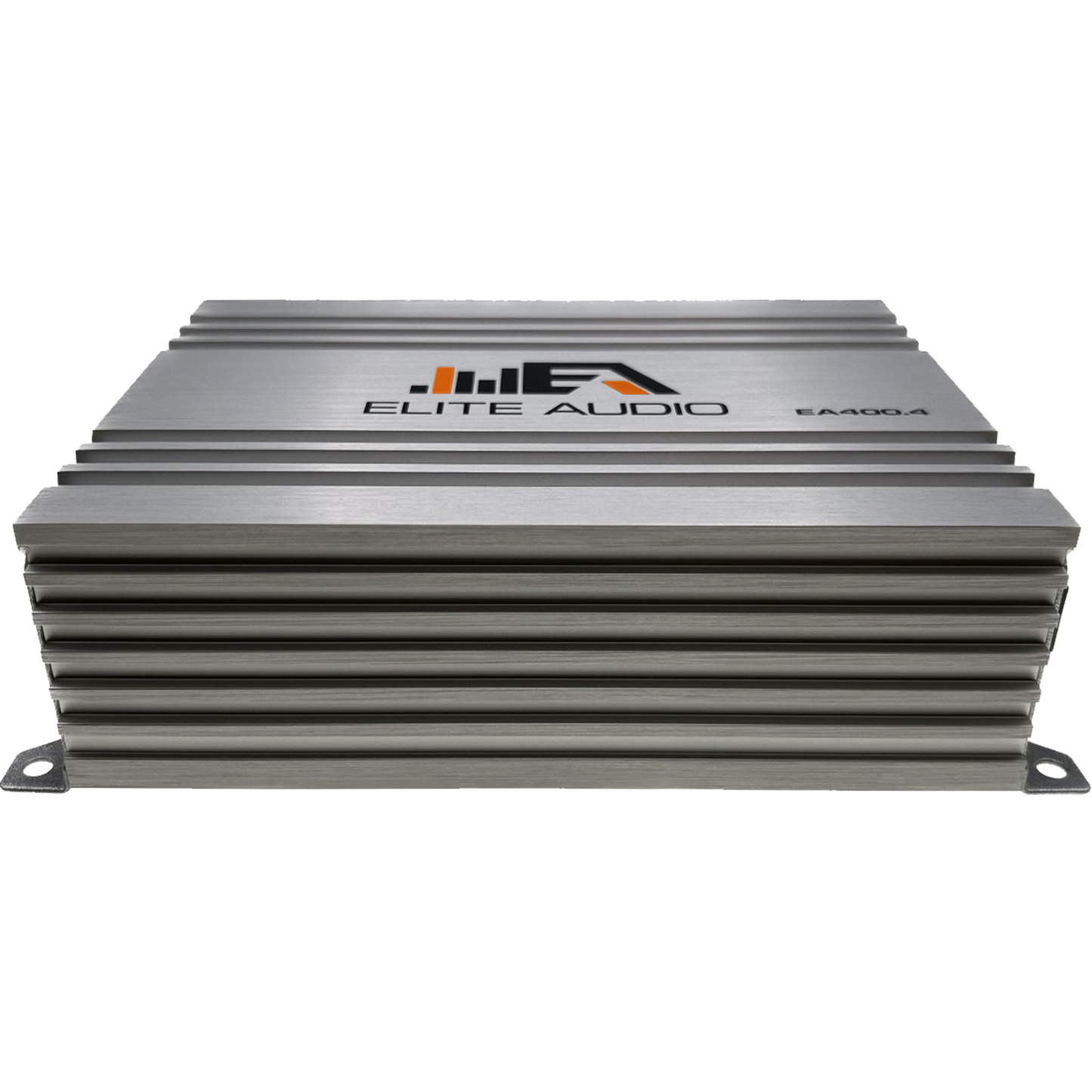

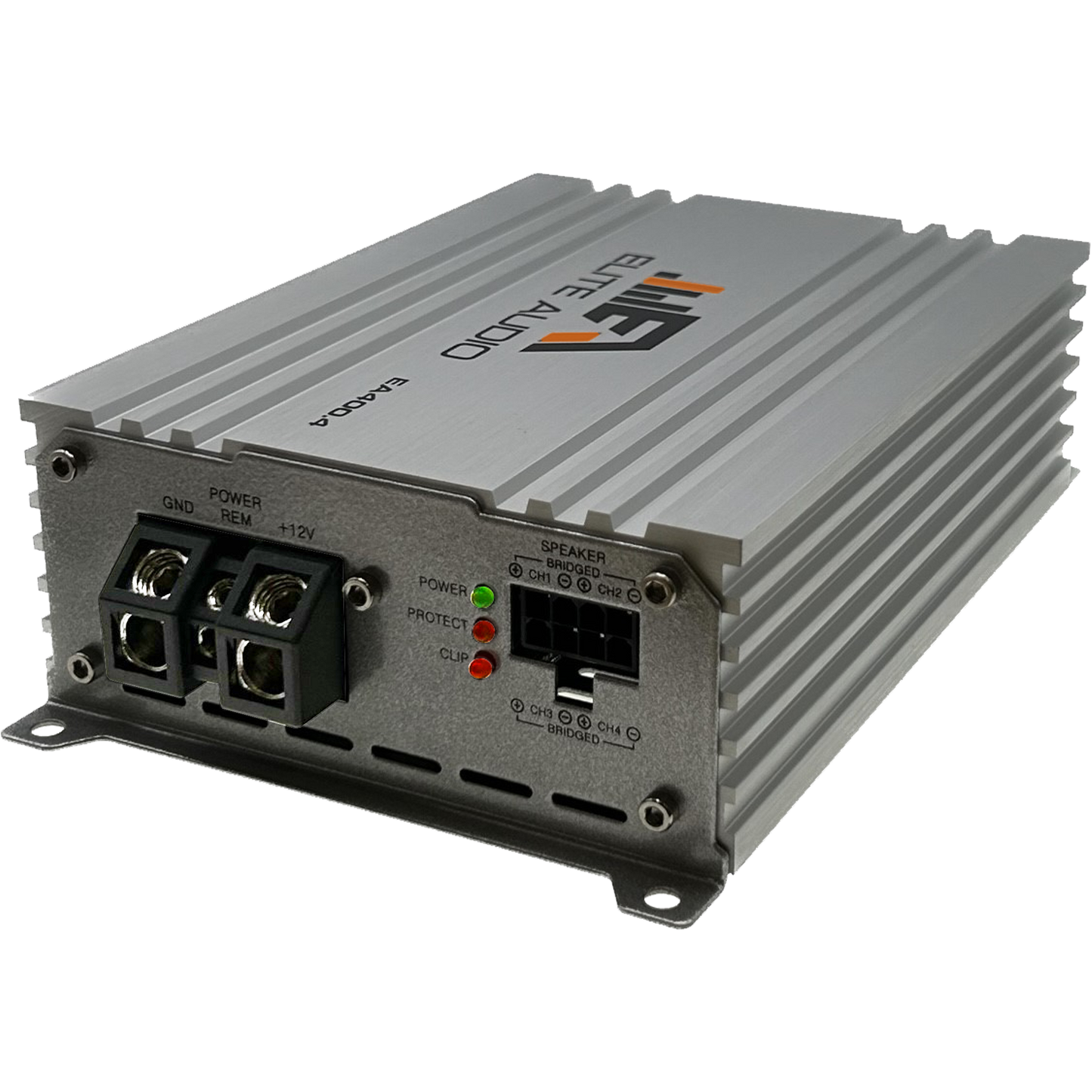

Elite Audio EA400.4 4-Channel Amplifier

Elite Audio EA400.4 4-Channel Amplifier

$159.99
$189.99 $159.99
Sale Sold out
Shipping calculated at checkout.

Features
2 Ohm Stability per channel on 4-Channel Models
1 Ohm Stability on Monoblock Models
High Speed MOSFET Power Supplies
Variable Crossovers
Remote Bass Knob for Monoblock Models
On-Board Clipping Indication
4-Way Protection Circuitry
High Purity Copper Printed Boards

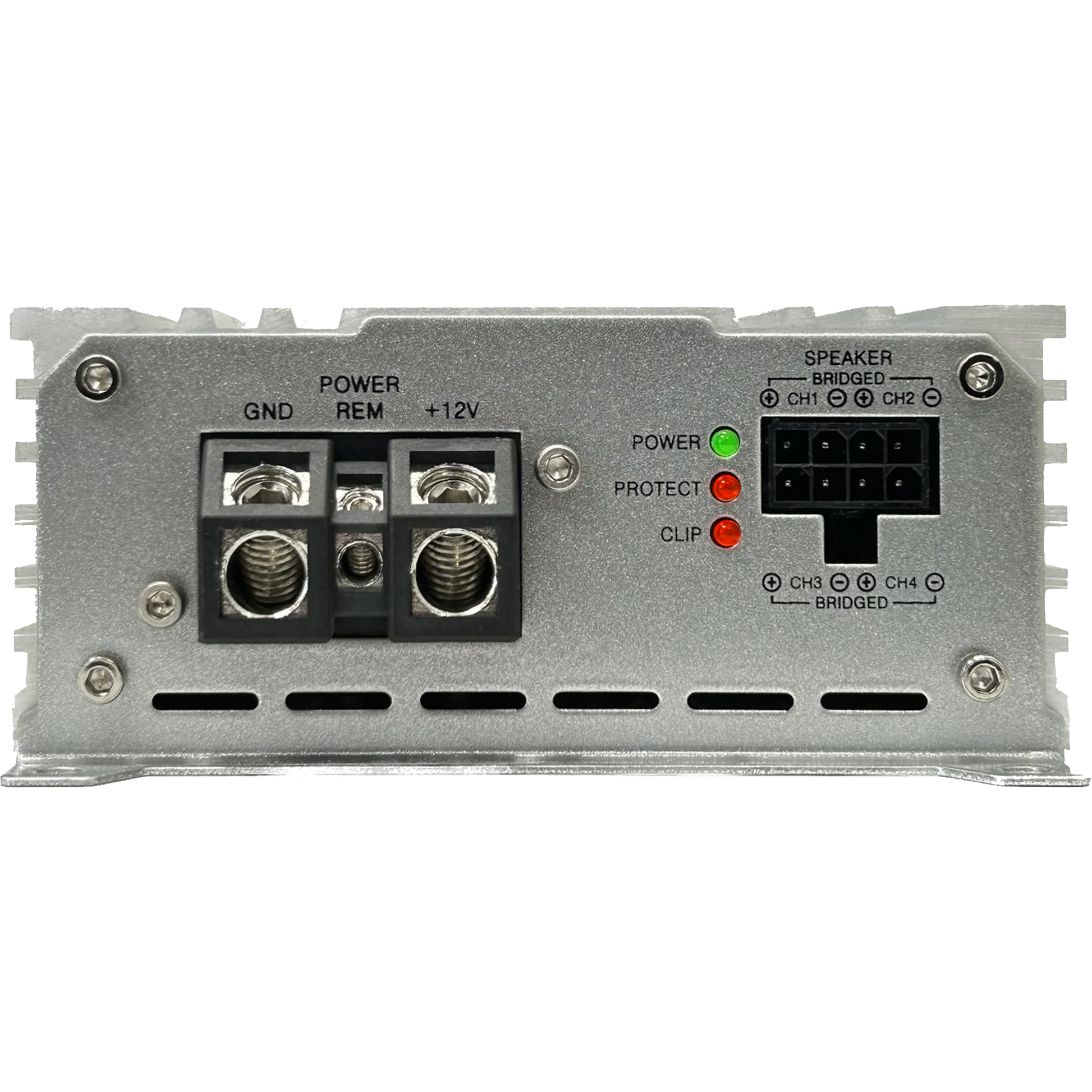

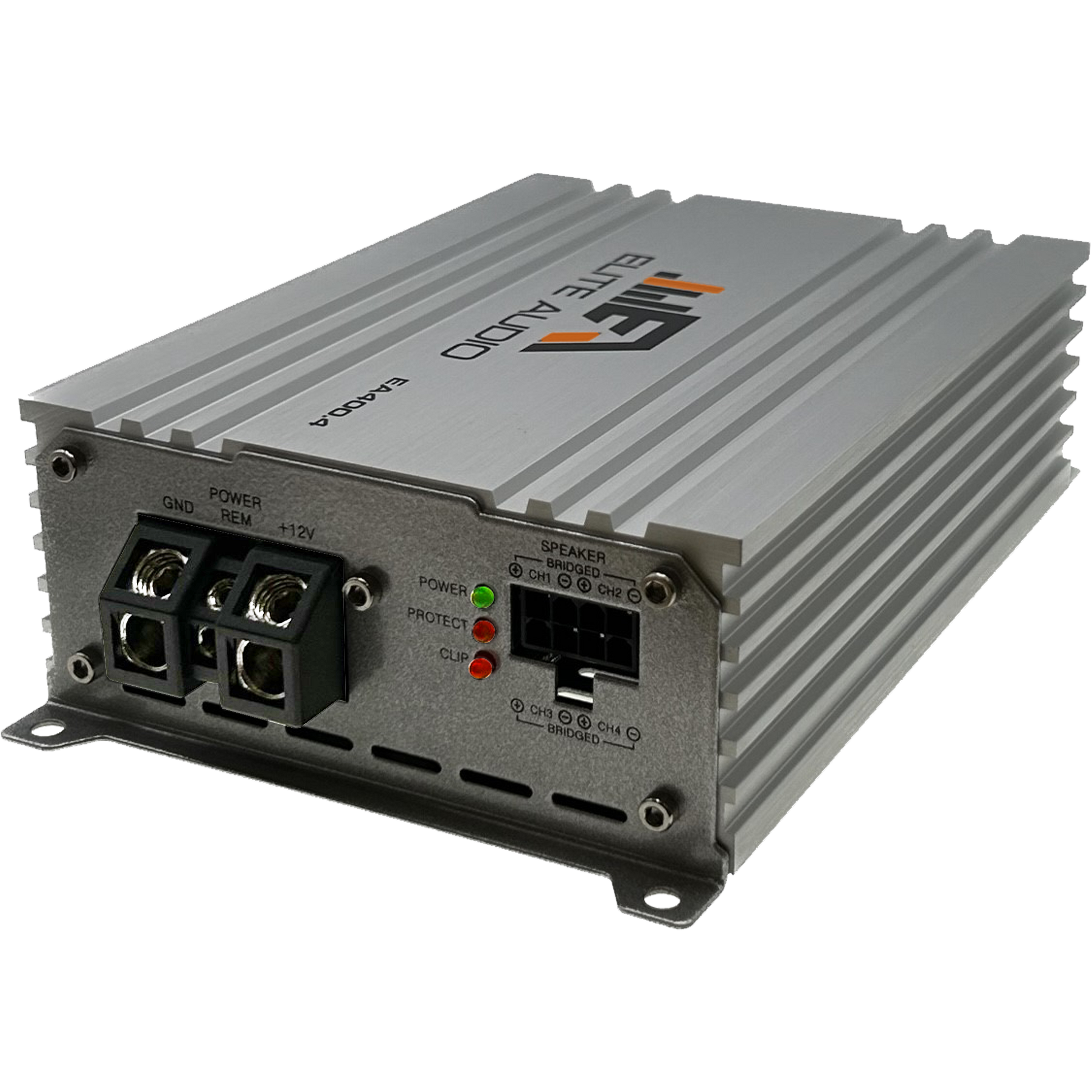

4 Gauge Power & Ground Terminals

Specifications Monoblock

  EA1000M EA2000M EA3000M EA4000M
Power @ 4 Ohm 200x1 500x1 650x1 1000x1
Power @ 2 Ohm 400x1 800x1 1100x1 1500x1
Power @ 1 Ohm 500x1 1000x1 1500x1 2000x1
Frequency Response 10-252HZ 10-252HZ 10-245HZ 10-240HZ
Signal to Noise Ratio 96db 96db 96db 90db
Damping Factor 160< 160< 160< 150<
Input Sensitivity 6V-.2V 6V-.2V 6V-.2V 6V-.2V
Low Pass Filter 35-250Hz 35-250Hz 35-250Hz 35-250Hz
Subsonic Filter 10-50Hz 10-50Hz 10-50Hz 10-50Hz
Remote Gain Control Yes Yes Yes Yes
Power & Ground Terminals 4 Gauge 4 Gauge 4 Gauge 4 Gauge
Operating Voltage Range 9V-16V 9V-16V 9V-16V 9V-16V
External Fuse Needed 50A 100A 150A 200A
Dimensions (mm) (LxWxH) 160x120x50 210x120x50 240x120x50 330x120x50


Specifications Multi-Channel

  EA400X4 EA600X4
Power @ 4 Ohm 50W x 4 90W x 4
Power @ 2 Ohm 75W x 4 135W x 4
Power @ 4 Ohm Bridged 160W x 2 270W x 2
Frequency Response 10HZ - 30Khz 10Hz - 33Khz
Signal to Noise Ratio 105db 105db
Damping Factor 100< 100<
Input Sensitivity 6V-.2V 6V-.2V

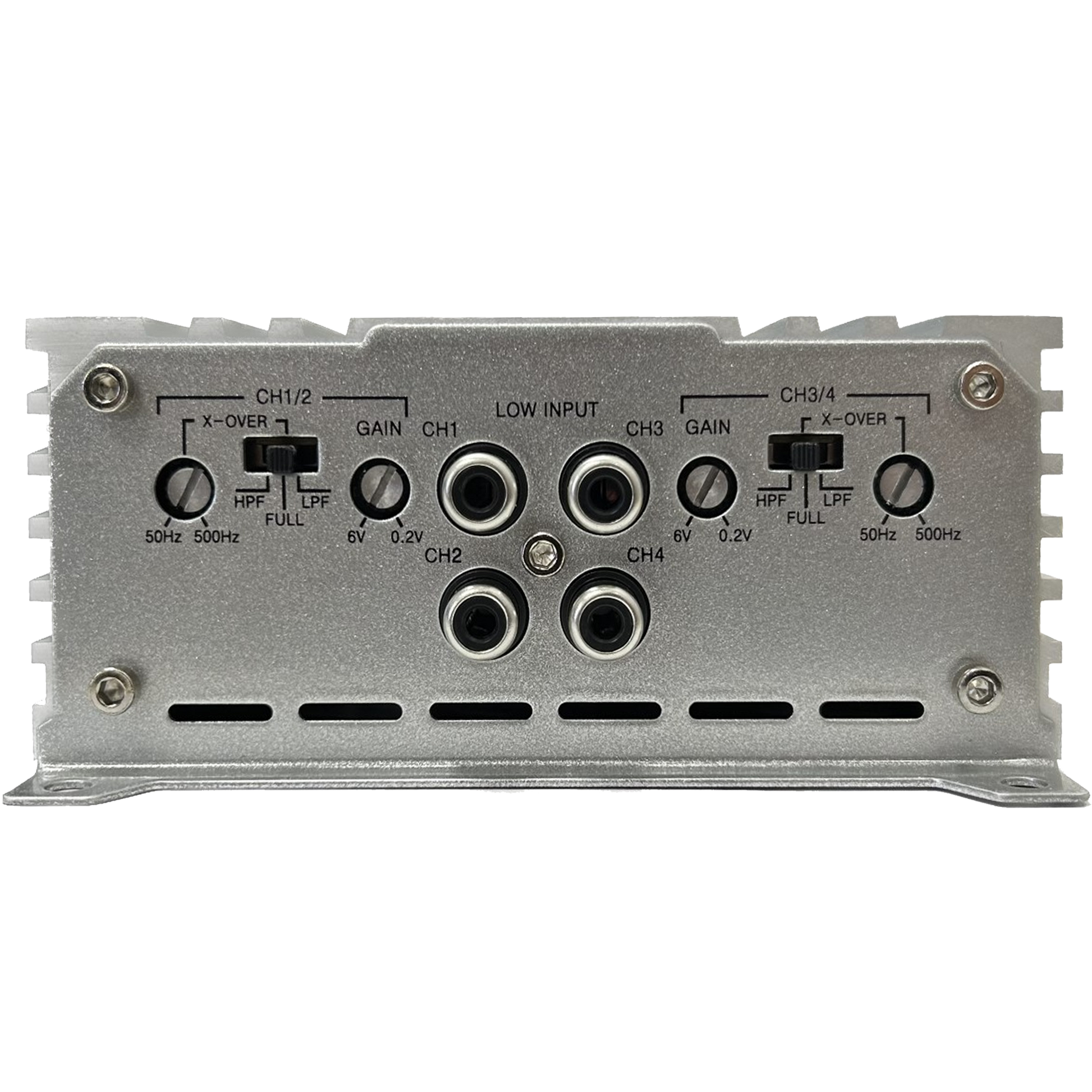

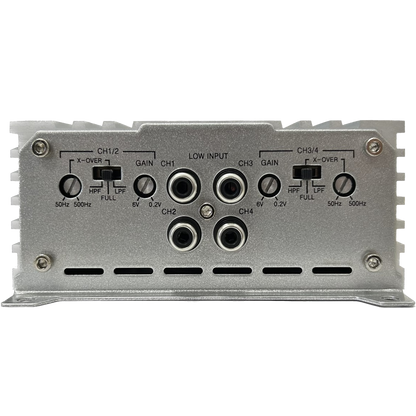

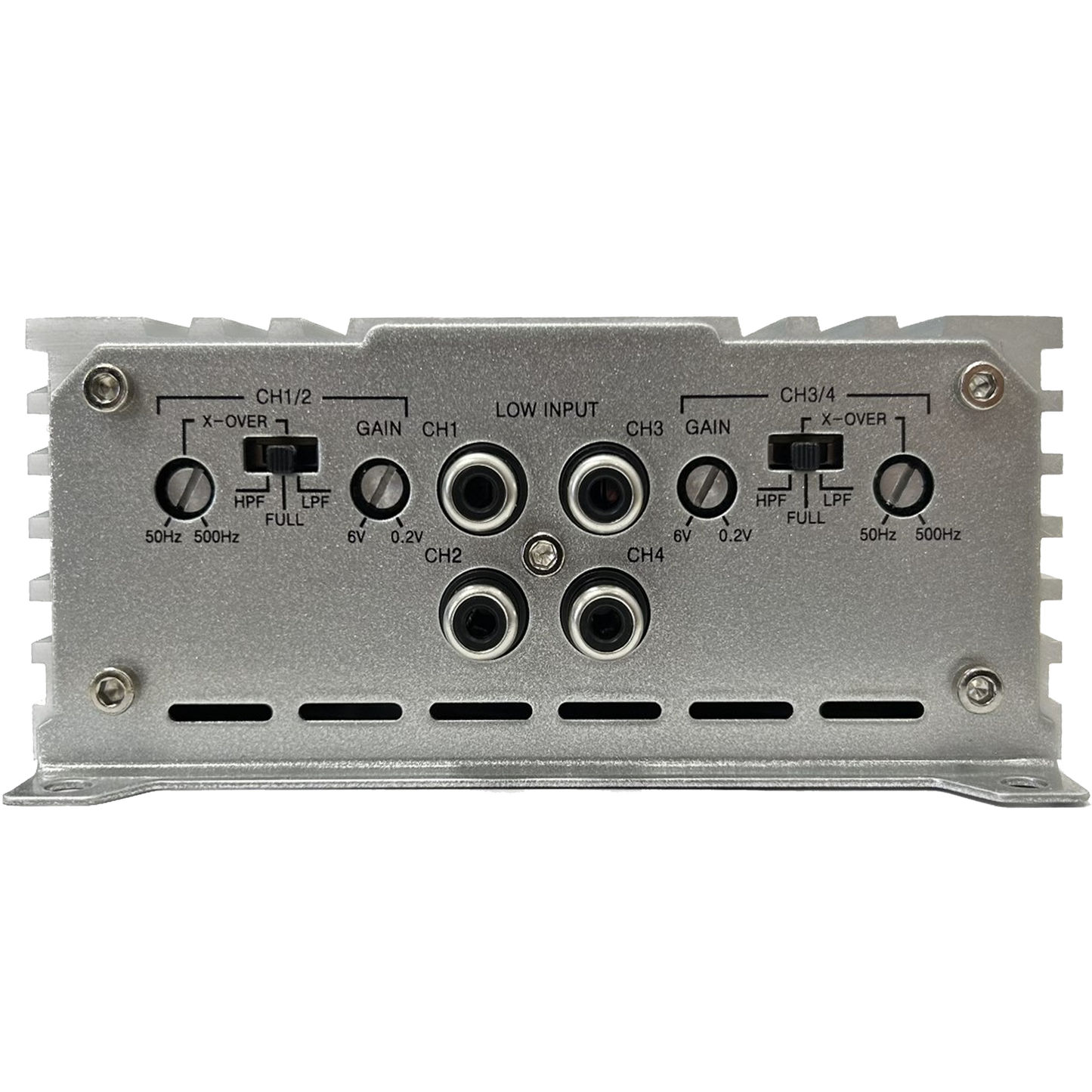

CH1/2 Crossover 50-500Hz 50-500Hz
Crossover Selector CH1/2 HP/FULL/LP HP/FULL/LP
CH3/4 Crossover  50-500Hz 50-500Hz
Crossover Selector CH3/4 HP/FULL/LP HP/FULL/LP

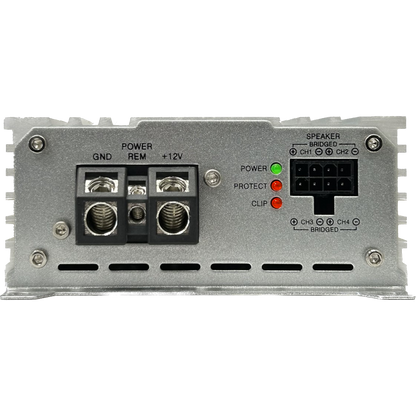

Power & Ground Terminals 4 Gauge 4 Gauge
Operating Voltage Range 9V-16V 9V-16V
External Fuse Needed 30A 40A
Dimensions (mm) (LxWxH) 160x120x50 180x120x50
