DS18
DS18 GFX-8K1 PRO Full-Range Class D 1-Channel Monoblock Amplifier 8000 Watts Rms 1-Ohm
DS18 GFX-8K1 PRO Full-Range Class D 1-Channel Monoblock Amplifier 8000 Watts Rms 1-Ohm
DS18 GFX-8K1
Full-Range Class D 1-Channel Monoblock Amplifier – 8000W RMS, 1-Ohm
Introducing DS18’s GFX-8K1, the ultimate power solution for audio enthusiasts seeking a compact amplifier with unparalleled power and performance.

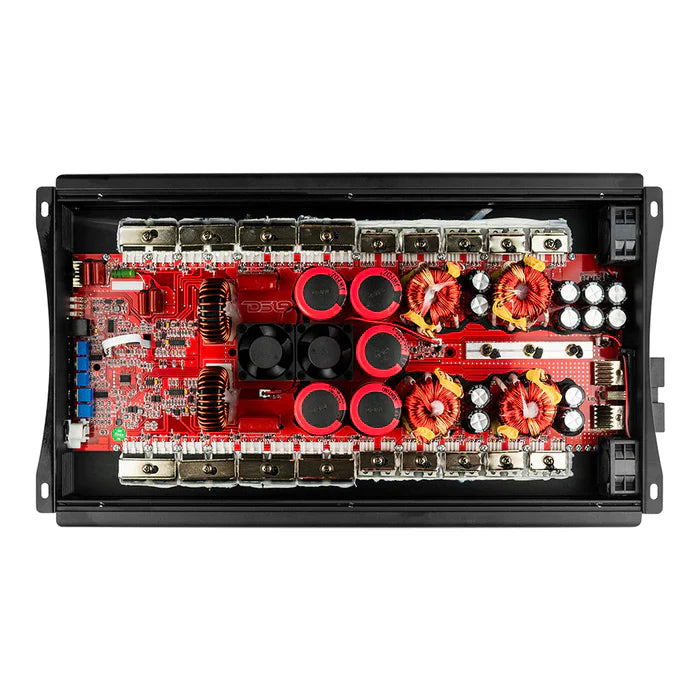

Delivering an astonishing 8000W of unadulterated power into a 1-Ohm load, DS18’s GFX-8K1 will power your subwoofers until they shake the ground beneath your feet. Its compact size doesn’t stop this Monoblock Amplifier from packing a punch that will make your heart race. Every component in our full bridge design maximizes this amplifier’s power output for the highest level of fidelity possible.
DS18’s GFX-8K1 holds true to our commitment to pushing the boundaries of the technology we use in our audio products. Built with the finest components, the GFX-8K1 ensures a level of performance that is second to none. The heavy-duty heat-sink and intelligent cooling system guarantee optimal temperature management, providing you with consistent and reliable performance even under the most demanding conditions.

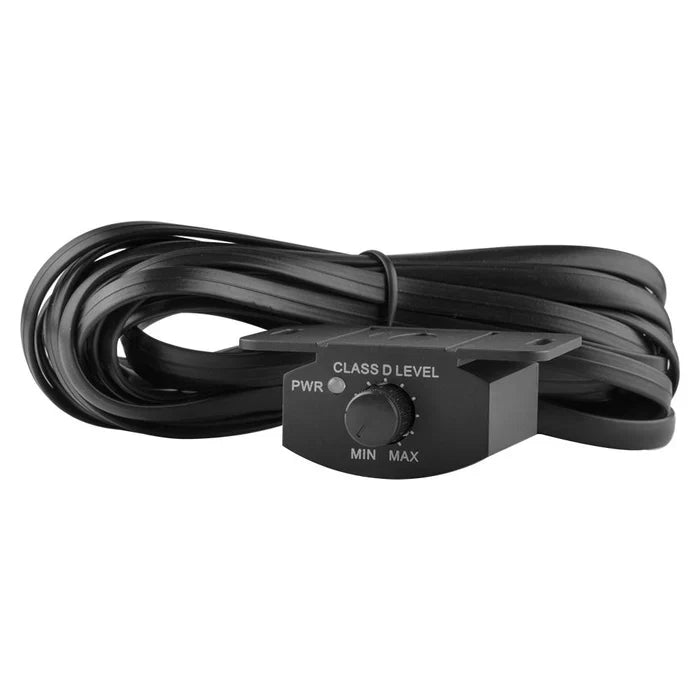

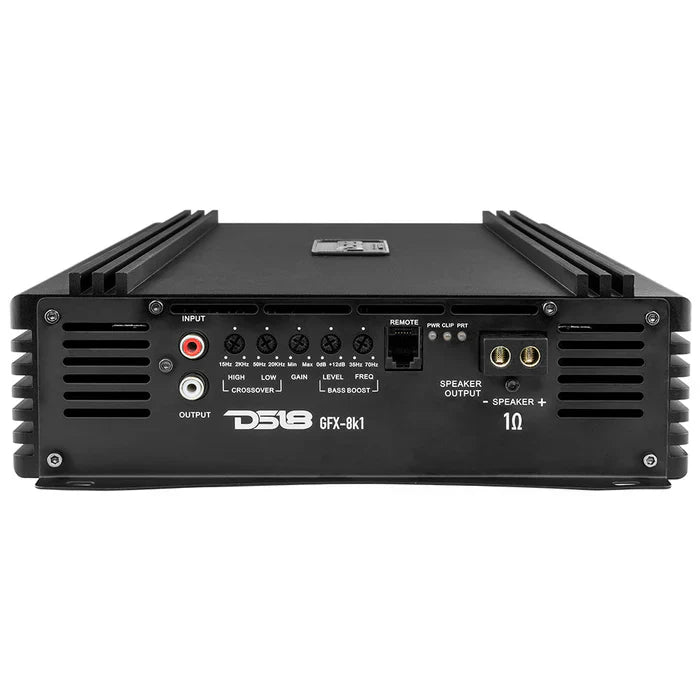

Our team of engineers have thoughtfully crafted this masterpiece with features designed to bring your music to life. With adjustable crossover filters and built-in high-pass and low-pass filters, you have the power to tailor the sound to your exact specifications. Experience spine-tingling bass with the adjustable bass boost, ranging from 8 to 12dB, and effortlessly control its levels with the included level control knob for on-the-go adjustments.
DS18’s GFX-8K1 is designed to withstand the rigors of the road, protecting itself from clipping, thermal limits, overload, impedance, short-circuit, and voltage failures. You can rest assured that your amplifier is safeguarded against any unforeseen circumstances, allowing you to focus on what matters most — immersing yourself in sound.
SPECS
SKU
GFX-8K1
Class
D
Channels
1
RMS Power @ 4 Ohm / 14.4VDC
3500W
RMS Power @ 2 Ohm / 14.4VDC
5000W
RMS Power @ 1 Ohm / 14.4VDC
8000W
Speaker Impedance Range
1-4
Frequency Response
15Hz-20KHz
Low Pass Filter
50Hz - 20KHz
High Pass Filter
15Hz - 2KHz
SPECS
Subsonic
NO
Subsonic Frequency
N/A
Bass Boost
0 - 12dB
Bass Frequency
35Hz - 70Hz
High Level Input
NO
Input Sensitivity
0.5V-8V
THD Distortion
1
Operation Voltage
9 - 15V
Fuse Rating
800A
Power Input Size
1/0 GA
Speaker Output Size
8GA
Dimensions (Inches)
15.35 x 9.29 x 2.83
