DS18

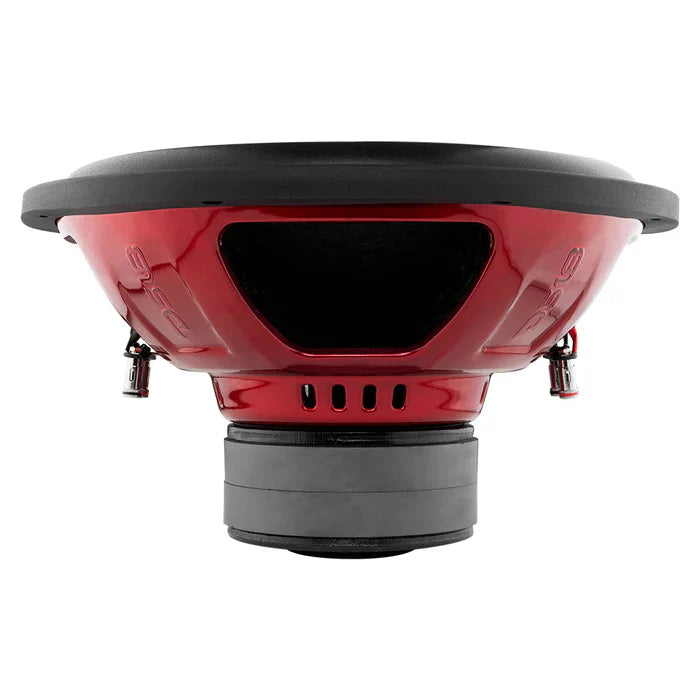

DS18 GEN-XX15.4DHE GEN-XX 15" Subwoofer 1600 Watts Dvc 4-Ohm Double Magnet High Excursion

DS18 GEN-XX15.4DHE GEN-XX 15" Subwoofer 1600 Watts Dvc 4-Ohm Double Magnet High Excursion

Regular price $174.99
Regular price $189.99 Sale price $174.99
Sale Sold out
Shipping calculated at checkout.

DS18 GEN-XX15.4DHE


15" High Excursion Car Subwoofer 1200 Watts 4-Ohm DVC Double Magnet

Introducing the DS18 GEN-XX15.4DHE, a game-changer in the world of car audio, offering unparalleled low-frequency performance at an affordable price. With the GEN-XX15.4DHE, you can now experience that heart-pounding sensation of concert-quality deep thumping bass right in the comfort of your car.
Crafted with the finest materials, the GEN-XX15.4DHE exemplifies professional quality and unmatched durability. The black aluminum voice coil former, paper cone, and foam surround work harmoniously to deliver exceptional performance and withstand the test of time. The glossy red steel basket adds a touch of elegance to your car's interior.
Featuring a remarkable power rating of 600W RMS and 1200W maximum, the GEN-XX15.4DHE doesn't require massive amounts of power to deliver a mind-blowing performance. You'll be able to shake the neighborhood and turn heads wherever you go without breaking the bank. The GEN-XX15.4DHE’s frequency response of 20Hz to 1KHz guarantees a wide range of bass reproduction, allowing you to hear every detail and nuance of your favorite tracks.
The long 2-inch voice coil and double magnet ensure that every note is reproduced with exceptional clarity and precision. With a low FS of 27 Hz, the GEN-XX15.4DHE effortlessly reaches into the subsonic range, giving you the ability to experience those earth-shaking frequencies without any issues, if your box is correctly tuned.
Get ready to redefine what you thought was possible in car audio – the GEN-XX15.4DHE is here to make your dreams a reality.


SPECS

SKU
GEN-XX15.4DHE
Nominal Diameter
15"
Nominal Impedance
4+4 Ohm
RMS Power Handling
600W
Maximum Power Handling
1200W
Sensitivity (1w/1m)
87.4 dB
Frequency Response
20Hz - 1Khz
Recommended Lo Pass Crossover
80Hz


MOTOR

Voice Coil Diameter
2" / 50.8 mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel Bakset
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
136 oz
Displacement Volume
3.26L


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
105.083 L
Free Air Resonance Fs
27Hz
Mechanical Factor Qms
3.658
Electrical Factor Qes
0.583
Total Factor Qts
0.503
Moving Mass Mms
309.67g
Compliance Cms
0.112mm/N
Bl Factor BI
24.045N/A
Voice Coil Inductance Le
0.6741mH
Diaphragm Area Sd
814.332cm2
DC Resistance Re
3.2+3.2 ohms
Efficiency Bandwidth Product EBP
46.3


MEASUREMENTS

Overall Diameter
15.53" / 394 mm
Overall Depth
9.06" / 230 mm
Front Mount Baffle Cutout
13.98" / 355 mm
Mounting Depth
7.84" / 199mm
Motor Diameter
6.14" / 156 mm
Gross Single Unit Weight (lb)
23
Dimensions W x L x H (Inches)
16.75 x 16.75 x 10.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
48.5
M/C Dimensions W x L x H (Inches)
17.25 x 17.25 x 22.25

View full details
