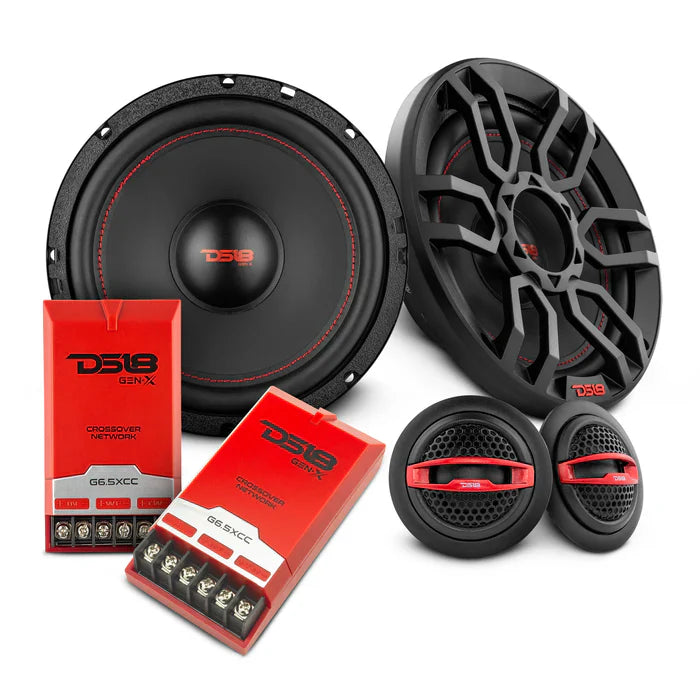

DS18 G6.5XC GEN-X 6.5" 2-Way Component Speaker System 150 Watts 4-Ohm
DS18 G6.5XC GEN-X 6.5" 2-Way Component Speaker System 150 Watts 4-Ohm
Couldn't load pickup availability
DS18 G6.5XC
2-Way Component Set Speaker System 150 Watts 4-Ohm
Get ready to experience power, clarity, and range like never before!
The legendary GEN-X Coaxial Series is back and stronger than ever with the G6.5XC 2-Way Component Set, delivering an upgraded level of performance that will blow your mind.
This set includes a powerful 6.5-inch woofer and a high-quality silk dome tweeter, as well as a 2-way passive crossover to ensure clear and crisp sound.

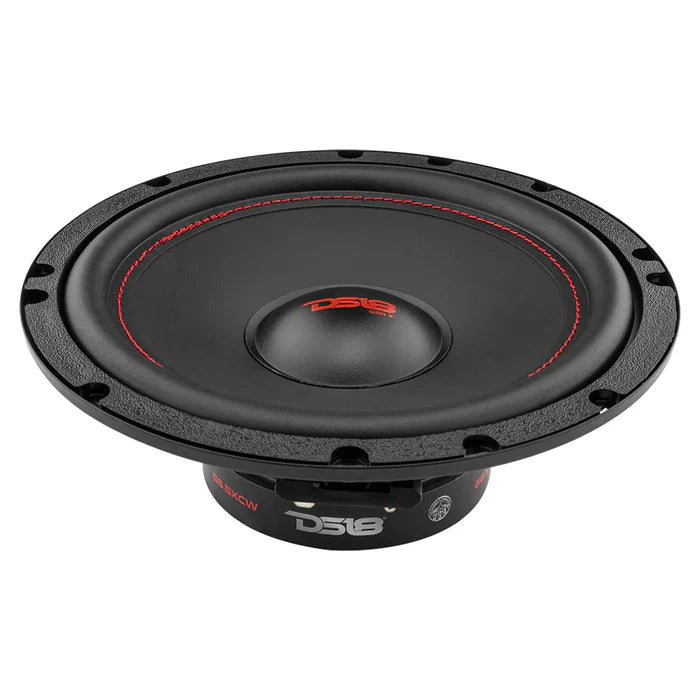

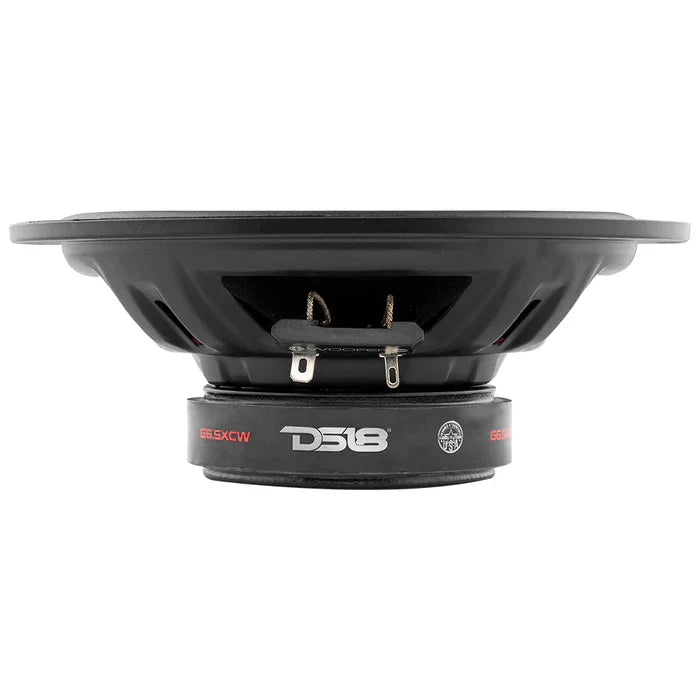

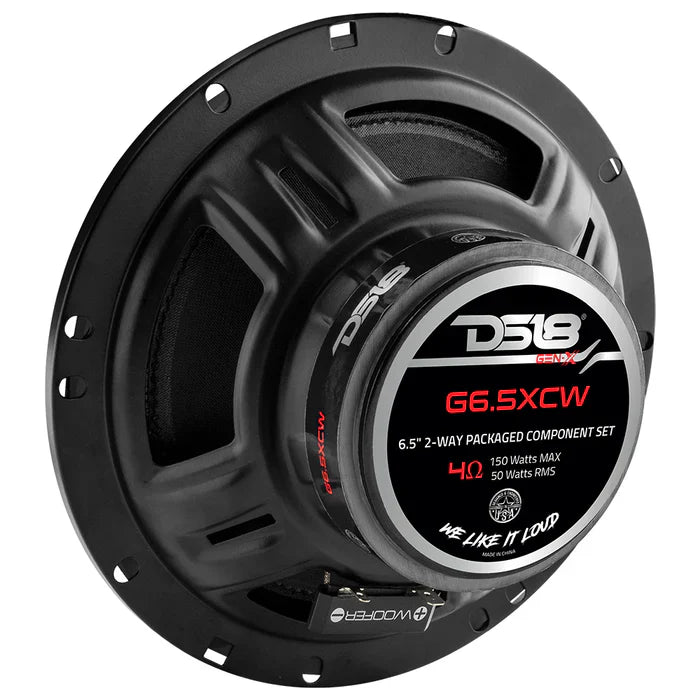

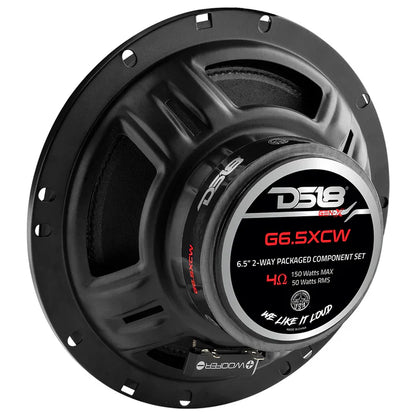

The 6.5-inch woofer delivers power, precision, and punch to your music. The paper cone provides a natural, warm sound, while the rubber surround allows for tight, controlled bass response. This woofer is an essential component for any audiophile who demands uncompromising sound quality.
GENERAL SPECIFICATIONS
SKU
G6.5XC
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohms
RMS Power Handling
325Watts
MAX Power Handling
150Watts
Sensitivity (1w/1m)
86dB
Frequency Response
35Hz-20KHz
Recommended Hi Pass Crossover
60HZ
Number of Ways
2
Pair or Single
Pair

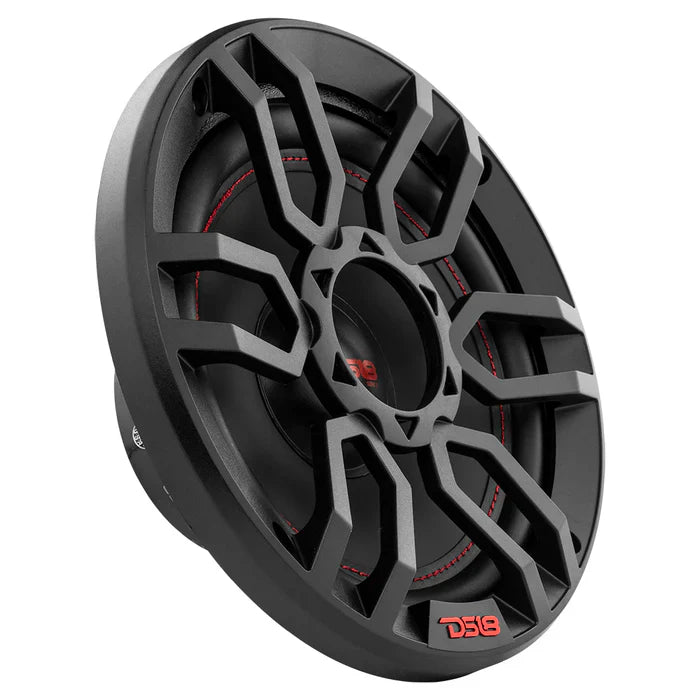

Grill Included
Yes
MOTOR
Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Paper
Surround Material
Rubber
Basket Material
Steel
Basket Color
Black Matte
Magnet Material
Barium Ferrite
Magnet Weight
9.87oz / 280g

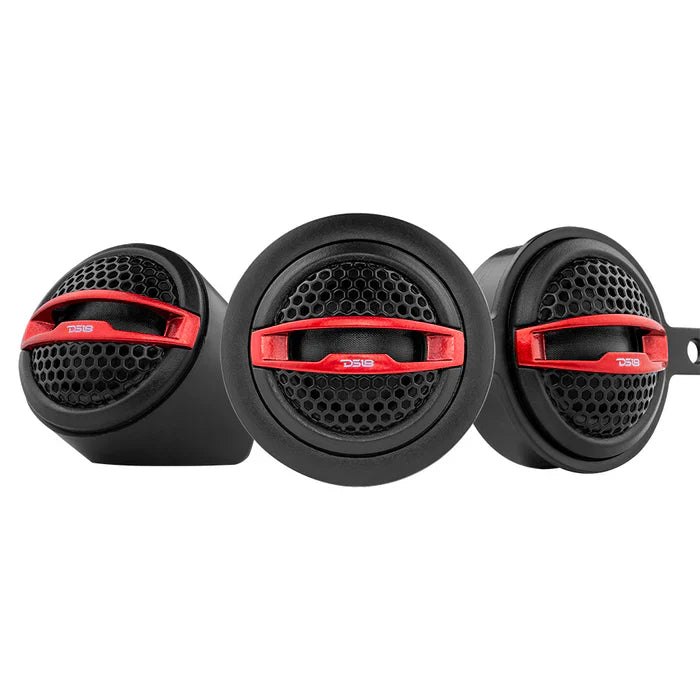

TWEETER
Voice Coil Diameter
1" / 25.5mm
VC Former Material
ASV
Winding Material
EISVM
Diaphragm Material
Silk
Magnet Material
Neodymium
Magnet Weight
8.7g
THIELE & SMALL PARAMETERS
Vas
9.47L / 0.33ft3
Xmax
2.7mm
Fs
72Hz
Qms
4.5
Qes
1.47
Qts
1.1
Mms
13.8g
Cms
345mm/N
BL
4
Le
172uH
Sd
136.8cm2
Re
3.7 Ohms
Mmd
12g

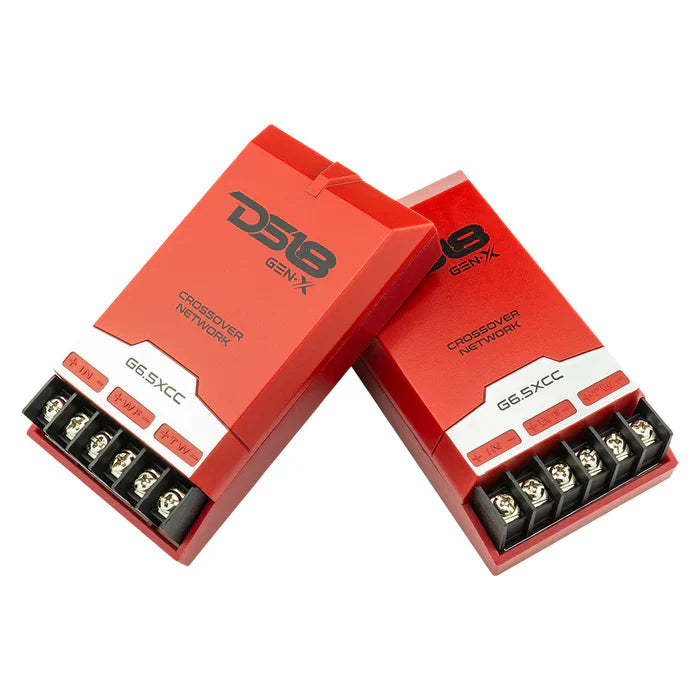

CROSSOVER SPECIFICATIONS
Passive Crossover Ways
2 (Woofer / Tweeter)
Frequency Crossover Point
3.5KHz
Power Handling
400W
Cut-Off Slope
12dB/Oct
Capacitor Type
Metal Film
Coil Type
Inductor
Terminal Type
Screw
Housing Material
ABS
