DS18

DS18 FX-1 Flush Mount / Surface Mount 1 Channel Monoblock Class D Amplifier With Acrylic Cover for Custom Installation 1 X 900W RMS @1 Ohm

DS18 FX-1 Flush Mount / Surface Mount 1 Channel Monoblock Class D Amplifier With Acrylic Cover for Custom Installation 1 X 900W RMS @1 Ohm

Regular price $549.99
Regular price $599.99 Sale price $549.99
Sale Sold out
Shipping calculated at checkout.

DS18 FX1

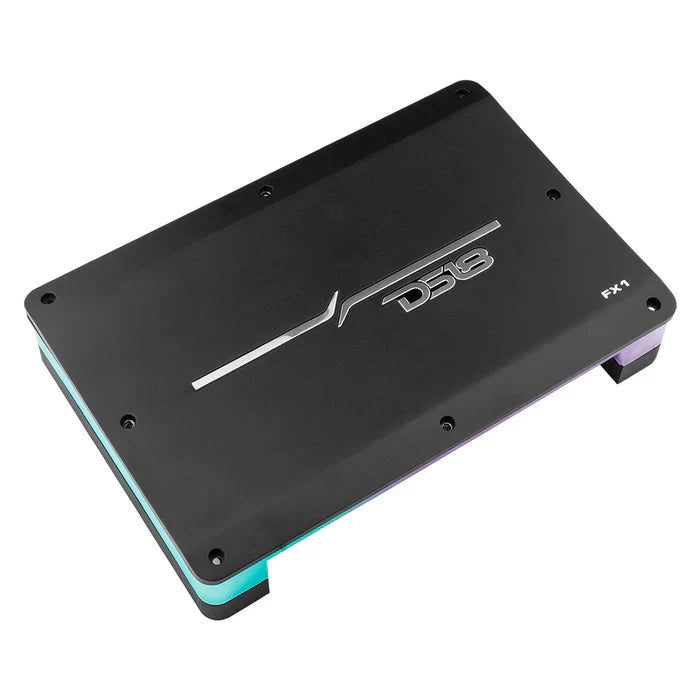

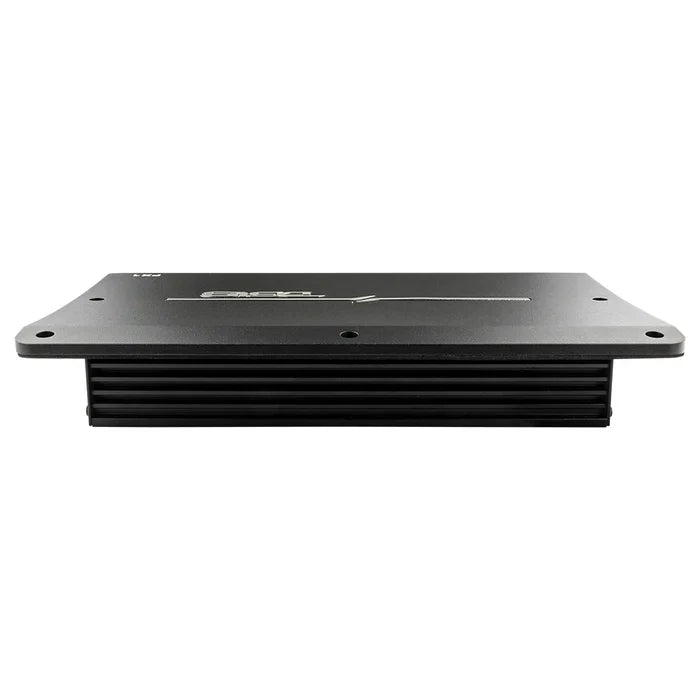

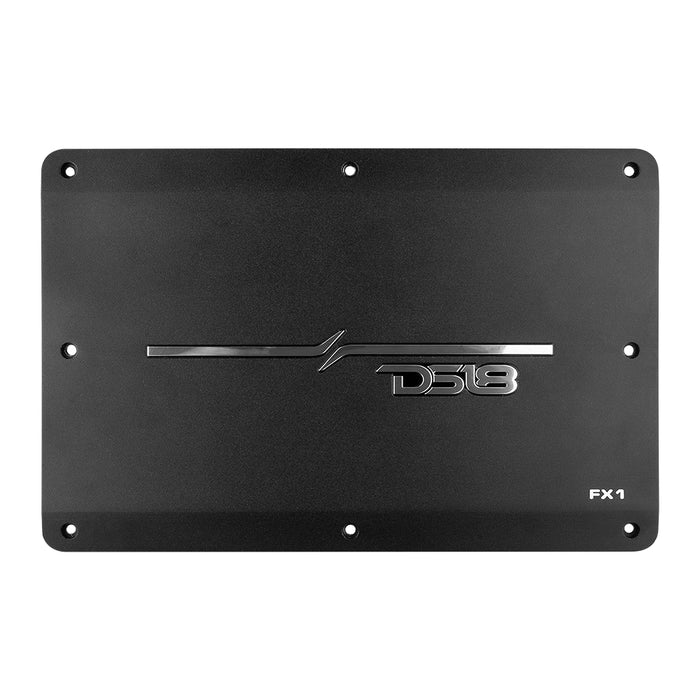

Flush Or Surface Mount Class-D 1-Channel Amplifier

DS18’s FX1 packs a punch with high-quality sound output while maintaining a small footprint, making it perfect for those who value both power and space efficiency!

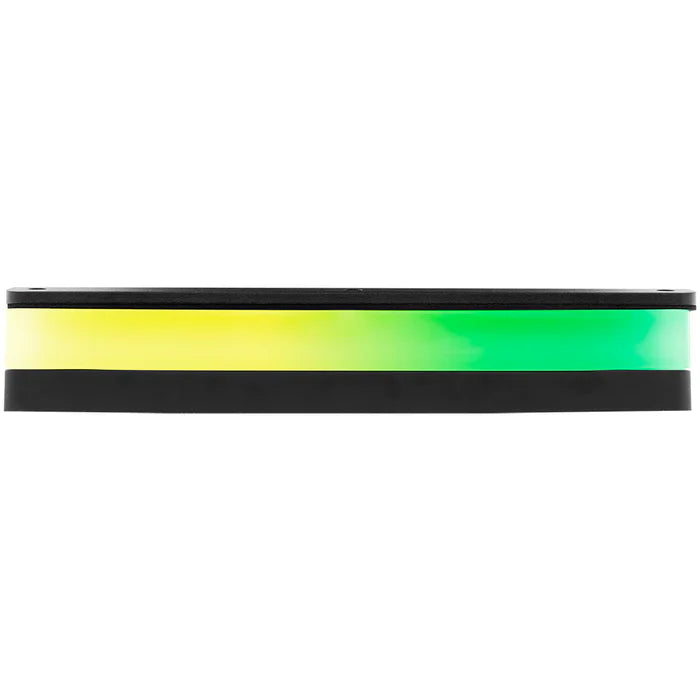

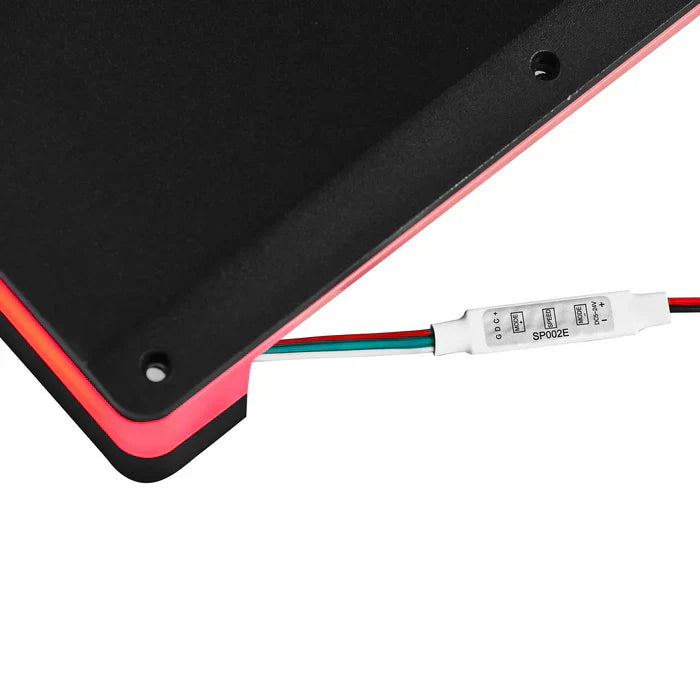

What sets DS18’s FX1 apart from other amplifiers on the market is its unique flush or surface installation mode. With the included surface mode adapter, you have the freedom to install this amplifier in standard or flush applications, giving you the flexibility to create a custom car audio setup that suits your style. Not only does this adapter provide versatile positioning options, but this frame has Digital LED's controlled by a Built-In Digital Light Module!

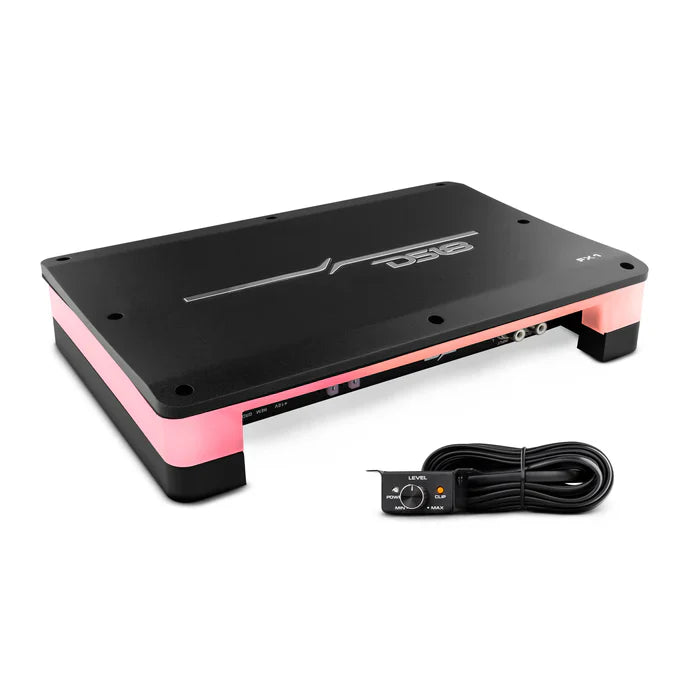

Built for bass enthusiasts, the FX1 comes equipped with an included bass knob, providing you with the ability to fine-tune your audio output according to your unique listening preferences.

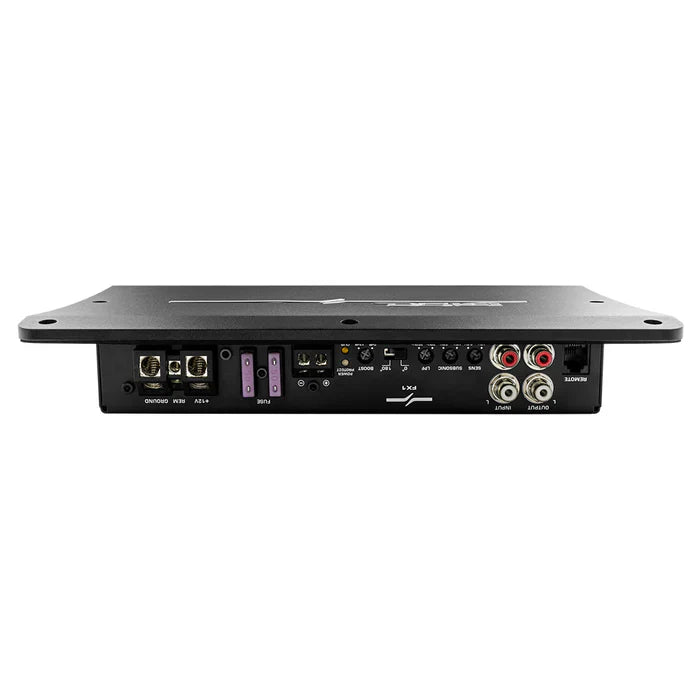

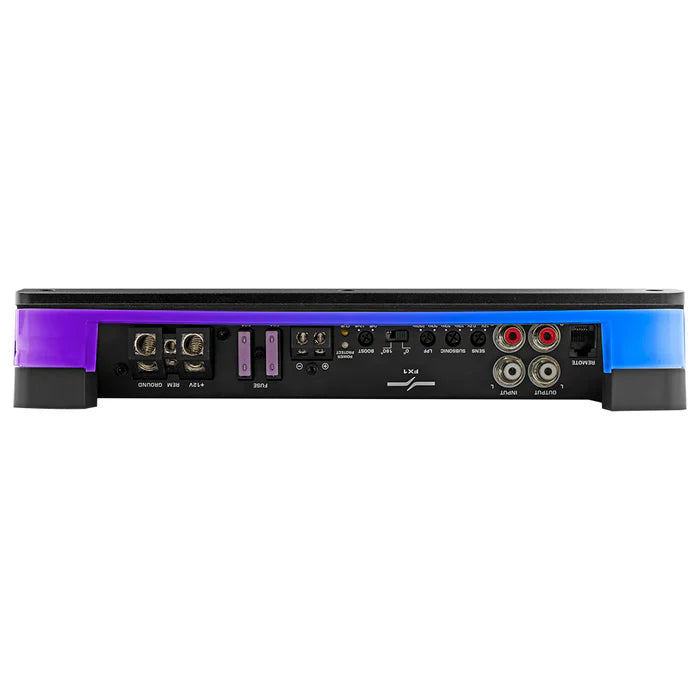

Thanks to its advanced digital class circuit design, DS18’s FX1 ensures that your sound experience remains crystal clear and powerful without any compromise. Equipped with a Fixed Low Pass Filter, LED clipping indicator, and direct insert power and speaker terminals, DS18’s FX1 offers unmatched convenience and ease of use during installation and setup. Its IP65 water-resistant coating and anti-corrosion protection ensure durability even in harsh environments, making it ideal for various applications such as ATV/RV roofs, boat walls, car audio panels, or racks.
With a total peak power output of 2700W and RMS power ranging from 400W at 4-ohm, 650W at 2-ohm, and 900W @ 1-ohm, this amplifier pushes your subwoofers for thunderous bass that will elevate your listening experience to new heights.
Choose DS18’s FX1 for a superior car audio experience!
The FX Series adapters are not designed to be water-resistant. Please exercise caution to prevent water contact with the DIGITAL LED'S, as exposure may result in a short circuit

SKU
FX1
Total Watts (Peak)
2700W
RMS Power @ 4 ohm
400W
RMS Power @ 2 ohm
650W
RMS Power @ 1 ohm
900W
RMS Power @ 4 ohm Bridge
N/A





AUDIO

Frequency Response
15-250Hz
Signal to Noise Ratio
92dB
Efficiency @ 4ohm
82%
Damping Factor
75
Input Impedance
30Kohms
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.08%
Low Level Input Range
0.2-10V
High Level Input
N/A
Selectable X-Over
Fixed LPF
X-Over Filter Range
50-250Hz
Bass Boost Range
0~12dB
Bass Boost Frequency
50Hz
Infrasonic Filter
10-50Hz
Phase Selector
0/180


FEATURES

Amplifier Class
Digital (D)
Amplifier Type
Monoblock / Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power / Protect / Clip
Power Input Terminal Size
4 Ga
Fuse Size
80A (2x40A)
Remote Level Control
Yes
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (8.8-15.9V)
Clipping Protection
Yes
Body Color / Finish
Black Aluminum


EXTRA FEATURES

Input Channel Selectable
No
Remote Level Control with Clip Indicator and Metal Case
Yes (Included)
RCA Low Level Output
Yes
Tiffany RCA Connector
Yes
Very High Efficiency Digital Circuit Design
Yes
PCB with Anti-Corrosion Protection Coating
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Surface Mounting with Digital Chasing LED Adapter
Yes (Included)
Waterproof Rating
IP65 (Flush Mounting)


MEASUREMENT

Body Length
9" / 228mm
Body Width
4.7" / 120mm
Overall Height
1.85" / 47mm
Heatsink Length
10.8" / 275mm
Heatsink Width
7.2" / 182mm
Mounting Hole
9.2"x5.8" / 233.7x147mm
Mounting Depth
1.5" / 39mm
Gross Single Unit Weight
2.8Kg
