DS18
DS18 FRP-2.5K/BL FRP Compact Full-Range Class D 1-Channel Amplifier 2,500 Watts Rms @ 1-Ohm BLUE
DS18 FRP-2.5K/BL FRP Compact Full-Range Class D 1-Channel Amplifier 2,500 Watts Rms @ 1-Ohm BLUE
Couldn't load pickup availability
DS18 FRP-2.5K
Full Range Means All Systems With DS18’s FRP-2.5K!

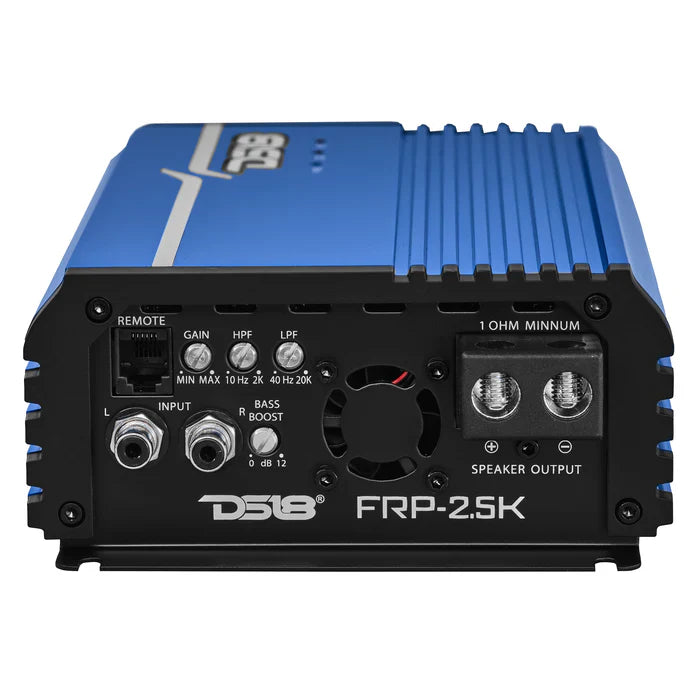

Its variable crossover filters allow you to fine-tune your sound for optimal performance. Depending on your Band-Pass Adjustments, this Full-Range Amplifier can be used for Bass, Mids, or Highs. Micro digital design maximizes the FRP-2.5K’s power output and efficiency.
DS18’s FRP-2.5K was built for durability and performance. The protective coating on the PCB prevents moisture corrosion and bonded components provide extra vibration protection. This means you can enjoy high-quality sound even in harsh conditions.
Its bass boost feature enhances your low-end frequencies for a richer, more powerful sound. The bass knob also comes with power and clip indicators: with short circuit thermal, DC offset, and high/low voltage protection - your amplifier and vehicle are safeguarded against the most common problems in car audio.
DS18’s FRP-2.5K outputs 700W RMS @ 4-Ohm; 1300W RMS @ 2-Ohm; 2500W RMS @ 1-Ohm; and 2800W RMS @ 1-Ohm (BURST) – perfect power settings to supercharge any vehicle.

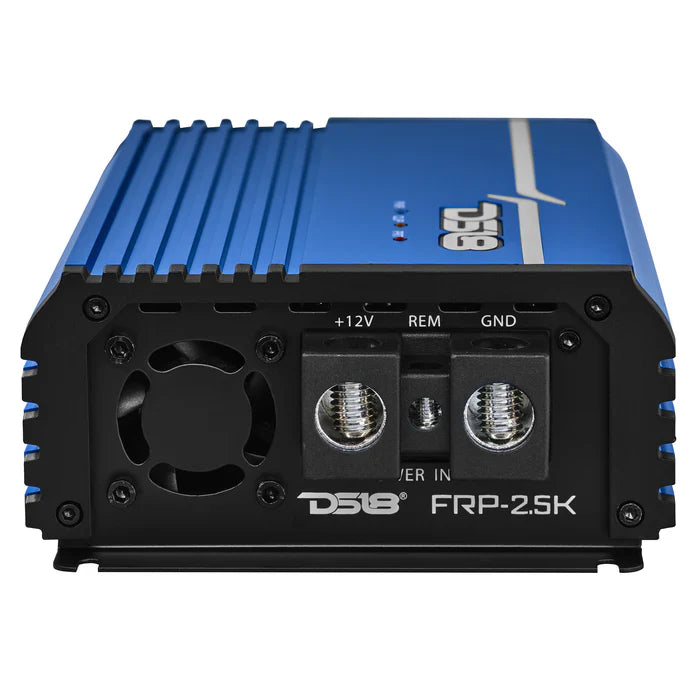

Thanks to its compact size, Tiffany RCA Terminals, and coming in three different colors (blue, titanium, or red) the FRP-2.5K fits in any system.
Upgrade with DS18’s FRP-2.5K and bring power to any system.
SPECS
SKU
FRP-2.5K/BL
RMS Power @ 4 ohms
700W
RMS Power @ 2 ohms
1300W
RMS Power @ 1 ohm
2500W
MAX Power @ 1 ohm (Burst)
2800W
AUDIO
Frequency Response
10Hz-20KHz
Signal to Noise Ratio
83dB
Efficiency @ 4ohm
85.6%
Damping Factor
90
Input Impedance
10KΩ
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
400mv-3.6V
High Level Input
No
Selectable X-Over
Fixed Band-Pass
X-Over Filter Range
HP: 10Hz-2KHz / LP: 40Hz-20KHz
Bass Boost Range
0-12dB
Bass Boost Frequency
50Hz
Phase Selector
No
FEATURES
Amplifier Class
Digital
Amplifier Type
Full-Range Monoblock
Number of Channels
1CH
Minimum Impedance
1Ω
Led Indicator
Power / Protect / Clipping
Power Input Terminal Size
0GA
Fuse Size (Recommended)
200A
Remote Level Control
Yes (Volmeter Optional)
Cooling Fan
Yes (Smart Cooling x 2)
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Blue / Red / Titanium

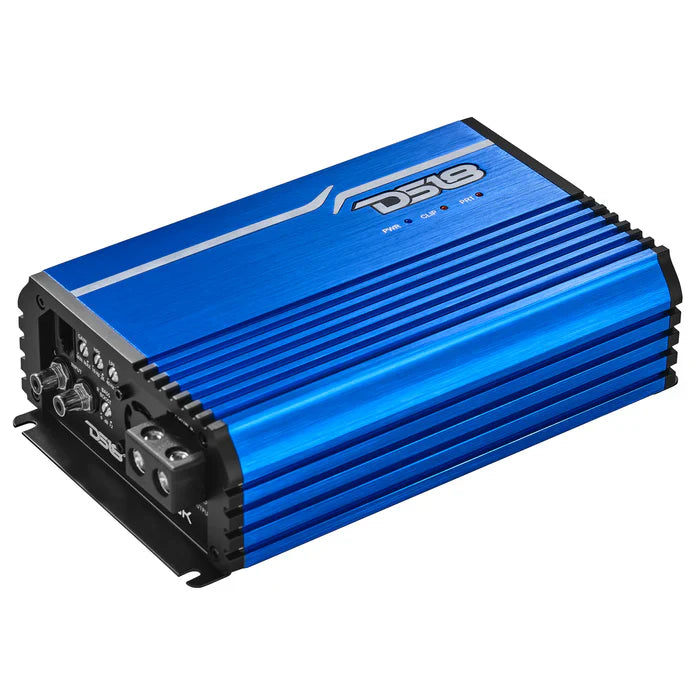

Compact Size to Easy Installation for Any Applications
Yes

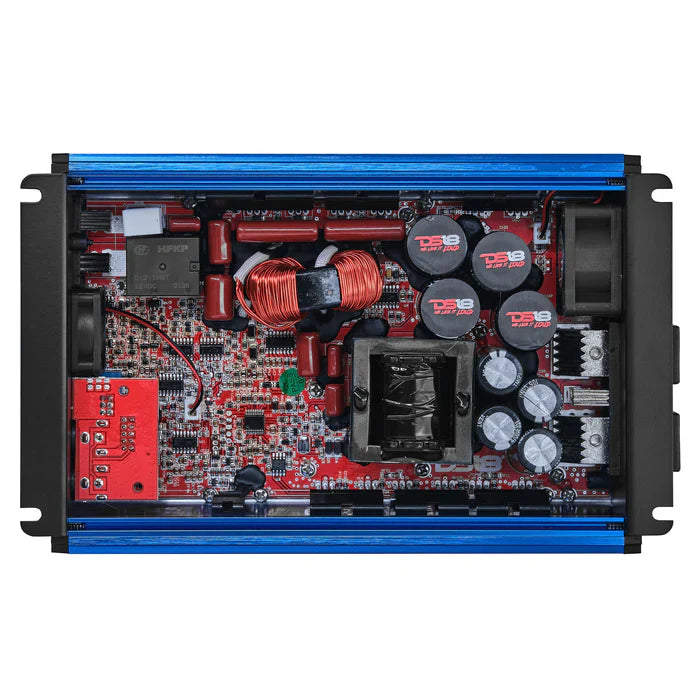

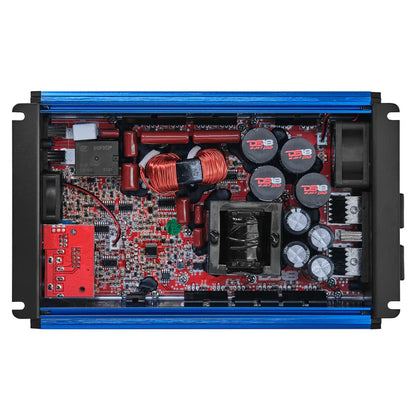

Stable/Reliable Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
Metal Knobs with Click Steps
Yes

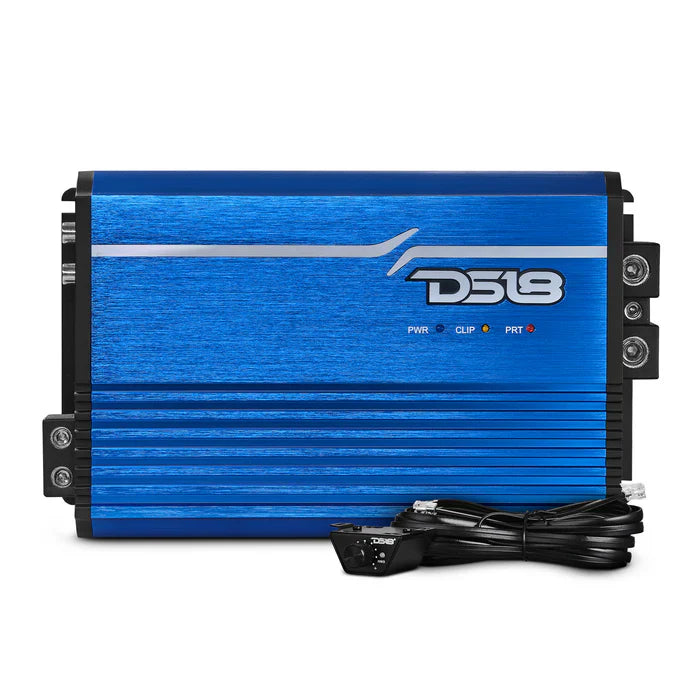

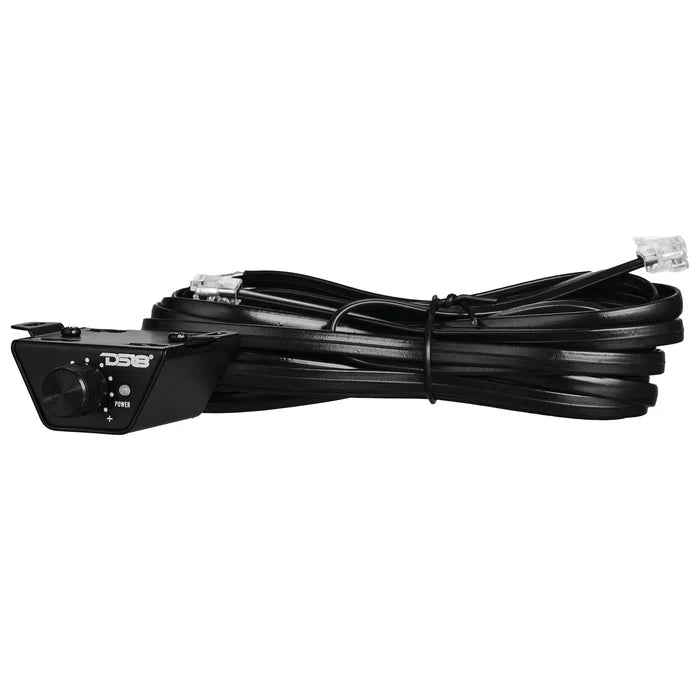

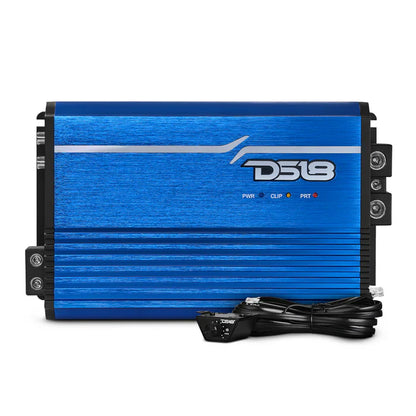

Remote Level Control with Clip Indicator
(Included)
Remote Level Control with Clip Indicator and Voltmeter
(Optional)
MEASUREMENT
Overall Length
8.85" / 225mm
Overall Width
5.5" / 140mm
Overall Height
2.36" / 60mm
Heatsink Length
7.6" / 193mm
Gross Single Unit Weight
2.1kg
