DS18

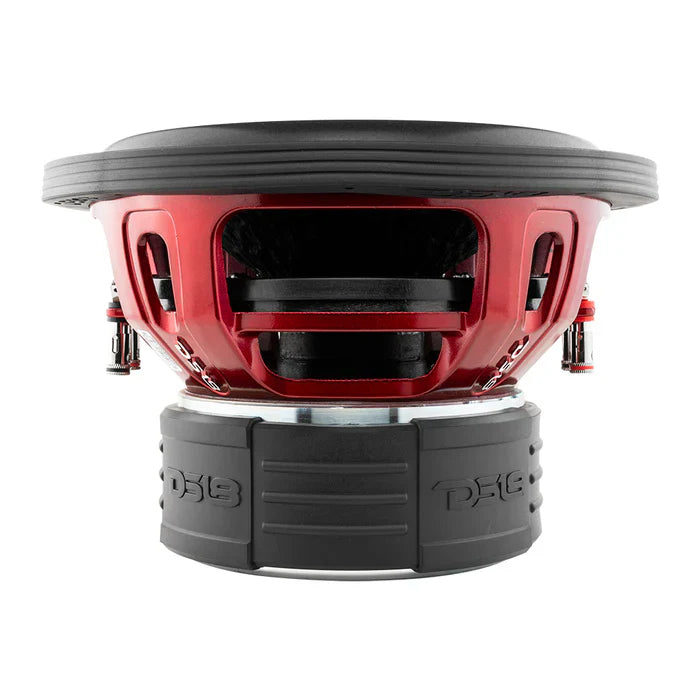

DS18 EXL-X10.4D EXL-X 10" Subwoofer 1700 Watts Dvc 4-Ohms
DS18 EXL-X10.4D EXL-X 10" Subwoofer 1700 Watts Dvc 4-Ohms
DS18 EXL-X10.4D
10" Car Subwoofer 1700 Watts 4-Ohm DVC
Prepare to be blown away by the unparalleled power and precision of DS18’s EXL-X10.4D. Its incredible features and state-of-the-art design set the new standard for competition grade subwoofers.
The private red aluminum basket showcases the unmistakable flair all DS18’s products have, but also lays a great foundation for one of our most durable subwoofers yet. The fiber glass dust cap, besides adding a touch of sophistication to the already sleek design, plays a crucial role in enhancing the overall audio quality. By protecting the subwoofer's delicate components from potential damage, it ensures consistent and reliable performance.
Don't be fooled by this subwoofers size—the EXL-X10.4D is engineered to provide big bass thanks to its full-size ferrite magnet. The high-strength foam surround firmly holds a durable pressed cone made with fiberglass, resulting in unparalleled sound reproduction. And thanks to DS18's specially designed dustpan, the EXL-X10.4D’s bass output is maximized for performance that always defies expectations.
The EXL-X10.4D is designed to produce incredibly powerful and precise bass that will make your heart race. The 2.5" voice coils and impressive 1700W MAX power handling gives the EXL-X10.4D the capability to handle frequency responses as low as 35Hz and as high as 1.2KHz with ease.
Versatility is key, and the EXL-X10.4D doesn't disappoint. Whether you prefer ported or sealed boxes, this subwoofer thrives in all vehicle shapes and sizes. It effortlessly adapts to your audio setup, ensuring that you can enjoy your favorite music the way it was meant to be heard—powerful, crisp, and immersive.
Unlock the true potential of your audio system with DS18’s EXL-X10.4D.
SPECS
SKU
EXL-X10.4D
Nominal Diameter
10" / 254mm
Nominal Impedance
4+4 ohms
RMS Power Handling
850W
MAX Power Handling
1700W
Sensitivity (1w/1m)
88.7dB
Frequency Response
35Hz-1.2Khz
Recommended Lo Pass Crossover
110Hz
MOTOR
Voice Coil Diameter
2.57" / 65.2mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non Pressed Paper + Glass fiber
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Aluminum
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
2 x 90 oz
Displacement Volume
2.3L / 0.081ft3
THIELE & SMALL PARAMETERS
Equivalent Volume
5.82L / 0.2ft3
Free Air Resonance
55Hz
Mechanical Factor
6.519
Electrical Factor
0.714
Total Factor
0.653
Moving Mass
210.25g
Compliance
0.032mm/N
Bl Factor
27.36
Voice Coil Inductance
26.4mH
Diaphragm Area
346.36cm2
DC Resistance
3.2+3.2 ohm
Efficiency Bandwidth Product
77
RECOMMENDED ENCLOSURES
Sealed Internal Volume
9.91L / 0.35ft3
Sealed Box Output Response
60Hz
Ported Internal Volume
21.23L / 0.75ft3
Port Size *Square (W x H x Long)
1.62" x 9.52" x 19.4" / 41.3 x 242 x 493mm
Port Tuning Frequency
48Hz
Ported Box Output Response
38Hz
MEASUREMENTS
Overall Diameter
10.9" / 276mm
Overall Depth
7.48" / 190mm
Front Mount Baffle Cutout
9.4" / 239mm
Mounting Depth
6.29" / 160mm
Motor Diameter
7" / 180mm
Gross Single Unit Weight (lb)
25.5
Dimensions W x L x H (Inches)
12.25 x 12.25 x 9.5
Quantity of Units in Master Carton
1
Gross Master Carton Weight (lb)
25.5
M/C Dimensions W x L x H (Inches)
12.25 x 12.25 x 9.5
