DS18

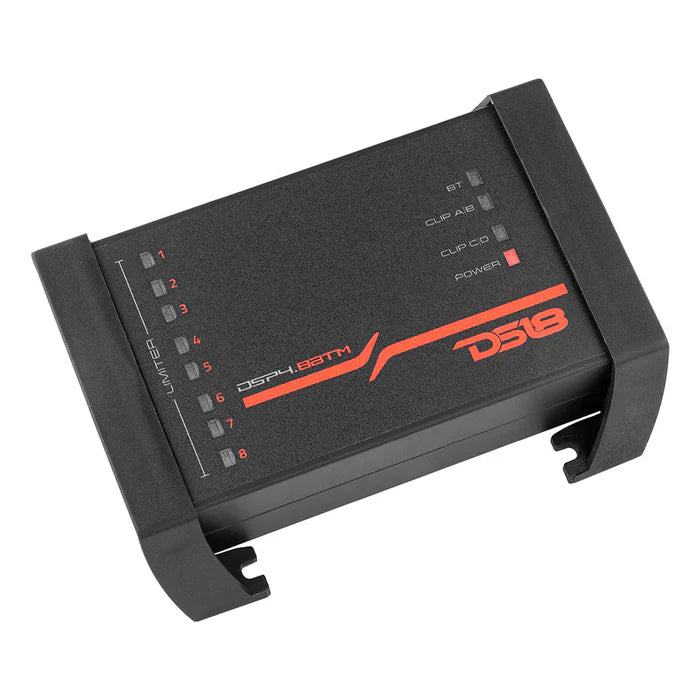

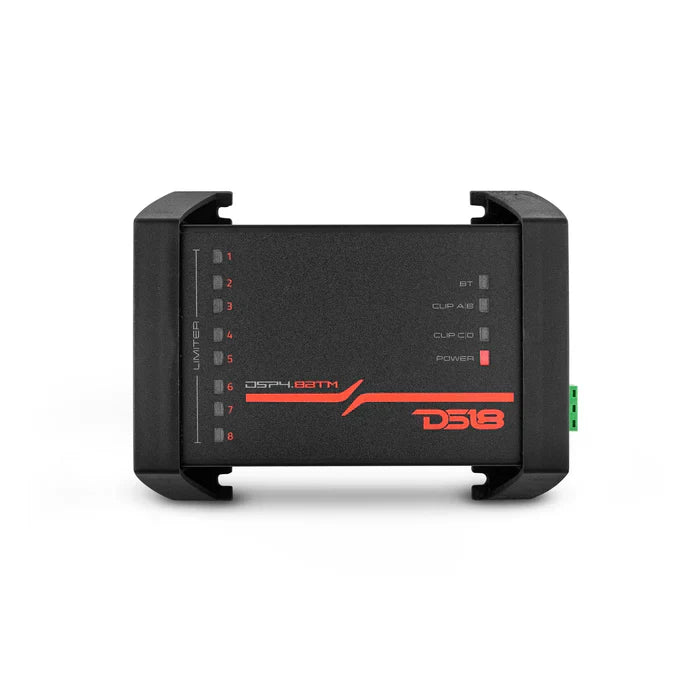

DS18 DSP4.8BTM 4-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth and LCD Screen
DS18 DSP4.8BTM 4-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth and LCD Screen
DS18 DSP4.8BTM
4-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth
DS18 proudly presents the DSP4.8BTM: a 4-channel in and 8-channel out digital sound processor designed to revolutionize your car’s audio.
At DS18, we understand that true audiophiles seek control – absolute dominion over every aspect of their soundstage. The DSP4.8BTM is your key to unlocking that control, putting the immense power of your audio system at your fingertips.
Creating the perfect audio system has never been easier, thanks to the DSP4.8BTM's intuitive features. Our BT Interface grants you direct access to an extensive list of filtration settings, ensuring that your sound is tailored precisely to your preferences. Our dedicated DSP4.8BTM Application, available on both the App Store and Google Play, dares you to fine-tune and monitor every aspect of your signal processing. Effortlessly save presets for specific songs or genres, creating the ideal listening experience every time.
The DS18 DSP4.8BTM takes audio tuning to an entirely new level with its Precision Parametric Equalizer. This advanced feature grants you the power to sculpt your sound with surgical precision. With 8 independent bands per channel, you have unparalleled control over the frequencies, allowing you to fine-tune every aspect of your audio reproduction.
The DS18 DSP4.8BTM introduces you to a world of limitless sonic possibilities with its Dynamic Crossover Filters. Featuring Butterworth, Linkwitz-Riley, and Bessel filters, this exceptional digital sound processor allows you to tailor the audio spectrum with unparalleled accuracy. Prepare to be immersed in a world of sonic bliss, where every note is precisely crafted, and every detail is faithfully reproduced.
SPECS
Routing Options
A / B / C / D / A+B / A+C / B+C
GAIN
Gain
General Gain
-53 to 0dB
Channel Gain
-33 to +9dB
Cutoff Frequency
20Hz to 20KHz
Types of Cuts
Linkwitz-Riley / Butterworth / Bessel
Attenuations
6 / 12 / 18 / 24 / 36 / 48dB/OCT
Polarity Inversion Phase
0 or 180º
Memories
3 - 100% Configurable
Power Supply Voltage DC
10~15VDC
Maximum Consumption
300mA
Input Equalization Bands
15 Bands
Gain
-12 to +12dB
CHANNEL EQUALIZER (EQ CHANNEL)
Equalization Bands
8 Parametric per Channel
Gain
-12 to +12dB
Q Factor
0.6 to 9.9
TIME ALIGNMENT (DELAY) / LIMITER
Time
0 to 18.95ms
Distance
0 to 6500mm
Threshold
-54 to +6dB
Attack
1 to 200ms
Release
1 to 988ms

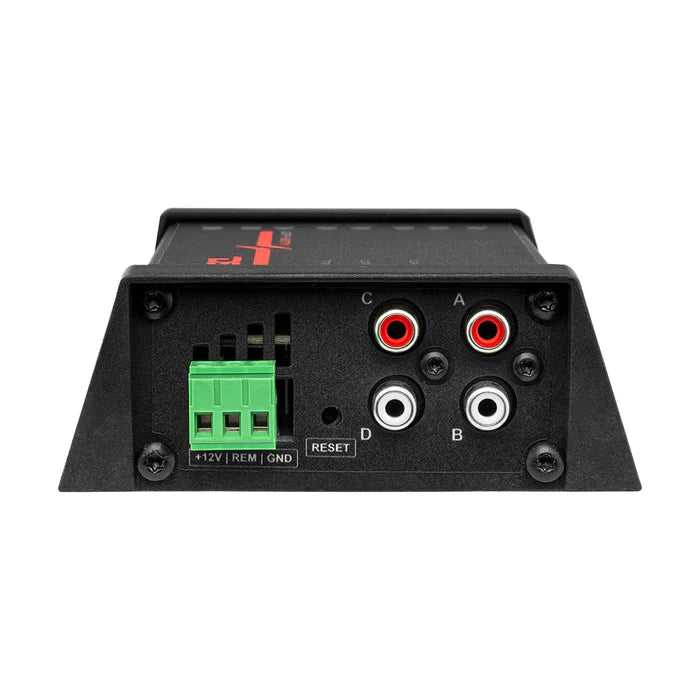

INPUT A/B/C/D
Input Channels
4
Type
Electronically Symmetrical
Connectors
RCA
Max Input Level
4.00Vrms (+14dBu)
Input Impedance
100K Ω

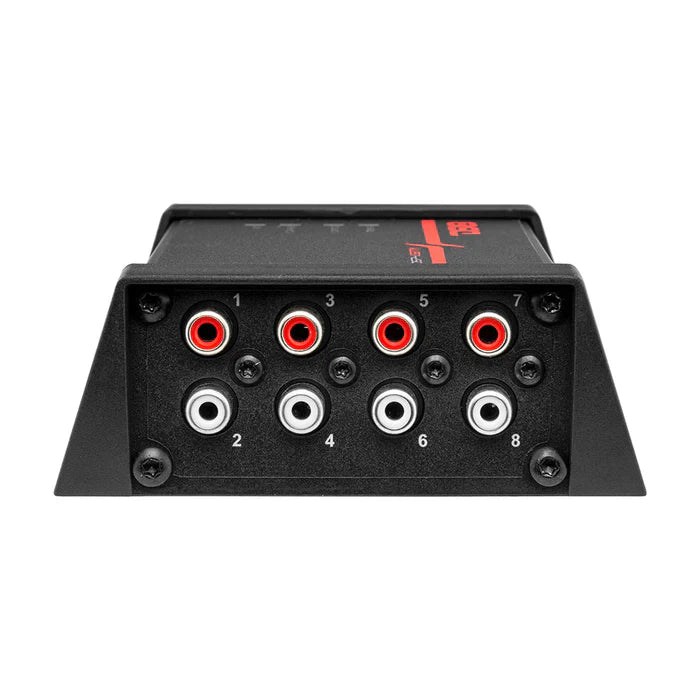

Output Channels
8
Connectors
RCA
Type
Electronically Symmetrical
Max Input Level
3.50Vrms (+13dBu)
Output Impedance
100 Ω
DSP
Frequency Response
10Hz to 24KHz (-1dB)
THD+N
<0.01%
Signal Latency
<0.6ms
Bit Rate
32Bits
Sampling Frequency
96KHz
DIMENSION / SHIPPING INFO
Length x Depth x Height
5.6" x 4.25" x 1.6"
Weight
277g / 9.7Oz
Dimensions Single Box L x W x H (Inches)
6.25 x 4.75 x 2.25
Weight (lb)
1
M/C Dimension L x W x H (Inches)
21.25 x 13.75 x 11
M/C Weight (lb)
30
M/C Qty
36 Pcs
