DS18

DS18 DDX7CP 7" Touchscreen Mechless Double-Din Headunit with Bluetooth, USB, Mirror Link And Car play

DS18 DDX7CP 7" Touchscreen Mechless Double-Din Headunit with Bluetooth, USB, Mirror Link And Car play

Regular price $249.99
Regular price $269.99 Sale price $249.99
Sale Sold out
Shipping calculated at checkout.

DS18 DDX7CP


7” Touchscreen Mech-Less Double-Din Digital Media Receiver with Bluetooth, Mirror Link And Apple Car Play

DS18’s Double Din Receivers are back and better than ever!
Everything you love about DS18’s Multimedia Receivers is now bigger than ever measuring in at 7” and introduces a highly anticipated new feature: the DDX7CP brings the Car Play feature to DS18’s long line of Multimedia Receivers.

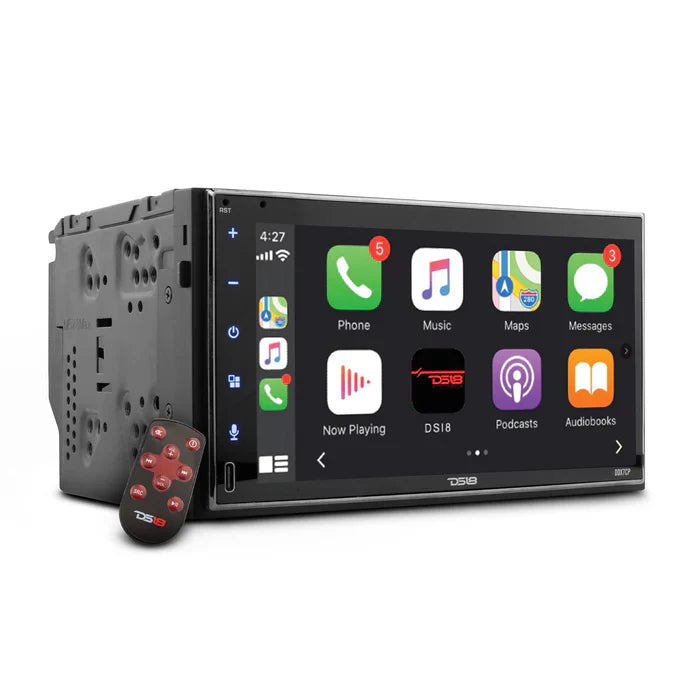

This receiver now includes all features needed to bring all your favorite tunes with you no matter what devices you have at your disposal. The DDX7CP allows you to utilize Apple Car Play, Mirror Link, Bluetooth, AUX, USB, Phone Controls, and all your AM/FM Stations. The USB Adapter can read flash drives holding up to 64GB.

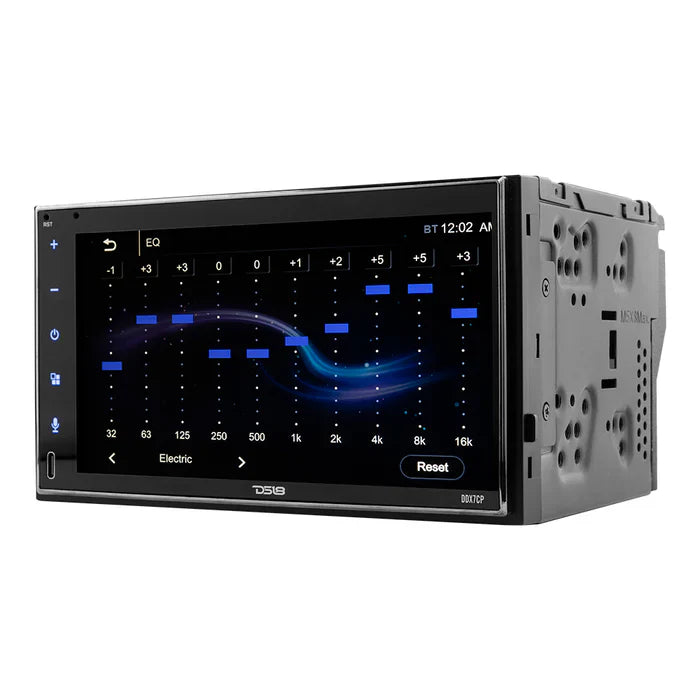

Tune your music to your preferences with the built-in 10 Bands Graphic Equalizer that makes sure your sound is tweaked to perfection with easy access and easy to use settings.
There is plenty of power behind this versatile receiver. At 4 ohms this unit offers 15 x 4 watts RMS and 40 x 4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this digital stereo receiver, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4 volts so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available. Also 3 sets of preamp outputs (SUB, Front, and Rear) will be there for you to configure to your specific setup.

SPECS

SKU
DDX7CP
Rated power source
14.4V DC (10.8V to 15V operation)
Maximum Current Consumption
15 Amp
Dimensions (W x H x D)
Chassis: 178mm x 100mm x 135mm Bezel frame: 170mm x 96mm x 4mm
Weight
1.86 Lb / 844 grams


DISPLAY

Screen Size / Aspect Ratio
7 inch / Wide 16:9
Pixels
1024 x 600
Display Type
TFT / WSVGA / Capacitive Touch Screen
Temperature Operation
-20C to +60C (14F to 140F)


AUDIO

Maximum Power Output
45W X 4 Ch / 4 ohm
Continuous Power Output
15W x 4 Ch / 4 ohm
Pre-output Level
4.5 Volts (Front, Rear, Subwoofer)
Equalizer
10 bands (32hz, 63hz, 125hz, 250hz, 500hz, 1khz, 2khz, 4khz, 8khz, 16khz)
Gain
+/- 6dB
Audio Control
Volume / Balance / Fader /Loudness


TUNER

Frequency Range
FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
Presets Memory
30 Stations (18 FM/12 AM)
Region
Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment
LOC (On/Off) / ST (On/Off)
RDS
Yes (Radio Data System)


USB PLAYER / CONNECTIVITY

Type / Class
V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported
AVI, MP4, MP3, WMA, BMP, JPEG
Resolution Supported
1080P Video
Memory Size Reader
up to 64 Gb
Max Current Supply
1.5 Amp (USB)
Number of USB Ports
2 (1 x Front (Type-C), 1 x Rear)
Bluetooth Version / Services
V5.0/ Audio Streaming / Hands Free calls
Camera Input
RCA Analog Video up to HD 720p (Front/Rear)
Video Output
Dual RCA (1 Volt/75 ohm)
A/V Aux Input
Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone
Front panel Built-in / 3.5mm Jack external MIC Input
Remote Control
Frontal IR Receptor / Wired (3.5mm jack) Input
