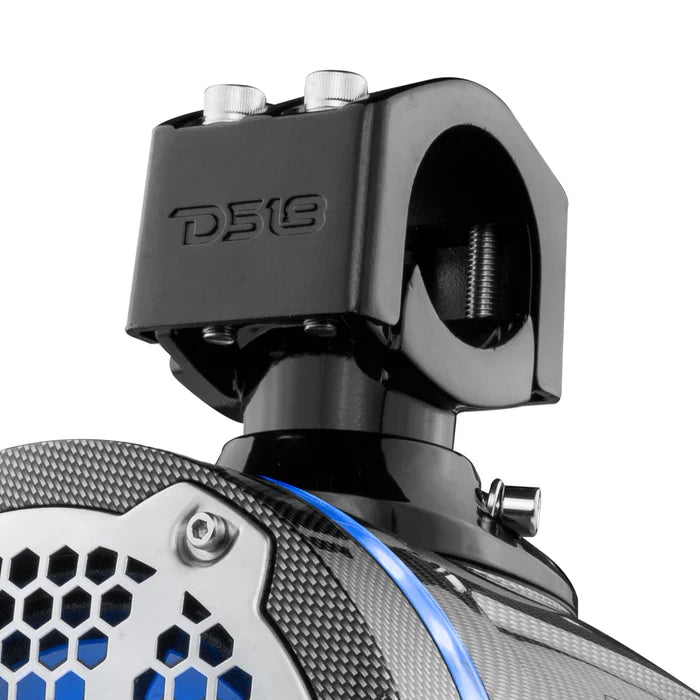

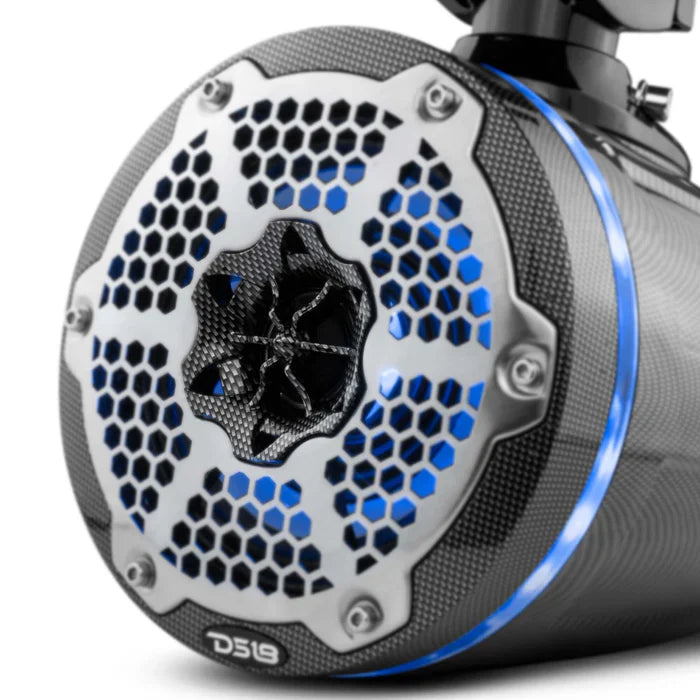

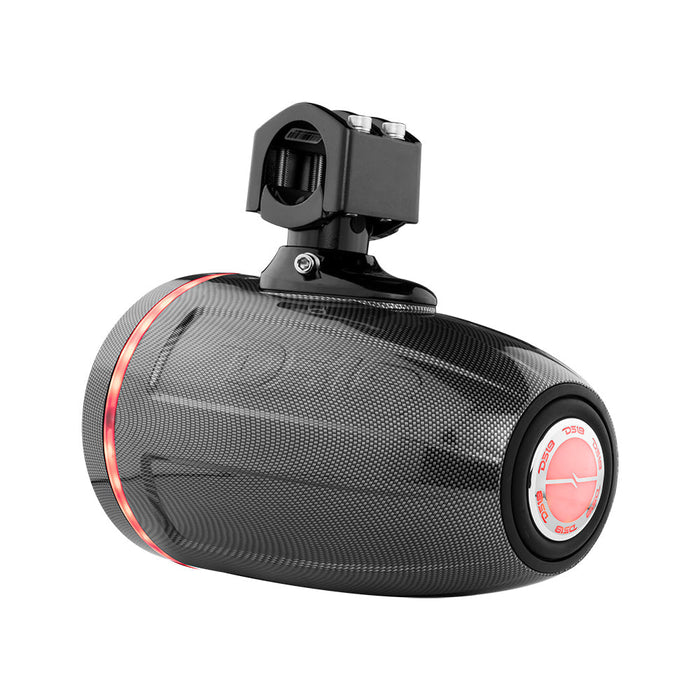

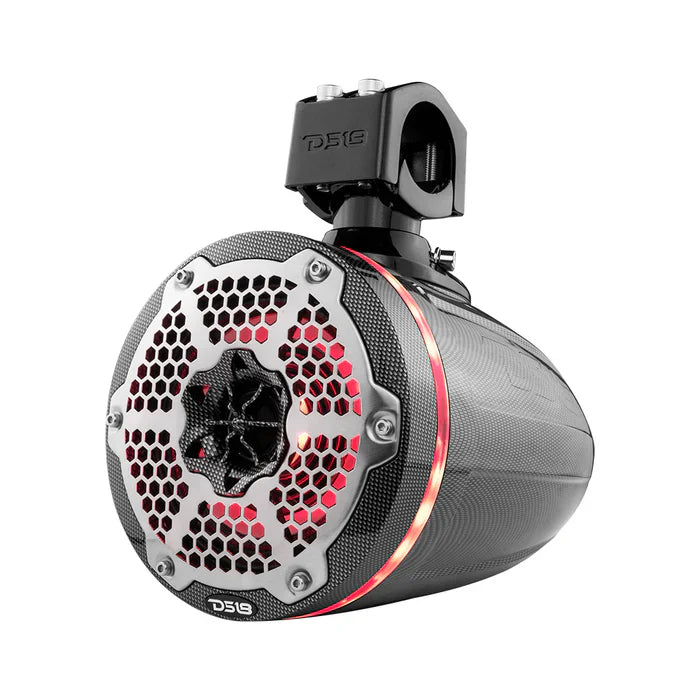

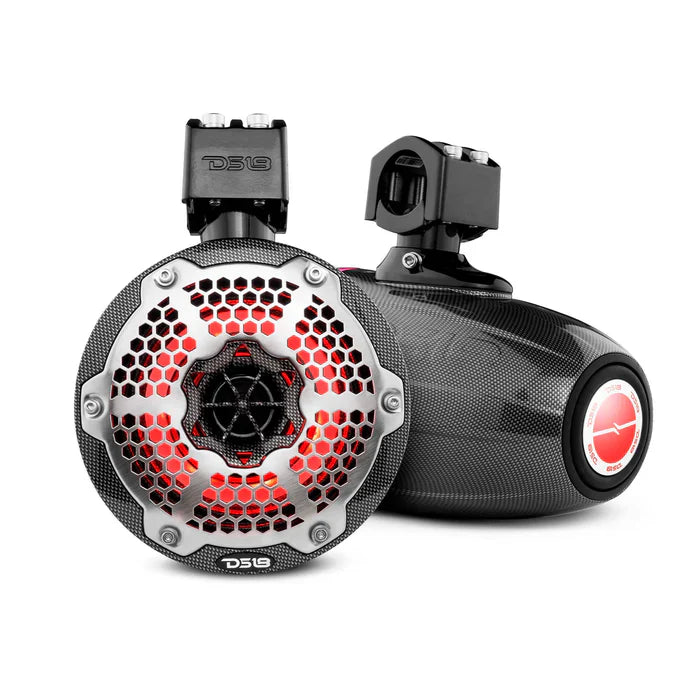

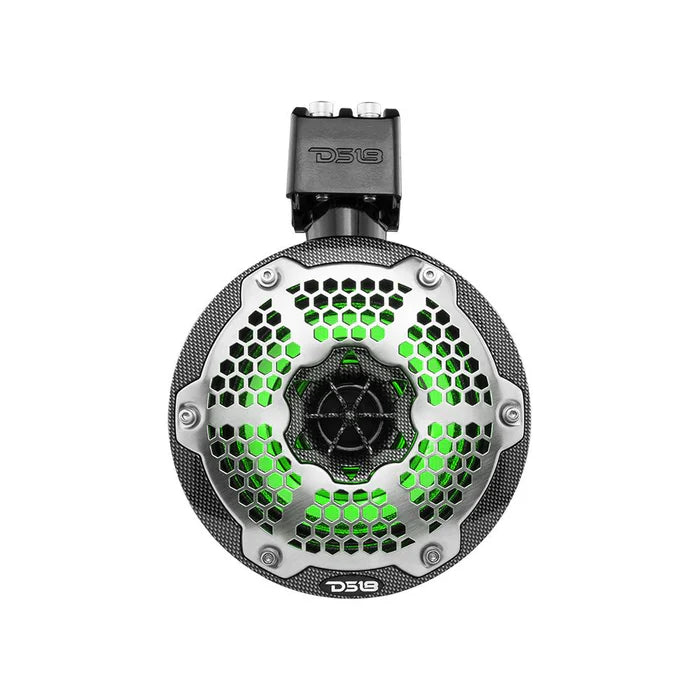

DS18 CF-X8TP HYDRO 8" Marine Towers with Integrated RGB LED Lights, 425 Watts, Black Carbon Fiber

SPECS

SKU
CF-X8TP
Nominal Diameter
8"
Nominal Impedance
4 ohms
RMS Power Handling
125 Watts
Maximum Power Handling
375 Watts
Sensitivity (1w/1m)
93 dB
Frequency Response
55 Hz - 23 KHz
Recommended Hi Pass Crossover
70 Hz

SPECS

Voice Coil Diameter
1.2"
Voice Coil Former Material

Winding Material

Basket Material
PC Injection Molded Composite
Magnet Weight

THIELE & SMALL PARAMETERS

Vas
22.5 L
Xmax
4 mm
Fs
50 Hz
Qms

Qes

Qts
0.532
Re

MEASUREMENTS

Overall Diameter
8.59" / 218.1mm
Front Mount Baffle Cutout

Mounting Depth

Overall Depth
13.89" / 352.9mm
Product Weight
25.5 lbs
Product Dimensions
24 x 17.75 x 11
M/C Weight
54.5 lbs
M/C Dimensions
24.5 x 17.75 x 23.25
M/C QTY
2
