DS18 BTRCRMIC Marine Waterproof Universal Bluetooth Streaming Audio receiver With Controller and Microphone
DS18 BTRCRMIC Marine Waterproof Universal Bluetooth Streaming Audio receiver With Controller and Microphone
DS18 BTRCRMIC
Waterproof Bluetooth Audio Streamer With Controls and Handheld Microphone
Take your marine audio experience to the next level with DS18’s BTRCRMIC – an audio streamer designed to provide crystal-clear sound, no matter what the weather conditions may be!
Featuring a CB radio style microphone with controls, the BTRCRMIC allows you to communicate through your audio system. The CB Radio Style Mic is plugged in via the included quick-detach cable. While using the mix, you can control your background audio’s volume with a few easy clicks. The red LED on the microphone also aids in understanding the available functions.

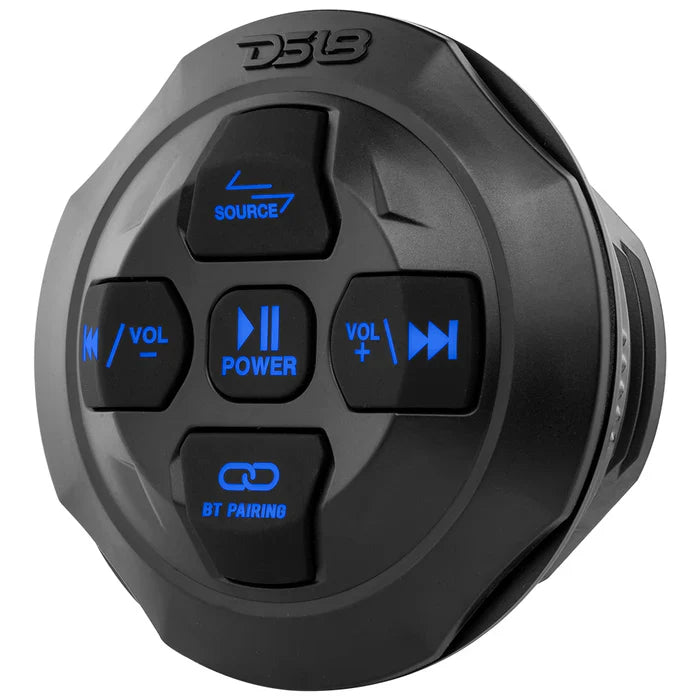

The BTRCRMIC’s easy-to-use blue back-lit silicon buttons make it effortless to operate. It's also built with a wireless BT audio receiver with BT 5.0v for long-range streaming up to 130ft*, allowing you to listen to your favorite tunes with ease. DS18’s BTRCRMIC also comes with a stereo 2.5v pre-out RCA, remote output to control external amplifier, and can be used as a stand-alone source unit/receiver.

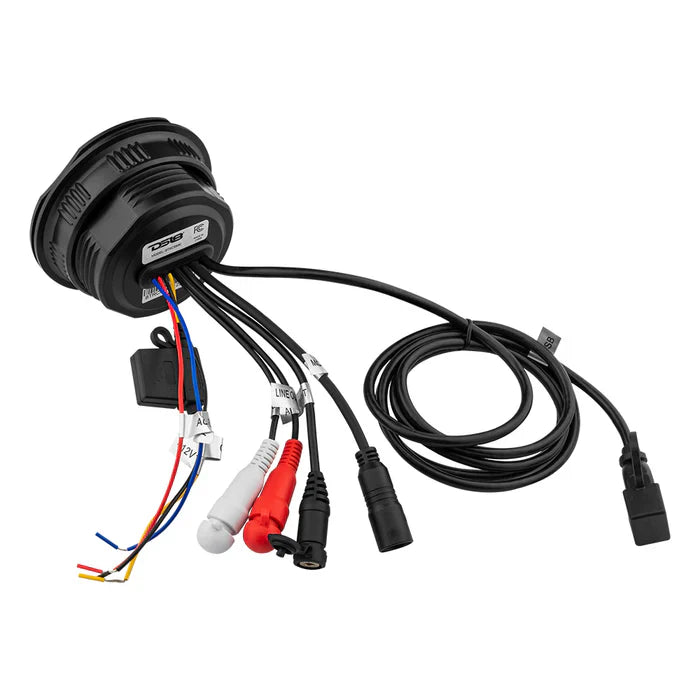

Its USB port for music and charging (1A), an aux audio input using a 3.5mm jack, mic/handset controller input, RCA line output for external amplifier, and remote output for external amplifier, makes this product applicable in any build.
The integrated power wiring harness ensures that your device is always protected with overload and power protection circuitry, while the IPX6 water resistance rating ensures that your device is protected from water damage, making it perfect for all elements.
Whether you're cruising on the open road or exploring the open sea, DS18’s BTRCRMIC has got you covered!
SPECS
SKU
BTRCRMIC
Frequency Response
20Hz-20KHz
Signal to Noise Ratio
>80dB
T.H.D
<0.1%
Channel Separation
>60dB
Voltage Operation
DC 10-15V
Fuse Size
5 Amp
BT Version
5.0
Wireless Range
>130 ft (conditions may vary)
USB Charging Capacity
1 Amp with 4ft extension cord
USB Files Format Compatible
MP3 / WMA
USB Player Capacity
< 32GB
Remote Out
< 200mA
RCA Line Out (Pre-Amp)
1 pair (Left & Right) 2.5V
FEATURES
Aux Line Input
Plug 3.5mm
Buttons / Controls (Unit)
Power/Source/Play/Pause/Next/Prev/Vol+/Vol-/BT Pairing
Buttons / Controls (Microphone)
CB style Talk on/off / Mic Vol+/Vol-
Illumination (unit)
Blue backlit
Body Material / Color / Finish (Unit)
ABS Black housing / Rubber Buttons
Body Material / Color / Finish (Microphone)
ABS Black housing / Rubber Buttons
Waterproof Rating
IPX6
MEASUREMENT UNIT
Overall Diameter
3.7" / 96mm
Overall Depth
2.44" / 62mm
Mounting Depth
1.85" / 47mm
Mounting Hole Size
2.87" / 73mm
MEASUREMENT MICROPHONE
Overall Width
2.6" / 66.6mm
Overall Height
4.3" / 110mm
Overall Depth
1.2" / 31.3mm
Overall Depth (with Clamp)
1.5" / 40.5mm
SHIPPING INFO
Gross Single Unit Weight
1.5
Single Unit Box Dimensions W x L x H (Inches)
6.75 x 6.75 x 5.25
Quantity of Units in Master Carton
12
Gross Master Carton Weight
19.5
Master Carton Dimensions W x L x H (Inches)
14.25 x 14.25 x 16.5
