DS18

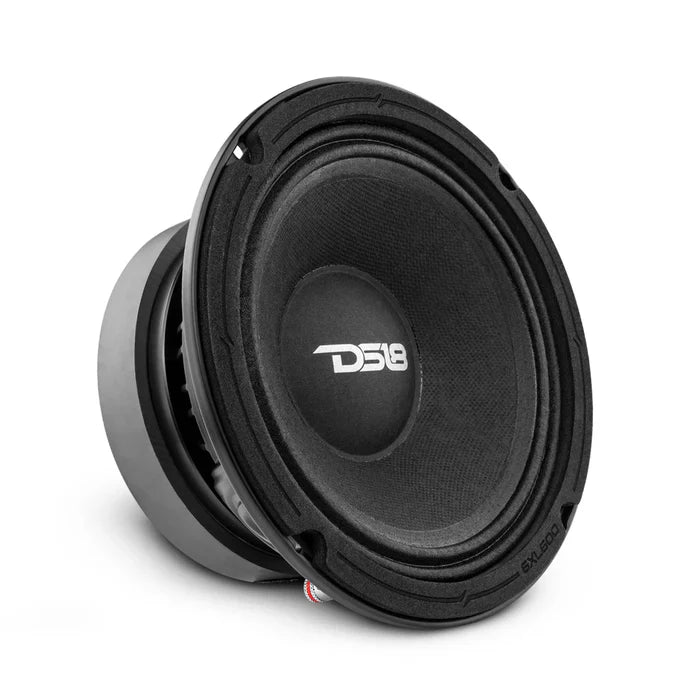

DS18 6XL600-8 XL 6.5" Mid-Range Loudspeaker 300 Watts Rms 8-Ohm (each)

DS18 6XL600-8 XL 6.5" Mid-Range Loudspeaker 300 Watts Rms 8-Ohm (each)

Regular price $79.99
Regular price $89.99 Sale price $79.99
Sale Sold out
Shipping calculated at checkout.

DS18 6XL600-8


6.5” Mid-Range Loudspeaker

Brace yourself for the LOUD revolution with DS18’s 6XL600-8, a 6.5” Mid-Range Loudspeaker that will take your car’s audio to places it’s never been before.
DS18’s 6XL600-8 handles an awe-inspiring RMS of 300W, and an incredible MAX of 600W ensuring that your audio experience is a symphony of pure power. It’s extraordinary sensitivity, fixed at 97dB, transforms even the slightest whisper into an ear-piercing roar.
DS18’s 6XL600-8 has a frequency response ranging from 60Hz to 12.5KHz, guaranteeing you never miss a beat. DS18 understands that every audio enthusiast has unique preferences, which is why we recommend a HI Pass Crossover of 100Hz to complement your audio setup, ensuring a harmonious balance between the lows, mids, and highs.
But the true magic lies within the construction of the 6XL600-8. The aluminum basket, dressed in a satin black finish, provides a sturdy foundation for the 6XL600-8. Engineered with precision, this custom-tooled basket provides unparalleled stability, effectively reducing unwanted vibrations, and ensuring distortion-free sound reproduction. The strategic design incorporates ample ventilation, allowing for efficient heat dissipation, even during prolonged listening sessions at high volumes.
The expertise of our engineers shows in the design of the polished high-quality spring-loaded push terminals that ensure a seamless connection between your audio system and the speakers. The spring-loaded mechanism further simplifies the installation process, making it effortless to achieve a tight and secure connection every time.
And let's not forget the magnetic force behind it all—a robust ferrite magnet weighing in at an impressive 34 Oz, generating immense power and driving your speakers performance.
DS18's 6XL600-8— is your gateway to professional audio in your vehicle. Are you ready for the audio revolution?

GENERAL SPECIFICATIONS

SKU
6XL600-8
Nominal Diameter
6.5" / 165mm
Nominal Impedance
8 Ohm
RMS Power Handling
300 Watts
MAX Power Handling
600 Watts
Sensitivity (1w/1m)
97dB
Frequency Response
60Hz-12.5KHz
Recommended Hi Pass Crossover
100Hz
Pair or Single
Single


MOTOR

Voice Coil Diameter
2" / 50.8 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-pressed Paper
Dust Cap Material
Paper
Surround Material
Cloth
Basket Material
Aluminum
Basket Color | Finish
Satin Black
Magnet Material
Ferrite
Magnet Size
34 Oz
Displacement Volume
0.45L / 0.015ft3


THIELE & SMALL PARAMETERS

Vas
5.71L / 0.201ft3
Xmax
3.7 mm
Fs
100Hz
Qms
4.93
Qes
0.5
Qts
0.454
Mms
11.917
Cms
0.214 mm/N
BL
6.906
Le
0.1647mH
Sd
136.85 cm²
Re
3.2 ohms
Mmd
10.996g


MEASUREMENTS

Overall Diameter
6.7" / 170mm
Overall Depth
3.5" / 89mm
Front Mount Baffle Cutout
5.9" / 150mm
Mounting Depth
3.14" / 80mm
Motor Diameter
4.96" / 126 mm
