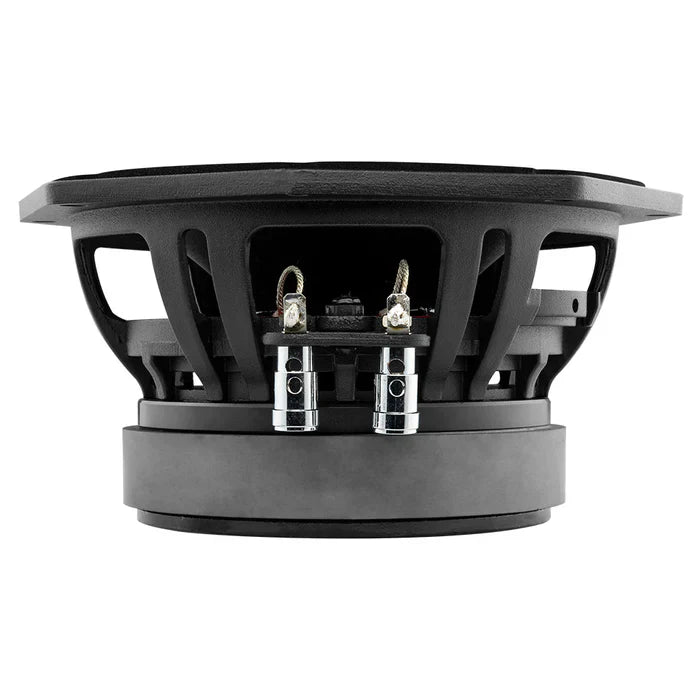

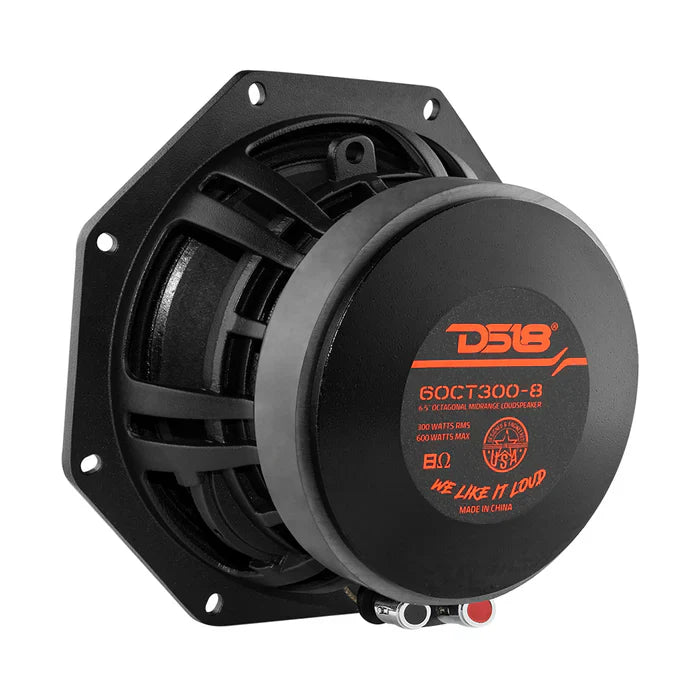

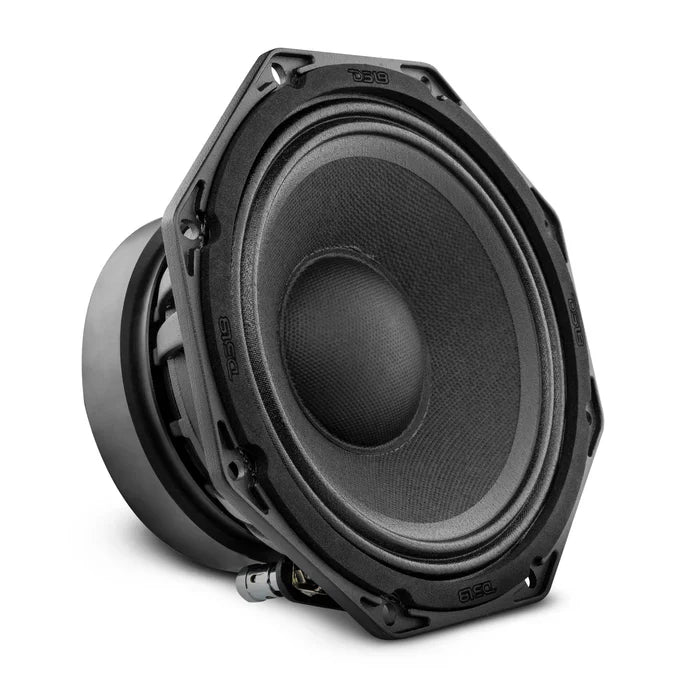

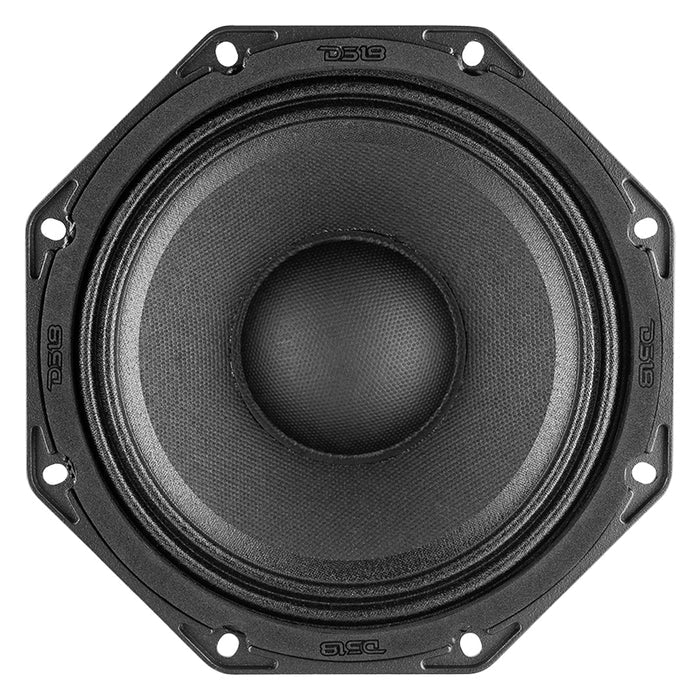

DS18 6OCT300-8 Octagonal 6" Mid-Bass Loudspeaker 300 Watts Rms 8-Ohm (each)
DS18 6OCT300-8 Octagonal 6" Mid-Bass Loudspeaker 300 Watts Rms 8-Ohm (each)
DS18 6OCT300-8
PRO 6.5” Octagon Mid-Range Loudspeaker 600W MAX 8-Ohm
Get your system in shape with DS18’s 6OCT300-8! This speaker’s unique octagonal shape offers a wider range of frequency response compared to traditional round speakers, reproducing sounds as low as 80Hz and as high as 10KHz, giving you an incredibly tangible soundstage that increases the quality and feel of the music produced by them.
The high sensitivity rating of 95dB on the DS18 6OCT300-8 PRO Octagon Mid-Range Loudspeaker helps it efficiently convert power into sound. This results in a loud and clear output that can easily fill any room. The speaker's sensitivity also allows it to deliver exceptional sound quality even at lower volumes, making it ideal for both casual listening and high-intensity sound experiences.
In addition, the DS18 6OCT300-8's high power handling ratings of up to 300W RMS and 600W MAX ensure that the speaker can handle large amounts of power without distortion. This means that you can turn up the volume as loud as you want without worrying about damaging the speaker or compromising sound quality. With these power handling ratings, the DS18 6OCT300-8 is capable of delivering high-energy sound that is perfect for parties, concerts, and other events where volume is crucial.
But the benefits of the DS18 6OCT300-8's octagonal shape go beyond just looks and sound quality. Its unique shape also makes it easier to organize and install in your system. The octagonal shape of the speaker allows it to be aligned more easily and accurately, ensuring that the sound is distributed evenly. This makes it an ideal choice for sound engineers and audiophiles who demand precision and accuracy in their sound systems.
SPECS
SKU
6OCT300-8
Nominal Diameter
6.5" / 165 mm
Nominal Impedance
8 OHMS
RMS Power Handing
300 Watts
Maximum Power Handing
600 Watts
Sensitivity (1w/1m)
95 dB
Frequency Response
80Hz-10KHz
Recommended Hi Pass Crossover
120 Hz
SPECS
Voice Coil Diameter
2" / 50.8 mm
Voice Coil Former Material
TIL
Winding Material
CCAW
Basket Material
Aluminum
Magnet Weight
30 Oz
THIELE & SMALL PARAMETERS
Vas
9.55 L / 0.337 ft3
Xmax
4 mm
Fs
120 Hz
Qms
5.975
Qes
0.999
Qts
0.855
Re
5.87 OHMS
MEASUREMENTS
Overall Diameter
6.6" / 170 mm
Front Mount Baffle Cutout
5.8" / 148 mm
Mounting Depth
3.4" / 87 mm
Overall Depth
3.7" / 95 mm
Product Weight
6.5 lbs
Product Dimensions
7.75 x 7.75 x 4.75
M/C Weight
26.5 lbs
M/C Dimensions
16 x 8.25 x 10.25
M/C QTY
4
Sold In
Piece
