Skip to product information
1 of 1

DS18

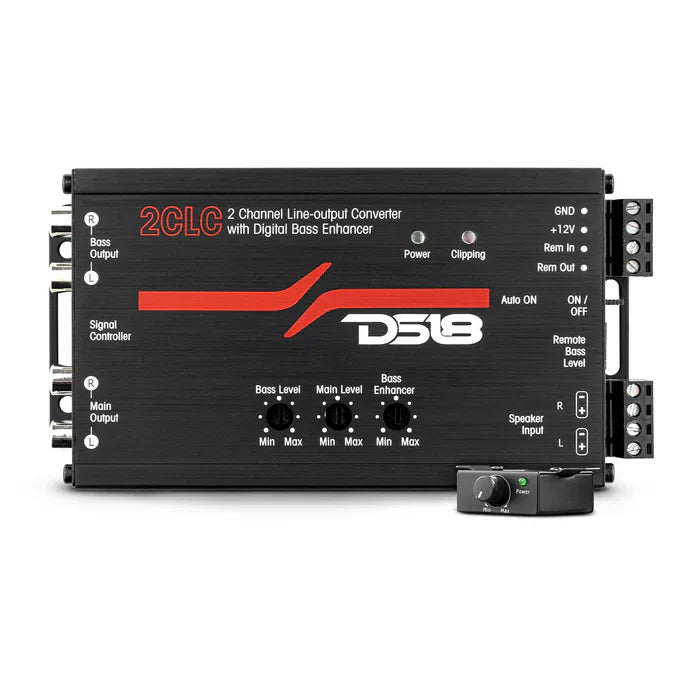

DS18 2CLC 2 Channel Line Output Converter with Digital Bass Enhancer

DS18 2CLC 2 Channel Line Output Converter with Digital Bass Enhancer

Regular price $89.99
Regular price $99.99 Sale price $89.99
Sale Sold out
Shipping calculated at checkout.

DS18 2CLC


2 Channel High/Low Converter with Digital Bass Enhancer

Introducing DS18's 2CLC, the 2 Channel High/Low Converter with Digital Bass Enhancer that will transform your car audio experience forever.
With DS18's 2CLC, you can upgrade your factory system to achieve the deep, thunderous bass that every car audio enthusiast craves. No need to replace your radio or undergo complex installations. This innovative device bridges the gap between your factory amplifier and an external subwoofer, giving you the freedom to amplify your bass without sacrificing the integrity of your existing system.
DS18’s 2CLC two-channel level input effortlessly converts your factory signal, unlocking the full potential of your bass output when combined with an external sub and amplifier. Experience a world of audio clarity and precision as the 2CLC enhances your bass frequencies, creating LOUD thumping bass that resonates throughout your entire vehicle.
Fine-tuning your audio has never been easier. The main level, bass, and bass enhancer knobs grant you complete control over your bass frequencies, allowing you to shape your sound to perfection. With DS18’s 2CLC, you are master over your audio, commanding a level of bass that will make even the most dedicated bassheads tremble.
Installation is a breeze with the selectable auto ON feature, allowing you to choose between signal sensing or remote activation. The included dash remote level control puts the power of bass adjustment at your fingertips, ensuring that you can fine-tune your audio on the fly. LED indicators for power and clipping provide instant feedback, keeping you informed of your system's status at all times.

SPECIFICATIONS

SKU
2CLC
Maximum Speaker Level Input
400 watts per channel
Maximum Preamp Output
9V rms
Dash Level Remote Control
+0dB / - 19 dB
Frequency Response
10Hz-100kHz; + 1dB
Total Harmonic Distortion
0.01%
Signal To Noise Ratio
>110dB
Input Impedance
20K Ohms
Output Impedance
150 Ohms
Power Draw
150mA
Recommended Fuse Rating
1 Amp


FEATURES

Speaker Level Input
2 channels
Bass Enhancer
with adjustable control of bass roll-off
Selectable Auto ON
signal sensing or remote in
Remote Output
Up to 150mA
Dual Amplifier Outputs
Main / Bass output
Level Matching Controls
Main / Bass output level knob
Dash Remote Level Control
included
Led Indicators
Power / Clip


MEASUREMENT

Overall Length
6.18" / 157mm
Overall Width
3.22" / 82mm
Overall Height
1.25" / 32mm
Heatsink Length
5.39" / 137mm
Gross Single Unit Weight
11oz
Shipping Measurement L x W x H (Inches)
8.25 x 7 x 1.87
Weight (lb)
1.5
M/C Measurement L x W x H (Inches)
17.5 x 14.75 x 10.25
M/C Weight (lb)
28
M/C Qty
20 Pcs
