AudioControl Epicenter Micro Bass Restoration Processor & Line Output Converter
AudioControl Epicenter Micro Bass Restoration Processor & Line Output Converter
Couldn't load pickup availability

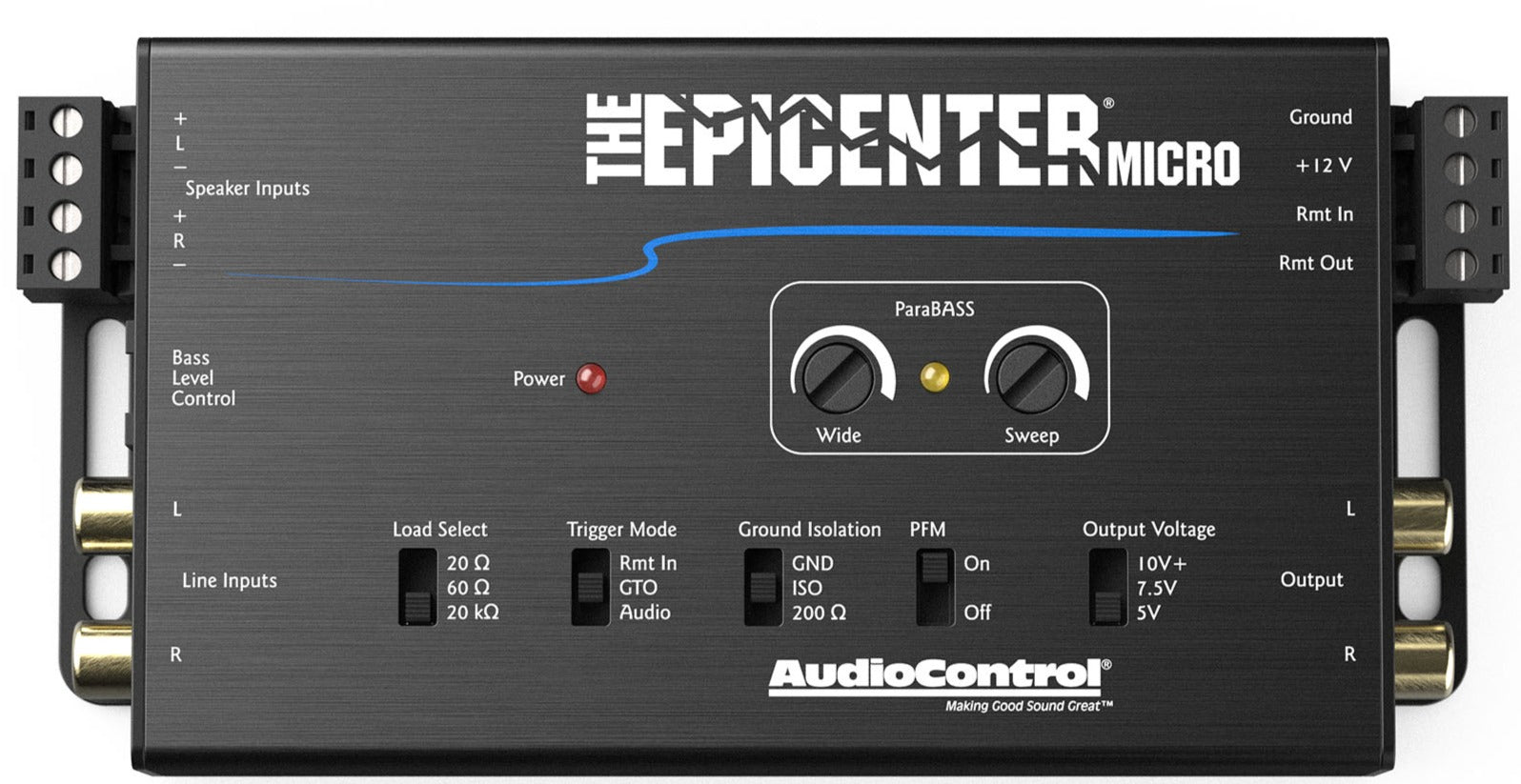

The Epicenter Micro combines AudioControl’s legendary digital bass restoration with world-renowned OEM integration capabilities. Featuring a speaker-level input stage with selectable impedance loads, as well as traditional line-level inputs, The Epicenter Micro brings out the best bass in any system. Trigger modes include traditional +12V remote in, GTO™ Signal Sense, and Audio Sense. The PFM Subsonic Filter can be bypassed for the truly dedicated, and the 10V+ output voltage setting beckons only the bravest among us. Use the included ACR-4 remote to independently adjust bass restoration and output level.
features
- Patented Digital Bass Restoration
- ParaBASS® Bass Shaping
- Speaker and Line Level Inputs
- Load Matching Circuit
- Multiple Trigger Modes
- ACR-4 Dual Knob Dash Mount Control Included
- Conformally Coated PCB for Increased Resistance to the Elements
specifications

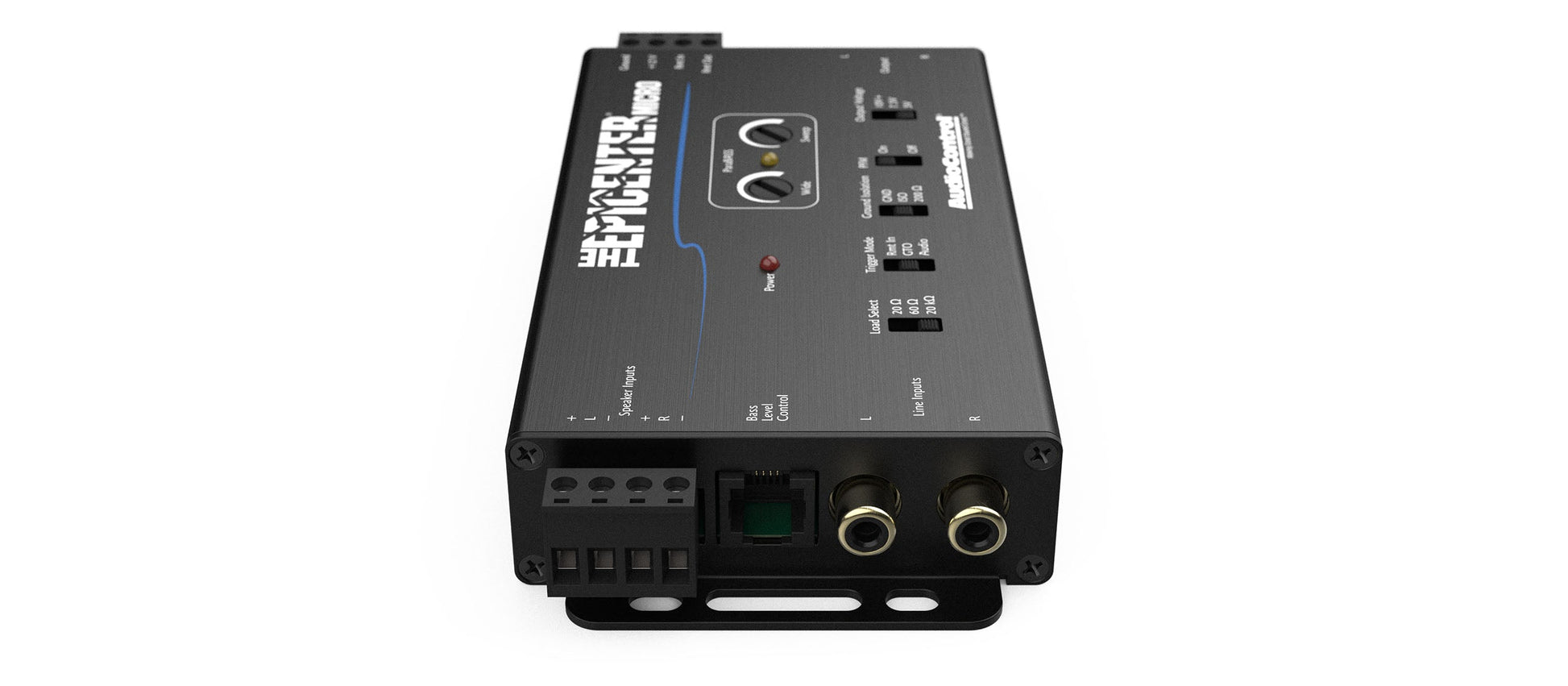

inputs
- Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
- Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
- Line Level Input: 1 (2 channels)
- Line Level Input Impedance: 7kΩ

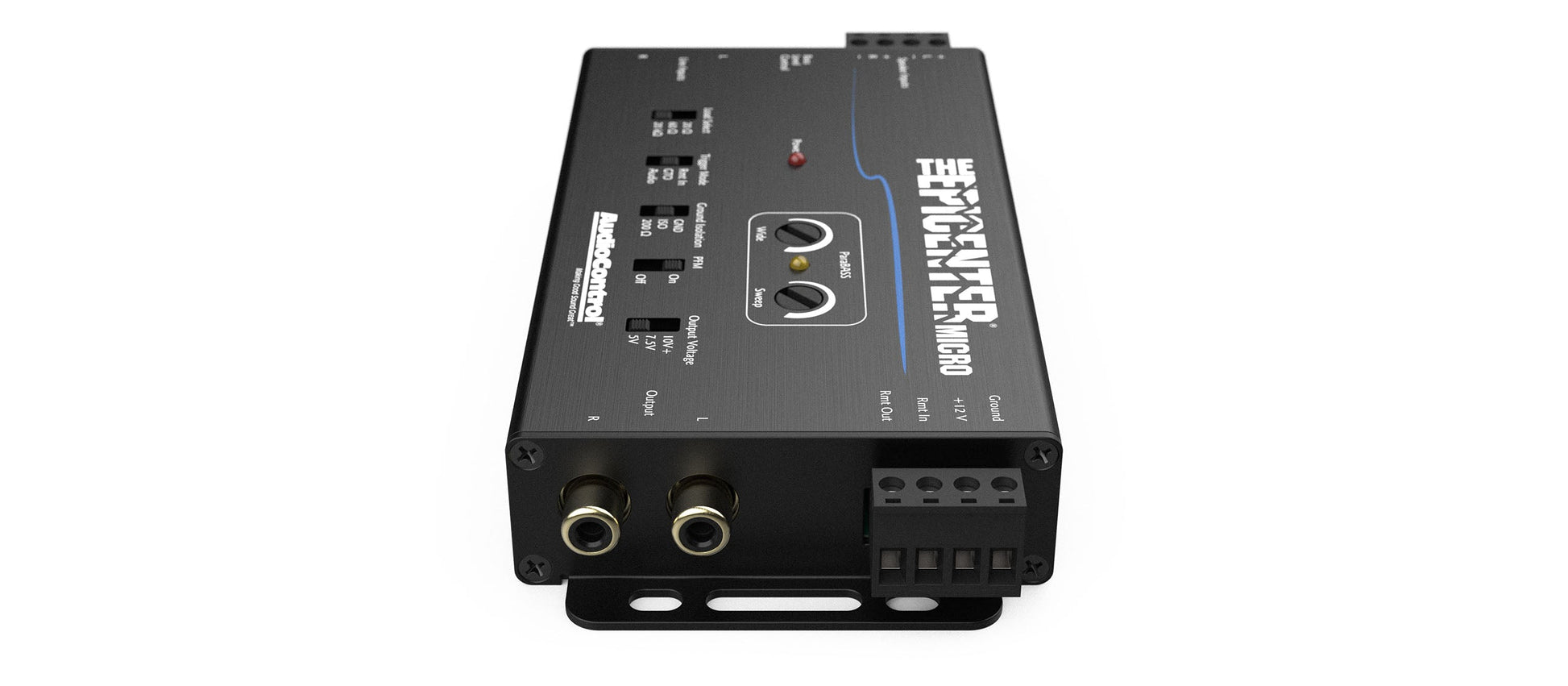

outputs
- Preamp Outputs: 1 (2 channels)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Impedance: 150Ω
performance
- Total Harmonic Distortion: 0.03%
- Signal to Noise: >105 dB
- Frequency Response: 10 Hz – 22 kHz ±1 dB
control
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
general
- Current Draw: 300 mA
- Recommended Fuse Rating: 1 A
weights & dimensions
- Dimensions: 5.9″L x 3″D x 1″H
- Weight: 0.6 lbs. (0.27 kg)

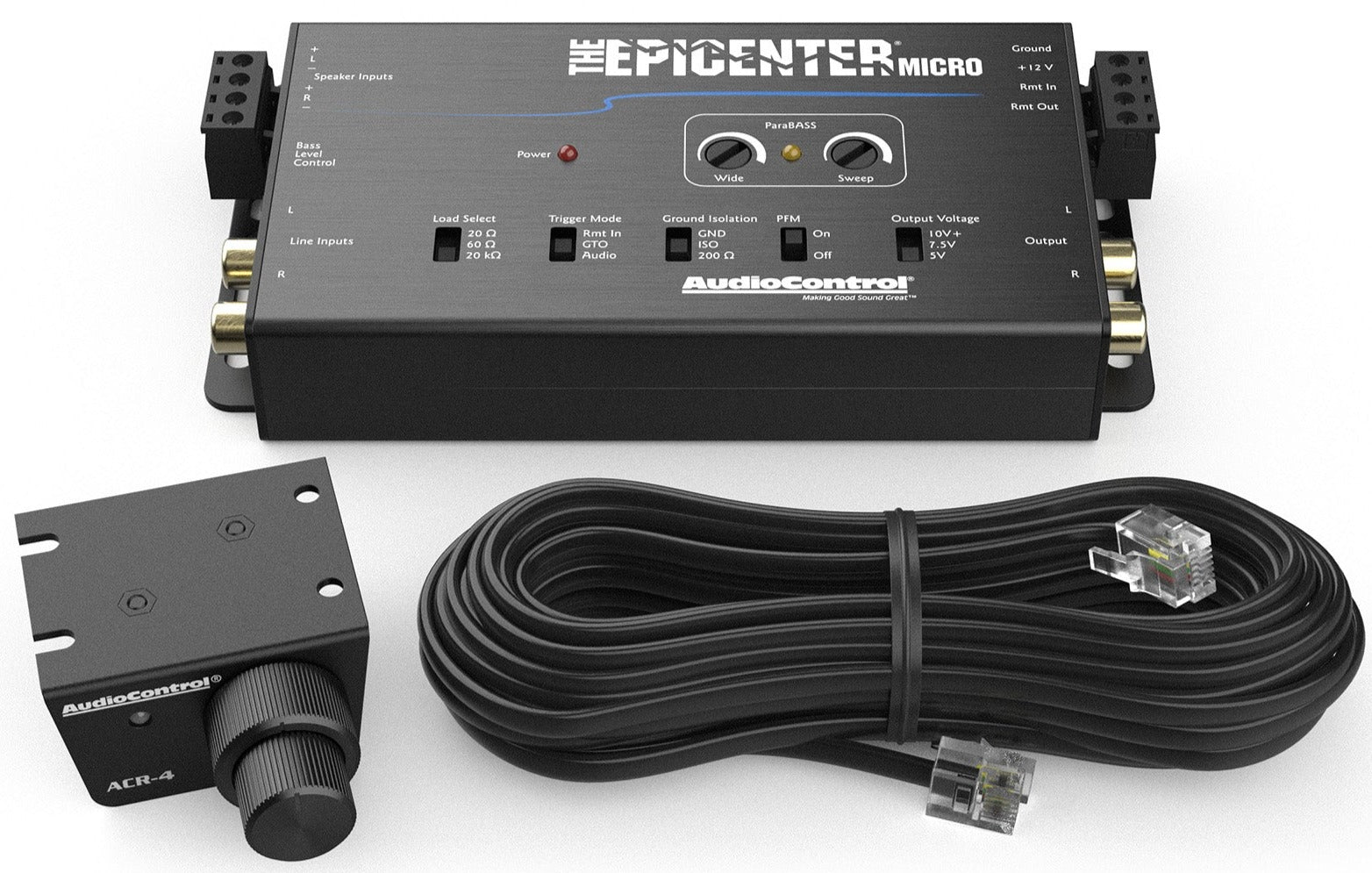

in the box: The Epicenter Micro, ACR-4, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty
