AudioControl

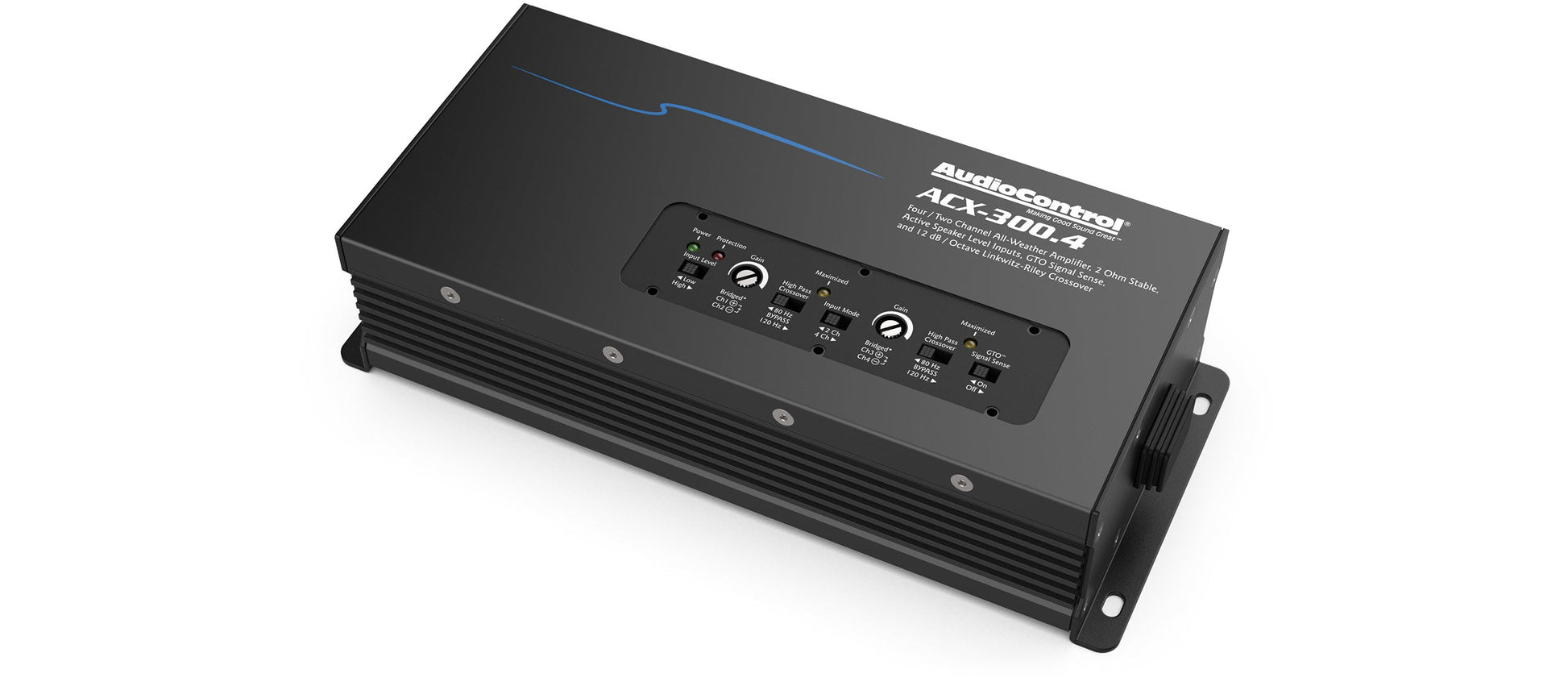

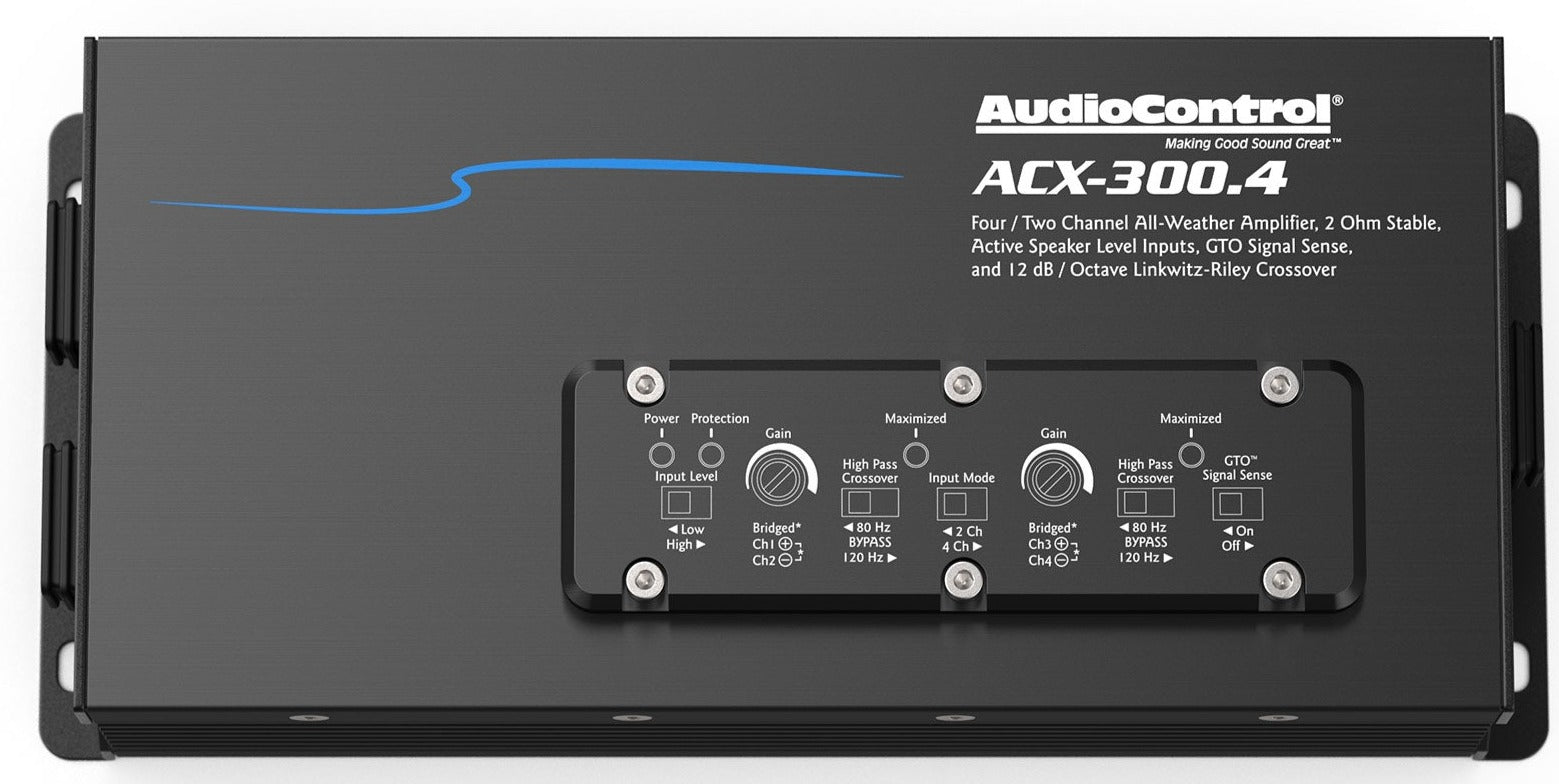

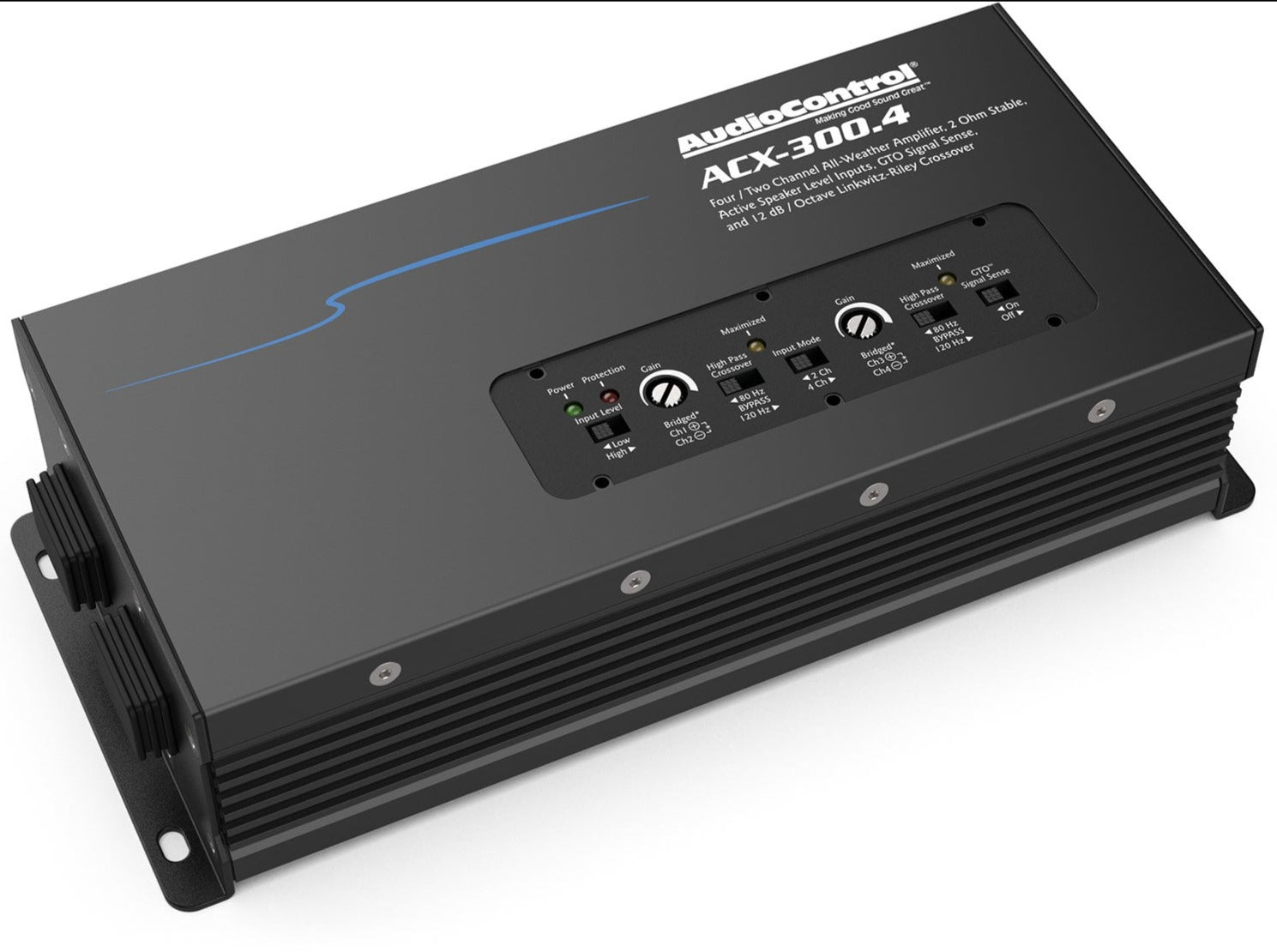

AudioControl ACX-300.4 4-Channel Amplifier
AudioControl ACX-300.4 4-Channel Amplifier
Regular price
$289.99
Regular price
$299.99
Sale price
$289.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
AudioControl’s ACX-300.4 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. for a two or four channel system, the ACX-300.4 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.4 all-weather amplifier the perfect solution for your next adventure.
features
- 4 x 75 watts @ 2 ohms
- 4 x 50 watts @ 4 ohms
- 150 watts @ 4 ohms bridged
- IPX6 Rated
- GTOTM Signal Sense
- High and low input modes
- 4 and 2 channel input modes
- Linkwitz-Riley Crossover
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
INPUT LEVEL SWITCH

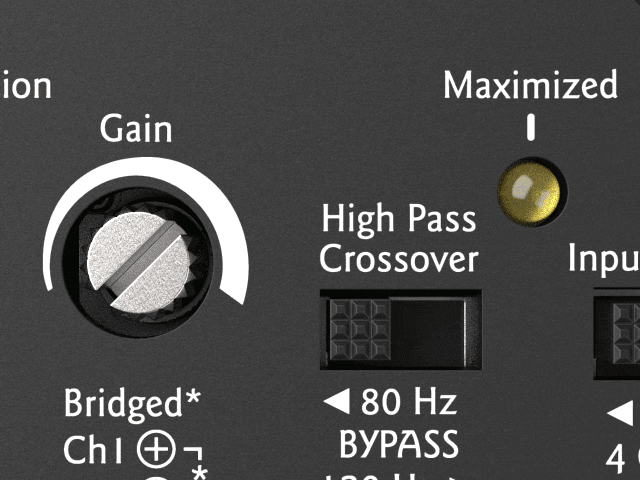

MAXIMIZED LED

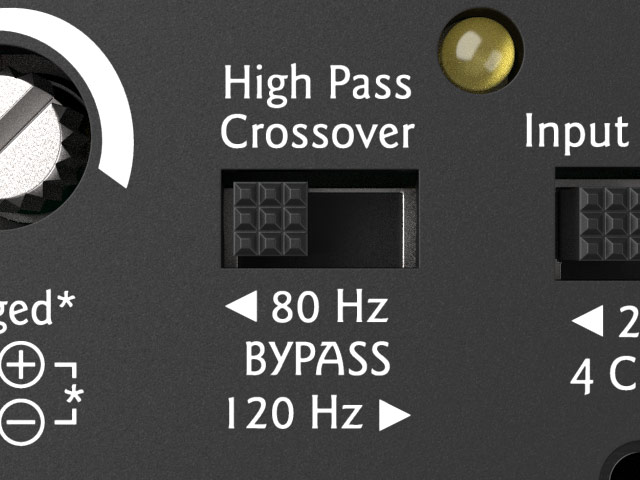

CROSSOVER SWITCH

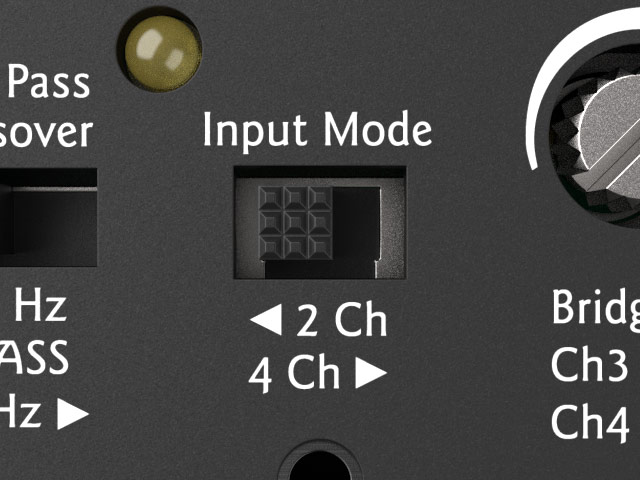

INPUT MODE SWITCH

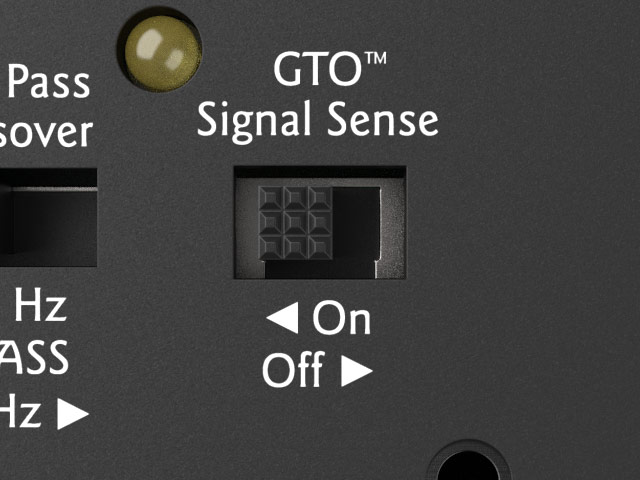

GTO™ SWITCH
specifications
inputs
- Preamp/Speaker Level Inputs: 4
- Input Voltage Low: 500 mV – 6 Vrms
- Input Voltage Range High: 1 Vrms – 12 Vrms
outputs
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 50 W x 4 RMS
- 2 Ω – 75 W x 4 RMS
- Bridged 4 Ω – 150 W RMS
performance
- Frequency Response: 26 Hz – 22 kHz
- Signal to Noise: 106 dBA, Ref 50 W @ 4 Ohm
- THD+N: < 0.2%
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- IP Rating: IPX6
general
- Recommended Fuse Rating: 30A
weights & dimensions
- Dimensions: 9.0″W x 3.875″D x 2.25″H
- Weight: 7.2 lbs. (3.3 kg)
in the box: ACX-300.4, Manual, Warranty
