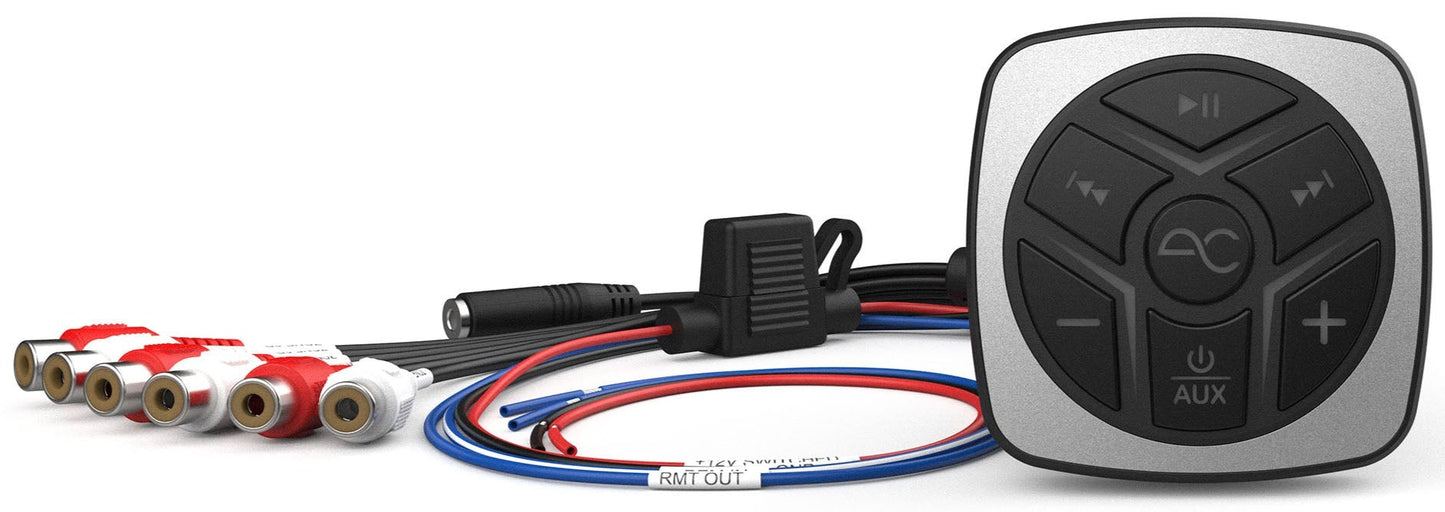

AudioControl ACX-BT3 3-Zone Bluetooth Receiver

AudioControl ACX-BT3 3-Zone Bluetooth Receiver

$199.99
$219.99 $199.99
Sale Sold out
Shipping calculated at checkout.

The ACX-BT3 is an all-weather Bluetooth® receiver and 3-zone controller designed for the rigors of marine and powersports applications.

Beyond an ordinary Bluetooth® receiver, the ACX-BT3 features three stereo RCA outputs and is a zone controller, providing quick access to volume control over 3 separate zones at the touch of a button. With the added flexibility of an auxiliary input, the ACX-BT3 is the perfect solution as a primary or secondary source for any audio system. aptX™ HD support coupled with robust 4 Vrms outputs provides the best possible audio quality.

Integrated mounting holes allow for easy custom installation to a dashboard, or other flat panel in a car, side-by-side, boat, or vehicle of your choice. And the all-weather ACX-BT3 is IPX6 rated against splashes, wind and spray, ensuring your music will play on wherever your next adventure takes you.

features

  • High Definition Low-Latency Audio Streaming
  • aptXTM HD Support
  • 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
  • IPX6 rated enclosure
  • Built in fuse

IN THE ZONE

With a simple tap of a button, the button LEDs change color to indicate which zone you are controlling

MAIN SCREEN

AUX INPUT

ZONE 1

ZONE 2

ZONE 3

specifications

bluetooth

  • Version: 5.1
  • aptX HD Compatible

output

  • Preamp Outputs: 3 (6 channels)

  • Maximum Output Level: 4 Vrms

performance

  • Signal to Noise Ratio: 95 dB
  • Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
  • Operating Range: 10+ meters (depending on environment)

general

  • Current Draw: 100 mA
  • Fuse Rating: 2 A

weights & dimensions

  • Dimensions (enclosure): 2.51″L x 2.51″L x 3.17″D
  • Weight: 0.43 lbs. (194 g)

in the box: ACX-BT3, Mounting Screws, Warranty

downloads

full line catalog

literature

quick start guide
