AudioControl ACX-650.5 5-Channel Amplifer

AudioControl ACX-650.5 5-Channel Amplifer

$469.99
$499.99 $469.99
Sale Sold out
Shipping calculated at checkout.

all weather 5 channel amplifier

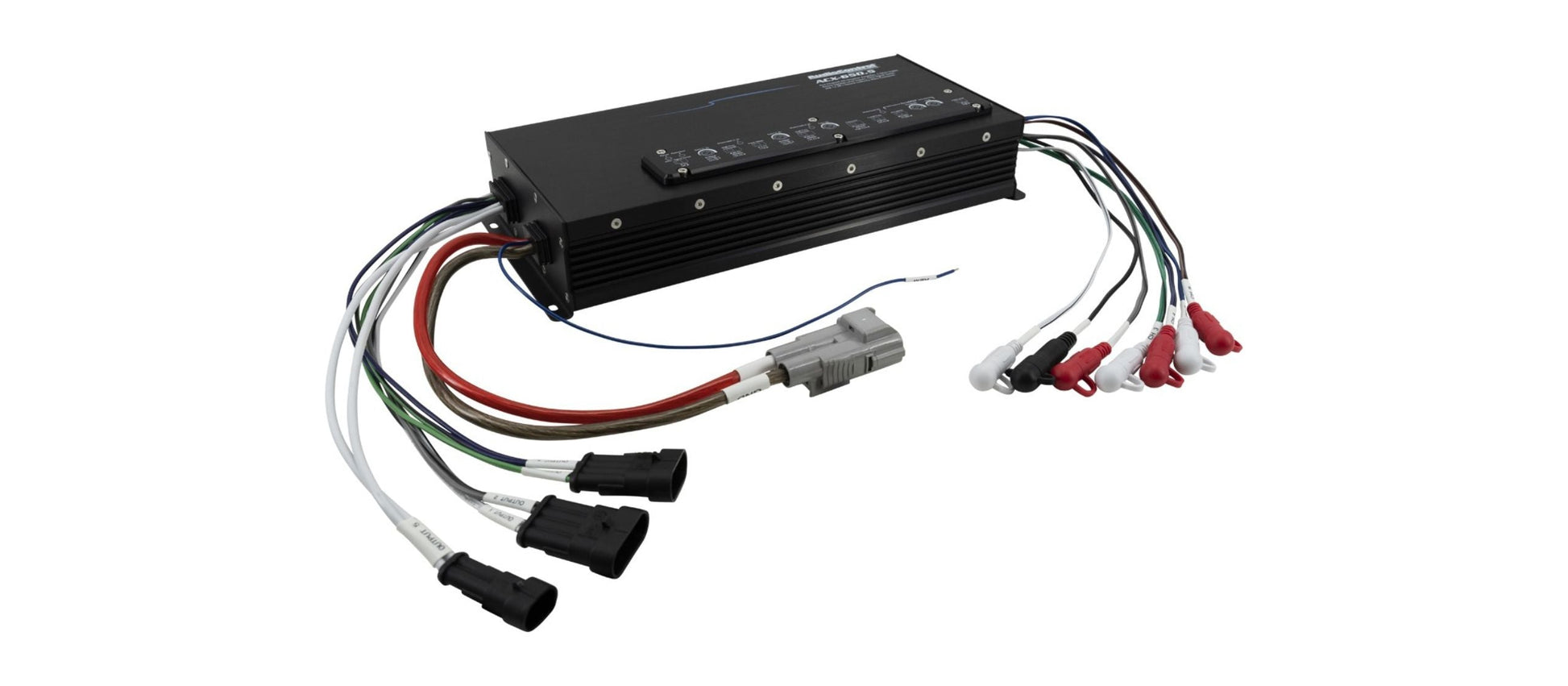

AudioControl’s ACX-650.5 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-650.5 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-650.5 all-weather amplifier the perfect solution for your next adventure.

features

  • 4 x 50 Watts @ 4 Ohms, 1 x 200 Watts @ 4 Ohms
  • 4 x 75 Watts @ 2 Ohms, 1 x 350 Watts @ 2 Ohms
  • 2 x 150 Watts @ 4 Ohms, Bridged Mono
  • IPX6 Rated
  • AccuBASS® bass management
  • GTOTM Signal Sense
  • High and low input modes
  • Linkwitz-Riley Crossover
  • Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

specifications

inputs

  • Preamp/Speaker Level Inputs: 6
  • Input Voltage Low: 500 mV – 6 Vrms
  • Input Voltage Range High: 1 Vrms – 12 Vrms

outputs

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 50 W x 4 + 200 W x 1
    • 2 Ω – 75 W x 4 + 350 W x 1
    • Bridged 4 Ω – 150 W x 2

performance

  • Frequency Response: 26 Hz – 22 kHz
  • Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
  • THD+N: < 0.05%
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  • IP Rating: IPX6

general

  • Recommended Fuse Rating: 30A

weights & dimensions

  • Dimensions: 11.97″W x 5.31″D x 2.36″H
  • Weight: 5.8 lbs. (2.63 kg)

in the box: ACX-650.5, Manual, Warranty
